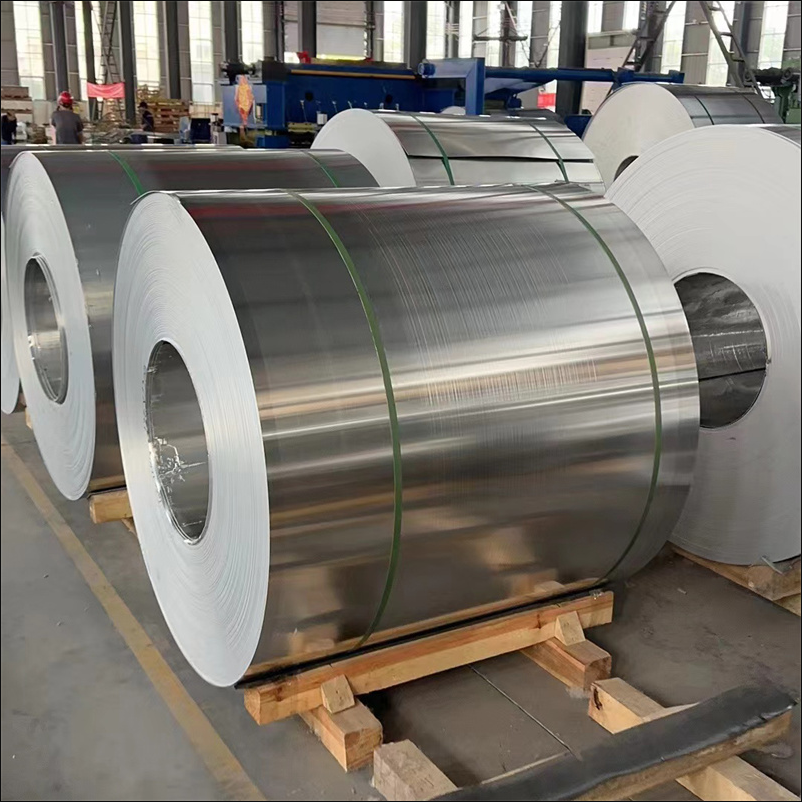

1060 Super Flat Aluminum Foil for 5G Base Station Heat Sinks

Material Properties, Engineering Solutions, Global Applications & Future Trends

Introduction: Why Thermal Management Is Critical in 5G Base Stations

With the rapid deployment of 5G networks worldwide, base stations are operating at significantly higher power densities than previous generations. Massive MIMO antennas, high-frequency signal transmission, and compact equipment layouts generate substantial heat during continuous operation.

Effective thermal management has therefore become a critical factor in ensuring stable performance, long service life, and low maintenance costs of 5G base stations. Among various heat dissipation materials, 1060 super flat aluminum foil has emerged as a preferred solution for modern 5G heat sink systems due to its high thermal conductivity, excellent flatness, and cost efficiency.

---

What Is 1060 Super Flat Aluminum Foil?

Chemical Composition and Basic Characteristics

1060 aluminum foil belongs to the 1xxx series aluminum alloys, containing at least 99.6% pure aluminum. This high purity provides:

• Excellent thermal conductivity

• Outstanding ductility and formability

• Low density and lightweight performance

These characteristics make 1060 aluminum especially suitable for heat transfer and thermal spreading applications.

What “Super Flat” Means in Heat Sink Applications

“Super flat” aluminum foil refers to aluminum foil with strict flatness control and minimal surface waviness. In 5G heat sink applications, superior flatness is critical because:

• It reduces contact thermal resistance

• It improves interface efficiency between heat sources and heat sinks

• It ensures uniform heat distribution across large surfaces

Compared with standard aluminum foil, super flat 1060 aluminum foil significantly enhances real-world thermal performance.

---

Manufacturing Process Behind Super Flat 1060 Aluminum Foil

Producing high-quality super flat aluminum foil requires precise control throughout the manufacturing process.

Raw Material Selection and Melting Control

High-purity aluminum ingots are selected and melted under controlled conditions to ensure chemical consistency and thermal stability.

Precision Rolling and Thickness Control

Advanced rolling technology enables tight thickness tolerances and uniform mechanical properties, which are essential for heat sink applications.

Annealing and Stress Relief

Carefully controlled annealing removes internal stresses, improves flatness, and enhances ductility.

Surface Treatment Options

Depending on application requirements, 1060 aluminum foil can be supplied with:

• Bare surface

• Coated surface

• Anodized surface

Final Inspection and Quality Control

Each batch undergoes inspection for flatness, surface roughness, thickness accuracy, and thermal performance.

---

Key Thermal and Mechanical Properties for 5G Heat Sink Design

High Thermal Conductivity

1060 aluminum offers excellent heat transfer efficiency, enabling rapid dissipation of heat from critical electronic components.

Excellent Formability

Its superior ductility allows complex heat sink designs, including ultra-thin and multi-layer structures.

Lightweight Advantage

Compared with copper heat sinks, aluminum foil solutions significantly reduce overall equipment weight, making installation and maintenance easier.

Corrosion Resistance

Proper surface treatments ensure long-term reliability in outdoor and harsh environmental conditions common to 5G base stations.

---

Engineering Challenges in 5G Base Station Heat Sinks — and How 1060 Aluminum Foil Solves Them

High Power Density and Local Hot Spots

5G equipment generates concentrated heat in limited areas. Super flat 1060 aluminum foil improves thermal contact and reduces localized overheating.

Limited Installation Space

Compact 5G designs require thin and efficient heat dissipation materials. Aluminum foil heat sinks provide high performance without increasing volume.

Long-Term Reliability

1060 aluminum foil offers stable thermal performance over extended operation periods, minimizing thermal fatigue and material degradation.

---

Global Applications of 1060 Super Flat Aluminum Foil in 5G Base Stations

RRU and Power Amplifier Cooling

Efficient heat spreading protects high-power RF components and improves signal stability.

Baseband Unit (BBU) Thermal Management

Aluminum foil heat sinks help maintain optimal operating temperatures for processing units.

Outdoor Macro Base Stations

Lightweight and corrosion-resistant aluminum foil solutions are ideal for large-scale outdoor installations.

Small Cells and Distributed Antenna Systems (DAS)

Ultra-thin heat sink structures meet the compact design requirements of dense urban networks.

---

Why 1060 Super Flat Aluminum Foil Outperforms Other Heat Sink Materials

1060 vs Other Aluminum Alloys (3003, 5052)

While stronger alloys offer higher mechanical strength, 1060 aluminum provides superior thermal conductivity, making it more effective for heat dissipation.

1060 Aluminum vs Copper Heat Sinks

Copper has higher thermal conductivity but is heavier and more expensive. 1060 aluminum foil delivers an optimal balance of performance, weight, and cost for large-scale 5G deployment.

Performance-to-Cost Advantage

For mass production and global rollout of 5G infrastructure, 1060 aluminum foil offers outstanding cost efficiency without compromising thermal performance.

---

International Standards and Quality Requirements for 5G Heat Sink Materials

High-quality 1060 aluminum foil for 5G heat sinks typically complies with international standards such as:

• ASTM standards

• EN standards

• JIS standards

Key quality parameters include thickness tolerance, flatness control, surface roughness, and thermal conductivity consistency.

---

Future Trends: Heat Sink Materials for Next-Generation 5G and 6G Networks

As communication technology evolves, heat sink materials must adapt to higher frequencies and power densities. Future trends include:

• Thinner and more integrated heat dissipation structures

• Hybrid heat sink designs combining aluminum foil with advanced materials

• Increased demand for ultra-flat, high-purity aluminum solutions

1060 super flat aluminum foil is expected to remain a core material in next-generation wireless infrastructure.

---

Why Choose Us as Your 1060 Super Flat Aluminum Foil Supplier?

• Custom thickness, width, and flatness options

• Stable large-volume production capacity

• Extensive export experience for international projects

• Technical support for heat sink design and application optimization

We work closely with global customers to deliver reliable aluminum foil solutions tailored to demanding 5G thermal management requirements.

FAQ

1：What is 1060 super flat aluminum foil used for in 5G base stations?

1060 super flat aluminum foil is used as a heat sink material in 5G base stations to efficiently dissipate heat from power amplifiers, RF modules, and baseband units.

Its high aluminum purity (≥99.6%) provides excellent thermal conductivity, while its superior flatness reduces contact thermal resistance, improving overall heat transfer efficiency in compact 5G equipment.

---

 2：Why is 1060 aluminum foil preferred over other alloys for 5G heat sinks?

1060 aluminum foil is preferred for 5G heat sinks because it offers a better balance of thermal conductivity, lightweight performance, and cost efficiency than higher-strength aluminum alloys.
Compared with copper, 1060 aluminum is significantly lighter and more economical, making it ideal for large-scale 5G base station deployment.

---

3：How does super flat aluminum foil improve heat sink performance?

Super flat aluminum foil improves heat sink performance by minimizing air gaps between the heat source and the heat sink surface.
This reduces thermal interface resistance, enables uniform heat spreading, and helps prevent localized hot spots in high-power 5G electronic components.

---

4：Is 1060 aluminum foil suitable for outdoor 5G base stations?

Yes, 1060 aluminum foil is suitable for outdoor 5G base stations when combined with proper surface treatments such as coating or anodizing.
These treatments enhance corrosion resistance and ensure long-term thermal stability under harsh environmental conditions.

---

5：What thickness of 1060 aluminum foil is commonly used for 5G heat sinks?

The commonly used thickness of 1060 aluminum foil for 5G heat sinks ranges from approximately 0.05 mm to 0.3 mm, depending on the heat load, structural design, and installation space of the base station equipment.

---

Conclusion

Effective thermal management is essential for reliable 5G base station operation. With its high purity, excellent thermal conductivity, superior flatness, and cost efficiency, 1060 super flat aluminum foil is an ideal material for modern heat sink applications.

As 5G networks continue to expand globally, this material will play an increasingly important role in ensuring performance, reliability, and sustainability.
