1060 VS 3003 VS 3104 Aluminum Alloys for Pipe Insulation Applications

When it comes to pipe insulation, selecting the right aluminum alloy is crucial. 1060, 3003, and 3104 aluminum alloys are widely used in this field, each with its own unique properties and advantages. This article aims to provide a comprehensive comparison of these three alloys to help you make an informed decision for your pipe insulation projects.

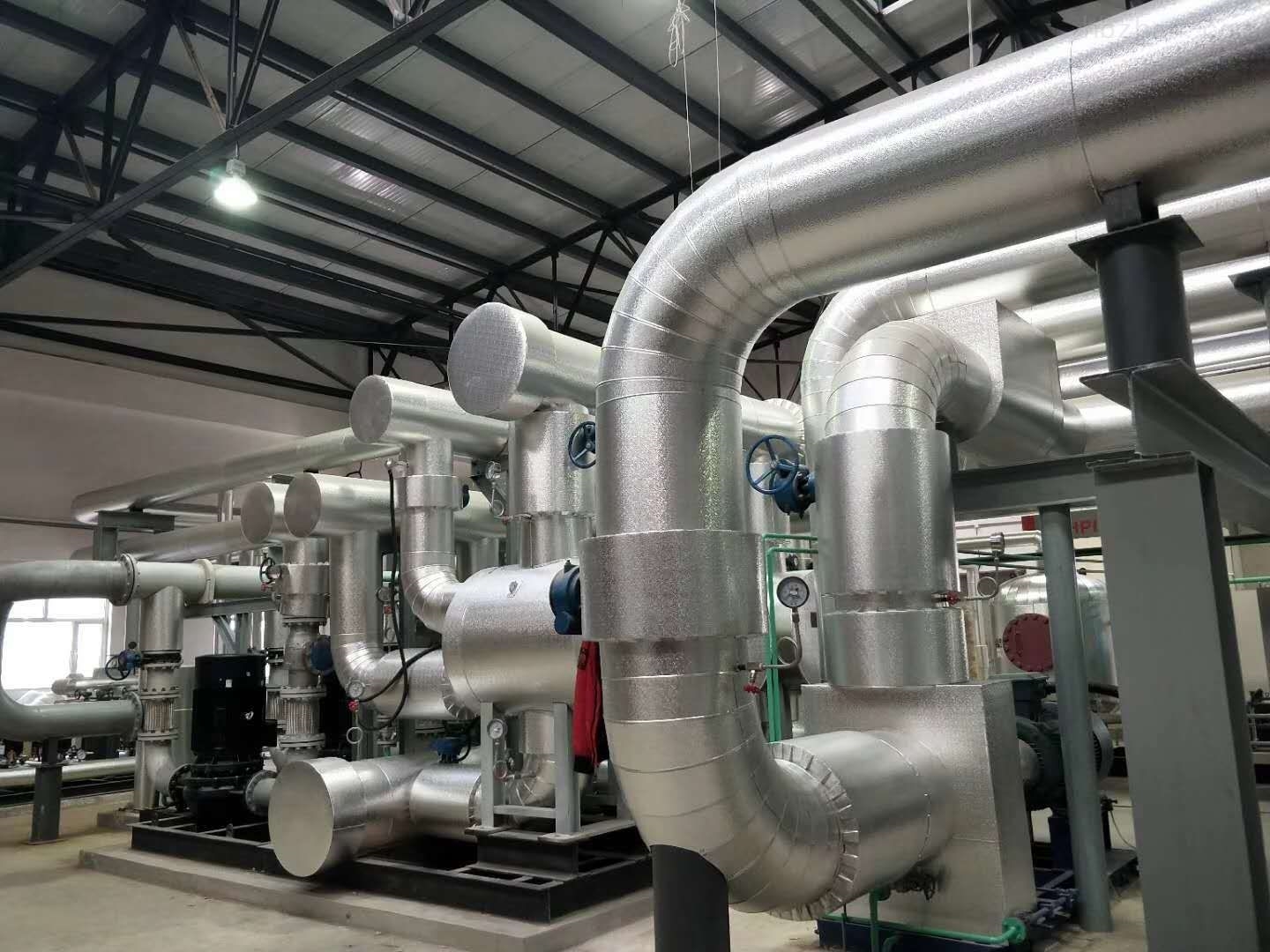

Aluminium for pipe insulation

1. Chemical Composition and Purity

1060 Aluminum Alloy

The 1060 aluminum alloy is renowned for its high purity, with an aluminum content of 99.6%. This high purity contributes to its excellent corrosion resistance, making it a suitable choice for pipe insulation in environments with moderate levels of moisture and chemical exposure.

3003 Aluminum Alloy

3003 aluminum alloy contains manganese as the primary alloying element, typically around 1.2% manganese. This addition enhances its strength compared to 1060, while still maintaining good corrosion resistance. The alloy strikes a balance between cost - effectiveness and performance, making it popular in various pipe insulation applications.

3104 Aluminum Alloy

3104 aluminum alloy is a high - strength alloy. It contains a combination of manganese and other elements, providing enhanced mechanical properties. The alloy’s complex chemical composition enables it to withstand more demanding conditions, such as high - stress environments and repeated thermal cycling.

2. Mechanical Properties

Strength and Hardness

1060 aluminum alloy has relatively low strength and hardness. This makes it easy to form into various shapes, such as aluminum coils for pipe insulation. However, it may not be suitable for applications where high mechanical strength is required.

3003 aluminum alloy offers improved strength and hardness compared to 1060. It can better withstand external forces, such as impacts during installation or handling. This makes it a more robust option for pipe insulation in areas with potential mechanical stress.

3104 aluminum alloy is significantly stronger and harder than both 1060 and 3003. It can endure heavy loads and repeated bending, making it ideal for large - scale industrial pipe insulation projects where durability is crucial.

3. Ductility and Formability

1060 aluminum alloy exhibits excellent ductility and formability. It can be easily bent, rolled, and shaped to fit different pipe sizes and configurations. This property simplifies the installation process, reducing labor costs.

3003 aluminum alloy also has good formability, although slightly less than 1060. It can still be fabricated into a variety of insulation components, such as sheets and tubes, with relative ease.

3104 aluminum alloy, despite its high strength, maintains reasonable ductility. This allows it to be formed into complex shapes while retaining its mechanical integrity, making it suitable for custom - designed pipe insulation systems.

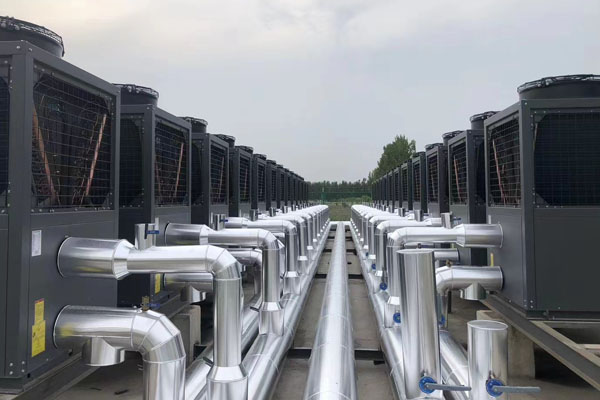

Aluminum 3104 VS 3003 VS 1060

4. Cost - Effectiveness

1060 aluminum alloy is generally the most cost - effective among the three. Its simple production process and high availability contribute to its lower cost. This makes it an attractive option for projects with budget constraints.

3003 aluminum alloy is slightly more expensive than 1060 due to its enhanced mechanical properties. However, its cost - effectiveness lies in its durability and performance, making it a popular choice for medium - to - high - end pipe insulation projects.

3104 aluminum alloy, with its superior strength and corrosion resistance, is relatively more expensive. However, in applications where long - term performance and reliability are critical, the higher initial investment may be offset by reduced maintenance and replacement costs over time.

5. Application

In recap, 1060 pure aluminum, with its soft texture, serves as an optimal choice for indoor pipe insulation projects or in regions blessed with favorable climatic conditions. Its cost - effectiveness and excellent formability make it a go - to option where high mechanical strength isn't a strict requirement.

On the other hand, 3003 and 3104 aluminum alloys outshine 1060 in terms of strength and corrosion resistance. This makes them the top picks for pipe insulation in challenging terrains like deserts and grasslands, where harsh weather conditions such as sandstorms, heavy rainfall, and extreme temperature fluctuations are common.
