Comprehensive Guide to Hairline Finished Prepainted Aluminum Sheet

1. Introduction to Hairline Finished Prepai+nted Aluminum Sheet

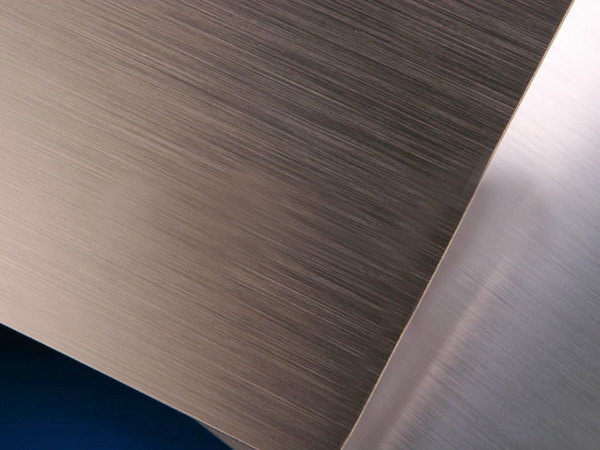

finished prepainted aluminum sheet, also known as brushed prepainted aluminum, is a versatile material combining aesthetic appeal, durability, and functional performance. The hairline finish—characterized by fine, parallel microgrooves—imparts a modern, sophisticated look, while the preapplied coating enhances corrosion resistance, color consistency, and weatherability. This article explores its technical details, applications, and market relevance, supported by tabulated data.

bb426aecbab15450421419e4bb6722cb

2. Technical Specifications and Data

2.1 Physical Properties

Property	Value Range	Test Standard
Thickness	0.3–3.0 mm	ASTM B209
Tensile Strength	110–270 MPa	ASTM E8
Elongation	2–12%	ASTM E8
Density	2.7 g/cm³	ASTM B311
Coefficient of Thermal Expansion	23.6 µm/m·K	ASTM E228

2.2 Coating Parameters

Coating Type	Thickness	Adhesion Test	Gloss Level (60°)
Polyester (PE)	20–25 µm	ASTM D3359	10–30 GU
Polyvinylidene Fluoride (PVDF)	25–35 µm	ASTM D3359	5–20 GU
Acrylic	15–20 µm	ASTM D3359	20–40 GU

2.3 Surface Finish Characteristics

Finish Type	Grit Size (Mesh)	Line Density (Lines/mm)	Ra Value (μm)
Hairline (Fine)	800–1200	15–20	0.8–1.2
Hairline (Medium)	400–600	10–15	1.2–1.8
Hairline (Coarse)	180–240	5–8	1.8–2.5

3. Manufacturing Process

3.1 Aluminum Substrate Preparation

Surface Cleaning: Degreasing and chemical etching to remove contaminants.
Annealing: Heat treatment to improve formability (e.g., 300–400°C for 1–2 hours).

3.2 Brushing Techniques

Mechanical Brushing:

Grit Selection: Determines line depth and texture (e.g., 180 grit for coarse finish).
Directional Control: Parallel brushing to create uniform hairlines.

Electropolishing (Optional): Enhances smoothness and corrosion resistance.

3.3 Coating Application

Pre-treatment: Chromate or zirconium conversion coating for adhesion.
Primer Layer: 5–10 µm for corrosion protection.
Topcoat: PE/PVDF/acrylic applied via roller coating (20–35 µm).
Curing: 180–240°C for 5–10 minutes to ensure hardness.

4. Applications Across Industries

4.1 Architecture and Construction

Facades: Durable cladding for high-rise buildings (e.g., Burj Khalifa’s exterior).
Roofing: Lightweight and weather-resistant (e.g., Sydney Opera House’s roof panels).
Interior Design: Ceilings, wall panels, and elevator interiors.

Project Example	Location	Aluminum Type	Function
Apple Park	Cupertino, USA	PVDF-coated hairline	Curved exterior panels
Louvre Abu Dhabi	Abu Dhabi	PE-coated hairline	Sunlight-filtering dome

4.2 Automotive Design

Exterior Trim: Window frames, grille surrounds, and door handles.
Interior Components: Dashboard accents, gear knobs, and door panels.

Vehicle Model	Component	Finish Specification
Mercedes-Benz S-Class	Door handles	Fine hairline PVDF
Tesla Model Y	Center console	Medium hairline PE

4.3 Consumer Electronics

Device Enclosures: Laptops (e.g., MacBook Pro), smartphones, and tablets.
Heat Dissipation: High thermal conductivity for electronics cooling.

Product Example	Manufacturer	Aluminum Grade
iPhone 15 Pro Max	Apple	6061-T6 hairline
Samsung Galaxy Z Fold	Samsung	7075-T6 hairline

4.4 Furniture and Interior Decoration

Tabletops and Cabinets: Water-resistant and scratch-resistant surfaces.
Lighting Fixtures: Reflective properties for enhanced illumination.

5. Advantages Over Traditional Materials

Corrosion Resistance: PVDF coatings withstand UV radiation and salt exposure.
Design Flexibility: Customizable colors and finishes (e.g., RAL 9006 metallic silver).
Cost-Effectiveness: Reduced maintenance compared to stainless steel.
Sustainability: Recyclable with a 95% recycling efficiency rate.

6. Market Trends and Future Outlook

Growth Drivers: Increasing demand for eco-friendly materials and smart building technologies.
Regional Demand: Asia-Pacific dominates production (58% market share in 2024).
Innovation: Development of antimicrobial coatings for healthcare applications.

7. Case Studies

Case 1: A residential tower in Singapore used PVDF-coated hairline aluminum for hurricane-resistant facades.
Case 2: A luxury yacht manufacturer integrated hairline aluminum into interior bulkheads for a modern aesthetic.

8. Conclusion

Hairline finished prepainted aluminum sheet offers a blend of aesthetics, durability, and sustainability, making it a preferred choice across industries. Its technical versatility and evolving applications position it as a key material in future infrastructure and design.
