Lacquered Aluminum Foil for Food Packaging: Compliance with FDA and EU 10/2011

Flexible food packaging lines expose materials to rigorous thermal, chemical, and mechanical testing regimes. Food preservation envelopes must withstand deep-freezing, high-temperature retort sterilization, and continuous exposure to acidic, salty, or fatty food elements without physical or chemical breakdown.

Selecting an optimized metal substrate and an inert organic barrier finish is crucial to preserving product freshness and ensuring food safety. Lacquered aluminum foil solutions satisfy these strict operational requirements, providing the absolute barrier performance, chemical inertness, and certified FDA compliance needed to support global food processing, lidding, and container manufacturing pipelines.

The High-Purity Packaging Core

The functional integrity of a flexible food pack or container relies on a highly ductile, zero-defect metal core. If the underlying foil alloy contains micro-structural variations or structural defects, its shelf-life performance drops sharply.

Metallurgical Alloy Matrix

Unlike structural cladding plates or heavy architectural sheets, flexible packaging matrices utilize high-purity, thin-gauge aluminum series configurations optimized for high elongation and uniform barrier defense.

• 8011 Alloys (e.g., 8011): The international benchmarks for food-grade flexible and semi-rigid structures. The addition of trace elements like iron and silicon yields a refined grain matrix that exhibits excellent tensile properties, puncture resistance, and low pinhole density at ultra-thin gauges.

• Mechanical Tempering (O / H18 / H22): Fully annealed soft tempers (O-temper) offer maximum dead-fold characteristics and maximum ductility for deep-drawn containers and formable blister applications, while partially hard tempers provide structural rigidity for rigid container walls.

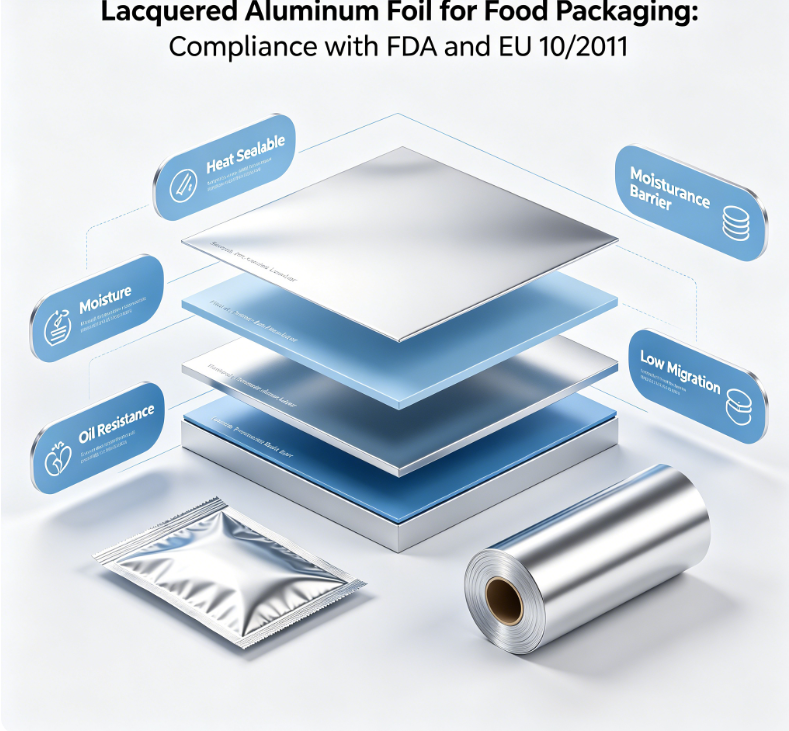

The Multilayer Food-Safe Protective Lacquer Architecture

To completely isolate the aluminum substrate from acidic or alkaline food components while locking out oxygen and moisture, advanced automated continuous roller-coating lines apply ultra-thin, cross-linked protective systems:

Head-to-Head Comparison: Standard Packaging Foils vs. Certified Lacquered Foil

This technical engineering comparative matrix illustrates the structural differences between bare or inadequately treated packaging foils and certified food-grade lacquered foil:

Core Applications in High-Exposure Food and Sterile Sectors

The functional performance of certified lacquered packaging foil is optimized for the specific environmental and regulatory demands of distinct food and health classifications:

Retort Pouches, Ready-Meal Containers, and Sterilized Food Cans

High-pressure steam sterilization demands robust thermal stability. Utilizing high-purity 8011 or 3003 series aluminum substrates coated with retort-stable epoxy-phenolic lacquers provides the burst strength and thermal resistance required to produce durable ready-meal trays, can ends, and flexible pouches.

View More >>

Dairy Lidding, Yogurt Seals, and Infantile Nutrition Portions

Dairy products contain lactic acids and fats that require highly inert contact surfaces. Coated 8011 and 1235 foils provide excellent dead-fold characteristics and clean peeling properties for yogurt lids and milk powder seals, safeguarding sensitive nutritional products from contamination.

View More >>

Pharmaceutical Blister Trays and Long-Shelf-Life Emergency Rations

Medical and long-term storage products require absolute isolation from moisture and light. Combining high-purity foil cores with certified heat-sealable protective lacquers provides an airtight barrier that protects blister trays and emergency rations from oxidation over extended storage periods.

View More >>

Corporate Spotlight

High-Performance Protective Lacquers as Migration Barriers

For packaging structures exposed to high pasteurization or retort processing temperatures, regulatory protocols require thermal-set protective systems:

Advanced Non-Incentive (BPA-NI) and Epoxies: Coating systems utilize advanced bisphenol-A non-intent (BPA-NI) epoxy-phenolic or modified polyester configurations. These polymers form an inert network that isolates organic food acids, complex fats, and natural sulfur compounds from the base metal.

Two-Stage Dual Coating Line Extensions: For severe applications—such as highly acidic tomato products or salty fish packaging—lines apply a double-coat system. This process applies a protective backing lacquer followed by a dedicated functional seal layer, protecting the metal core and extending product shelf-life past 36 months.

Viscoelastic Fatigue and Prevention of Coating Peeling

During automated filling, gas generation, or thermal sterilization, flexible packaging pouches experience inflation and deflation cycles that cause viscoelastic fatigue at the interface.

Micro-Fissure Propagation Mechanics

Thermal processing forces moisture and internal gases to expand, putting physical stress on the structural seams and corners of the packaging container.

Capillary Moisture Pathing: If a lacquer layer contains micro-voids or low cross-linking density, thermal and pressure stresses can generate micro-fissures. Moisture can enter these microscopic openings, and subsequent retort or freezing cycles can expand these fissures into macro-cracks.

Delamination at the Interface: When a micro-crack extends through the lacquer to the foil surface, contents can migrate along the boundary layer. This can lead to sub-surface corrosion and eventual coating peeling or delamination.

The Mechanism of Acidic Pitting

Unprotected aluminum surfaces develop an aluminum oxide layer that dissolves in highly acidic (pH less than 4) or strongly alkaline environments. Once this oxide layer breaks down, chloride ions from food salts cause pitting corrosion. This reaction degrades the foil and can alter product flavor profiles.

Achieving Total Migration Compliance

To meet the strict migration limits of EU 10/2011 and maintain FDA compliance, food-safe lacquers must undergo extraction testing. Cross-linked resin networks limit Global Migration Limits (GML) and Specific Migration Limits (SML) to well below regulated thresholds, ensuring no harmful chemical components transfer into the food product.

Global Quality Auditing and Supply Chain Security

Operating under certified ISO 9001 and ISO 14001 global management frameworks, Dingang Metal ensures that competitive pricing is always paired with verified compliance. As an audited supplier exporting to over 50 countries, the company maintains strict compliance with current international technical and environmental safety standards—ensuring smooth logistics and customs clearances across North American, European, and Middle Eastern entry ports.

FAQ

Q1:: How does lacquered aluminum foil achieve certified FDA compliance for direct food contact?

A:FDA compliance requires the organic lacquer layer to be formulated exclusively from raw materials listed under 21 CFR § 175.300. Cured films must pass strict migration extraction tests using food simulators to verify that no hazardous substances transfer into the food contents.

Q2: What is the risk of utilizing non-compliant or bare aluminum foil with highly acidic food products?

A: Bare aluminum can dissolve when exposed to foods with a pH below 4. This reaction causes pitting corrosion that can breach the packaging envelope, generate hydrogen gas, and compromise food safety by introducing excessive metal ions into the product.

Q3:Can lacquered foil coatings withstand high-frequency induction sealing or direct heat sealing?

A: Yes. Dingang applies specialized thermoplastic or modified copolymer heat-seal lacquers. These coatings are engineered to remain stable during storage but melt and bond cleanly to plastic substrates (like PP, PS, or PE) under heat-sealing parameters.

Q4:What is "oil-canning," and how does Dingang eliminate it during the manufacturing stage?

A:Oil-canning is a wavy surface distortion caused by uneven internal stresses left over from raw milling. Dingang Metal completely eliminates this defect by routing all materials through advanced mechanical tension levelers. These systems balance internal stresses across the entire metal web to ensure excellent panel flatness (<0.5 mm/m deviation), preventing material jams or visual waves on high-speed automated roll-forming and cassette-forming lines.

Q5:Are these food-contact packaging lacquers compliant with 2026 global PFAS-free mandates?

A:Yes, all 2026 production batches are certified PFAS-free. The entire coating line uses advanced aqueous-based, fluorine-free polymer systems that meet modern environmental health screening limits while maintaining premium barrier performance.

Q6: What is a BPA-NI lacquer, and why is it preferred for modern food lidding applications?

A: BPA-NI stands for Bisphenol-A Non-Intent, meaning BPA is not used as an intentional ingredient in the formulation. These coatings are preferred globally to comply with modern European and North American food-safety initiatives restricting BPA in direct food-contact packaging.

Conclusion

Sourcing materials for high-exposure food packaging requires matching alloy choice with lacquer performance. While standard foils suit simple dry goods, a certified lacquered aluminum foil utilizing a high-purity 8011/1000 series core and a cross-linked protective lacquer delivers the chemical resistance and thermal durability needed for demanding retort and acidic food applications. Partnering with an integrated producer like Changzhou Dingang Metal Material Co., Ltd. ensures your project is backed by verified material quality and compliance from master roll to finish panel.
