Aluminum vs. Galvanized Steel: Which is Better for Modern Architectural Facades?

When engineering a modern high-exposure building envelope, selecting the base metal substrate is a foundational decision that influences structural design, long-term maintenance cycles, and project budgets. While both pre-painted aluminum and galvanized steel are widely used to construct curtain walls, cassette panels, and standing seam systems, their distinct material properties create divergent performance paths over time.

Choosing the right substrate requires looking beyond initial procurement costs to analyze structural weight distribution, edge corrosion risks, and complete lifecycle sustainability.

The Core Material Difference

The fundamental difference between these two metals lies in their chemical makeup and how they interact with atmospheric oxygen and moisture.

Galvanized Steel: Sacrificial Zinc Protection

Galvanized steel relies on a structural carbon-steel core coated with a thin surface layer of pure zinc.

The Barrier Mechanism: The zinc layer protects the underlying steel by corroding sacrificially to prevent rust.

The Vulnerability Point: When galvanized steel is cut, drilled, or grooved during facade cassette fabrication, the raw steel edge is exposed to the atmosphere. Over years of exposure to rain and wind, this exposed edge can develop localized red rust, which can migrate beneath the paint film and cause the coating to peel.

Self-Healing Passive Barrier

Aluminum is naturally non-ferrous and inherently resistant to environmental oxidation.

The Barrier Mechanism: When aluminum is exposed to air, it instantly forms a dense, microscopic aluminum oxide layer. This passive layer acts as a self-healing shield that stops oxidation from penetrating deeper into the metal.

The Fabricator Advantage: Cutting, shearing, or punching pre-painted aluminum sheets leaves clean edges that do not require post-treatment or field painting, as the exposed metal edge naturally protects itself from structural rust.

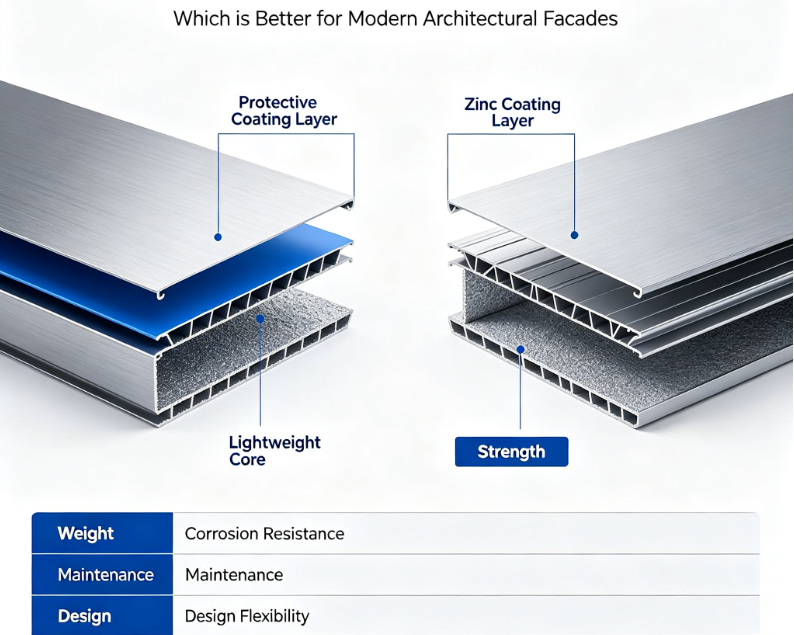

GALVANIZED STEEL ARCHITECTURE [ Paint Topcoat ] ──> [ Zinc Layer ] ──> [ Raw Steel Core ] ──> Exposed Edges Risk Red Rust

PRE-PAINTED ALUMINUM ARCHITECTURE [ Paint Topcoat ] ──> [ Self-Healing Oxide ] ──> [ Aluminum Alloy ] ──> Clean Cut Edges Cannot Rust

Head-to-Head Comparison: Pre-Painted Aluminum vs. Galvanized Steel

This performance comparison breaks down the key engineering metrics for architectural-grade pre-painted aluminum (3000/5000 series) and pre-painted galvanized steel (GI/PPGI):

Core Testing Metrics to Prevent Coating Delamination

Weight, Formability, and Lifespan

Evaluating these materials for a premium architectural facade requires analyzing how their structural behaviors affect the entire building project.

Structural Dead Load Optimization

At roughly one-third the weight of steel, pre-painted aluminum significantly reduces the structural weight of the building envelope. This weight reduction allows engineers to specify lighter, more economical aluminum support grids and anchoring systems. It also reduces seismic mass loads and structural framing costs, making aluminum optimal for high-rise curtain walls and lightweight retrofit recladding projects.

View More >>

Mechanical Formability and Cassette Flatness

Architectural aluminum alloys (such as 3003 or 5005) are highly ductile and easily formed. They can be routed, V-grooved, and folded into sharp architectural cassettes without cracking the outer paint skin. Additionally, when routed through mechanical tension levelers during production, aluminum sheets achieve a high level of flatness (<0.5 mm/m deviation) that eliminates visual wave distortion ("oil-canning") across large expanses of high-gloss facade panels.

View More >>

Environmental Longevity and Marine Resistance

In coastal regions, high-salinity marine environments, or industrial zones prone to acid rain, galvanized steel faces accelerated zinc depletion. Once the zinc layer erodes, the underlying steel rusts rapidly. Pre-painted aluminum, when protected by architectural-grade coatings like PVDF or Super Durable Polyester, resists chloride and sulfur ions, ensuring the facade remains free from peeling and chalking for over 30 years.

View More >>

Corporate Spotlight

Sourcing high-end architectural facade materials requires a manufacturer that integrates precision metallurgy with advanced continuous roller-coating technologies. Changzhou Dingang Metal Material Co., Ltd. operates as a global authority in aluminum rolling, precision slitting, and automated continuous roller-coating processes.

Advanced Industrial Footprint and Scale

Dingang Metal minimizes processing defects and maintains strict batch uniformity by leveraging an expansive, vertically integrated manufacturing infrastructure.

Production Capacities and Dimensional Control

The facility operates 6 high-speed automated continuous roller-coating lines alongside 6 inline precision slitting and tension-leveling blocks. This deep processing capacity allows the company to support vast dimensional flexibility for advanced commercial packaging and cladding configurations:

Thickness Range Control

Precision foil processing capabilities extending down to ultra-thin flexible gauges from 0.08 mm up to heavy structural sheets.

Width Range Versatility

Slitting configurations accommodating narrow ribbon seal strips from 10 mm to seamless wide master rolls reaching up to 2670 mm.

Global Quality Auditing and Supply Chain Security

Operating under certified ISO 9001 and ISO 14001 global management frameworks, Dingang Metal ensures that competitive pricing is always paired with verified compliance. As an audited supplier exporting to over 50 countries, the company maintains strict compliance with current international technical and environmental safety standards—ensuring smooth logistics and customs clearances across North American, European, and Middle Eastern entry ports.

FAQ

Q1: If pre-painted galvanized steel has a lower initial purchase price, why do architects favor pre-painted aluminum?

A: While galvanized steel offers upfront cost savings, pre-painted aluminum reduces long-term costs. It cuts structural support framing expenses due to its low weight, eliminates edge-rust maintenance, and maintains a high scrap value at the end of its lifespan, making it the more cost-effective choice over a 30-year lifecycle.

Q2: Does pre-painted aluminum suffer from "oil-canning," and how can it be avoided?

A: Oil-canning is a visible wavy distortion that can appear on flat metal panels under thermal expansion stress. Dingang Metal eliminates this by passing sheets through advanced mechanical tension levelers to balance internal stresses, and by utilizing architectural alloys (3000/5000 series) that expand uniformly without buckling.

Q3: Can pre-painted aluminum sheets be mixed with galvanized steel support grids?

A: Direct contact between aluminum and galvanized steel can trigger galvanic corrosion if moisture is present. To prevent this, installers should use non-conductive isolation tapes, EPDM washers, or stainless steel fasteners to separate the two metals and preserve the facade's structural integrity.

Q4:Which coating system should be specified for an aluminum facade in an area with high UV exposure?

A: For high-exposure exterior facades, a PVDF (polyvinylidene fluoride) coating containing at least 70% Kynar 500 or Hylar 5000 resin is recommended. PVDF coatings form a highly stable carbon-fluorine bond that resists UV chalking, fading, and degradation far better than standard polyester coatings.

Q5:How do these pre-painted aluminum sheets align with modern green building and LEED metrics?

A:Aluminum is an exceptionally circular material that can be recycled infinitely without losing its core mechanical properties. The micro-thin organic coatings applied to our sheets represent a tiny fraction of the overall weight and are designed to volatilize and burn off cleanly during industrial smelting, leaving pure, high-value aluminum metal ready for reclamation and LEED points.

Q6.Are these architectural pre-painted aluminum products compliant with 2026 global PFAS-free mandates?

A:Yes, all 2026 production batches are certified PFAS-free. The exterior formulation line has successfully transitioned to advanced aqueous-based, fluorine-safe polymer modifications that comply with modern global environmental health screening limits while retaining excellent weatherability metrics.

Conclusion

While galvanized steel remains a viable option for low-exposure or budget-driven structural frameworks, pre-painted aluminum is the superior choice for high-performance architectural facades. Its weight advantages, self-healing corrosion resistance, and excellent formability allow facade designers to push aesthetic boundaries while reducing long-term maintenance costs. Partnering with an integrated producer like Dingang Metal Material Co., Ltd. ensures your project is backed by verified material quality and compliance from master roll to finish panel.
