How to Avoid Coating Peeling: Quality Standards for Pre-Painted Aluminum Sheets

In automated industrial manufacturing—whether processing heavy-gauge architectural cladding cladding or ultra-thin flexible packaging—the physical adhesion of an organic coating to a metal substrate is a critical failure point. When a coating peels, flakes, or delaminates during mechanical stamping, roll-forming, or field exposure, it leads to structural failures, costly material rejections, and severe damage to brand integrity.

Avoiding coating peeling requires a shift from superficial post-production inspection to strict, closed-loop control over the entire continuous roller-coating process. By implementing rigorous surface engineering and matching production parameters with global quality standards, manufacturers can guarantee permanent chemical bonding.

The Foundation of Adhesion

Coating quality begins long before the liquid resin is applied to the metal. If the raw aluminum sheet possesses surface contaminants or internal mechanical stresses, the subsequent paint layers will fail to bond securely.

Multi-Stage Surface Cleaning and Degreasing

Raw aluminum coils emerge from rolling mills coated in residual rolling oils, metallic micro-dust, and structural smut. Applying paint directly over these contaminants isolates the liquid resin from the metal matrix, causing immediate peeling during mechanical bending.

Alkaline Wash Zone: Continuous coating lines must route the metal through a high-pressure alkaline spray zone to emulsify and lift surface organic oils.

Demineralized Water Rinsing: Following cleaning, the sheets undergo multiple cascading rinses using deionized (DI) water (<20μS/cm conductivity) to completely eliminate surfactant residues.

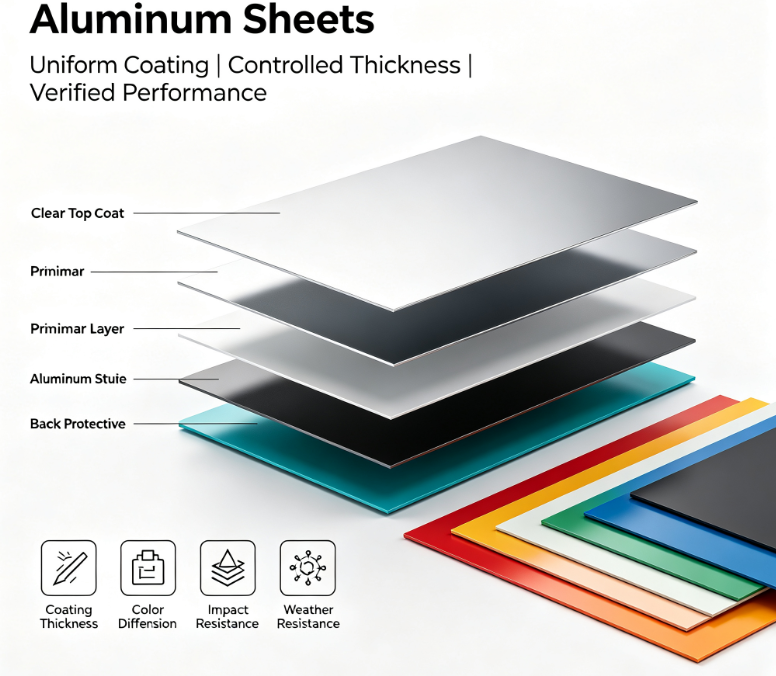

Chemical Conversion Pretreatment

To bridge the gap between an inorganic metal substrate and an organic polymer paint, the aluminum surface must undergo a chemical transformation. Advanced, ecologically compliant continuous lines deploy specialized pretreatments:

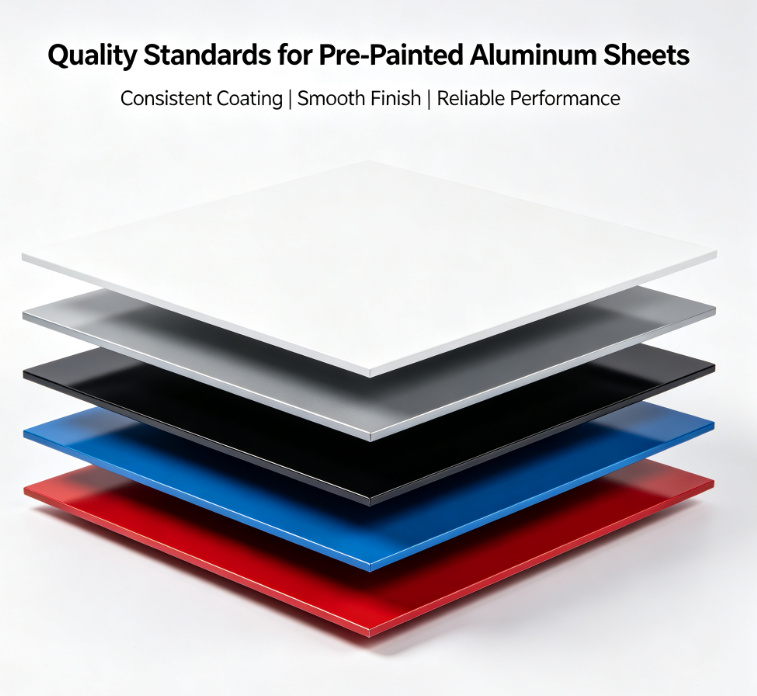

Quality Standards: Material Profiles and Adhesion Limits

To ensure high-yield processing without coating peeling, pre-painted aluminum sheets are engineered across distinct performance metrics to match specific operational demands:

Core Testing Metrics to Prevent Coating Delamination

To verify coating quality and ensure pre-painted aluminum sheets comply with international standards (such as ECCA, EN 13523, and ASTM), production batches must pass automated destructive and non-destructive quality tests.

The T-Bend Mechanical Flexibility Test

This test evaluates the coating’s ability to deform alongside the metal matrix without micro-fracturing or peeling away at stress lines.

Protocol: The pre-painted sheet is mechanically folded back over itself by 180° (designated as 0T). Successive folds add single-sheet thicknesses (1T, 2T, 3T).

Compliance Target: True engineering-grade pre-painted sheets achieve a ≤ 1\T rating without any visible paint cracking or tape-assisted delamination at the crease.

View More >>

The Cross-Hatch Adhesion Test (ASTM D3359)

This test evaluates structural grid adhesion under severe multi-directional shear stress.

Protocol: A precision multi-blade matrix cuts a grid of 100 squares through the coating down to the raw metal substrate. A standardized high-tack adhesive tape is applied firmly over the grid and pulled away rapidly at a 180° angle.

Compliance Target: Achieves a 5B classification—meaning the edges of the cuts remain smooth and not a single square of the coating is detached from the metal.

View More >>

Peak Metal Temperature (PMT) Curing Control

Even the best chemical formulations will peel if they are under-baked or over-baked. Continuous continuous lines utilize inline infrared sensors to monitor the precise Peak Metal Temperature (PMT) inside multi-zone curing ovens. This closed-loop thermal control ensures that the polymer chains cross-link completely, delivering excellent material flexibility and chemical resistance.

View More >>

Corporate Spotlight

Sourcing high-performance pre-painted sheets requires an asset-heavy manufacturer that integrates precision aluminum rolling with advanced continuous coating automation. Changzhou Dingang Metal Material Co., Ltd. operates as a global authority in aluminum rolling, precision slitting, and automated roller-coating technologies.

Advanced Industrial Footprint and Scale

Dingang Metal minimizes processing defects and maintains strict batch uniformity by leveraging an expansive, vertically integrated manufacturing infrastructure.

Production Capacities and Dimensional Control

The facility operates 6 high-speed automated continuous roller-coating lines alongside 6 inline precision slitting and tension-leveling blocks. This deep processing capacity allows the company to support vast dimensional flexibility for advanced commercial packaging and cladding configurations:

Thickness Range Control

Precision foil processing capabilities extending down to ultra-thin flexible gauges from 0.08 mm up to heavy structural sheets.

Width Range Versatility

Slitting configurations accommodating narrow ribbon seal strips from 10 mm to seamless wide master rolls reaching up to 2670 mm.

Global Quality Auditing and Supply Chain Security

Operating under certified ISO 9001 and ISO 14001 global management frameworks, Dingang Metal ensures that competitive pricing is always paired with verified compliance. As an audited supplier exporting to over 50 countries, the company maintains strict compliance with current international technical and environmental safety standards—ensuring smooth logistics and customs clearances across North American, European, and Middle Eastern entry ports.

FAQ

Q1: What are the primary root causes of coating peeling on pre-painted aluminum sheets?

A: Coating peeling is driven by three main processing failures: inadequate removal of rolling oils during surface cleaning, incomplete chemical conversion pretreatment, and improper baking temperatures (under-curing) within the curing ovens.

Q2: How does the choice of resin coating matrix (PVDF vs. PE) affect peeling risks?

A: Both resins provide excellent adhesion when cured correctly. However, PVDF coatings feature an exceptionally strong carbon-fluorine molecular bond that offers greater long-term resistance to UV degradation and weathering, preventing environmental embrittlement and peeling over 25+ years. PE coatings provide excellent formability and are optimal for cost-effective indoor layouts and signage applications.

Q3: Can your pre-painted sheets withstand heavy mechanical stamping and deep-drawing without flaking?

A: Yes. By deploying premium highly elastic primer systems and verifying batch flexibility with strict T-bend testing, our pre-painted metals can be stamped, deep-drawn, and roll-formed without any resin flaking or edge separation.

Q4: What is "oil-canning," and how does Dingang Metal eliminate it during the manufacturing stage?

A: Oil-canning is a wavy surface distortion caused by uneven internal stresses left over from raw milling. Dingang Metal completely eliminates this defect by routing all materials through advanced mechanical tension levelers. These systems balance internal stresses across the entire metal web to ensure excellent panel flatness (<0.5 mm/m deviation), preventing material jams or visual waves on high-speed automated roll-forming and lamination lines.

Q5:How do these coated commercial aluminum sheets align with modern corporate sustainability metrics?

A:Aluminum is an exceptionally circular material that can be recycled infinitely without losing its core mechanical properties. The micro-thin organic coatings applied to our sheets represent a tiny fraction of the overall weight and are designed to volatilize and burn off cleanly during industrial smelting, leaving pure, high-value aluminum metal ready for reclamation.

Q6.What are the primary root causes of coating peeling on pre-painted aluminum sheets?

A:Coating peeling is driven by three main processing failures: inadequate removal of rolling oils during surface cleaning, incomplete chemical conversion pretreatment, and improper baking temperatures (under-curing) within the curing ovens.

Conclusion

Sourcing pre-painted aluminum sheets with reliable coating quality requires checking every stage of production, from raw milling to final oven curing. By specifying precise adhesion metrics, ensuring strict surface cleaning standards, and partnering with an asset-heavy manufacturer like Dingang Metal Material Co., Ltd., industrial engineering and packaging teams protect their supply chains and deliver consistent, peel-free quality to the fabrication line.
