How Wear-Resistant Lacquer Coatings Protect Aluminum Machinery Guards from Chemical Exposure

Industrial manufacturing environments place heavy demands on machinery safety guards, protective enclosures, and equipment cladding. Machine guards are continuously subjected to aggressive cutting fluids, synthetic coolants, harsh alkaline washdowns, and abrasive debris or metal chips flying off high-speed processing lines.

Applying wear-resistant lacquer coatings to aluminum machinery guards creates a high-durability barrier. This dual-action protection combines the lightweight structural efficiency of aluminum with specialized clear or pigmented lacquer chemistry, preventing surface oxidation, chemical etching, and physical wear in demanding factory environments.

Corrosion Mechanisms in Unprotected Machinery Guards

In CNC machining centers, automated assembly lines, and chemical processing plants, aluminum guards face constant exposure to hostile liquids:

Synthetic Coolants & Cutting Emulsions: Contain sulfurized or chlorinated extreme-pressure (EP) additives that attack raw aluminum, causing pitting and surface discoloration.

Alkaline & Acidic Cleaning Solvents: Regular factory washdowns with heavy-duty degreasers can break down the natural passivation layer of raw aluminum, causing severe surface corrosion.

Industrial Oils & Hydraulic Fluids: Continuous contact leads to dark staining and sticky residue accumulation that attracts abrasive grit.

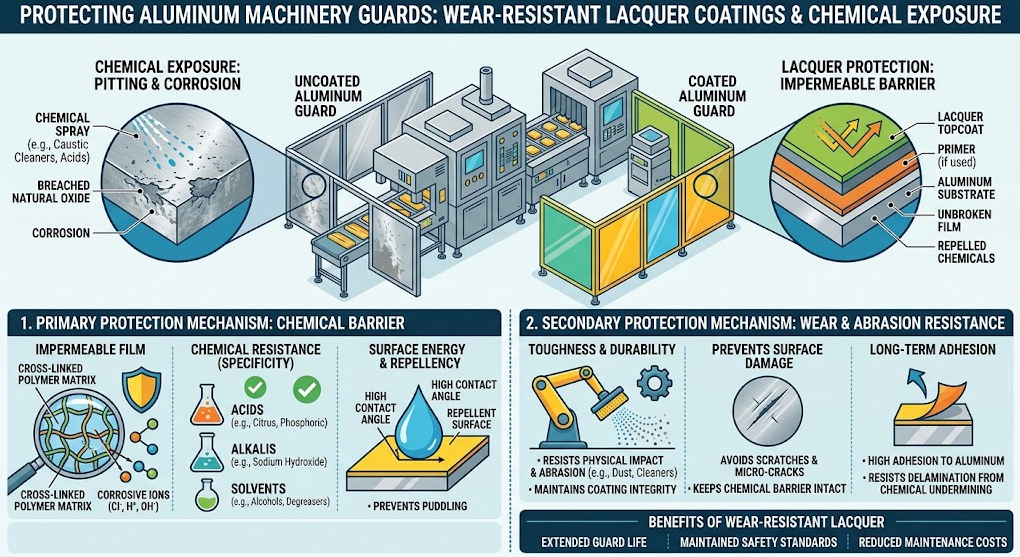

The Mechanism of Lacquer Barrier Protection

Wear-resistant clear and pigmented lacquers form a non-porous, highly crosslinked polymer barrier over the aluminum sheet.

The thermosetting lacquer matrix prevents liquid chemicals from penetrating down to the metal substrate, while its high crosslink density resists softening or blistering when exposed to aggressive solvents.

Technical Specification Matrix: Wear-Resistant Lacquer Coatings for Guards

The table below outlines technical parameters for wear-resistant lacquer-coated aluminum used in industrial machinery guards:

Performance Advantages in Chemical Exposure & High-Swarf Machinery Applications

Immunity to Extreme-Pressure Synthetic Coolants and Solvents

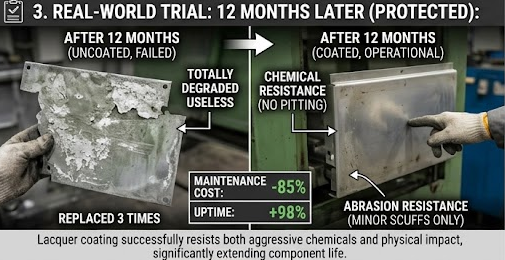

Unlike conventional spray-painted guards that blister or soften when soaked in industrial cutting emulsions, crosslinked lacquer coatings form an impermeable barrier:

Zero Polymer Swelling: Prevents chemical absorption from chlorinated or sulfurized cutting fluids, preserving coating structural integrity.

Washdown Resistance: Withstands daily automated spraying with concentrated alkaline degreasers (pH 10 - 12) without micro-fissuring or loss of gloss.

View More >>

High-Hardness Defense Against Flying Swarf and Abrasion

High-speed milling and lathe operations eject sharp metal chips and abrasive debris against internal enclosure walls:

Micro-Scratch Resistance (≥3H): Ceramic-reinforced topcoats absorb localized mechanical impact, preventing deep scoring down to the raw metal.

Low Taber Abrasion Mass Loss: Loses less than 12 mg per 1000 cycles under CS-10 testing, ensuring long operational lifespans near high-friction processing zones.

View More >>

Oleophobic Oleo-Repulsion for Reduced Maintenance Downtime

Machinery guards prone to accumulating heavy grease films require frequent manual intervention that disrupts machine uptime:

Reduced Surface Tension: Prevents synthetic oils and coolant mist from wetting the guard surface, causing droplets to coalesce and run off into drainage channels.

Rapid Wipe-Clean Maintenance: Allows machine operators to clean visual inspection panels and guard doors using standard microfiber towels without harsh solvents.

View More >>

High-Performance Polyurethane & Epoxy Lacquer Formulations

Industrial machinery guards utilize specialized coating chemistries tailored for severe operational stress:

Two-Component (2K) Polyurethane (PU) Lacquers: Formulated with aliphatic isocyanates to provide UV stability, flexibility, and resistance to impact and cutting fluids.

Epoxy-Modified Functional Lacquers: Offer high chemical barrier density, resisting prolonged immersion in acidic or alkaline washdown solutions.

Nano-Ceramic Reinforced Clear Coats: Incorporate microscopic ceramic or silica particles to boost scratch resistance (≥ 3H) without compromising coating clarity or formability.

Surface Energy Modification & Easy-Clean Features

Advanced lacquers integrate hydrophobic and oleophobic fluorocarbon or silicone additives to lower surface energy:

Liquid Repulsion: Coolants, water-based emulsions, and hydraulic oils bead up and slide off vertical guard surfaces rather than forming sticky films.

Simplified Maintenance: Factory personnel can wipe down grease, swarf, and fluid splatters using standard cloths without needing harsh chemical solvents.

Substrate Cleaning & Chemical Passivation

Before coating application, raw aluminum guard panels (such as 3003 or 5052 alloys) undergo rigorous chemical pre-treatment:

Alkaline Degreasing & Acid Etching: Removes rolling oils, oxidation, and contaminants to create a uniform microscopic anchor profile.

Chromate-Free Passivation: Applies a zirconium/titanium conversion coating that prevents galvanic corrosion and bonds chemically with the lacquer primer.

Precision Shearing, Laser Cutting & Bending

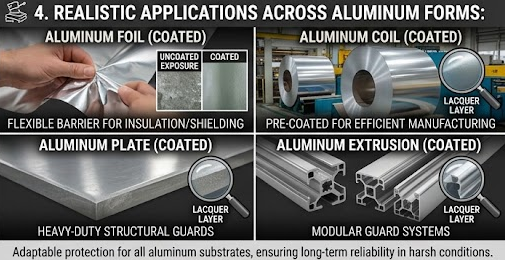

Pre-coated master coils are leveled and sheeted to custom lengths or slitted into flat sheets. The flexible coating formulation allows high-speed CNC fiber laser cutting, turret punching, and press brake bending (0T - 1\T bend radius) without micro-cracking or paint delamination along bent edges.

Continuous Coil Coating & Thermal Curing

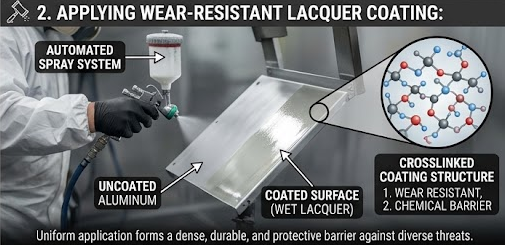

Lacquers are applied via automated reverse roll coil coating under precise digital process control:

Controlled Film Thickness: Applied at precise dry film thicknesses (15 - 30μm) to balance mechanical flexibility with chemical barrier density.

Thermal Curing: High-temperature flotation ovens fully polymerize the resin crosslinks, achieving maximum hardness and chemical immunity across the web.

FAQ

Q1:Why use lacquer-coated aluminum instead of stainless steel for machinery guards?

A:Lacquer-coated aluminum offers a weight reduction of up to 60%, lowering human effort when opening hinged or sliding guards. It eliminates secondary spray painting, resists chemical corrosion equally well, and significantly reduces raw material and shipping costs.

Q2:Will press-brake bending or laser cutting crack the wear-resistant lacquer?

A:No. Machinery-grade lacquers are formulated with flexible thermosetting resins engineered for 0T - 1.5T bend flexibility. When cut with laser-compatible protective films and bent with appropriate punch radii, the lacquer stretches without micro-cracking or flaking along the seam.

Q3:How do wear-resistant lacquers prevent cutting fluid discoloration on aluminum guards?

A:The highly crosslinked polymer structure acts as an impermeable barrier that prevents sulfur, chlorine, and amine additives in cutting fluids from contacting and oxidizing the underlying aluminum matrix.

Q4:Can transparent clear-lacquered aluminum sheets be used for visual inspection guards?

A:Yes. High-clarity polyurethane clear coats protect bright or brushed aluminum surfaces without obscuring the metallic grain, providing an aesthetically pleasing, modern industrial finish that remains easy to clean.

Q5:How is the wear resistance of lacquered aluminum guards evaluated during quality control?

A:Wear resistance is measured using the Taber Abrasion Test (ASTM D4060) with CS-10 or CS-17 wheels under a 1000 g load, along with pencil hardness testing (ASTM D3363) and MEK solvent rub tests (ASTM D5402).

Conclusion

Upgrading machinery safety guards to wear-resistant lacquer-coated aluminum sheets enables equipment builders to achieve lightweight structural performance and long-term chemical immunity.

To optimize material selection for your machinery guards:

Select Alloy by Structural Demand: Use 3003-H14 or 3105-H24 for standard machine enclosure panels and sliding door guards; specify 5052-H32 or 5754-H111 for heavy-duty structural frames exposed to mechanical impact.

Specify Chemical & Hardness Ratings: Mandate a pencil hardness of≥2H - 3H and verify chemical immersion resistance against synthetic coolants and washdown degreasers according to ASTM D1308.

Partner with Certified Coating Specialists: Work with experienced producers like Changzhou Dingang Metal Material Co., Ltd. to secure precision-leveled, laser-ready lacquer-coated sheets backed by comprehensive quality certifications.
