Ultimate Buyer’s Guide to Embossed Aluminum Sheets: Stucco, Diamond & Applications

Embossed aluminum sheets are standard material solutions across refrigeration, transportation, and industrial manufacturing. By processing smooth aluminum coil through textured mechanical rollers, the embossing process alters surface friction, increases structural rigidity, and diffuses light reflection without adding overall material weight.

For global procurement managers, selecting the correct embossed aluminum sheet requires evaluating pattern geometries, alloy characteristics, and physical dimensions tailored to specific application requirements.

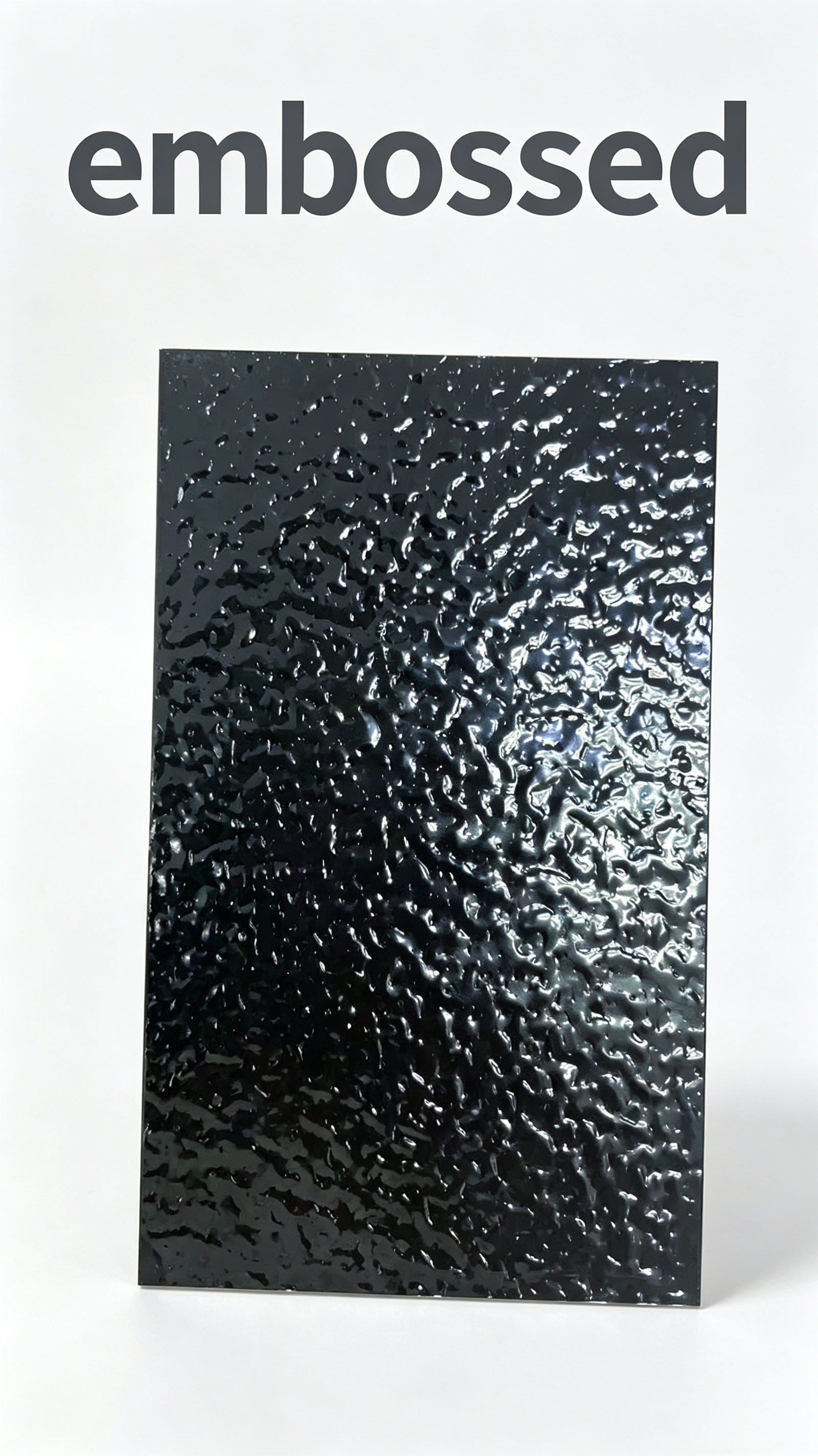

What Is an Embossed Aluminum Sheet?

An embossed aluminum sheet is a rolled metal product featuring raised or recessed patterns on its surface. The embossing process enhances the aesthetic appeal of the metal while significantly altering its physical performance:

Increased Surface Rigidity: The mechanical deformation creates structural stiffness across thin gauges.

Scratch and Wear Concealment: Patterned surfaces diffuse reflection, masking minor scuffs, dents, and manufacturing friction marks.

Enhanced Traction or Thermal Efficiency: Geometric ridges increase mechanical grip for flooring applications or optimize surface area for insulation and heat exchange.

Stucco vs. Diamond Pattern Embossing

Selecting between stucco and diamond pattern embossing depends primarily on whether your project requires aesthetic light diffusion or structural anti-slip performance.

Common Alloys and Technical Specifications

Industrial performance depends on matching the correct aluminum alloy and temper to your processing demands.

Alloy Selection

1050 / 1060 / 1100 (Pure Aluminum):

Offers high thermal conductivity and excellent formability. Ideal for appliance interiors and general insulation cladding where high strength is not required.

3003 / 3105 (Manganese Alloyed):

Provides 20% higher strength than 1000-series alloys with superior corrosion resistance. Standard for cold storage walls, roofing, and HVAC systems.

5052 / 5083 (Magnesium Alloyed):

High structural strength with exceptional resistance to saltwater and industrial chemicals. Essential for marine decking, heavy trailer floors, and aggressive environments.

Standard Dimension Range

Thickness: 0.2 mm to 6.0 mm (varies by pattern)

Width: 800 mm to 1500 mm

Temper: O, H14, H24, H114, H32

Surface Coating: Mill finish, anodized, or pre-painted (PE/PVDF)

Primary Industrial Applications

1. Cold Storage and Refrigeration

Stucco embossed aluminum is the industry standard for walk-in freezer walls, cold room panels, and refrigerator liners. The orange-peel pattern reduces light glare, improves insulation contact, and resists moisture condensation.

2. Transportation and Trailer Flooring

Five-bar and diamond embossed plates provide high-friction surfaces for truck bed flooring, utility trailer ramps, and emergency vehicle steps. They prevent slippage in wet or oily conditions while remaining lightweight.

3. HVAC and Building Insulation

In thermal insulation systems, stucco embossed aluminum cladding protects jacketed piping and ductwork against ambient weather exposure, mechanical impacts, and corrosion.

4. Architectural Facades and Interior Panels

Pre-painted embossed aluminum coils are widely used for architectural wall cladding, ceiling tiles, and elevator interior trims due to their modern finish and low maintenance requirement.

Partner with a Trusted Embossed Aluminum Manufacturer

Choosing the right embossed aluminum supplier is crucial to ensuring seamless production, product stability, and long-term performance. Equipped with multiple full-automatic high-speed embossing lines, we specialize in delivering precision-engineered stucco and diamond embossed aluminum coils and sheets tailored to your exact project specifications.

Our Manufacturing Capabilities & Customization Options:

Flexible Customization: Thickness options ranging from 0.2 mm to 6.0 mm, custom widths up to 1500 mm, available in master coils, precision slit coils, or cut-to-length flat sheets.

Comprehensive Alloy Selection: Premium supply across 1000 series, 3003, 3105, and 5052 alloys in O, H14, H24, H114, and H32 tempers.

Surface Protection & Export Packaging: Optional neutral or branded PE/PVDF protective film and heavy-duty, seaworthy wooden pallet packaging to guarantee zero transit damage or oxidation.

Whether you are executing a large-scale cold room installation, manufacturing heavy-duty trailer flooring, or sourcing thermal insulation cladding, our export team is here to support your procurement needs with technical expertise and competitive factory pricing.
