How to Solve Pin-Hole Issues in Ultra-Thin Aluminum Foil for Sensitive Packaging

For procurement managers and quality engineers sourcing materials for sensitive pharmaceutical or high-barrier food packaging, thin aluminum foil is a highly effective barrier material. At gauges under 9 microns, aluminum provides excellent protection against moisture, oxygen, light, and contaminants.

However, at these ultra-thin thicknesses, a critical technical challenge often arises: aluminum foil pin-holes. These microscopic voids in the metal structure can compromise the barrier's integrity, leading to premature product spoilage, loss of sterility, and costly product recalls.

This guide analyzes the root causes of pin-holes in ultra-thin foils, establishes performance benchmarks, and details the production controls necessary to secure reliable barrier packaging materials.

Pin-Holes as the Ultimate Threat to Shelf Life

In high-barrier packaging, thin foil is specified because it offers an absolute physical barrier. However, the presence of pin-holes can quickly degrade this protection.

The High Stakes of Sensitive Barrier Packaging

Sensitive products—such as freeze-dried pharmaceutical tablets, infant formula, and aseptic liquids—rely on a modified atmosphere to remain stable. If the packaging foil contains pin-holes, moisture vapor and oxygen can slowly diffuse through these microscopic channels over time. This ingress can degrade active ingredients, cause oxidation, or lead to powder clumping within the package.

The Physics of a Pin-Hole: When Foil Behaves Like a Sieve

A pin-hole is a microscopic void that passes completely through the foil sheet. When foil is rolled down to ultra-thin gauges (such as 6.3 or 7 microns), its thickness approaches the size of the metal's internal grain boundaries and micro-inclusions. Under these conditions, any metallurgical defect or foreign particle can cause the foil to tear during rolling, leaving a microscopic hole in the finished sheet.

Pin-Hole Standards across Ultra-Thin Gauges

As aluminum foil is rolled thinner, the physical limit of the metal increases the occurrence of pin-holes. Below are the industry-standard allowable pin-hole densities for premium-grade packaging foils:

Core Applications Requiring Zero-Tolerance Pin-Hole Control

Certain high-performance applications have very strict requirements for pin-hole control due to the sensitive nature of the products being packaged.

Pharmaceutical Blister Foil (Alu-Alu and Push-Through)

Cold-form blister packaging (Alu-Alu) requires absolute barrier protection to maintain the shelf life of sensitive medications. These applications typically use thicker foils (15 - 25 microns) that can be cold-formed without developing any pin-holes, ensuring a complete physical barrier.

View More >>

Ultra-High Barrier Retort and Aseptic Liquid Packaging

Aseptic liquid packaging, such as beverage cartons, uses a thin layer of aluminum foil laminated between layers of polyethylene and paperboard. This thin foil layer prevents oxygen ingress, keeping UHT milk and juices shelf-stable for months without refrigeration.

View More >>

Technical Insulation and Delicate Electronic Shielding

In technical applications, such as vacuum insulation panels (VIPs) or coaxial cable wrapping, pin-holes must be kept to a minimum to prevent thermal degradation or signal interference over long service lifetimes.

View More >>

Microscopic Inclusions and Metallurgical Purity

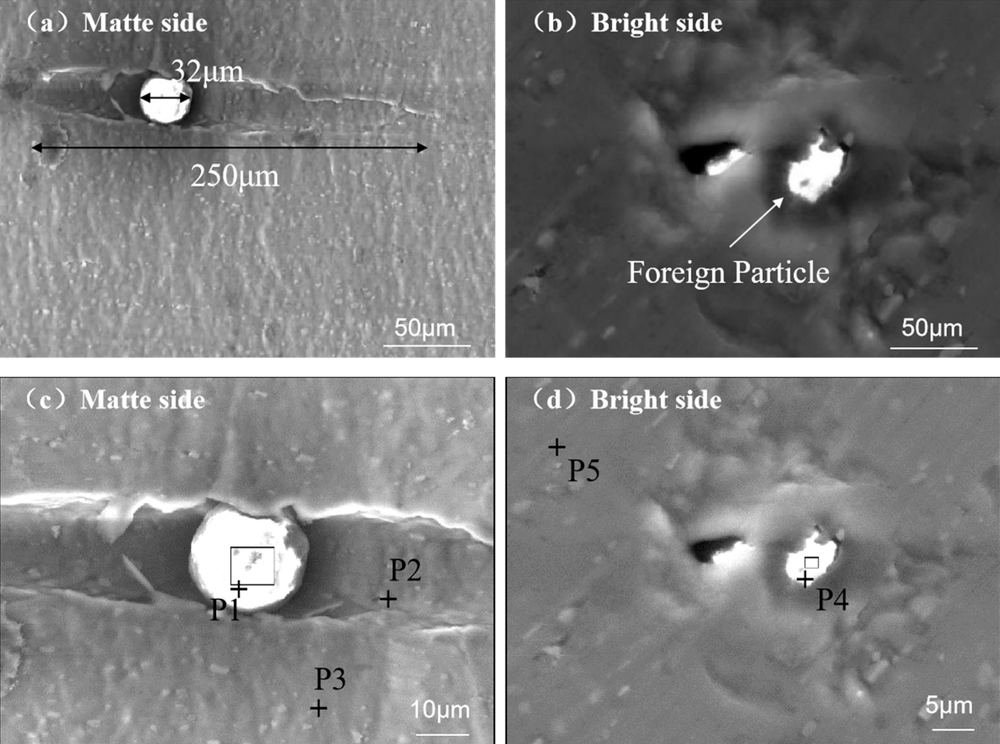

Non-Metallic Inclusions: Tiny particles of titanium boride (TiB), aluminum oxide (Al2O3), or iron-silicon compounds that do not deform when the aluminum is rolled. As the surrounding metal is stretched thin, it tears away from these hard particles, leaving a pin-hole.

Hydrogen Porosity: Molten aluminum easily absorbs hydrogen gas. If the metal is not properly degassed before casting, these gas bubbles form microscopic voids (porosity) in the ingot, which stretch into long, thin pin-holes during cold rolling.

Rolling Process Stresses and Lubricant Filtration

Roll Surface Wear: Tiny micro-scratches or particles of dust on the work rolls can concentrate mechanical stress on the foil, puncturing the thin metal sheet.

Contaminated Rolling Oil: Cold-rolling mills use specialized oils for cooling and lubrication. If the oil filtration system fails to remove microscopic metal fines, these particles can be rolled directly into the foil, creating pin-holes.

Triple-Stage Rolling Oil Filtration

Because the lubricant film thickness in the roll bite is often less than 1 micron, the rolling oil must be kept clean. Modern mills use diatomaceous earth and active clay filtration systems to continuously filter the oil, removing microscopic metal particles before they can damage the foil.

Online Optoelectronic Pin-Hole Detection Systems

To ensure quality before shipping, slitting lines are equipped with high-speed, online laser or infrared pin-hole detectors. These systems scan the entire width of the moving foil web in real-time, flagging any defects that exceed specification limits.

Global Quality Auditing and Supply Chain Security

Operating under certified ISO 9001 and ISO 14001 standards, Dingang Metal combines competitive production economics with rigorous quality management. As an experienced exporter serving customers in over 50 countries, the company ensures all materials meet international food and pharmaceutical packaging safety standards.

FAQ

Q1:Our current supplier's 7-micron foil often tears on our high-speed laminating lines. Is this caused by pin-holes, and how can we prevent it

A:Frequent tearing on laminators is usually caused by poor edge trimming or uneven tension profiles (baggy edges) in the foil roll, rather than pin-holes themselves. If the foil has uneven tension, high-speed lines will apply uneven stress, causing tears. To prevent this, we utilize advanced inline tension-leveling and ultra-sharp rotary slitting knives to ensure clean, nick-free edges and flat web tension across the entire roll.

Q2: We are experiencing delamination after retorting our wet pet food pouches. How do we ensure our foil laminate survives this process?

A: Delamination during high-temperature retort (121°C-135°C) is typically caused by moisture reacting with the foil's natural oxide layer, or by using an unsuitable adhesive. For retort applications, you should specify foil pre-treated with a chemical conversion primer or use an epoxy-based adhesive system. This creates a highly water-resistant bond that prevents steam from compromising the lamination layers.

Q3:How does Dingang Metal guarantee pin-hole counts on high-volume orders of 6.35-micron packaging foil?

A:We manage pin-hole counts through a combination of clean-melt casting controls and online inspection. Our rolling lines utilize 50-mesh ceramic foam filters and online rotor degassing to remove non-metallic inclusions and hydrogen gas. During final slitting, high-resolution optoelectronic pin-hole detectors scan the foil in real-time, ensuring every roll meets your specified pin-hole limit before packaging.

Q4:Our pharmaceutical blister line has issues with heat-seal failure between the foil lid and the PVC tray. How can we resolve this?

A:Heat-seal failures are usually caused by uneven heat-seal lacquer (HSL) coating weights or rolling oil residue left on the foil surface. If the foil is not fully annealed, residual rolling oils will prevent the lacquer from bonding properly. We utilize long-cycle, high-temperature annealing ovens to completely burn off all rolling lubricants, ensuring the foil surface is clean and receptive to strong, uniform lacquer adhesion.

Q5:What is the shelf-life limit for storing ultra-thin aluminum foil rolls in our warehouse before conversion?

A:Unconverted aluminum foil is sensitive to moisture and should ideally be processed within 12 months of manufacture. If stored in a humid environment, moisture can condense between the tightly wound foil layers, causing surface oxidation (white rust). To prevent this, we ship rolls in heavy-duty, desiccated vacuum-sealed plastic barrier packaging, and we recommend storing them in temperature-controlled warehouses (15°-25°C, <60%RH).

Conclusion

Eliminating pin-holes in ultra-thin aluminum foil requires strict control over every stage of production—from the purity of the molten alloy to the filtration of the rolling oils. While lamination with polymer films can help seal minor surface defects, starting with a high-purity, precision-rolled foil is essential for ensuring the reliable shelf life of sensitive products. Partnering with an experienced manufacturer like Changzhou Dingang Metal Material Co., Ltd. helps packaging converters reduce processing downtime, minimize material waste, and secure reliable high-barrier packaging.
