The Complete Guide to High-Barrier Aluminum Foil for Pharmaceutical Blister Packaging

In pharmaceutical manufacturing, packaging is not merely a container—it is an active component of the drug delivery system. Solid oral dosages, including highly sensitive tablets, hygroscopic capsules, and unstable freeze-dried wafers, face immediate loss of efficacy if exposed to trace atmospheric elements during storage.

Maintaining therapeutic potency over multi-year shelf cycles requires an unyielding physical seal. High-barrier aluminum foil serves as the gold standard for blister packaging systems worldwide, delivering the zero-permeability performance, predictable mechanical burst profiles, and certified sterile compliance necessary to shield life-saving drug formulations from ambient degradation.

Safeguarding Molecular Stability

Active Pharmaceutical Ingredients (APIs) are highly sensitive chemical compounds vulnerable to rapid degradation when exposed to unconditioned ambient environments.

Environmental Vectors of Pharmaceutical Degradation

Three primary atmospheric forces threaten drug stability inside a blister cavity:

• Hydrolytic Cleavage (Moisture Ingress): Water vapor acting on hygroscopic compounds triggers chemical hydrolysis, altering active molecular structures, causing tablet dissolution, or inducing capsule brittleness.

• Oxidative Degradation (Oxygen Permeation): Ambient oxygen ingress triggers free-radical chain reactions within vulnerable APIs, leading to the formation of inactive or toxic degradation products.

• Photolytic Decomposition (Light Exposure): Photons across the UV and visible light spectra act as catalysts for molecular restructuring, causing rapid discoloration and loss of chemical potency.

High-Barrier Foil Matrix Architectures

Pharmaceutical packaging utilizes two primary configurations of high-barrier foil, each tailored to distinct mechanical and structural performance roles.

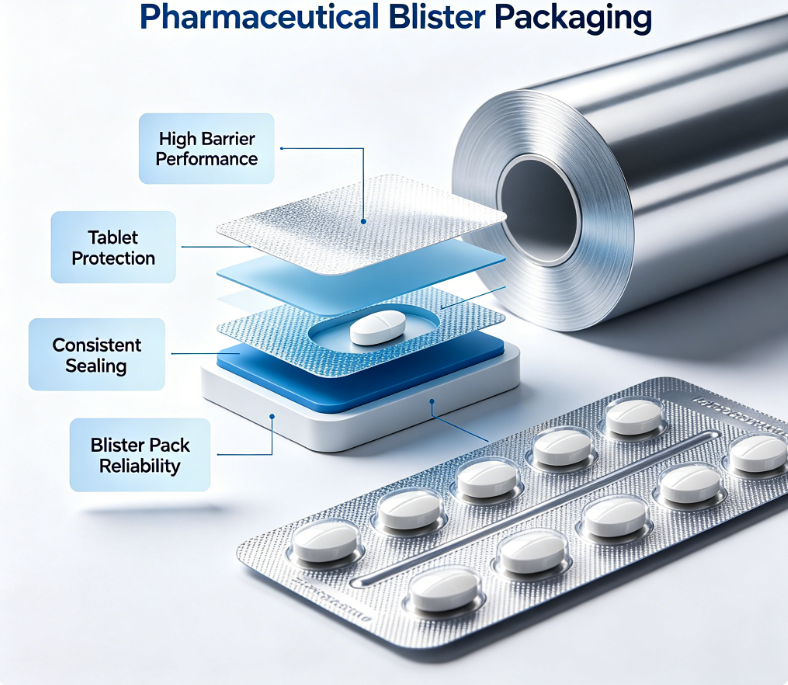

Push-Through-Packaging (PTP) Lidding Construction

PTP lidding foil is engineered to seal thermoformed or cold-formed cavities, providing an absolute barrier while maintaining a crisp, brittle temper that allows patients to easily push tablets through the lid:

High-Barrier Foil vs. High-Performance Plastics

This comprehensive engineering comparison highlights why high-barrier aluminum foil outperforms high-performance plastic blister films across severe storage profiles:

Core Applications Across Advanced Pharmaceutical Delivery Formats

High-barrier aluminum foil configurations are optimized to protect a wide variety of therapeutic delivery systems:

Push-Through Blister Packs for Solid Oral Dosages

Standard hard-tempered PTP foil lids provide clean fracture properties for automated tablet and capsule packaging. This crisp breakaway behavior allows patients to dispense medications cleanly without causing neighboring cavities to unseal or delaminate.

View More >>

Deep-Pocket Cold-Form Alu-Alu Strips

For highly sensitive, fragile, or hygroscopic formulations, cold-form Alu-Alu packaging provides an absolute barrier. Its deep-drawn pockets isolate the product completely from light, moisture, and gas ingress, making it ideal for tropical climates and long distribution cycles.

View More >>

Multi-Dose Dry Powder Inhaler (DPI) Blister Strips

Dry powder inhaler formulations are extremely sensitive to moisture clumping. DPI delivery systems utilize micro-formed high-barrier foil strips that isolate individual micro-doses, ensuring the powder remains free-flowing for accurate pulmonary delivery.

View More >>

Primers, Lacquers, and Compliance

The functional reliability of pharmaceutical packaging relies on the thin polymer layers bonded to the aluminum surface, which must remain chemically stable over long storage cycles.

Heat-Seal Coating Mechanics and Polymeric Fusion

The heat-seal lacquer applied to the interior face of PTP foil must bond rapidly under precise sealing jaw pressures:

Thermal Fusion Dynamics: Formulations use modified vinyl or acrylic copolymers engineered to heat-seal directly to plastic bottom webs (PVC, PVDC, or PP). This thermal fusion creates a secure hermetic bond, ensuring full FDA compliance.

Precise Coating Weight Control: Automated continuous lines apply the heat-seal lacquer at exact dry film weights (typically 6.0 - 8.0 g/m²). Any variance can lead to weak seals or localized thinning, which can compromise the micro-climate inside the blister cavity.

Macromolecular Network Lock-Down

Continuous multi-zone curing ovens manage Peak Metal Temperatures (PMT) to ensure complete polymerization of the protective resin matrix.

Eliminating Free Volume: Achieving full cross-linking density reduces the free volume within the coating layer, creating a tortuous path that prevents volatile drug excipients or organic solvents from migrating into the substrate.

Preventing Product Contamination: This stable chemical structure prevents the absorption of sensitive active ingredients, ensuring the packaged drug retains its exact therapeutic dose over its shelf life.

Delamination Resistance and Pinhole Prevention Mechanics

When manufacturing cold-form Alu-Alu pockets, the multilayer composite is cold-stamped into deep cavities:

Preventing Pinhole Formation: The core aluminum layer (typically alloy 8011) must have excellent grain refinement. During drawing, the aluminum crystals must deform uniformly to prevent the formation of micro-pinholes that would breach the barrier.

Eliminating Multilayer Delamination: High-performance polyurethane adhesive layers bond the polyamide (OPA) and PVC films to the aluminum core. These adhesives resist intense shear stress, preventing delamination along the metal interface during stamping.

Formability, Dead-Fold Kinetics, and Structural Fatigue

Aluminum foil's high dead-fold capability is an essential physical property for blister packaging line efficiency:

Zero Elastic Springback: Unlike plastic films that tend to return to their original shape after forming, aluminum foil deforms permanently. This lack of springback prevents stress on the sealed edges, protecting the long-term integrity of the blister pocket.

Managing Structural Fatigue: The combination of an outer OPA layer for tensile strength and an inner aluminum core allows the blister material to absorb mechanical impacts during shipping without cracking or fatiguing.

Global Quality Auditing and Supply Chain Security

Operating under certified ISO 9001 and ISO 14001 global management frameworks, Dingang Metal combines competitive production economics with verified technical compliance. As an experienced exporter serving clients in over 50 countries, the company ensures all materials meet current international safety standards—guaranteeing smooth logistics and customs clearance through North American, European, and Middle Eastern ports.

FAQ

Q1:What causes hard-tempered PTP lidding foil to tear during high-speed packaging, and how can it be avoided?

A:Web tearing typically occurs if the foil substrate suffers from edge damage during slitting or if the mechanical tension is unevenly distributed. Dingang Metal prevents this by using precision slitting blades and inline tension-leveling blocks to eliminate edge burrs, ensuring smooth web handling on automated packaging lines.

Q2: Are the heat-seal lacquers applied to pharmaceutical foils safe for direct contact with oral dosages?

A: Yes. All pharmaceutical-grade heat-seal lacquers are formulated from inert, non-toxic polymers that comply with global pharmacopeia standards and FDA regulation 21 CFR § 175.300, securing complete FDA compliance. Every batch undergoes regular extraction testing to ensure zero toxicological migration.

Q3:How does tension leveling improve the sealing accuracy of blister packaging lidding?

A:Tension leveling removes internal stresses from the foil web, eliminating common shape defects like center buckles or edge waves. This achieves excellent panel flatness (deviation < 0.5 mm/m), ensuring uniform contact across the sealing platen to prevent unsealed micro-voids.

Q4:What causes a blister cavity to leak after heat sealing, and how can alloy selection prevent it?

A:Leaks are frequently caused by micro-pinholes or uneven heat distribution during sealing. Specifying highly refined alloy like 8011 ensures a uniform grain structure that resists pinhole formation during drawing, while the high thermal conductivity of aluminum ensures rapid, even heat distribution for a secure seal.

Q5:Can aluminum blister packaging materials be recycled after consumer use?

A:Pure aluminum PTP lidding can be separated and recycled efficiently within standard metal reclamation streams. For multi-layer cold-form Alu-Alu structures, specialized processing can separate the polymer films from the core aluminum, allowing the high-purity metal to be recovered and recycled indefinitely.

Conclusion

Protecting sensitive pharmaceutical formulations requires packaging materials that combine absolute barrier performance with reliable mechanical properties. While plastic films remain vulnerable to gas and moisture diffusion, high-performance high-barrier aluminum foil provides an absolute physical block against environmental degradation. Partnering with a vertically integrated manufacturer like Changzhou Dingang Metal Material Co., Ltd. ensures your packaging line receives consistent material quality, precise dimensional control, and verified regulatory compliance from master roll to finished blister pack.
