Aluminum Sheets in Humanoid Robots: Material Selection, Applications & Technological Breakthroughs

Introduction: Aluminum’s Pivotal Role in Robotic Commercialization

As humanoid robots transition from laboratory prototypes to mass-produced products, the balance between lightweight design and structural integrity has become a decisive factor in market competitiveness. Aluminum sheets have emerged as a foundational material, dominating key components from skeletons to thermal management systems. By the end of 2024, global demand for aluminum alloys in humanoid robotics surged 62% year-on-year, making it the fastest-growing application sector after new energy vehicles . This article explores aluminum’s unique advantages, optimal material selections, real-world applications, and technological innovations reshaping the industry.

Core Advantages of Aluminum Sheets for Humanoid Robots

Unmatched Strength-to-Weight Ratio

Aluminum’s density (2.7-2.8 g/cm³) is merely one-third that of steel, yet advanced alloys achieve comparable strength through formula optimization. For instance, 7075-T6 aerospace aluminum boasts a specific strength of 200 MPa/(g/cm³)—outperforming most engineering plastics and enabling significant weight reduction without compromising rigidity . This translates directly to extended battery life: a 15% weight reduction in limb structures (as seen in Tesla Optimus-Gen2) improves operational time by 22% .

Superior Thermal Management

With a thermal conductivity of ~205 W/m·K, aluminum sheets excel at dissipating heat from high-power components like servo motors and batteries . Mingtai Aluminum’s radiator sheets, enhanced via spray deposition technology, reach 240 W/m·K, maintaining operating temperatures 18°C lower than plastic alternatives in Yushu Technology’s H1 robot . Critical for high-load scenarios, Tesla Optimus uses 3mm-thick microchannel aluminum cold plates that stabilize joint temperatures below 60°C within 0.01 seconds, enabling 8+ hours of continuous operation .

Electromagnetic Shielding & Durability

Aluminum’s conductive properties provide natural EMI shielding—essential for sensor-laden robot heads. Yinbang’s aluminum-graphene composite sheets achieve 70 dB shielding efficiency at 10 GHz while remaining just 0.25 mm thick, deployed in Boston Dynamics’ Atlas sensor arrays . Anodized aluminum also resists corrosion, extending service life in industrial environments by 300% compared to uncoated steel .

Aluminum Alloy Selection for Key Robotic Components

Choosing the right alloy depends on load requirements, precision needs, and cost constraints. Below is a performance comparison of top-grade options:

Data sources: International Aluminum Institute 2025, Minth Group Technical Report, GGII Robot Industry White Paper

Critical Selection Criteria

• High-Load Components: Prioritize 7075-T6 or 7XXX series alloys for joints afford 10x body weight impact during jumps .

• Cost-Sensitive Mass Production: 6061-T6 balances performance and affordability for non-critical structures.

• Precision Machining: Minth Group’s custom alloy (280-320 MPa yield strength) outperforms domestic peers (130-170 MPa) in processability .

Key Applications in Humanoid Robot Design

Skeleton Structures: Lightweight Rigidity

Aluminum sheets form the "backbone" of modern humanoids. Tesla Optimus-Gen2 uses aluminum-magnesium alloy sheets for limb skeletons, reducing weight by 15% while maintaining rigidity through topology-optimized designs . Beijing Iron Man Technology’s honeycomb-patterned aluminum torso achieves 30% weight reduction and 40% higher bending stiffness than solid steel counterparts .

Joint Systems: Impact Resistance

High-stress joints demand premium alloys. Boston Dynamics’ Atlas employs 7050 aluminum sheets for knee transmission components, withstanding 12G impact forces during jumps . The 2025 7XXX series alloy from Lizhong Group further improves durability—its 580 MPa yield strength enables 500,000+ cycles of joint movement without fatigue .

Thermal Management Systems

Die-cast aluminum sheets create efficient heat sinks for power-dense electronics. UBTECH Walker X integrates die-cast aluminum cooling shells, leveraging aluminum’s thermal conductivity to manage 42 motors simultaneously without overheating . Nano-reinforced aluminum composites from Nanshan Aluminum reduce thermal expansion to 8×10⁻⁶/°C, eliminating precision drift in Optimus Gen3’s servo motors .

Sensor & Control Enclosures

Electromagnetic shielding is non-negotiable for sensor accuracy. The aluminum-graphene sheets in Atlas’ head enclosure block 99.9% of external interference, ensuring LiDAR and camera data integrity . Anodized 6061 sheets also provide scratch resistance—critical for robots operating in harsh industrial settings .

Technological Innovations Driving Performance

Integrated Die-Casting

Large-format aluminum sheets now enable one-piece component manufacturing. Wencan Group’s 9800T die-casting line produces robot spine assemblies in 18 hours—down from 72 hours—with 72% fewer welds and 800 MPa structural strength . This reduces production costs by 40% while improving part consistency.

Nano-Composite Reinforcement

Nanshan Aluminum’s 2025 breakthrough combines aluminum with silicon carbide nanoparticles, creating sheets that balance thermal conductivity (230 W/m·K) and dimensional stability. These are now standard in Tesla’s Optimus Gen3 drive systems .

Sustainable Manufacturing

Recycled aluminum sheets meet strict robot-grade standards. Chinalco’s electronic-grade recycled aluminum has impurity levels below 5 ppm, with a carbon footprint 78% lower than primary aluminum—aligning with industry sustainability goals .

Material Comparison: Aluminum vs. Alternatives

Source: MachineMFG 2025 Material Benchmark Report, GGII Industry Analysis

Conclusion: Aluminum’s Future in Robotics

Aluminum sheets have become irreplaceable in humanoid robotics, offering the optimal blend of lightweight design, strength, and cost-effectiveness. As demand grows—projected to reach 100,000-125,000 tons by 2030 —innovations in alloys, manufacturing, and sustainability will further solidify its position. For engineers, prioritizing alloy-specific design (7075-T6 for joints, 6061-T6 for frames) and leveraging new processes like die-casting will be key to maximizing robot performance. With a 45% annual growth rate forecast for the robot aluminum market , the material’s role in shaping the next generation of humanoids is undeniable.

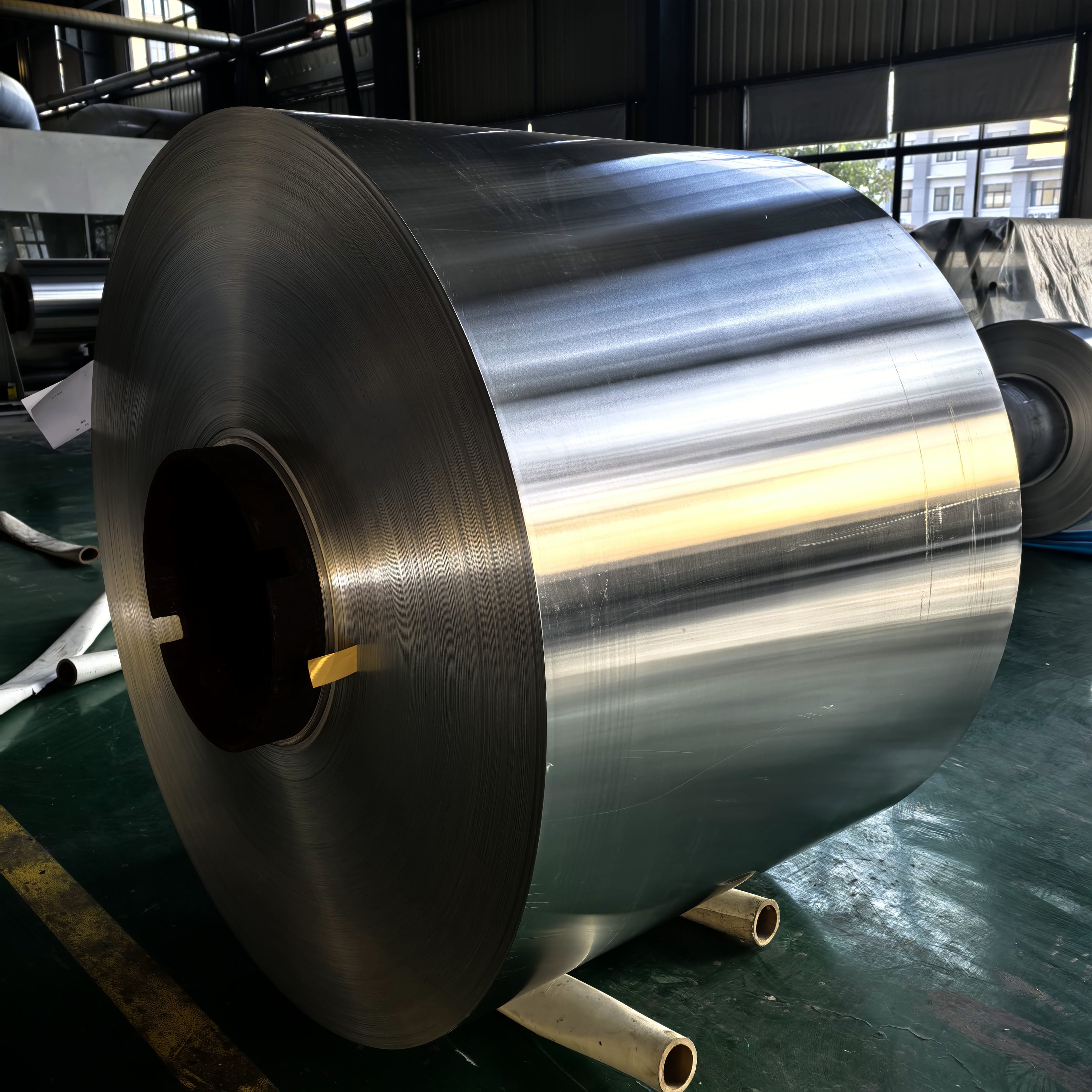

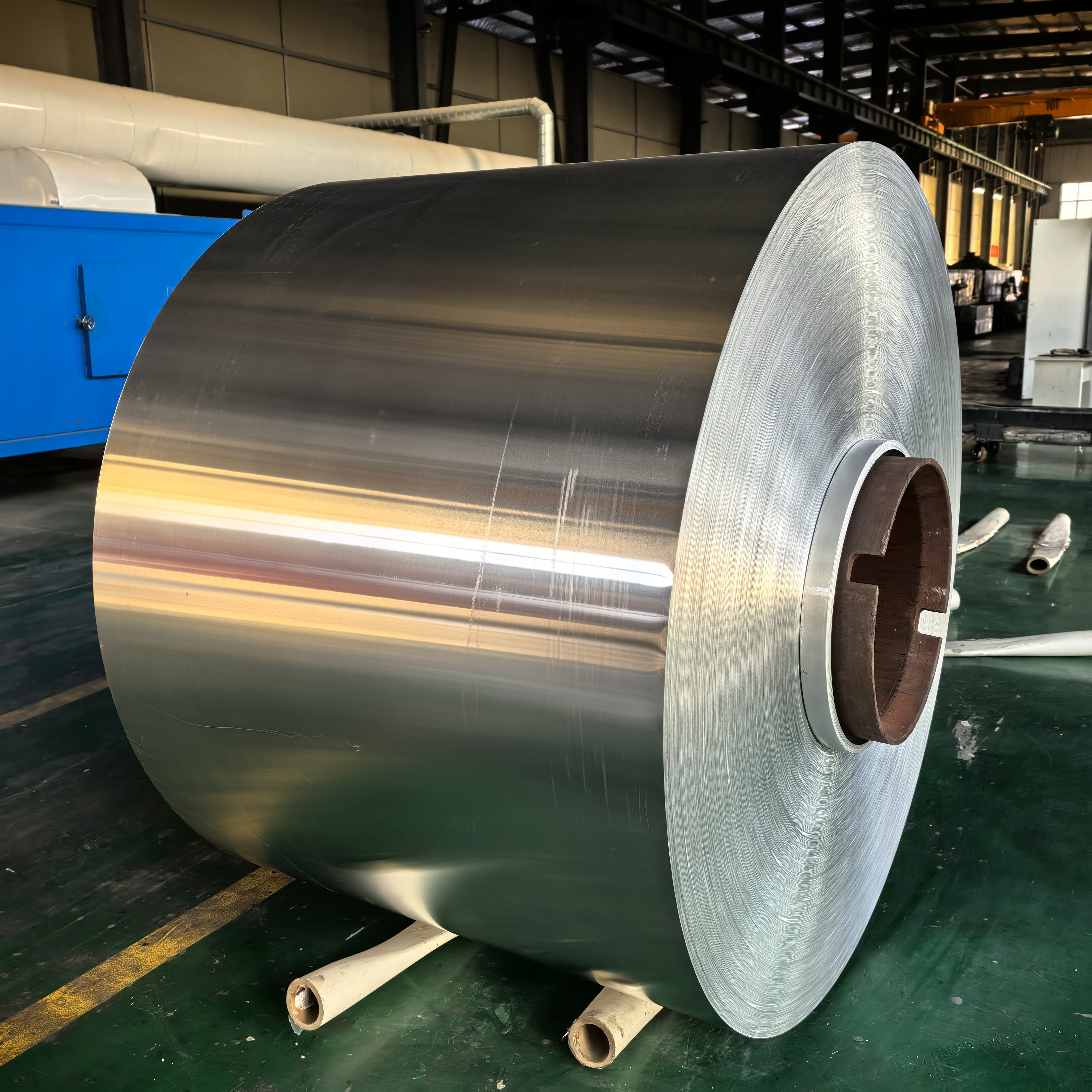

If you have needs on the aluminum coil/sheet product,please contact us for more discussing.
