Color coated Aluminum Curtain Wall VS Glass Curtain Wall - Who is the King of "Cost - effective" Building Facades?

In the ever-evolving landscape of modern architecture, the choice of curtain wall materials can make or break a project's success. Among the frontrunners, color-coated aluminum curtain walls and glass curtain walls stand out, each promising unique advantages. But when it comes to the all-important question of cost-effectiveness—balancing initial investment, long-term maintenance, and energy efficiency—only one can claim the crown. Let's dive into a comprehensive comparison to determine which material truly reigns supreme as the champion of cost-effective building facades.

Color-Coated Aluminum Curtain Wall VS Glass Curtain Wall

1. Initial Cost: A Clear Advantage for Color-Coated Aluminum

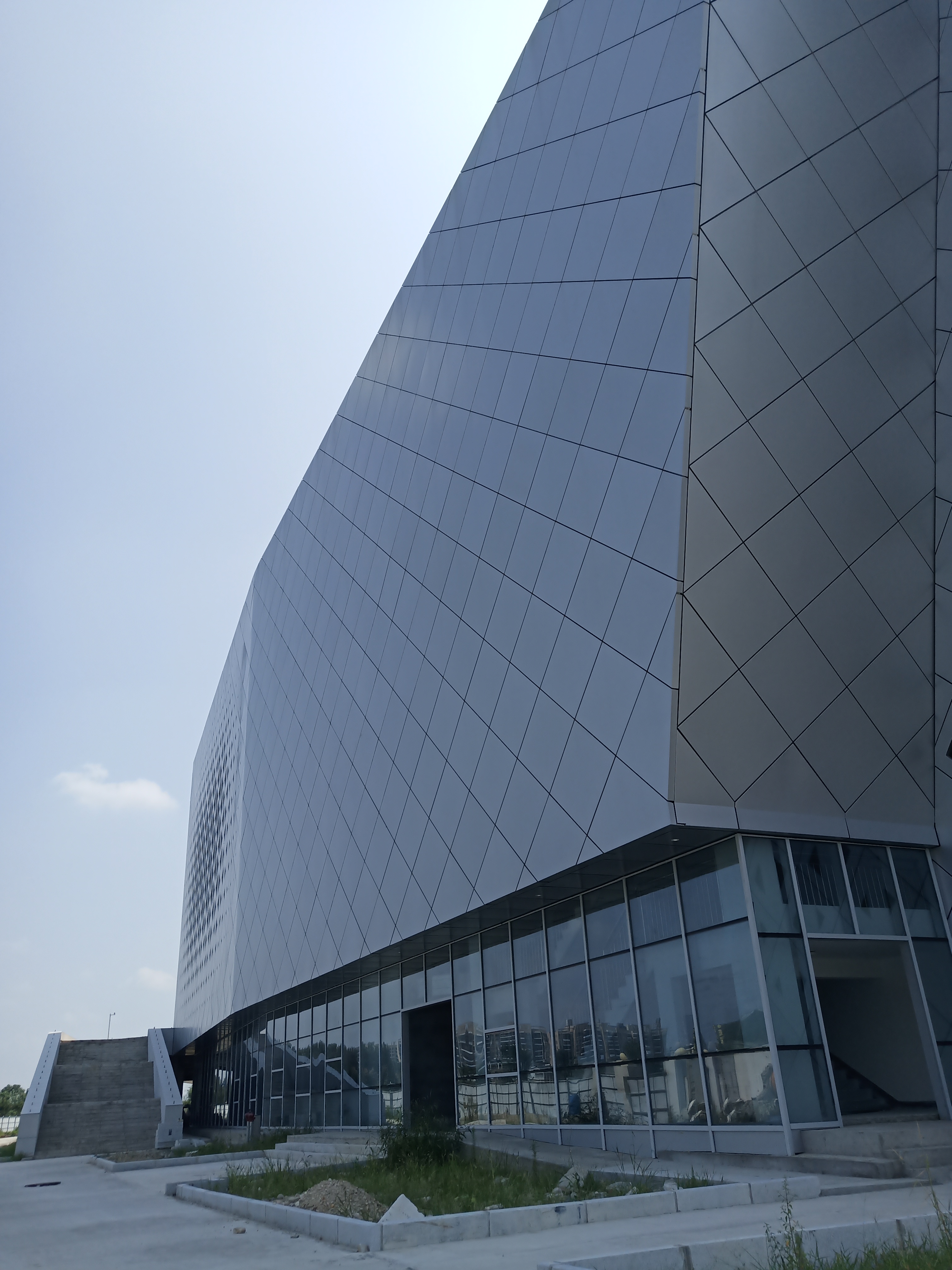

• Color-Coated Aluminum

• Material cost: 30-50% lower than high-performance glass (e.g., low-e glass or laminated glass).

• Installation efficiency: Lightweight panels (≈8-12 kg/m²) allow faster installation with simpler steel frameworks, reducing labor costs by 20-30%.

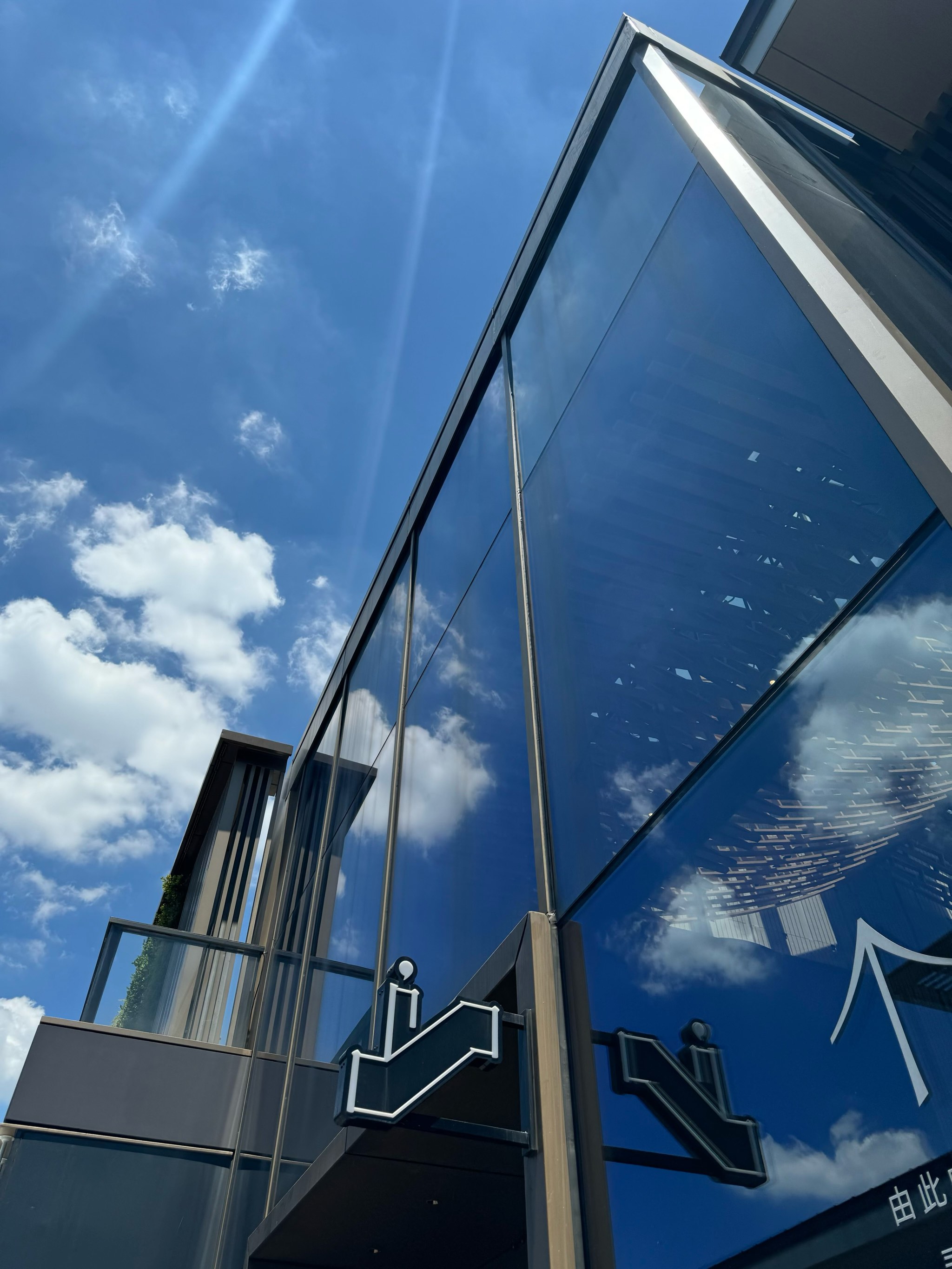

• Glass Curtain Wall

• Material cost: Premium glass (e.g., energy-efficient varieties) can cost $80-$150/m², significantly higher than aluminum’s $30-$60/m².

• Structural requirements: Heavy glass panels (25-50 kg/m²) demand stronger support systems, increasing overall construction costs.

2. Long-Term Maintenance: Low Effort vs. High Upkeep

• Color-Coated Aluminum

• Low maintenance: Polyester or PVDF coatings resist UV rays, corrosion, and stains, requiring only annual rinsing.

• Durability: Coating integrity lasts 20-25 years (tested via 1,000-hour salt spray test), with minimal fading or peeling.

• Glass Curtain Wall

• Frequent cleaning: Prone to water spots and dust accumulation, requiring quarterly professional cleaning (costing $5-$10/m²/year).

• Repair risks: Cracked glass panels must be fully replaced, costing $100-$200/m² per repair, plus downtime for safety checks.

3. Energy Efficiency: Balancing Transparency and Insulation

• Color-Coated Aluminum

• Thermal breaks: Modern designs integrate thermal insulation strips, achieving U-values as low as 1.5 W/(m²·K).

• Solar control: Reflective coatings can reduce solar heat gain by 40-60%, lowering air conditioning loads.

• Glass Curtain Wall

• Natural lighting: Offers better daylighting (light transmittance: 60-80%), potentially reducing indoor lighting costs.

• Energy trade-off: Without low-e coatings, heat loss/gain can increase HVAC costs by 15-25% in extreme climates.

4. Design Flexibility: Versatility vs. Aesthetic Limitations

• Color-Coated Aluminum

• Customization: Unlimited color options (via powder coating) and textures (e.g., wood grain, metallic finishes).

• Structural adaptability: Easily shaped into curves, angles, or complex geometries for modern architectural styles.

• Glass Curtain Wall

• Aesthetic uniformity: Limited to transparent or tinted finishes, with fewer texture options.

• Size constraints: Large glass panels (max. 3x6 m) may require cranes for installation, adding logistical costs.

5. Sustainability: Recyclability and Lifecycle Impact

• Color-Coated Aluminum

• High recyclability: Aluminum is 100% recyclable with minimal energy loss, supporting LEED certification.

• Low carbon footprint: Production emits 50% less CO2 than glass manufacturing (source: International Energy Agency).

• Glass Curtain Wall

• Recycling challenges: Only 30-40% of architectural glass is recycled due to contamination issues.

• End-of-life costs: Disposal of broken glass requires specialized handling, increasing environmental impact.

The Verdict: When to Choose Which?

• Color-Coated Aluminum Wins For:

• Budget-conscious projects (e.g., commercial buildings, warehouses).

• High-humidity or coastal areas (superior corrosion resistance).

• Designs requiring bold colors or low-maintenance exteriors.

• Glass Curtain Wall Excels In:

• High-rise offices or luxury projects prioritizing natural light and modern aesthetics.

• Climates with mild temperatures (reducing energy efficiency trade-offs).

For most mid-to-large scale projects, color-coated aluminum curtain walls emerge as the "cost-effective king," balancing low upfront costs, minimal maintenance, and sustainability. Glass remains a premium choice for specific aesthetic or daylight-driven designs but comes with higher long-term expenses.
