Comparison of Colored Aluminum And Stainless Steel in Weight - Strength Balance for Transportation Component Manufacturing

In the realm of transportation component manufacturing, the selection of materials plays a pivotal role, especially when it comes to achieving an optimal balance between weight and strength. Colored aluminum and stainless steel are two commonly used materials, each with its own set of characteristics. This article aims to explore how colored aluminum and stainless steel perform in terms of the weight - strength balance and determine which material holds an advantage in the manufacturing of weight - sensitive transportation components that still require a certain level of structural strength.

Colored Aluminum VS Stainless Steel

Material Characteristics

Colored Aluminum

Colored aluminum is typically an aluminum alloy with added pigments or surface treatments for color. Aluminum itself is a lightweight metal, with a density of approximately 2.7 g/cm³. It offers good strength - to - weight ratio, meaning it can provide relatively high strength while remaining lightweight. Alloys such as 6061 or 7075 are often used in transportation applications. These alloys can be heat - treated to enhance their mechanical properties, further improving their strength. For example, 6061 - T6 aluminum alloy has a tensile strength of around 310 MPa, which is quite suitable for many structural components in transportation. The lightweight nature of colored aluminum is also beneficial as it reduces the overall weight of the vehicle, contributing to better fuel efficiency and performance.

Stainless Steel

Stainless steel is an alloy mainly composed of iron, chromium, nickel, and other elements. Its density is much higher than that of aluminum, usually around 7.9 g/cm³. Stainless steel is renowned for its excellent corrosion resistance and high strength. Different grades of stainless steel have varying levels of strength. For instance, 304 stainless steel, a commonly used grade, has a tensile strength of about 515 - 795 MPa. The high strength of stainless steel makes it capable of withstanding heavy loads and harsh mechanical stresses. However, its relatively high density means that components made from stainless steel are heavier compared to those made from aluminum.

Weight - Strength Balance Comparison

When comparing colored aluminum and stainless steel in terms of weight - strength balance, colored aluminum clearly has an edge in terms of weight. As mentioned earlier, its lower density allows for the production of lighter components without sacrificing too much strength. In transportation applications, where every kilogram of weight reduction can have a significant impact on fuel consumption and performance, the lightweight nature of colored aluminum is a major advantage.

In terms of strength, while stainless steel generally has a higher tensile strength, colored aluminum alloys can still provide sufficient strength for many transportation components. For example, in the manufacturing of aircraft fuselage frames, 7075 - T6 aluminum alloy is widely used. Although its strength is lower than some high - strength stainless steel grades, its weight - strength balance makes it a more suitable choice. The reduced weight helps to increase the aircraft's payload capacity and range, while still ensuring the structural integrity of the fuselage under normal operating conditions.

On the other hand, stainless steel may be over - engineered in terms of strength for some weight - sensitive applications, resulting in unnecessary weight addition. However, in situations where extreme strength and corrosion resistance are required, such as in the manufacturing of engine components that are exposed to high - temperature, high - pressure, and corrosive environments, stainless steel's superior strength and corrosion resistance make it a more viable option.

Advantages in Transportation Component Manufacturing

Colored Aluminum

For transportation components where weight is a critical factor, such as in automotive body panels, bicycle frames, and aircraft components, colored aluminum offers several advantages. In the automotive industry, using colored aluminum for body panels can significantly reduce the vehicle's curb weight. This reduction in weight leads to improved fuel efficiency, acceleration, and handling. Additionally, the good formability of aluminum allows for the creation of complex shapes, enabling designers to achieve both aesthetic and aerodynamic goals.

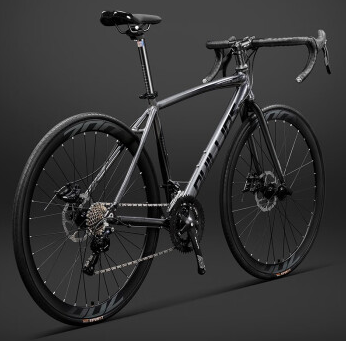

In the bicycle industry, lightweight aluminum frames are highly popular. The weight - strength balance of colored aluminum ensures that the bicycle is not only easy to handle and maneuver but also durable enough to withstand the rigors of regular use. Moreover, the color options available for colored aluminum can enhance the visual appeal of the bicycle, making it more attractive to consumers.

Stainless Steel

Stainless steel, despite its heavier weight, has its own set of advantages in transportation component manufacturing. In the marine transportation sector, stainless steel is widely used for components such as ship hulls, propellers, and deck fittings. Its excellent corrosion resistance in saltwater environments is crucial for maintaining the integrity of these components over long periods. In the railway industry, stainless steel is often used for train car bodies, especially in areas where durability and resistance to wear and tear are required. The high strength of stainless steel ensures that the train car bodies can withstand the mechanical stresses associated with frequent starting, stopping, and vibrations.

In conclusion, both colored aluminum and stainless steel have their own unique characteristics in terms of weight and strength. For weight - sensitive transportation component manufacturing where a certain level of structural strength is needed, colored aluminum generally has an advantage due to its superior weight - strength balance. However, the choice between the two materials ultimately depends on the specific requirements of the component, including the operating environment, load - bearing capacity, and cost - effectiveness. By understanding the differences between colored aluminum and stainless steel, manufacturers can make more informed decisions to produce high - quality, efficient, and reliable transportation components.
