Optimizing Heat-Seal Performance in 8011 H18 Lacquered Foil for Coffee Capsule Lidding

In single-serve coffee capsule production, the lidding foil acts as both a hermetic barrier against oxygen and a functional pressure-release membrane during extraction. Capsule filling lines operate at high speeds, requiring precise thermal activation to achieve zero-defect hermetic seals on polypropylene (PP), polyethylene terephthalate (PET), or aluminum capsule bodies.

Achieving consistent heat-seal integrity while maintaining controlled burst pressure during brewing presents a major manufacturing challenge: inadequate heat-seal strength leads to channel leaks and shelf-life degradation, while excessive seal adhesion prevents clean needle puncturing and uniform extraction. Preventing these packaging failures requires balancing metallurgical temper, heat-seal lacquer coating weight, sealing temperature window, and die pressure distribution.

Hermetic Barrier Integrity vs. Extraction Burst Behavior

The lidding foil of a coffee capsule must maintain an absolute oxygen transmission rate (OTR) and moisture vapor transmission rate (MVTR) of essentially zero to preserve volatile aromatic compounds. During extraction, hot water is injected into the capsule, raising internal pressure. The 8011 H18 lidding foil must hold against initial pressure buildup and then burst uniformly against the machine's extraction pyramid plate without tearing loose from the capsule rim.

Micro-Leak Risks on High-Speed Packaging Lines

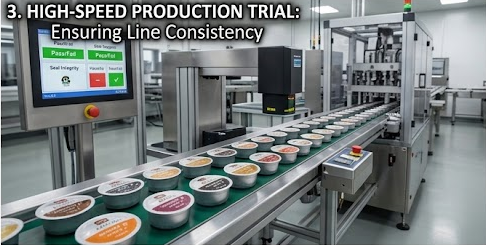

Continuous rotary or linear capsule filling and sealing lines run at speeds of 200 to 600 capsules per minute. Common failure modes include:

Channel Leaks: Tiny microscopic channels formed by coffee dust contamination on the capsule flange during filling.

Flange Delamination: Insufficient lacquer activation or incompatible sealing temperatures causing peeling along the rim interface.

Pin-hole Micro-Fractures: Foil foil micro-cracking caused by uneven die pressure or inadequate metal ductility during sealing ring compression.

Technical Specification Matrix: Lidding Foil Parameters

The table below outlines key technical specifications for 8011 H18 lacquered coffee capsule lidding foil:

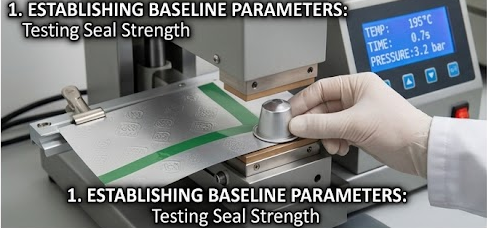

Heat-Sealing Process Parameters: The Triaxial Window

Sealing Parameter Optimization Matrix

Temperature Window (180^°C - 220°C): Below 170°C, the lacquer fails to reach its glass transition/melting state (T��). Above 240^°C, thermal degradation of the lacquer resin occurs, causing blistering and seal failure.

Sealing Pressure (3.5 - 5.0N/mm²): Sufficient pressure forces out trapped micro-air bubbles and flattens residual coffee particles on the flange. Excessive pressure squeezes molten lacquer outward, creating thin spots along the inner seal boundary.

Dwell Time (0.2 - 0.4seconds): High-speed machines require rapid heat transfer, made possible by the high thermal conductivity of the 8011 aluminum substrate.

View More >>

Thermal Activation Mechanics

Heat-sealing involves three interdependent variables: Temperature (T), Dwell Time (t), and Pressure (P).

Sealing Temperature (T)→(Window of Resilience)→Pressure →(P)Dwell Time (t)

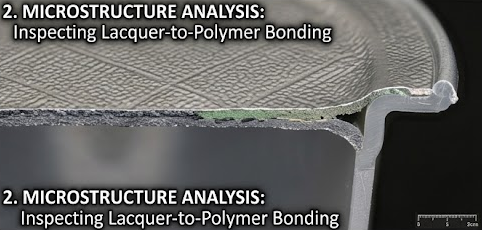

During the sealing cycle, thermal energy passes through the aluminum foil substrate to melt the heat-seal lacquer layer. The polymer chains interdiffuse across the interface with the capsule flange, forming a continuous welded matrix upon cooling.

View More >>

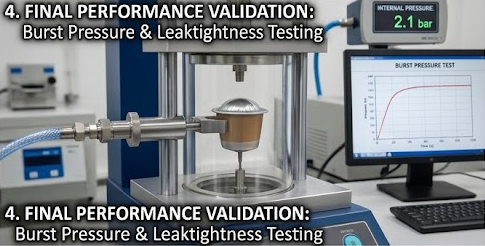

Burst Pressure & Leak Testing (ASTM F2095 / ASTM F2054)

Capsules undergo internal pressurization tests to evaluate seal durability under pressure:

Restrained / Unrestrained Burst Test: Air or nitrogen is injected into the capsule until the seal or foil bursts. The assembly must withstand ≥ 2.5bar static internal pressure without rim seal delamination.

Bubble Emission Test (ASTM D3078): Sealed capsules are submerged in a vacuum chamber to identify micro-leaks down to 5μm along the rim circumference.

View More >>

Chemical Composition & Purity Requirements

8011 alloy belongs to the 8xxx series Aluminum-Iron-Silicon family. The controlled addition of Iron (Fe: 0.6% - 1.0%) and Silicon ($Si: 0.5% - 0.9%) refines grain structure and enhances tensile strength.

For coffee capsule lidding, typical substrate gauge ranges from 20 μm to 40 μm. High pin-hole control standards mandate class A surface cleanliness, ensuring zero residual rolling oil contamination before lacquer coating.

H18 Temper Characteristics: Tensile Strength & Puncture Resistance

The H18 temper (fully strain-hardened by cold rolling) is essential for coffee capsule lidding:

High Tensile Strength (Rₘ ≥ 165 MPa): Prevents premature bulging or dome distortion during nitrogen gas flushing and ambient pressure shifts.

Low Elongation (A₅₀ₘₘ ≤3%): Ensures crisp, clean puncturing by brewing needles without stretching or elastic necking.High Burst Pressure Resistance: Enables predictable pressure buildup inside the capsule body before uniform mechanical shearing against extraction plates.

Dry Film Weight (GSM) and Seal Strength Correlation

Heat-seal lacquer coating weight is measured in grams per square meter (g/m² or GSM). Coating weight directly governs sealing reliability:

Optimal Dry Film Coating Weight: 4.0 - 7.0 g/m² (± 0.5g/m² tolerance)

Under-Coating (< 3.5g/m²): Leads to incomplete polymer interdiffusion, resulting in low seal strength (< 5 N/15mm) and high susceptibility to flange dust leaks.

Over-Coating (> 8.0 g/m²): Causes lacquer stringing, extended thermal activation times, increased material cost, and potential blocking during foil uncoiling.

Advanced Foil Converting & Cleanroom Precision

Changzhou Dingang Metal Material Co., Ltd. is a professional manufacturer and global exporter of high-precision pre-coated and lacquered aluminum foil products engineered for food and pharmaceutical packaging applications.

Custom Priming & Heat-Seal Formulations: Offers customized heat-seal lacquers compatible with PP, PBT, PLA biodegradable polymers, and lacquered aluminum capsule bodies, compliant with FDA and EU food safety standards.

Dust-Free Converting & Export Packaging: Slitting and spooling processes are conducted in clean processing environments to eliminate airborne particulate contamination on heat-seal surfaces. Coils are shipped in seaworthy, VCI anti-corrosion packaging.

Polymer Resin Formulations for Target Capsule Substrates

Heat-seal lacquers (HSL) are solvent-based or water-based polymer dispersions applied to the underside of the aluminum foil.

Universal Acrylic/Vinyl Lacquers: Engineered for sealing against lacquered aluminum capsule rims and rigid PVC/PVDC structures.

Polyolefin-Modified Lacquers (PP-Sealable): Formulated with chlorinated polyolefins to achieve strong thermal fusion with polypropylene (PP) coffee capsules.

FDA & EU Food-Contact Compliance: Lacquers must be certified BPA-NI (Bisphenol A Non-Intent), heavy-metal free, and compliant with FDA 21 CFR 175.300 and EU No 10/2011.

FAQ

Q1:Why is 8011 H18 preferred over 8011 O temper for coffee capsule lidding?

A:H18 temper is fully strain-hardened, offering high tensile strength (≥ 165 MPa) and low elongation (≤ 3%). This allows clean puncturing by brewing needles and controlled bursting without excessive stretching. O temper (annealed) is too soft and stretches elastically under pressure, leading to needle puncture failures..

Q2:How does heat-seal lacquer coat weight affect capsule seal integrity?

A:Insuffient coat weight (< 3.5g/m²) results in weak seal adhesion (< 5 N/15mm) and channel leaks around coffee dust particles. Excessive coat weight (> 7.0g/m²) increases cost, prolongs required sealing dwell times, and can cause lacquer stringing on sealing jaws.

Q3:What is the cause of capsule flange leaking during high-pressure coffee extraction?

A:Flange leaks usually stem from inadequate sealing temperature (lacquer not reaching activation point), uneven sealing ring pressure, or using an incompatible lacquer formulation that fails to bond thermally with the capsule material (e.g., standard acrylic lacquer on a PP capsule rim).

Q4:How do BPA-NI heat-seal lacquers perform compared to traditional epoxy-phenolic coatings?

A:Modern BPA-NI (Bisphenol A Non-Intent) modified acrylic and polyolefin lacquers match or exceed traditional epoxy-phenolic resins in seal strength and thermal stability, while fully meeting stringent European (EU 10/2011) and US FDA regulatory standards for food contact.

Q5:What is the typical pinhole standard for 30 micron coffee capsule lidding foil?

A:At gauges of 30 μm and above, high-grade 8011 aluminum foil should achieve a zero pinhole count (0 pinholes/m²), providing an absolute barrier against oxygen, moisture, and light ingress.

Conclusion

Optimizing heat-seal performance in 8011 H18 lacquered coffee capsule lidding foil requires balancing foil metallurgy, coat weight distribution, and sealing machine parameters. Securing this balance eliminates packaging line defects, protects coffee freshness, and ensures flawless consumer extraction.

To optimize packaging quality and secure long-term production reliability:

Align Substrate Mechanics with Extraction Needs: Specify 8011-H18 alloy in 20 - 40μm gauges to balance puncture resistance with uniform burst pressure performance on pyramid plates.

Optimize Lacquer Coating Weights: Mandate a 4.5 - 6.5 g/m² dry coat weight of target-matched resin (PP or universal) to prevent channel leaks and flange contamination failures.

Partner with Certified Converting Specialists: Work with experienced manufacturers like Changzhou Dingang Metal Material Co., Ltd. to source pinhole-free, cleanroom-slit lacquered coils backed by full FDA/EU food safety compliance dossiers.
