Thin-Gauge (0.15–0.25mm) Pre-Painted Aluminum Strips for Energy-Efficient HVAC Systems

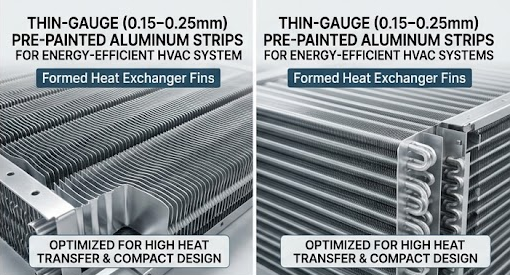

In modern commercial and residential Heating, Ventilation, and Air Conditioning (HVAC) manufacturing, energy-efficiency regulations and miniaturization demands drive the need for high-performance heat exchange materials. Heat exchanger fins, evaporator plates, and air handling components rely on ultra-thin aluminum substrates to maximize thermal transfer rates while reducing system weight.

Using thin-gauge (0.15 mm - 0.25 mm) pre-painted and pre-coated aluminum strips enables HVAC equipment manufacturers to optimize heat conductivity, prevent condensate water bridging, and protect heat exchangers against harsh atmospheric corrosion without increasing pressure drops.

The Role of Substrate Gauge in Heat Transfer Efficiency

Heat exchange efficiency in HVAC evaporators and condensers depends directly on thermal conduction across the aluminum fin wall. Reducing metal gauge from traditional 0.3 mm down to 0.15 mm - 0.25 mm:

Lowers Thermal Resistance: Thinner metal profiles allow faster thermal dissipation between refrigerant tubes and ambient air streams.

Increases Fin Density: Allows coil manufacturers to pack more fins per inch (FPI) into compact cabinet footprints, boosting total cooling capacity per unit volume.

Reduces System Weight & Material Cost: Lowers raw material mass per heat exchanger unit by up to 20% - 35%, reducing overall transport emissions and production expenditure.

Condensate Water Bridging & Airflow Resistance

During cooling cycles, atmospheric humidity condenses continuously on cold evaporator fins. On untreated aluminum fins, surface tension causes water droplets to bridge across adjacent fin gaps.

Water bridging restricts airflow channels, increasing static fan pressure, fan motor power draw, and system noise. Hydrophilic pre-painted coatings solve this by lowering the water contact angle, forcing condensate to form a thin, continuous liquid film that drains off rapidly.

Technical Specification Matrix: HVAC Fin Strip Grades

The table below details technical parameters for thin-gauge pre-painted aluminum strips used in energy-efficient HVAC systems:

Performance Advantages in Energy-Efficient HVAC Systems

Superior Heat Transfer & Energy Efficiency

By reducing wall thickness down to 0.15 mm - 0.25 mm, thermal conduction resistance drops dramatically. Combined with a hydrophilic coating that prevents water-bridge airflow blockages, system static pressure drops, allowing fan motors to consume less electrical energy while maintaining higher COP/SEER ratings.

View More >>

Extended Operating Lifespan & Salt-Spray Resistance

The multi-layer barrier—consisting of a chemical passivation film and a dense polymer pre-coat—shields the sensitive aluminum substrate from acid rain, industrial pollutants, and coastal sea salt. Heat exchanger coils maintain structural integrity without suffering intergranular flaking or premature fin degradation.

View More >>

Stamping Performance & Tooling Protection

The pre-applied functional coating incorporates solid lubricant additives (such as microscopic wax dispersions), lowering the friction coefficient during aggressive progressive collar drawing and fin forming. This minimizes tool wear, eliminates the need for messy liquid stamping oils, and prevents collar cracking during tube expansion.

View More >>

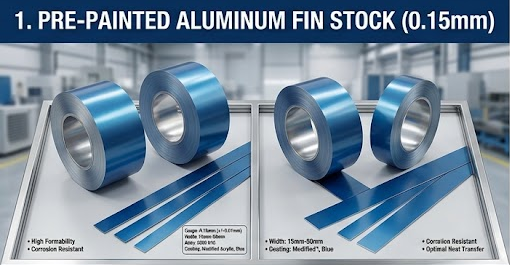

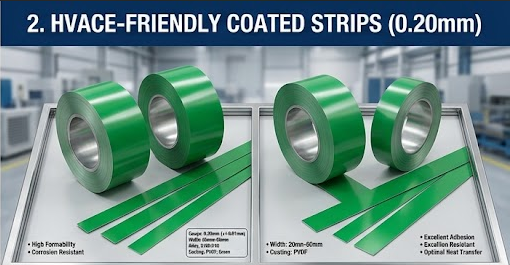

Hydrophilic Blue / Gold Epoxy Fin Stock Coatings

Pre-painted HVAC aluminum strips feature specialized functional coating formulations designed for continuous moisture contact:

Hydrophilic Acrylic / Epoxy Coatings: Applied at dry film thicknesses of 1.5 - 3.0μm, reducing the water contact angle to ≤ 10°.

Corrosion-Resistant Chromate/Non-Chromate Primers: Applied underneath the hydrophilic topcoat to seal raw aluminum against galvanic corrosion and oxidation.

Self-Lubricating Pre-Coats: Formulated with integrated waxes to enable smooth progressive stamping and fin drawing without requiring liquid stamping oils that mess up assembly lines.

Anti-Corrosion Hydrophobic Coatings for Coastal/Industrial Systems

For heat exchangers deployed in marine environments, coastal regions, or industrial HVAC installations exposed to salt spray and sulfur dioxide:

High-Durability Polyurethane / Epoxy Pre-Coats: Applied at 5.0 - 10.0μm to block salt spray penetration (> 1000 hours ASTM B117 salt spray resistance).

Anti-Microbial Additives: Incorporated into the coating matrix to prevent bacterial slime growth and mold buildup on wet coil fins.

Substrate Preparation & Degreasing

The raw thin-gauge aluminum foil passes through multi-stage chemical cleaning and acid degreasing baths to eradicate rolling oil residues. Pre-treatment chemical passivating coatings are applied to ensure ultra-high coating adhesion and baseline oxidation protection.

Precision Reverse Roll Coating

Custom hydrophilic or heavy-duty epoxy primers and topcoats are applied via high-precision reverse roll coaters. Computerized dry film thickness (DFT) gauges continuously monitor layer uniformity down to sub-micron tolerances, followed by high-temperature oven curing to fully polymerize the resin matrix.

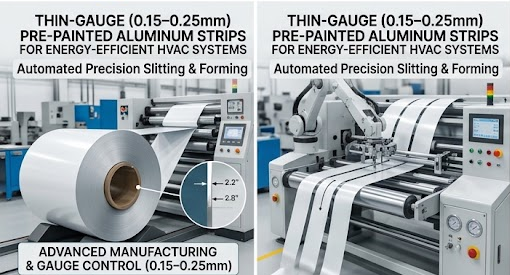

High-Precision Longitudinal Slitting

The coated wide master coils pass through automated rotary gang slitters equipped with tungsten carbide shear knives. Precision tension control and clearance settings keep edge burrs to an absolute minimum (≤ 0.01 mm), yielding narrow strips down to 30 mm ready for high-speed fin press feeding.

FAQ

Q1:What is the main advantage of hydrophilic pre-painted aluminum over plain aluminum in air conditioners?

A:Hydrophilic coatings lower surface tension so water condenses as a flat liquid film rather than droplets. This prevents water bridging across fin gaps, reduces static airflow resistance, increases heat transfer efficiency by 10% - 15%, and lowers fan energy consumption.

Q2:How does thin gauge (0.15mm) affect the collar-drawing process during fin stamping?

A:Ultra-thin gauges require precise metallurgical elongation (A₅₀ₘₘ ≥3%) and uniform lubricant-infused pre-coatings to prevent split collars or tears during high-speed progressive collar-drawing around copper or aluminum refrigerant tubes.

Q3:What causes edge corrosion on pre-painted aluminum strips in coastal HVAC units?

A:Edge corrosion occurs when raw aluminum exposed during longitudinal slitting is subjected to salt spray without protection. Sourcing high-purity 3003 alloys and applying chromate-free passivating lubricants minimizes edge oxidation in aggressive environments.

Q4:How is coating adhesion tested on thin-gauge fin stock aluminum?

A:Coating adhesion is evaluated using the 0T-1T T-bend test (ASTM D4145) and cross-hatch tape test (ASTM D3359) after immersion in boiling water for 60 minutes to ensure the paint layer will not peel during aggressive stamping or tube expansion.

Q5:Can pre-painted thin-gauge aluminum strips be processed without stamping lubricants?

A:Yes. Modern hydrophilic and epoxy pre-painted strips incorporate solid lubricating agents (such as polyethylene wax) directly into the topcoat formulation, allowing high-speed fin presses to operate dry without needing liquid stamping oils.

Conclusion

Upgrading raw material specifications to thin-gauge pre-painted aluminum strips enables HVAC equipment manufacturers to meet stricter seasonal energy efficiency metrics (SEER/COP).

To optimize your heat exchanger material sourcing:

Select Substrate Alloy by Formability Needs: Use 8011 or 1100 alloys in 0.15 - 0.2 mm gauges for high-density, deep-collar evaporator fins; select 3003 alloy for structural condenser fins requiring higher mechanical strength.

Mandate Hydrophilic Coating Performance: Specify a water contact angle ≤ 10° to prevent condensate water bridging, lower fan motor energy draw, and prevent unpleasant mold odors.

Partner with Integrated Strip Converters: Work with experienced suppliers like Changzhou Dingang Metal Material Co., Ltd. to secure tight-tolerance, burr-free slit strips packaged for zero transit damage.
