Preventing Orange Peel and Pin-Holes During Deep-Draw Stamping of Lacquered Foil

In precision high-speed stamping—such as manufacturing deep-drawn aluminum food containers, smooth-wall trays, pharma blisters, and aerosol valve cups—manufacturers face two major quality failures: orange peel surface roughening and lacquer pin-hole micro-fractures.

These defects compromise both the aesthetic appeal and the barrier integrity of food and pharmaceutical packaging. "Orange peel" causes surface haze and uneven light reflection, while microscopic pin-holes (5 - 50μm breach the organic barrier layer. This exposes raw metal to acidic contents, accelerating shelf-life decay and leading to pack failure. Preventing these issues requires balancing metallurgical grain size, lacquer ductility, die geometry, and lubricant film thickness during deep drawing.

Defect Physics: Root Causes of Orange Peel & Micro-Pinhole Formation

Deep drawing subjects both the aluminum substrate and its organic lacquer coating to severe biaxial tensile and compressive strains.

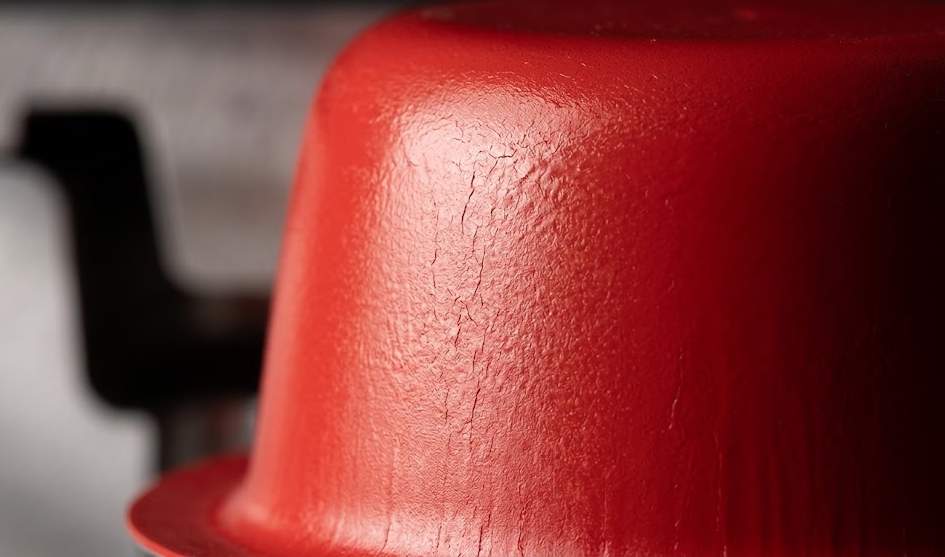

The Mechanics of Orange Peel (Biering Effect)

Orange peel is a structural surface roughening defect (Rₐ > 0.8μm) that occurs when coarse-grained aluminum foil (d > 35μm) undergoes plastic deformation.

Because individual surface grains lack constraint from neighboring crystals on their outer boundary, they rotate and deform unhindered along their preferred crystallographic slip planes. This differential grain movement creates microscopic valleys and peaks on the surface. When a thin lacquer layer (2 - 8μm) is stretched over a coarse substrate, it conforms to these valleys, creating an "orange peel" texture.

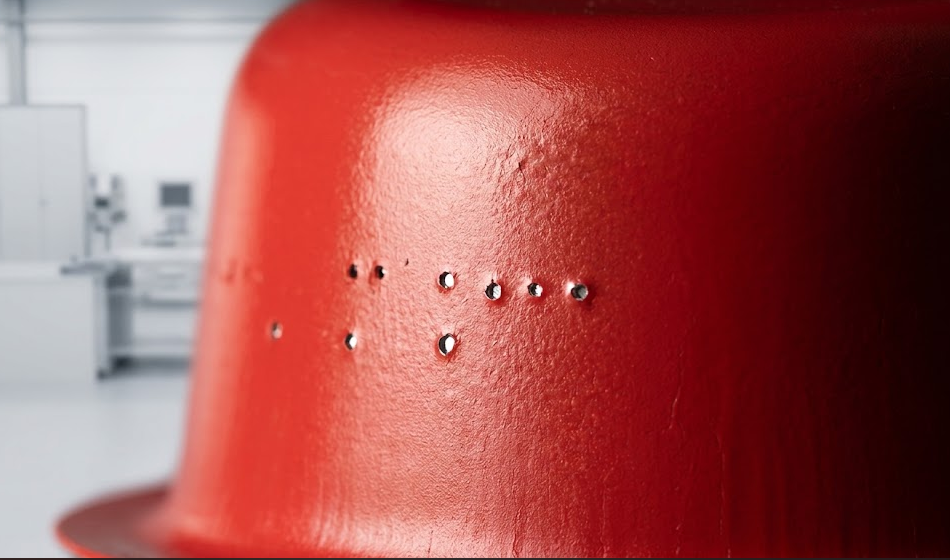

Die Geometry, Draw Ratios, and Interfacial Friction Spike Pin-Holes

Pin-holes in lacquered foil form via two distinct mechanisms:

Mechanical Perforation (Substrate Pin-Holes): Occurs when inclusion particles, dust, or localized necking tear the ultra-thin aluminum foil core (30 - 100μm) during drawing.

Coating Micro-Fracturing (Lacquer Pin-Holes): Occurs when the local stretch ratio exceeds the elongation at break (ε_b) of the cured resin system, or when high frictional heat breaks down the lubricant layer. This causes metal-to-die contact, micro-galling, and lacquer shearing.

Troubleshooting Matrix: Defect Symptoms, Root Causes & Corrective Actions

Use this diagnostic reference to resolve stamping defects during lacquered foil deep-drawing operations:

Quality Control & Barrier Integrity Verification Protocols

To verify zero pin-hole defect rates and monitor surface finish quality during production, implement the following inspection standard operating procedures:

Deep-Draw Lacquered Aluminum Foil & Strip Solutions

At Changzhou Dingang Metal Material Co., Ltd. (China), we manufacture specialized lacquered foil substrates designed for severe stamping and deep-drawing operations:

Substrates: High-purity 8011, 3003, and 5052 alloys (30μm - 200μm thickness), treated via continuous annealing to achieve an ultra-fine grain structure (ASTM 8–10) and low earing values (Δ r ≤ 2%).

Coating Technologies: High-speed reverse roll-coaters deposit uniform food-grade Epoxy, Organosol, and Heat-Seal lacquers (2.0 - 12.0 g/m²) with tight coating weight tolerances (±0.2\text{ g/m²).

Integrated DOP Lubrication: Factory-applied DOP or DOS wax lubrication (100 - 300 mg/m²) ensures smooth drawing performance right out of the box without requiring manual wet lubrication.

View More >>

Electrolytic Pin-Hole / Porosity Testing (DIN 55543)

Electrolytic porosity testing is a precise, non-destructive method for detecting microscopic lacquer breaches:

Submerge the deep-drawn container in a 1% NaCl electrolyte solution containing a surfactant.

Place an electrode inside the container and connect the aluminum substrate to ground, applying a constant low voltage (≈6.0 V DC).

Measure the resulting current leakage (mA). A intact container shows < 0.1mA leakage current. A current spike (> 0.5 mA) indicates pin-hole breaches or coating cracks along the drawn side walls.

View More >>

Cross-Sectional SEM & Optical Profilometry

Optical Profilometry: Measures surface roughness (Rₐ). Unformed foil typically measures $Rₐ ≈ 0.15 - 0.25μm. A drawn wall with Rₐ> 0.6μm indicates impending orange peel failure.

Scanning Electron Microscopy (SEM): Used during die setup to analyze lacquer micro-fracturing along the punch corner radius, confirming whether coating damage is driven by tensile elongation or friction shearing.

View More >>

Substrate Selection: Grain Size Control (d ≤ 15 - 25μm) and Temper

To prevent orange peel without sacrificing drawability, specify aluminum alloys (such as 8011, 3003, or 5052) engineered with fine grain sizes:Grain Size:

Target ASTM 8 to 10 (15 - 25μm average grain diameter). Grains larger than 35μm consistently trigger visible orange peel at draw ratios β = D₀/d₁ ≥ 1.5.

Temper Selection: Partially annealed tempers (H14, H24, or H28) offer a better yield-to-tensile ratio and surface constraint than fully soft O-temper material, reducing individual grain rotation while maintaining deep-draw elongation (> 12% - 18%).

Coating Formulation: Polymer Ductility, Tg, and Cross-Linking Density

The lacquer must elongate under strain without cracking or separating from the metal substrate:

Resin System: Modified Epoxy-Phenolic, Organosol (PVC-based), or Ductile Polyester lacquers are ideal for deep drawing. Organosol formulations provide exceptional flexibility (ε_b > 25%).

Glass Transition Temperature (T��): Select resins with a T�� slightly below or near ambient stamping temperatures (40°C - 60°C). This keeps the polymer chain in a ductile, rubbery state during high-speed drawing.

Coating Thickness: Maintain dry film builds of 4 - 8 g/m² (3 - 6μm). Excessively thick coatings (> 10μm) increase internal stress, leading to delamination along sharp draw radii.

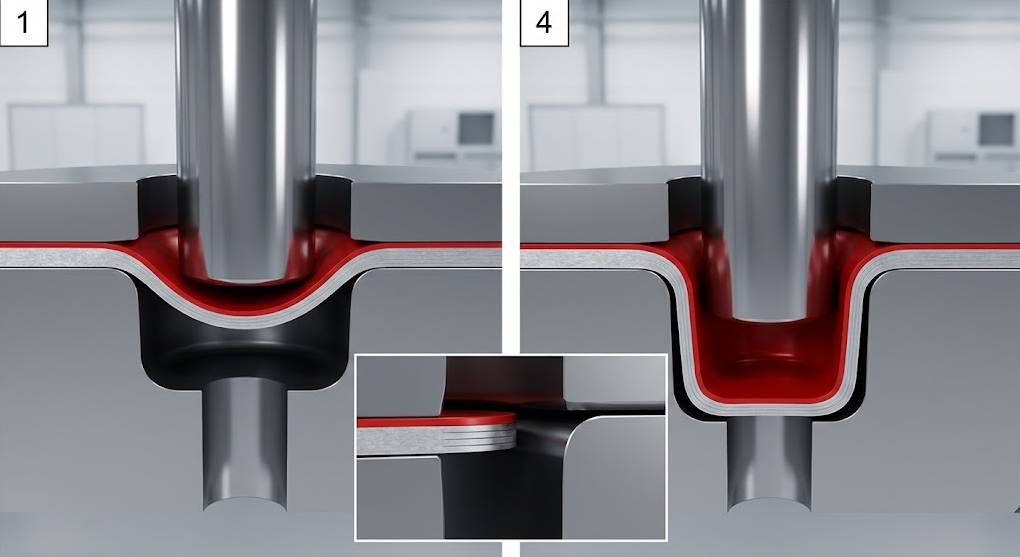

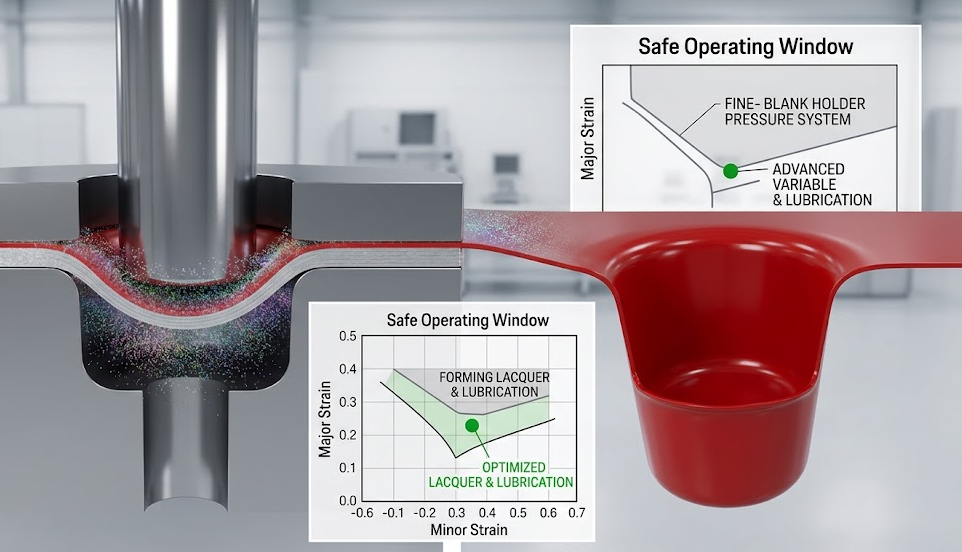

Die Radius (R��), Punch Radius (Rₚ), and Draw Clearance

Sharp tool edges concentrate tensile stresses, causing local lacquer breakdown and pin-holes:

Die Shoulder Radius (R��): Set to 6 × to 10 × foil thickness (t). For 80μm foil, R�� should be 0.5 - 0.8mm. A radius that is too tight causes ironing and strips the lacquer; a radius that is too large promotes flange wrinkling.

Punch Corner Radius (Rₚ): Set to 4 × to 8 × t to distribute bottom-corner stretching evenly.Draw Clearance: Maintain a punch-to-die clearance of 1.05 × to 1.10× t. Avoid clearance below 1.00 × t, which irons the foil and shears the organic coating layer.

Blank Holder Pressure (BHP) Tuning & Advanced Lubrication

Blank Holder Pressure (BHP): Keep BHP within 1.5 - 2.5 MPa. Excess pressure increases friction, tearing the lacquer, while insufficient pressure causes flange wrinkling that damages tooling surfaces.

Lubrication: Use food-grade lubricants, such as Dioctyl Phthalate (DOP), DOS, or specialized synthetic food-grade wax emulsions, applied at 150 - 300 mg/m². This creates a continuous hydrodynamic barrier between the lacquer and the hard carbide die, preventing direct friction and heat buildup.

Precision Slitting, Edge Quality, and Cleanroom Processing

Burr-Free Slitting: High-precision rotary slitters yield smooth, burr-free coil edges (burr height < 0.005 mm), preventing edge cracks and substrate tearing during stamping.

Micro-Pinhole Scanning: Continuous online optical pinhole detectors scan 100% of the web to guarantee zero raw material pin-holes prior to lacquering.

FAQ

Q1:Why does orange peel occur even when using soft, fully annealed (O-temper) aluminum foil?

A:Fully annealed O-temper foil can undergo secondary grain growth during heat treatment if annealing temperatures and holding times are not tightly controlled. Coarse grains deform along individual crystallographic slip planes under tensile stress, creating an orange peel surface regardless of how soft the metal is. Specifying a fine-grained, partially annealed temper (like H24) helps prevent this issue.

Q2:How can I tell if a pin-hole was caused by a substrate defect or stamping stress?

A: Inspect the defect under an optical microscope or SEM. Substrate pin-holes have jagged, torn aluminum edges surrounded by cracked lacquer. Tooling or stress-induced pin-holes show smooth, stretched lacquer margins with necking along the crack boundary. Electrolytic porosity testing also reveals whether breaches are concentrated on high-stress draw radii.

Q3:What is the ideal draw ratio (β) for lacquered foil in a single-action die?

A:For lacquered aluminum foil (50 - 100μm), the maximum single-step draw ratio is typically β= D₀/d₁≤ 1.6 - 1.8. Higher draw ratios require multi-stage redrawing with generous inter-stage radii to avoid tearing the lacquer layer.

Q4:Can I use water-soluble lubricants for deep-drawing food packaging foil?

A:Water-soluble lubricants are generally avoided for thin lacquered foil because residual water can collect under overlapping coil turns, causing moisture staining or corrosion. Prefer food-grade, vanishing-oil synthetic lubricants or pre-applied DOP / DOS wax films that evaporate cleanly during baking or post-stamping drying.

Q5:How do I request custom deep-draw lacquered foil samples from Changzhou Dingang Metal Material Co., Ltd. (China)?

A:Dingang Metal Material Co., Ltd. provides custom-slitting, specific temper matching, and tailored lacquer formulations for trial runs. Contact our technical engineering team at gavin@cnchangsong.com to discuss draw ratios, coating weights, and sample delivery.

Conclusion

Eliminating orange peel and pin-hole defects in lacquered foil deep-drawing requires an integrated approach. By matching fine-grained aluminum substrates (ASTM 8–10) with ductile Organosol or Epoxy lacquers, maintaining die radii at 6 - 10 ×t, and applying proper DOP/wax lubrication, press operators can achieve defect-free drawn parts at high production speeds.
