Color-Coated Aluminium Sheet for Heat Pumps, HVAC Cabinets and European Home Appliances

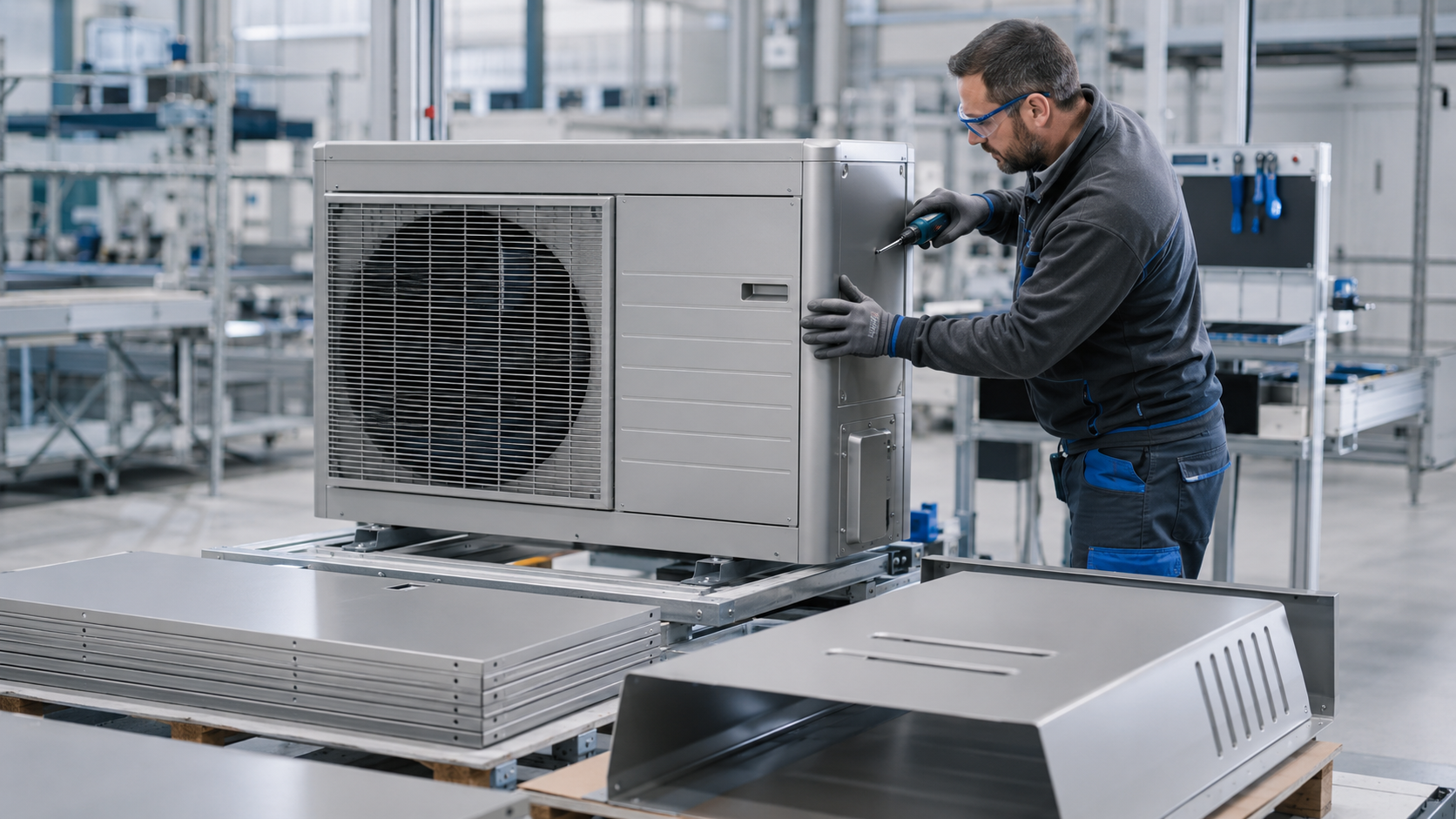

The casing of a heat pump has a difficult job. It must protect fans, compressors and controls outdoors, survive condensation and cleaning, resist handling damage and still look acceptable beside a home or commercial building. Inside a factory, the same sheet must stamp, punch and bend without coating failure.

Prepainted aluminium allows the equipment maker to purchase metal with the finish already applied. That can reduce in-house painting, work-in-progress and colour variation between production batches. The saving is only real, however, when the alloy and coating are matched to the cabinet design.

Ding‘ang supplies color-coated aluminium sheet and coil for HVAC housings and appliance panels, including formable 3003 products and higher-strength 5052 options.

Typical applications

The material can be used for:

• air-source heat-pump outdoor-unit cabinets;

• air-conditioning and ventilation housings;

• chillers, air handlers and fan-coil covers;

• boiler and heater panels;

• refrigerator and freezer doors or side panels;

• washing-machine and tumble-dryer panels;

• dishwasher, oven and microwave housings;

• electrical and control enclosures.

The European Coil Coating Association lists refrigerators, freezers, washing machines, dryers, dishwashers, cookers, heaters, air conditioning and metal enclosures among common prepainted-metal applications.

3003 or 5052 for a cabinet panel?

AA3003 is a sensible choice for covers and housings that need good formability with moderate strength. It can be roll-formed, bent and stamped into many non-structural cabinet components.

AA5052 contains magnesium and offers higher strength than 3003 while retaining useful formability and corrosion resistance. It may be preferred for larger panels, outdoor equipment, transportable units or components that need better dent resistance. Dingang offers a 5052-H32, 0.8 mm color-coated aluminium sheet for appliance panels as one application example.

The higher-strength grade is not automatically better. A deep-drawn corner, tight return flange or complex louvre pattern may form more reliably in a softer alloy or temper. The buyer should provide the drawing and current forming route before changing material.

Surface requirements vary across the same appliance

An outdoor heat-pump housing, refrigerator door and internal electrical panel do not need the same finish.

Outdoor HVAC cabinets prioritise humidity, weathering, condensation, colour retention and resistance to service handling.

Visible domestic-appliance panels often require tight colour and gloss control, scratch resistance, stain resistance and an attractive matte, satin or brushed appearance.

Internal panels and enclosures may prioritise cost, electrical assembly, stamping and corrosion protection over long-term UV performance.

Ding’ang can supply smooth matte, glossy and brushed coated surfaces. A brushed finish adds a directional visual effect, so blanking and panel orientation must be controlled throughout production.

Read more: brushed color-coated aluminium coil

Tests that reflect real factory risks

A useful approval plan may include:

• coating thickness and cure;

• colour difference and gloss;

• pencil hardness or an agreed scratch test;

• impact and indentation adhesion;

• bend or drawn-corner evaluation;

• resistance to staining and specified cleaners;

• humidity and condensation resistance;

• salt-spray testing where relevant to the product environment;

• protective-film peel after stamping and storage.

EN 13523 provides European test methods for many of these coating properties. The equipment maker should select relevant methods and acceptance limits rather than request every test in the series.

Forming considerations for doors, covers and louvred panels

Cabinet parts commonly combine punching, embossing, louvre formation and 90-degree return flanges. Tooling marks often occur before coating cracks, particularly when guides and dies are not kept clean.

During a trial, inspect:

• outer bend radii for fine cracking;

• punched edges for coating pick-off;

• louvres for colour stretch or gloss change;

• flat areas for pressure marks;

• corners for tearing or springback;

• film residues after removal.

If a design is being converted from prepainted steel to aluminium, do not copy the gauge without engineering review. Aluminium's density, elastic modulus and forming response differ, and the panel may need altered thickness, beads or stiffeners.

Ding‘ang supply advantages for appliance and HVAC factories

Our application-based supply model can include:

• 3003 and 5052 substrate options, plus other approved alloys;

• coils or cut sheets in customer-specific dimensions;

• PE, PVDF and other project-agreed coating chemistries;

• white, grey, black, RAL, Pantone or sample-matched colours;

• matte, glossy, brushed and selected anti-fingerprint-style surfaces;

• controlled coating, colour and gloss tests by batch;

• protective film for forming and assembly;

• export pallets and coil orientation matched to handling equipment.

Terms such as "anti-fingerprint" should be tied to an approved surface sample and agreed test. Different factories use the term for different touch, gloss and cleaning behaviour.

European product compliance: keep material and equipment responsibilities separate

Heat pumps and HVAC products may fall under EU ecodesign, energy labelling, electrical safety, refrigerant and CE-marking rules. Those obligations apply to the finished equipment and its responsible manufacturer or importer. A compliant aluminium sheet is one controlled input; it does not make the complete heat pump compliant.

Ding’ang can agree the material documentation needed for the customer's technical file, such as alloy, mechanical properties, coating details and batch inspection results. The equipment manufacturer should identify the applicable legislation and product standards.

Frequently asked questions

Is aluminium better than steel for every appliance panel?

No. Aluminium offers low weight and corrosion resistance, while steel may provide stiffness and magnetic properties at a lower material cost. Compare the complete part design and production route.

Can Ding‘ang produce appliance white from a customer sample?

Yes. Because appliance whites can differ in undertone and gloss, send a physical master and define the viewing light. Approve a coated-metal sample before production.

Is 5052-H32 suitable for stamping?

It is suitable for many bent and moderately formed parts, but deep drawing and tight corners need a forming review. The part geometry may call for a different temper or alloy.

Which coating is best for a heat-pump outdoor unit?

The answer depends on climate, colour, condensation, cleaning and service-life target. A formable polyester may work for one programme, while a higher-durability system may be justified for another. Validate the complete coating build on formed parts.

Send us a cabinet drawing

Share the part drawing, current metal, annual quantity, forming steps, colour target and exposure. Ding’ang can propose a coated aluminium sheet or coil for stamping and cabinet-assembly trials.
