                 PPG-PVDF Paint: Application in Aluminum Composite Curtain Walls



                 1. Introduction to PPG-PVDF Paint for Curtain Walls


                  PPG-PVDF (Polyvinylidene Fluoride) paint is a premium coating system widely adopted in high-end aluminum curtain walls, renowned for its exceptional weather resistance, color retention, and durability. Composed of 70%+ PVDF resin, it outperforms conventional coatings in withstanding UV radiation, extreme temperatures, and corrosive environments—critical for exterior building envelopes. This article details its application requirements, technical parameters, and landmark projects, providing a comprehensive guide for architectural professionals.



                 2. Core Technical Parameters & Application Requirements



                 2.1 Key Performance Parameters



                       Parameter

                       Standard Requirement

                       Test Method

                       PVDF Resin Content

                       ≥70% (by weight)

                       ASTM D3900

                       Coating Thickness

                       Primer: 5-10μm; Topcoat: 25-35μm; Total: 30-45μm

                       ASTM D1186

                       Adhesion

                       ≥1 级 (cross-cut test)

                       ISO 2409

                       Salt Spray Resistance

                       ≥4000 hours (no corrosion)

                       ASTM B117

                       Artificial Aging Resistance

                       ≥3000 hours (ΔE ≤3, gloss retention ≥80%)

                       ASTM G154

                       Impact Resistance

                       ≥50 kg·cm (no cracking)

                       GB/T 1732

                       Hardness (Pencil)

                       ≥HB

                       ASTM D3363


                 2.2 Application Requirements

Substrate Preparation: Aluminum alloy substrates (e.g., 3003, 3105, 5052) must meet ASTM B209 standards, with surface degreasing and chromate conversion coating (or anodizing) to enhance adhesion.

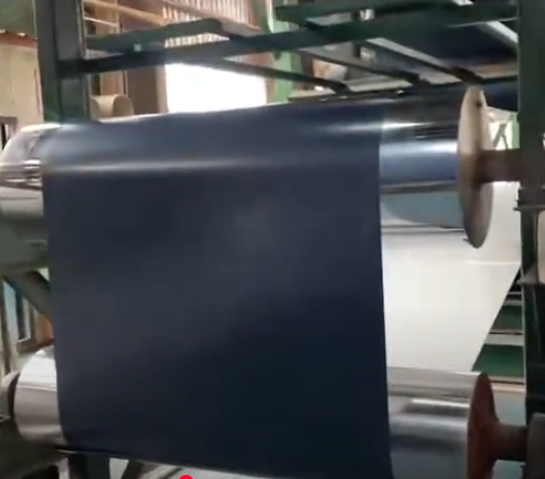

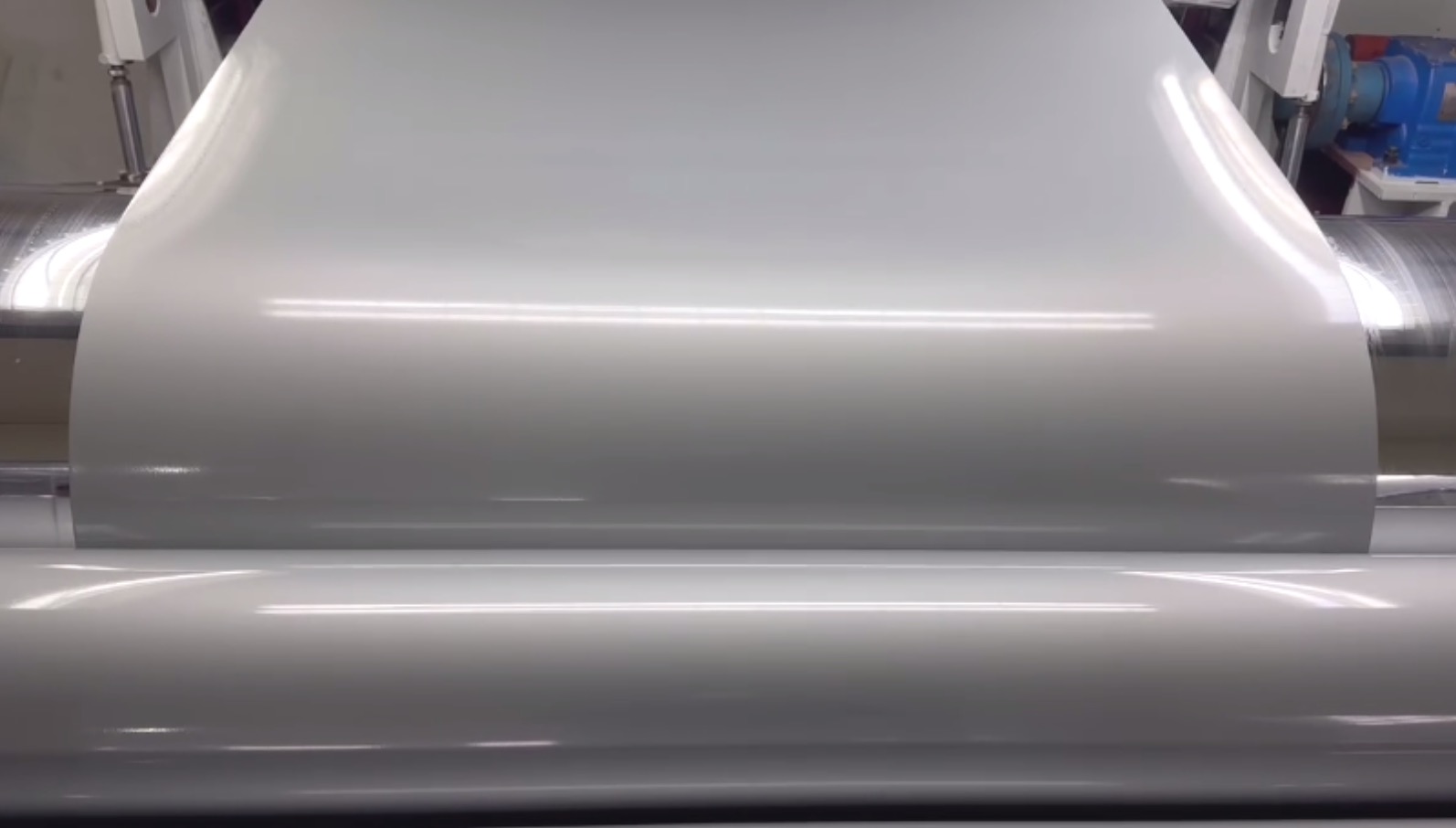

Coating Process: Strictly follow roll-coating technology (temperature: 23±2℃, humidity: 40%-60%) to ensure uniform film thickness and no pinholes.

Curing Conditions: Bake at 230±5℃ for 20-25 minutes to achieve full cross-linking of the PVDF resin.

Environmental Adaptation: Suitable for -40℃ to 80℃ working temperature, compliant with AAMA 2605-20 standards for architectural coatings.


                 3. Landmark Projects Utilizing PPG-PVDF Coated Aluminum Curtain Walls



                 3.1 Burj Khalifa, Dubai


                  The world’s tallest building (828m) features PPG-PVDF coated aluminum curtain walls across its exterior. The coating’s superior UV resistance and heat reflection reduce energy consumption by 15%, while the custom metallic finish maintains its luster despite Dubai’s harsh desert climate. The project adhered to strict thickness and adhesion requirements, ensuring long-term durability.



                 3.2 Shanghai Tower, China


                  As Asia’s tallest building (632m), Shanghai Tower uses PPG-PVDF painted aluminum panels for its twisted facade. The coating withstands Shanghai’s humid subtropical climate, passing 4000-hour salt spray tests to resist corrosion from urban pollutants. Its excellent color retention preserves the tower’s gradient blue appearance, a defining architectural feature.



                 3.3 One World Trade Center, New York


                  The iconic 541m skyscraper employs PPG-PVDF coatings on its aluminum curtain walls. Designed to endure New York’s extreme temperature fluctuations (-15℃ to 35℃), the coating provides exceptional impact resistance and weatherability. The matte white finish meets strict light pollution standards while maintaining structural integrity.



                 4. Conclusion


PPG-PVDF paint sets the benchmark for high-performance aluminum curtain wall coatings, with technical parameters exceeding industry standards for durability and aesthetics. Its application in landmark projects like Burj Khalifa and Shanghai Tower proves its reliability in extreme environments. By adhering to substrate preparation, coating process, and curing requirements, PPG-PVDF ensures aluminum curtain walls deliver long-lasting, low-maintenance performance for architectural masterpieces worldwide.
