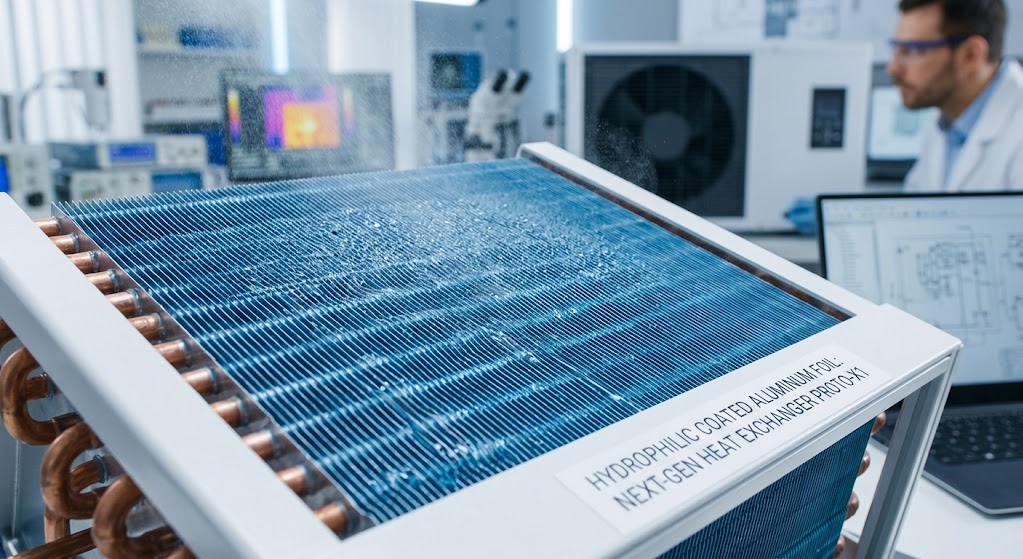

Hydrophilic Coated Aluminum Foil for Next-Generation Heat Exchangers and Heat Pump Systems

The global transition toward sustainable HVAC&R systems and high-efficiency heat pumps requires heat exchangers capable of maximizing energy performance under diverse operating conditions. Modern air-to-water and air-to-air heat pumps operating in heating and cooling modes face continuous frost formation, frequent defrost cycles, and heavy condensation buildup on outdoor and indoor coils.

Utilizing hydrophilic coated aluminum foil for heat exchanger fins provides a solution to condensate management. By altering surface chemistry to achieve ultra-low water contact angles, hydrophilic fin stock prevents water droplet bridging, lowers static air pressure drop, accelerates defrost water runoff, and protects the aluminum matrix against atmospheric corrosion.

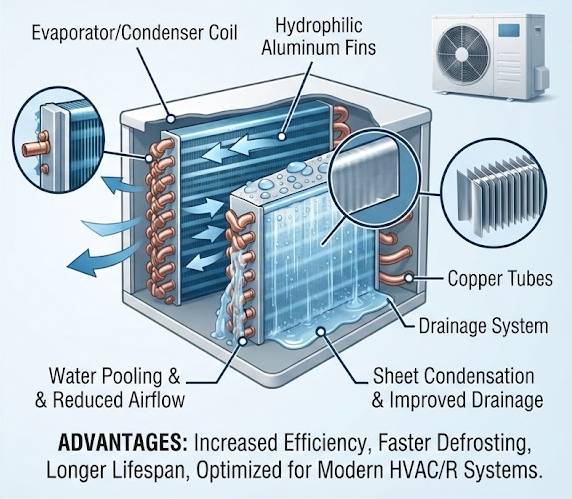

The Mechanism of Water Bridging and Pressure Drop

In cooling and heat pump dehumidification modes, moisture in the air condenses on the cold surface of aluminum fins. On untreated aluminum, high surface tension forces water to form hemispherical droplets. These droplets bridge across narrow fin gaps (1.2 mm - 2.0 mm), obstructing air passage channels.

Water bridging increases static fan pressure by up to 30% - 50%, requiring fan motors to draw significantly more electrical energy to maintain designed cubic-feet-per-minute (CFM) airflow, ultimately degrading the Seasonal Energy Efficiency Ratio (SEER) and Coefficient of Performance (COP).

Frost Accumulation and Defrost Cycle Dynamics

When heat pumps operate in heating mode under cold, humid ambient conditions (0°C - 7°C), condensation on outdoor coils freezes into frost layers. Untreated fins trap thick ice blocks within the fin gaps, requiring frequent reverse-cycle defrosting that consumes high energy. Hydrophilic coatings allow melted frost water to sheet off rapidly during defrost cycles, preventing re-freezing along bottom fin edges.

Technical Specification Matrix: Hydrophilic Heat Pump Foil

The table below outlines technical parameters for hydrophilic coated aluminum foil used in heat pump and heat exchanger applications:

Performance Advantages in Next-Generation Heat Pumps

Energy Efficiency Enhancement & Noise Reduction

By preventing water droplets from bridging fin gaps, static pressure drop across the evaporator coil remains low. Fan motors operate at lower RPMs while delivering required air volume, reducing noise pollution in residential heat pumps and lowering seasonal power consumption by 8% - 15%.

View More >>

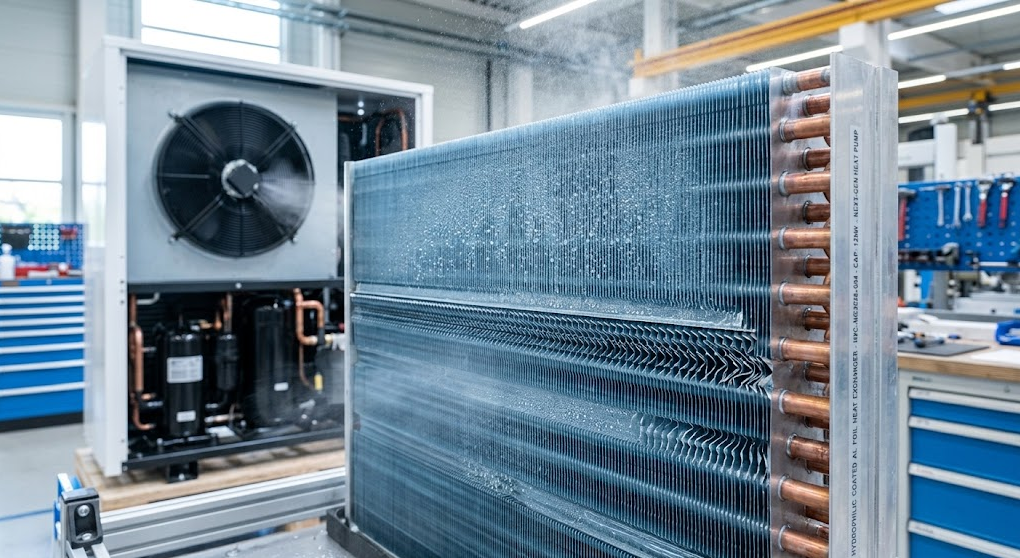

Accelerated Defrost Cycles & Extended Heat Pump Operation

During outdoor heating operation, hydrophilic foils promote uniform frost deposition rather than localized ice blocks. When the system initiates reverse-cycle defrosting, the thin water layer beneath the ice melts quickly, allowing ice sheets to slide off cleanly. This reduces defrosting duration by up to 30% and restores heating mode faster.

View More >>

Anti-Corrosion Protection & Mold Resistance

The multi-layer inorganic-organic barrier prevents atmospheric oxygen, acid rain, and salt ions from contacting the raw aluminum substrate. Furthermore, eliminating standing water pools on fins deprives mold, algae, and bacteria of moisture, preventing "sour smell" issues in indoor air handlers.

View More >>

Water Contact Angle Mechanics

Hydrophilicity is quantified by measuring the static water contact angle (θ) of a liquid droplet resting on the foil surface.

By incorporating polar functional groups (such as hydroxyl, carboxyl, or sulfonic acid groups) into the acrylic or silicate resin matrix, the coating drastically increases surface free energy, causing water droplets to immediately flatten and spread out.

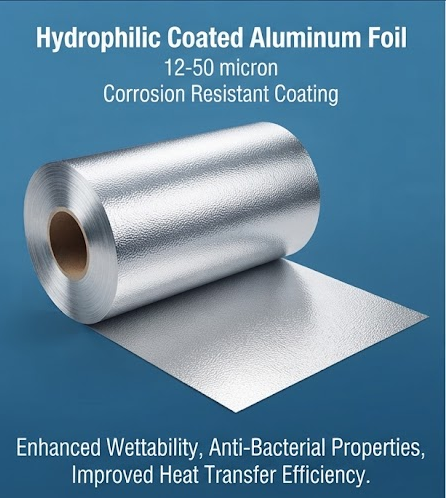

Functional Layer Architecture

High-grade hydrophilic heat pump foil utilizes a multi-layer protective coating structure:

Top Layer (Hydrophilic Resin, 1.0 - 2.0μm): Engineered for low surface contact angle, high water resistance, self-lubricating properties for press stamping, and anti-bacterial growth.

Intermediate Passivation Layer (Conversion Coating, 0.1 - 0.5μm): Silane or titanium-zirconium conversion coating that provides a corrosion-resistant barrier and chemically bonds the topcoat to the metal substrate.

Base Aluminum Substrate (8011 / 1100 / 3102 Alloy): Provides high thermal conductivity and mechanical formability for progressive collar-drawing dies.

Substrate Pre-Treatment & Degreasing

Raw aluminum foil coils pass through high-speed continuous washing lines equipped with hot alkaline degreasing and acid etching stages. This eliminates residual rolling oils and creates a clean surface for passivation.

Precision Reverse Roll Coating & Curing

Hydrophilic primers and silicate/acrylic topcoats are applied via precision reverse roll coaters. Automated optical sensors continuously measure dry film thickness (DFT) across the web width, followed by high-temperature hot-air drying ovens to fully cure and crosslink the resin coating.

High-Precision Slitting & Edge Quality

Coated master coils undergo longitudinal shear slitting on rotary gang slitters equipped with tungsten carbide knives. Strict tension controls maintain tight strip width tolerances (± 0.05 mm) and eliminate edge burrs (≤ 0.01 mm), preventing die jams during high-speed fin press stamping.

FAQ

Q1:What is the primary difference between hydrophilic blue foil and gold foil?

A:Blue hydrophilic foil uses a standard acrylic/epoxy coating suitable for residential air conditioners. Gold hydrophilic foil incorporates advanced epoxy-polyurethane or double-pass conversion layers engineered for aggressive coastal and marine heat pump environments, providing salt spray resistance exceeding 1000 hours.

Q2:How does hydrophilic aluminum foil shorten heat pump defrost times in winter?

A:Hydrophilic coatings lower surface energy so melted ice forms a continuous thin water film rather than clinging droplets. Under gravity, this water film drains off the vertical fin surface rapidly, allowing the heat pump to complete its defrost cycle faster and return to heating mode.

Q3:Can hydrophilic pre-coated foil be stamped without adding liquid lubricants?

A:Yes. Quality hydrophilic coatings incorporate solid wax lubricants directly into the topcoat formulation, enabling progressive fin stamping and collar drawing on automatic presses without needing additional liquid oil application.

Q4:How is the hydrophilicity durability of coated aluminum foil evaluated?

A:Hydrophilicity durability is tested using the Water Washing Resistance Test (immersing foil samples in running deionized water for 500 hours) and thermal cycle testing, followed by contact angle measurement to ensure θ remains ≤ 15°.

Q5:What causes fin collar cracking during tube expansion, and how can it be avoided?

A:Collar cracking occurs due to insufficient metal elongation, improper temper, or uneven coating thickness. Sourcing fully annealed or H22/H24 temper 8011/3003 alloys with uniform hydrophilic coating thickness (1.5 - 2.5μm) ensures ductility during collar drawing and tube expansion.

Conclusion

Upgrading fin stock specifications to hydrophilic coated aluminum foil enables heat pump and heat exchanger manufacturers to satisfy strict global seasonal energy efficiency standards.

To optimize your heat exchanger production and material performance:

Select Substrate Alloy by Formability Requirements: Use 8011 or 1100 alloy in $0.095 - 0.13 mm gauges for standard air conditioner evaporators; specify 3003 or 3102 alloy for high-strength commercial heat pump coils.

Verify Continuous Hydrophilicity & Salt Spray Ratings: Ensure hydrophilic coatings maintain a water contact angle ≤15° after continuous water washing tests, with neutral salt spray resistance exceeding 500 hours (or >1000 hours for coastal heat pumps).

Partner with Integrated Foil Coating Mills: Work with experienced suppliers like Changzhou Dingang Metal Material Co., Ltd. to secure burr-free, tight-tolerance slitted hydrophilic foil backed by full environmental and quality compliance dossiers.
