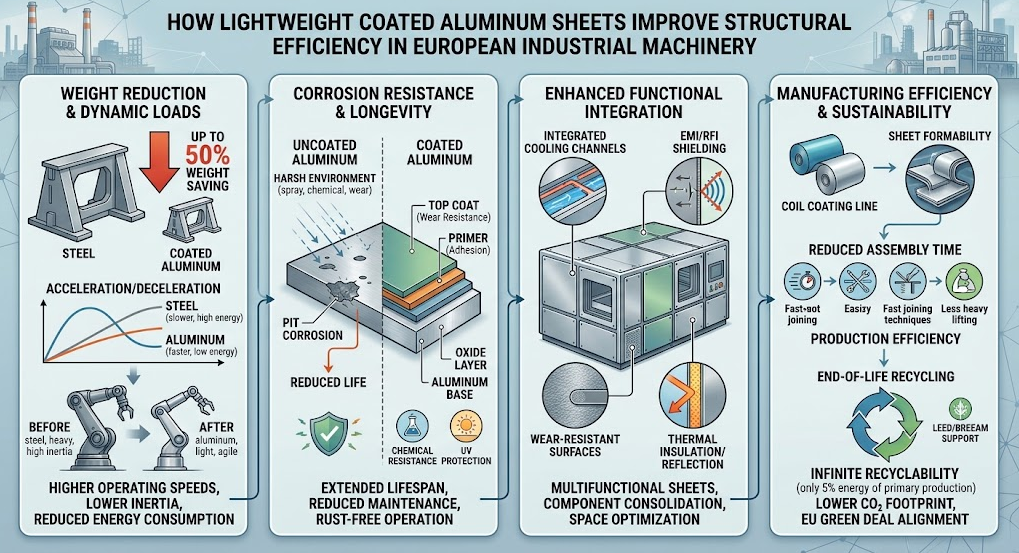

How Lightweight Coated Aluminum Sheets Improve Structural Efficiency in European Industrial Machinery

European industrial equipment manufacturers face continuous pressure to improve energy efficiency, comply with strict EU Machinery Directives, and increase processing speeds in automated manufacturing lines. Heavy structural steel enclosures, machine guards, and reciprocating components add dead weight, increasing motor energy consumption and inertia.

By replacing traditional painted steel with lightweight pre-coated aluminum sheets, equipment builders reduce dynamic mass, improve structural rigidity-to-weight ratios, eliminate secondary liquid painting processes, and provide long-term corrosion resistance in demanding factory environments.

Density Advantage and Power Density Scaling

Structural efficiency in high-speed industrial machinery—such as Cartesian gantry robots, automated sorting systems, and packaging lines—depends on the ratio of payload to moving mass.

Replacing steel enclosures and reciprocating panels with 1.5mm - 3.0mm pre-coated aluminum sheets yields substantial benefits:

Lower Inertia & Motor Torque Demand: Reduces starting and stopping torque requirements on servo motors, lowering overall kilowatt-hour (kWh) electrical consumption.

Higher Acceleration Rates (a = F/m): Decreases component mass (m), enabling higher axis acceleration (a) without requiring oversized drive systems.

Reduced Structural Vibration: Lighter moving panels minimize frame vibration and noise emissions, supporting higher positioning accuracy in precision equipment.

Technical Specification Matrix: Machinery-Grade Coated Aluminum

The table below outlines technical parameters for lightweight pre-coated aluminum sheets used in European industrial machinery:

Performance Advantages in European High-End Appliances & Machinery

Exceptional Scratch & Wear Resistance

Unlike conventional liquid-painted or organic-coated steel sheets, pre-coated machinery-grade aluminum features an engineered polymer topcoat cured directly over an oxidized passivation layer. With a surface hardness reaching 2H - 3H, it resists daily tool scrapes, utensil contact, and cleaning friction without peeling or flaking.

View More >>

Anti-Fingerprint (AF) & Easy-Clean Hydrophobic Performance

Uncoated or poorly finished metal surfaces can trap skin lipids, cutting fluids, and industrial grease inside micro-pores. Integrating advanced nano-sealing technologies lowers surface energy:

Oleophobic Repulsion: Oils remain on the surface boundary as tiny beads rather than wetting and spreading across the grain.

Wipe-Clean Maintenance: Fingerprints, grease films, and coolant residues can be completely wiped clean using a microfiber cloth without needing harsh chemical solvents.

View More >>

Superior Thermal & Chemical Stability

The inorganic-organic coating layer withstands operational temperature spikes near drive motors, pumps, and heating modules without yellowing, blistering, or releasing volatile organic compounds (VOCs). It provides high resistance against acidic synthetic oils, coolant emulsions, and industrial detergent washdowns.

View More >>

Industrial Chemical & Abrasion Resistance

Machine guards, electrical control cabinets, and conveyor side covers face continuous exposure to coolants, synthetic lubricants, cleaning detergents, and chip impact.

PVDF / FEVE Fluorocarbon Coatings: Applied at dry film thicknesses of 25 - 35μm, offering high resistance to synthetic cutting oils, UV radiation, and acid/alkali washdowns.

High-Durability Polyurethane (PU) Pre-Coats: Engineered for high scratch and wear resistance (> 2H - 3H pencil hardness), protecting exterior cladding against tool impacts and operator contact.

Anti-Fingerprint (AF) & Easy-Clean Topcoats: Formulated to prevent oil staining and allow grease or cooling fluids to be wiped clean with standard microfiber cloths.

Substrate Degreasing & Chemical Pre-Treatment

Raw 3000 or 5000-series aluminum sheets undergo multi-stage continuous cleaning, acid etching, and chromate-free titanium-zirconium passivating pre-treatment. This creates a corrosion-resistant barrier and guarantees high paint bonding strength.

Continuous Coil Coating & Thermal Curing

Under strict digital process control, liquid primers and topcoats (PVDF, PE, or PU) are applied via reverse roll coaters. The coated web passes through high-temperature flotation ovens where the polymer resins fully cure and crosslink into a dense, non-porous protective film.

Precision Shearing, Laser Cutting & Bending

Pre-coated master coils are leveled and sheeted to custom lengths or slitted into flat sheets. The flexible coating formulation allows high-speed CNC fiber laser cutting, turret punching, and press brake bending (0T - 1T bend radius) without micro-cracking or paint delamination along bent edges.

Custom Coated Aluminum Manufacturing & Global Supply

Changzhou Dingang Metal Material Co., Ltd. is a certified manufacturer and exporter of pre-painted aluminum coils and custom-sized sheets tailored for machinery OEMs, electrical cabinet builders, and industrial equipment fabricators across Europe and global markets.

Advanced Multi-Coating Lines: Operates automated coil coating lines capable of applying custom PVDF, FEVE, Polyurethane, and Anti-Fingerprint coatings onto 1000, 3000, and 5000-series aluminum alloys up to 4.0mm thickness.

Precision Flatness & Custom Shearing: Equipped with high-precision tension-leveling lines and rotary shearing equipment, supplying flat sheets with minimal internal stress—critical for laser cutting without thermal warping.

Strict European Quality Compliance: All products comply with EU REACH, RoHS, and EN 13523 testing standards, ensuring full material traceability and environmental compliance for European machinery exports.

Heavy-Duty Protective Packaging: Coated sheets are interleaved with protective PE/laser films and wrapped in waterproof materials on reinforced wooden pallets to prevent scratch damage or moisture oxidation during ocean transit.

FAQ

Q1:Can pre-coated aluminum sheets be fiber-laser cut without damaging or burning the paint edge?

A:Yes. Pre-coated aluminum sheets with specialized laser-compatible protective films (PE/Polypropylene) can be fiber-laser cut directly. Proper nitrogen gas assist pressures prevent edge burning or paint delamination along the cut border.

Q2:Why is 5754 alloy preferred over 3003 alloy for European industrial equipment panels?

A:5754 aluminum offers higher yield strength (≥ 130 MPa), superior fatigue resistance, and excellent seawater/chemical corrosion resistance, making it suitable for structural machinery frames and load-bearing guards in harsh factory environments.

Q3:How does pre-coated aluminum eliminate factory spray-painting bottlenecks?

A:Using factory pre-coated sheets allows fabricators to cut, punch, and bend finished panels without needing in-house pretreatment, spray booths, or curing ovens. This reduces production lead times, eliminates solvent VOC compliance costs, and ensures uniform coating quality.

Q4:Will press-brake bending crack the coating on 2.0mm thick aluminum sheets?

A:No. Machinery-grade pre-painted aluminum uses flexible, fully crosslinked polyurethane or PVDF resins engineered for 0T - 1.5T bend flexibility. When bent with proper punch radii, the coating stretches without micro-cracking or losing adhesion.

Q5:How do pre-coated aluminum sheets handle continuous vibration in automated machinery?

A:Aluminum's high ductility and low density reduce vibration amplitude and dynamic fatigue. The flexible polymer coating absorbs microscopic structural flex without flaking, maintaining a protective barrier over the lifespan of the equipment.

Conclusion

Upgrading structural cladding and enclosure panels from steel to pre-coated aluminum sheets enables machinery manufacturers to build lighter, faster, and more energy-efficient industrial equipment.

To optimize your equipment design and material sourcing:

Select Alloy by Structural Load: Specify 3003-H14 or 3105-H24 for non-structural machine guards and electrical enclosure doors; choose 5052-H32 or 5754-H111 for load-bearing frame panels and reciprocating machine covers.

Match Coating System to Operating Environment: Use Polyurethane (PU) or HDP for indoor machine covers requiring scratch resistance; mandate PVDF or FEVE coatings for machinery exposed to chemical washdowns or outdoor installation.

Partner with Certified Coil Converters: Work with experienced suppliers like Changzhou Dingang Metal Material Co., Ltd. to secure precision-leveled, laser-ready pre-coated sheets with full quality certification.
