Differences in Aluminum Materials for Sinks, Roofing, Curtain Walls, Truck Carriages And Home Appliance Panels

Introduction

Aluminum alloys stand out for light weight, anti-corrosion performance and flexible processing, becoming the mainstream raw material for sinks, building envelopes, transportation compartments and household appliance decorations. Different service environments, forming requirements and performance standards determine distinct alloy grades, temper states and surface coating solutions. Mis-matched aluminum materials will lead to premature fading, deformation, rust or forming failure. This article systematically compares material selection logic and core differences across five typical application scenarios: water sinks, building roofing, architectural curtain walls, truck carriages and home appliance decorative panels.

1. Aluminum Materials for Water Sinks

Alloy & Temper

8011-O and 3004-O annealed soft aluminum strip/foil are the standard choices. O temper means fully annealed status with ultra-high ductility.

Core Performance Requirements

The top priority is deep drawing and stretch forming performance. Sinks require complex one-piece stamping without cracks or pinholes. Meanwhile, food-grade anti-corrosion property is mandatory to resist long-term erosion of tap water, detergent and food residues. Good weldability guarantees seamless assembly of sink liners.

Surface Treatment

No heavy color coating is needed. Only clean passivation treatment is applied to ensure safety in direct contact with food.

Limitation

Low mechanical strength, unsuitable for load-bearing or outdoor long-term exposure.

2. Aluminum Materials for Building Roofing

Alloy & Temper

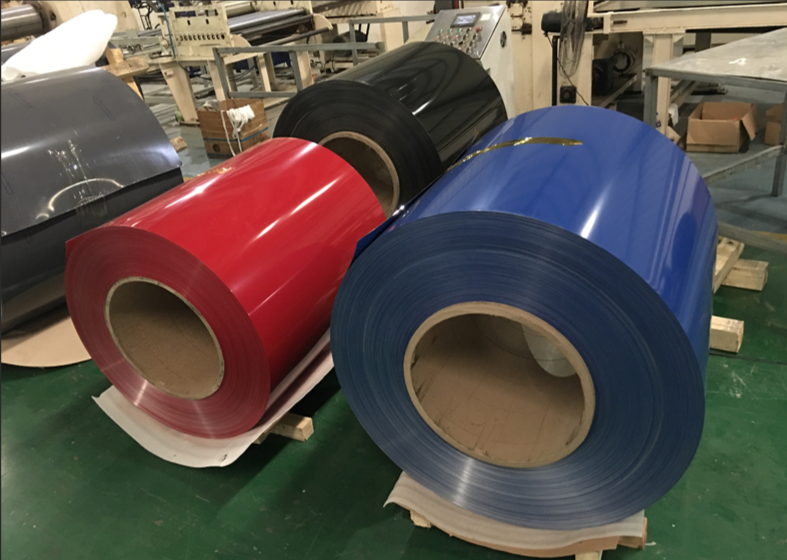

3003-H14 and 3005-H24 prepainted aluminum coils are widely adopted for factory roofs, gutters and drainage systems. The 3xxx aluminum-manganese alloy balances moderate strength and rust resistance.

Core Performance Requirements

Outdoor weather resistance is the core indicator. Materials must resist ultraviolet radiation, acid rain and large temperature fluctuations all year round. Sufficient bending performance supports curved roof molding, and coating adhesion avoids peeling after thermal expansion and contraction.

Surface Coating

Polyester (PE) color coating is the mainstream, with a service life of 8–12 years. For coastal industrial zones, low-cost PVDF fluorocarbon coating can be upgraded for longer color retentionMade-in-Ch....

Limitation

Insufficient structural strength, cannot bear heavy impact or large dynamic loads.

3. Aluminum Materials for Architectural Curtain Walls

Alloy & Temper

3003-H32 or 5052-H32 aluminum sheets, processed into single aluminum panels with PVDF fluorocarbon coating. 5xxx magnesium alloy brings better rigidity and salt spray resistance.

Core Performance Requirements

High flatness, strong wind pressure resistance and ultra-long outdoor service life. High-rise facade panels demand minimal thermal deformation; fluorocarbon coating effectively prevents fading and chalking for 20–30 years. Uniform surface texture meets high-end architectural decorative standards.

Surface Coating

70% PVDF fluorocarbon coating is compulsory for exterior curtain walls, with superior chemical stability and UV shielding capacity compared with ordinary polyester paint.

Limitation

High production cost; pure curtain wall aluminum panels lack anti-collision capacity for transportation use.

4. Aluminum Materials for Truck & Refrigerated Carriages

Alloy & Temper

5052-H32 and 5083-H112 magnesium-aluminum alloy plates are the primary options for cargo van and refrigerated compartment panels. The 5xxx series features outstanding tensile strength and impact resistance.

Core Performance Requirements

Structural load-bearing and anti-collision performance rank first. Carriage boards frequently suffer cargo impact, friction and coastal salt fog erosion. Excellent welding performance facilitates integral compartment assembly, and light weight reduces vehicle fuel consumption.

Surface Treatment

Mill finish or thin anti-rust coating; color coating is only applied for aesthetic demands instead of weather resistance.

Limitation

Poor deep drawing ductility, unable to complete ultra-complex stretch forming like sinks.

5. Aluminum Materials for Home Appliance Decorative Panels

Alloy & Temper

3003-H18 hard aluminum coils and 8011 brushed aluminum coils for refrigerator, washing machine and air conditioner outer panels. H18 full hard temper provides smooth, scratch-resistant decorative surfaces.

Core Performance Requirements

Delicate decorative texture, fingerprint resistance and oil stain resistance. Moderate hardness supports precise cutting and simple bending; indoor environment only requires basic anti-corrosion without high-level outdoor weather resistance.

Surface Treatment

Brushed finish, matte film lamination or PE polyester color coating, focusing on appearance rather than long-term outdoor durability.

Limitation

UV resistance is weak; direct outdoor placement will cause rapid discoloration.

Comparative Summary of Key Material Differences

Conclusion

The core dividing line of aluminum material selection lies in three dimensions: forming demand, mechanical strength target and exposure environment. Sink aluminum prioritizes soft ductility; roofing and curtain wall materials focus on outdoor weather resistance with graded coatings; carriage aluminum relies on high-strength magnesium alloy for structural safety; household appliance panels optimize surface decorative effects under indoor mild conditions. Correct matching of alloy grade, temper and coating can maximize service life and control comprehensive costs for each product category. Manufacturers and engineers must clarify actual working conditions before confirming aluminum raw material specifications to avoid unnecessary performance defects and economic losses.
