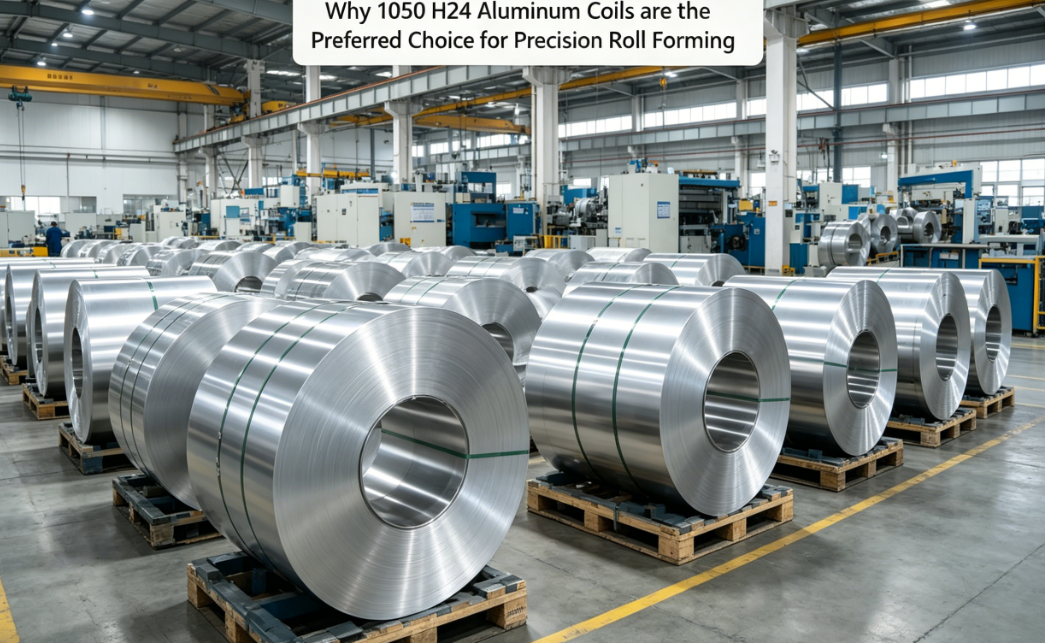

Why 1050 H24 Aluminum Coils are the Preferred Choice for Precision Roll Forming

Roll forming is a highly efficient, continuous bending process that shapes metal coils into custom cross-sections by passing them through a series of mated rollers. For high-volume manufacturing, selecting the correct metal grade and temper is critical. Even minor variations in material properties can cause springback variations, structural cracking, or surface blemishes.

Within B2B manufacturing, the 1050 H24 aluminum coil is widely considered the industry standard for precision roll forming applications. Combining high purity with a specialized semi-hard temper, this alloy offers a unique balance of formability, mechanical strength, and surface quality. This technical guide explores why 1050 H24 is preferred for roll forming and how it optimizes manufacturing lines.

The 1050 H24 Structural Sweet Spot

Achieving consistent results in continuous bending operations requires selecting a material that balances ductility with structural integrity.

The Metallurgy of 1050 Alloy Purity

As a commercially pure aluminum alloy (≥ 99.5% Al), the 1050 series contains very few alloying elements. This lack of heavy solutes gives the material exceptional natural corrosion resistance, high thermal and electrical conductivity, and a bright, uniform surface finish that is highly responsive to anodizing and chemical treatments.

Defining the H24 Temper: Work Hardened and Partially Annealed

The "H24" designation describes a specific temper:

• H2: Strain-hardened (work-hardened) during cold reduction.

• 4: Partially annealed to half-hard temper. This combination allows the aluminum to be hardened to increase its mechanical strength, then heated to recover a portion of its ductility. The resulting material is strong enough to resist denting but retains the flexibility needed for sharp bending without cracking.

Mechanical & Physical Property Matrix of 1050 H24

Core B2B Applications for Roll-Formed 1050 H24 Aluminum

Due to its balanced mechanical properties, 1050 H24 is widely used across several key B2B manufacturing sectors:

Architectural Cable Trays and Cable Ladder Systems

Electrical cable trays must carry heavy wiring loads over long spans without sagging. Roll-formed 1050 H24 profiles provide high strength-to-weight ratios and natural atmospheric corrosion resistance, making them ideal for commercial buildings, chemical plants, and marine installations.

View More >>

Heat Exchanger Reflector Plates and Lighting Louvers

For lighting fixtures and solar thermal reflectors, 1050 H24 profiles are roll-formed into parabolic shapes. The high purity of the alloy allows the metal surfaces to be chemically brightened or anodized, achieving total light reflectance values of ≥ 85%.

View More >>

Roll-Formed Roofing Profiles and Wall Cladding Panels

For industrial cladding and roofing, 1050 H24 sheets are roll-formed into trapezoidal or sinusoidal corrugated profiles. Its excellent resistance to atmospheric pollutants and acid rain ensures long-lasting performance, even without protective paint coatings.

View More >>

Yield-to-Tensile Ratio and Springback Prediction

Springback is the elastic recovery of metal as it exits a bending roll. Managing this behavior is a primary challenge in precision roll forming.

1050 H24 features a balanced yield strength (σ₀.₂ ≥ 75 MPa) and tensile strength (σb≈ 95 - 125 MPa). This tight yield-to-tensile ratio provides predictable elastic-plastic behavior, allowing tool designers to calculate and compensate for springback with high accuracy, ensuring tight dimensional tolerances on the final product.

Uniform Grain Elongation and Crack Mitigation

At fully-hard tempers (like H18), aluminum is highly susceptible to cracking along the outer radius of a bend, especially when bent parallel to the rolling direction. The partial annealing of the H24 temper restores grain ductility, allowing the outer surface fibers of the bend to elongate uniformly (≥ 8% elongation) without forming micro-fractures.

Roll Forming Process Workflow

Decoiling & Alignment: The 1050 H24 master coil is loaded onto a mandrel decoiler. Entry guides align the strip to ensure it enters the center of the first roll pass.

Progressive Bending: The strip passes through sequential roll stations. The profile is formed gradually to prevent wrinkling, thinning, or localized stress concentrations.

Roll Forming Process Workflow

Straightening & De-Twisting: A straightening guide block at the exit corrects any twist, camber, or bow induced during forming.

High-Speed Cutoff & Inspection: A flying shear cuts the profile to length on the fly. The final dimensions are verified before stacking and packaging.

Export-Grade Moisture Protection and Quality Certification

Operating under certified ISO 9001 and ISO 14001 quality management systems, Dingang Metal ensures full batch-level traceability. Every shipment is prepared using export-grade packaging—including dual-layer moisture wraps, desiccants, and heavy-duty wooden boxing—to protect materials from salt-air oxidation during ocean transit.

FAQ

Q1:Why does 1050 H24 sometimes split along the outer bend of a roll-formed profile?

A:Splitting usually occurs if the bend radius is too sharp (less than 0.5 times the sheet thickness) or if the bend is aligned parallel to the rolling direction (grain direction) of the coil. Increasing the bend radius or choosing a supplier with tighter grain structure controls during annealing will resolve this issue.

Q2:What is the difference between H14 and H24 tempers in 1050 aluminum coils?

A: Both are half-hard tempers with similar tensile and yield strengths. However, H14 is achieved by cold rolling (strain-hardening) directly to the target strength, whereas H24 is strain-hardened to a harder state and then partially annealed back to half-hard. The H24 process delivers slightly better ductility and more consistent bending behavior.

Q3:Can 1050 H24 aluminum coils be roll-formed after being prepainted?

A:Yes, provided the coating is formulated with highly flexible, deep-drawing resins (such as specialized polyester or PVDF systems) and applied with a thin lubricating wax layer. This allows the pre-painted foil to stretch and conform during bending without cracking or peeling.

Q4:Why is pure 1050 preferred for dry-type transformer windings instead of 3003 alloy?

A:YElectrical efficiency is key. 1050 pure aluminum offers an electrical conductivity of at least 61% IACS. The manganese added to 3003 alloy increases strength but scatters electrons, dropping conductivity to around 40% - 50% IACS, which would cause high resistive energy losses and overheating in a transformer.

Q5:How does Dingang Metal ensure consistent thickness across the width of 1050 coils?

A:We use advanced continuous cold rolling mills equipped with automatic AGC gauge control systems. This allows us to maintain a tight thickness tolerance of ± 0.02 mm, preventing variations in forming pressure and dimensional variations in your finished profiles.

Q6:Why is post-rolling degreasing critical for 1050 H24 coils?

A:Residual rolling lubricants left on the metal can act as a barrier, preventing subsequent paint coatings, adhesives, or protective films from bonding properly. Thorough degreasing ensures a clean surface with high surface energy (≥ 38  mN/m), preventing paint peeling and adhesion failures.

Conclusion

Achieving consistent profiles in precision roll forming requires a thorough understanding of material temper and deformation limits. By partnering with a verified processor that delivers consistent gauge tolerances, balanced mechanical properties, and clean surfaces, you ensure that your production runs remain free from waves, splits, and costly machine downtime.
