The Impact of Tension Leveling on Flatness in Thin-Gauge Aluminum Coil Processing

In high-precision manufacturing, material flatness is not just a cosmetic preference—it is a critical operational variable. During cold rolling, residual internal stresses and minor temperature variations often result in uneven strip lengths across the width of a metal roll. This off-flatness, if left uncorrected, causes severe tracking, tearing, and registration issues during downstream processes like high-speed printing, coating, laminating, or stamping.

For high-precision applications utilizing thin-gauge aluminum coil, achieving near-perfect flatness control requires tension leveling. This technical guide explores how combined physical forces plastically deform thin aluminum to eliminate internal memory and establish uniform flatness.

Stress Discrepancies and Residual Rolling Stress

As a coil is wound under tension at the cold rolling mill, elastic stress is locked into the metal. When the coil is uncoiled and slit, these internal stresses relax, manifesting as visible buckles or waves.

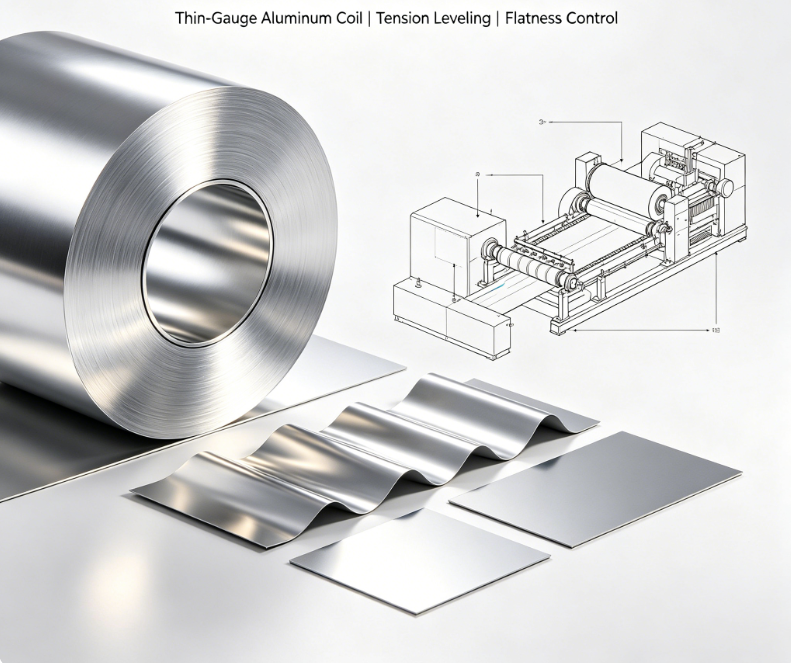

Common Defect Classifications: Edge Waves vs. Center Buckles

• Edge Waves: Occur when the edges of the strip are rolled thinner—and therefore longer—than the center, leading to undulating vertical waves along the coil margins.

• Center Buckles: Occur when the center of the strip is elongated more than the edges, forming bulges or "pockets" along the strip centerline.

• Quarter Buckles & Camber: Intermittent waves occurring between the center and edges, or lateral curvature of the strip due to unequal length distribution.

Understanding Flatness Defects in Thin-Gauge Aluminum Coils

During the rolling of thin-gauge aluminum, mechanical forces and thermal profiles across the roll face are rarely perfectly uniform. This creates localized disparities in material length.

Mechanical Metrics in Tension Leveling

Core B2B Applications for Flatness-Critical Thin-Gauge Aluminum Coils

Flatness control is a critical requirement for several key B2B industries using thin-gauge aluminum:

Lithographic Printing Plates and CTP Substrates

Computer-to-Plate (CTP) systems utilize highly sensitive laser-imaging heads with short focal lengths. Any minor thickness or flatness variation (>2 I-units) in the underlying 0.15 mm - 0.30 mm aluminum coil causes focal distortion, leading to blurred printing plates and rejected production batches.

View More >>

Architectural Honeycomb Cores and ACP Facings

Aluminum Composite Panels (ACP) and honeycomb structural cores require flat, stress-relieved thin aluminum. If internal stresses remain in the 0.05mm - 0.10 mm foil used for honeycomb walls, the core structures will warp during adhesive bonding, resulting in delamination and compromised architectural load integrity.

View More >>

Pharmaceutical Blister Foils and Food-Grade Packaging Containers

Thin aluminum foils used in sterile push-through blisters or deep-drawn containers must be completely free of wrinkles and waves. Flatness defects lead to micro-cracks or pinholes during forming, breaching the sterile barrier and destroying the shelf life of pharmaceutical and food products.

View More >>

The Intersecting Forces of Tension and Bending

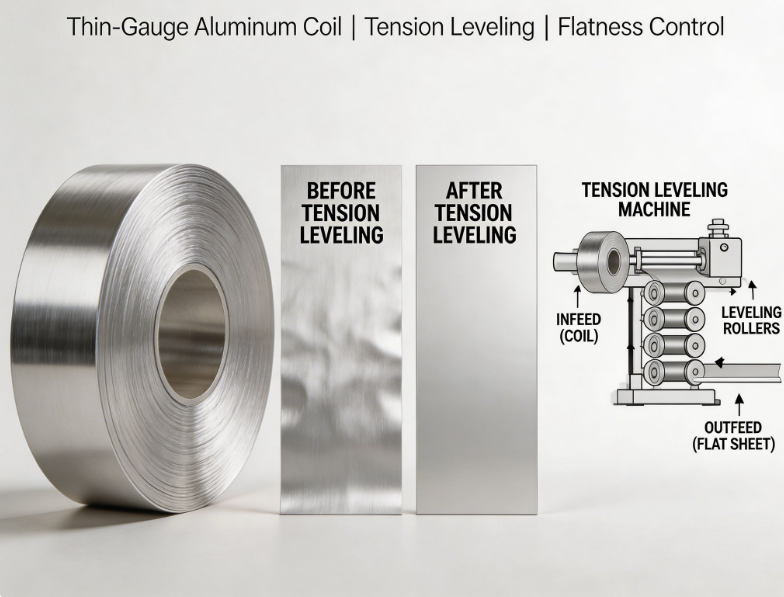

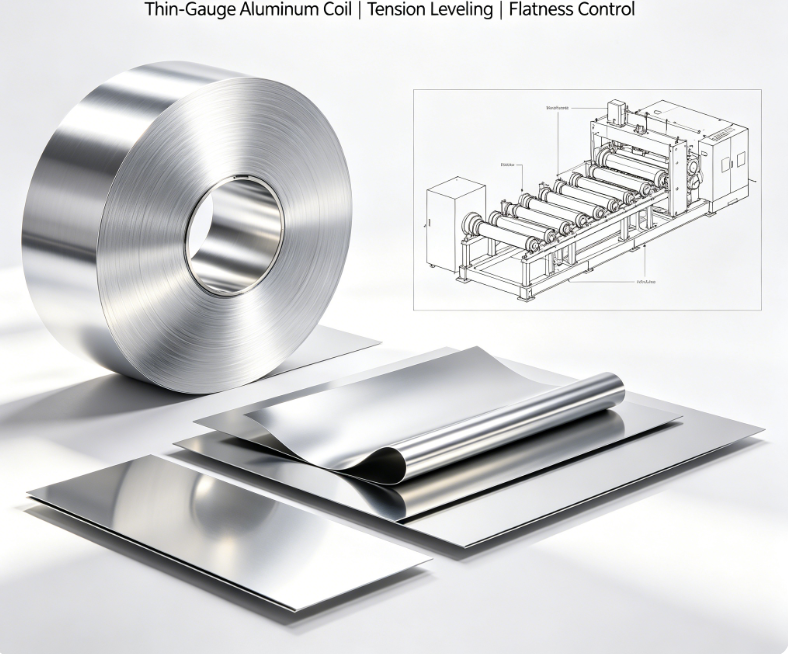

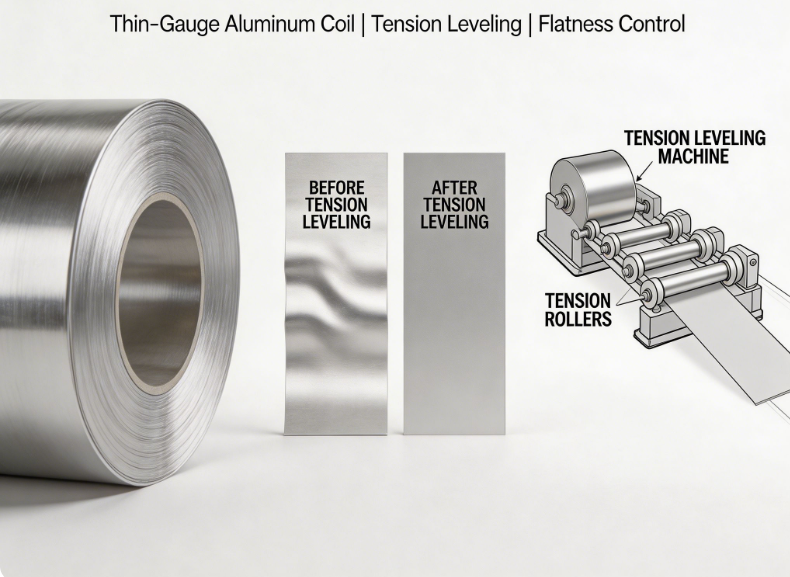

A tension leveler consists of entry and exit bridle roll groups with a series of small-diameter work rolls positioned between them.

Axial Tension: The exit bridles run slightly faster than the entry bridles, generating high longitudinal tension that stretches the strip below its yield strength.

Bending Force: As the tensioned strip passes over the small-diameter work rolls, the sharp bending radius creates localized stress concentrations.

Yield Point Plasticization and Fiber Elongation

By combining tension and bending, the stress in the outermost "fibers" of the aluminum exceeds its plastic yield point.

This causes the shorter, "tight" sections of the strip to permanently elongate until they match the length of the longer, "loose" sections. This process permanently relieves the internal stresses and equalizes the physical length of all fibers across the strip width, delivering a flat strip.

Step-by-Step Tension Leveling Operational Workflow

Decoiling & Bridle Engagement: The aluminum strip is threaded through the entry bridle group to establish base tension.

Continuous Bending & Stretching: The strip passes through the work roll cassette. High tension combined with tight roll wraps forces the material into a controlled plastic state, matching all fiber lengths.

Crossbow & Coil-Set Elimination: Dedicated exit rolls bend the strip in the opposite direction to eliminate secondary curvature induced by the main work rolls.

Flatness Detection & Recoiling: Online flatness sensors measure residual tension profiles across the width, automatically adjusting elongation settings before winding the coil.

How Flatness is Measured: I-Units and Buckle Frequency

To maintain strict quality control, B2B manufacturers measure flatness quantitatively using I-Units (I-flatness) or wave physical geometry.

I-Unit (I): A dimensionless unit representing the fractional length difference (ΔL/L) between different longitudinal sections of the strip. One I-unit is equal to a 10⁻⁵ strain differential. High-precision lithographic and electronics coils typically require a flatness of <2 I-units.

Wedge/Ruler Measurement: Operators can also measure flatness offline by checking the peak-to-peak amplitude (H) and wavelength (L) of any visible waves.

Automated Defect Monitoring and Tension Feedback Controls

Every coil-processing line utilizes closed-loop tension systems and automated optical sensors to continuously monitor strip surface quality and shape. Our facilities operate under strict ISO 9001 quality standards, ensuring full traceability and mechanical property validation for every batch.

FAQ

Q1:Why does a coil that looks flat before slitting sometimes develop edge waves after slitting?

A:This is due to residual rolling stresses. During slitting, the master coil is cut into narrower strips. If internal stress differences exist between the center and edges of the original strip, releasing these boundary conditions during slitting allows the latent stresses to relax, causing edge wave or camber defects in the slit coils.

Q2: What is the optimal elongation setting for tension leveling thin-gauge aluminum?

A: Depending on the alloy and temper, the elongation target typically ranges between 0.2% and 1.5%. Softer alloys (e.g., 1000 or 3000 series in "O" or "H14" tempers) require lower elongation, whereas harder tempers (e.g., H18/H24) require higher tensions and greater elongation to exceed their yield point.

Q3:How does tension leveling affect the mechanical properties (hardness/ductility) of aluminum?

A:Because tension leveling subjects the metal to plastic deformation, it introduces a small amount of work hardening. This slightly increases the tensile and yield strength while marginally reducing the material's ductility. For most applications, this change is negligible, but it must be accounted for in deep-drawn packaging.

Q4:How does the surface finish of the work rolls impact the quality of thin aluminum foil?

A:Work rolls must be kept highly polished and completely free of debris or dust. Any surface contamination or roughness on a small work roll can emboss or scratch the sensitive surface of thin aluminum, creating micro-indentations that destroy its barrier properties.

Q5:What is the risk of using unverified suppliers for 0.15mm – 0.25mm aluminum strips?

A:At ultra-thin gauges, minor manufacturing defects can cause significant issues during processing. Unverified suppliers often use older slitting equipment, which can produce high edge burrs (>10% of strip thickness) or wavy edges, leading to material tears or equipment jams during high-speed stamping.

Q6:What is the difference between a tension leveler and a standard roller straightener?

A: A standard straightener only uses bending forces to flatten thicker materials (>1.0 mm), leaving the core stresses largely uncorrected. A tension leveler integrates high pulling tension with small-diameter bending rolls, allowing it to plasticize the entire thickness of thin-gauge materials (<0.5 mm) to ensure flatness.

Conclusion

Controlling flatness in thin-gauge aluminum coils requires a thorough understanding of material tension and deformation dynamics. By choosing a processing partner utilizing advanced closed-loop tension leveling, you ensure that your production runs remain free from waves, buckles, and costly machine jams.
