Technical Guide: Optimizing Performance of Aluminum Strips with 0.15–0.25 mm

In precision stamping, electrical manufacturing, and thermal management, thin-gauge aluminum strips ranging from 0.15 mm to 0.25 mm play a vital role. Operating within this thickness window requires a thorough understanding of material properties.

At this scale, minor variations in mechanical properties, chemical composition, or slitting quality can lead to processing issues such as strip breakage, excessive burrs, or dimensional distortion. This guide covers the key factors required to optimize the processing and performance of 0.15mm aluminum strips and 0.25mm aluminum materials.

Understanding the Mechanics of Thin-Gauge Aluminum Strips

Processing aluminum within the 0.15  mm - 0.25 mm range requires treating it with the care of a foil while utilizing the mechanical tooling of a sheet.

Defining the 0.15–0.25 mm Thickness Window

This gauge range sits right at the transition zone between thin metal sheets and heavy foils. Standard industrial processing equipment must be calibrated carefully: tension levels that work well for 1.0 mm sheet material can easily stretch or snap an aluminum strip 0.15mm thick during high-speed unwinding.

Balancing Material Yield, Tensile Strength, and Ductility

Achieving a successful production run depends on matching the material's yield strength (σs) and elongation percentage (A%) to your specific forming process.

• For deep drawing or bending: High ductility (soft temper, like O temper) is required to allow the metal to flow without fracturing.

• For high-speed progressive stamping: A harder temper (such as H14 or H24) is preferred. This provides the stiffness needed to feed the strip reliably into the press without buckling.

Mechanical Properties of 0.15mm and 0.25mm Aluminum Strips

The table below outlines the standard mechanical properties across common alloys and tempers within the 0.15mm to 0.25mm thickness range:

Core B2B Manufacturing Applications

Strips within the 0.15–0.25 mm thickness range are critical components in several high-performance industries.

Electrical Transformers & Cable Shielding

In electrical distribution transformers, soft-temper pure aluminum strips (1050/1060-O) are wound to form the electrical coils. Using thin strips instead of round wire increases the winding's fill factor, improves heat dissipation, and minimizes hot spots. For these applications, burr-free edges are essential to prevent electrical shorts through the interlayer insulation paper.

View More >>

Heat Exchanger Fins & HVAC Systems

Automotive radiators, condensers, and residential HVAC systems rely on thin 0.25mm aluminum or 0.15mm strips (typically 3003 alloy) to form the heat transfer fins. The material must offer consistent tensile strength to feed reliably into high-speed fin-forming machines without tearing or jamming the stamping dies.

View More >>

Deep-Drawn Caps, Closures, and Industrial Eyelets

8011 and 3003 alloy strips in O-temper are widely used to manufacture tamper-evident bottle closures, aerosol can components, and pharmaceutical tear-off caps. The metal must have highly uniform mechanical properties to ensure even drawing and prevent "earing" (uneven wavy edges) during the forming process.

View More >>

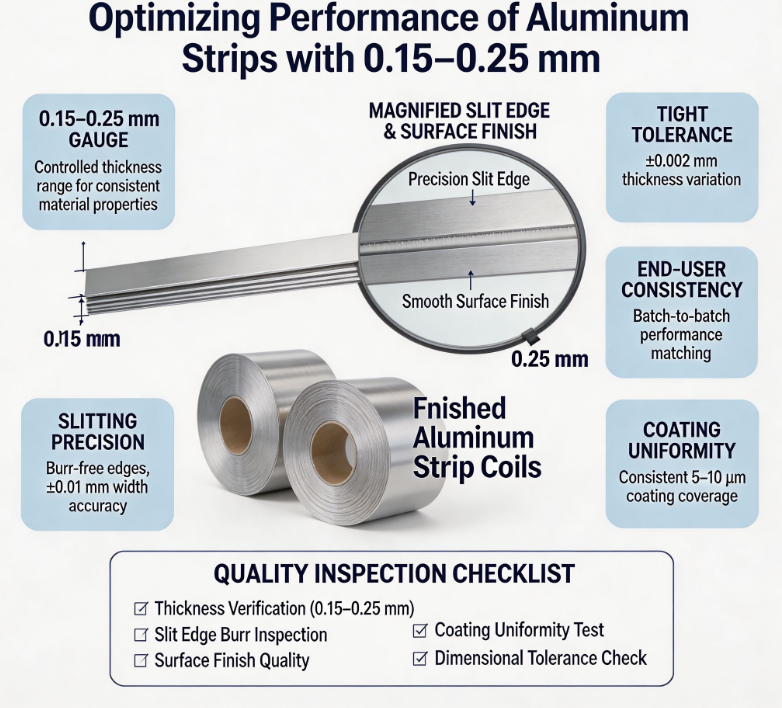

Precision Slitting Diagnostics (Burr Height Control)

For thin-gauge aluminum, excessive slitting burrs are a common cause of assembly failures, particularly in electrical components where sharp edges can puncture insulation.

The Goal: Keep the burr height under $10\%$ of the material thickness (e.g., < 0.015 mm on an aluminum strip 0.15mm thick).

The Solution: Use ultra-hard tungsten carbide circular knives with precision-ground edges. Operators must maintain strict blade clearances, typically set to 6% - 8% of the strip thickness, and monitor blades closely for wear.

Tension Management & Coil Sag Prevention

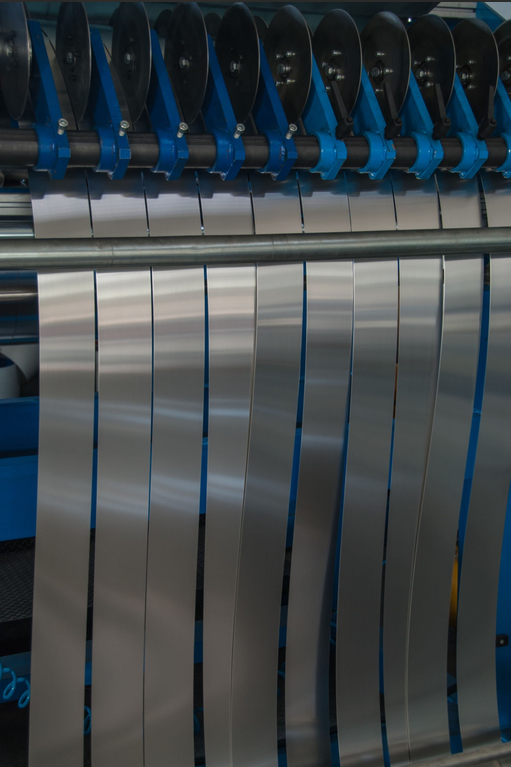

During high-speed slitting and rewinding, thin-gauge strips can easily stretch or deform if tension is applied unevenly.

Uneven Tension: Can lead to "center buckle" or wavy edges across the strip width.

The Solution: Use a modern slitting line equipped with closed-loop tension control and individual slip-friction shafts. This ensures that each slit ribbon is wound under consistent, controlled tension, preventing coil sag or telescoping.

1xxx Series (1050, 1060, 1070) – High Conductivity & Formability

These alloys consist of 99.5% or higher pure aluminum. They are the standard choice for electrical and chemical applications due to their high electrical conductivity (typically ≥ 61% IACS) and excellent formability. They are highly responsive to deep drawing, bending, and cold working, though they have relatively low mechanical strength.

3xxx Series (3003, 3105) – Structural and Corrosion Resistance

Alloyed with manganese, the 3xxx series provides approximately 20% greater mechanical strength than the 1xxx series while retaining excellent workability. It is highly resistant to atmospheric corrosion and chemical attack, making it the industry standard for heat exchanger fins, HVAC components, and cosmetic packaging closures.

Surface Integrity and Degreasing Protocols

Residual rolling oils left on the surface can interfere with downstream processes like lacquering, printing, or adhesive bonding. Depending on your needs, ensure your material has been run through a degreasing line or thermally annealed to burn off residual lubricants, leaving a clean surface with high surface energy (≥ 38 mN/m).

FAQ

Q1:What is the ideal horizontal and vertical knife clearance when slitting a 0.15mm aluminum strip?

A:For an aluminum strip 0.15mm thick, the horizontal knife clearance should be strictly set between 6% and 8% of the material thickness. Setting the clearance wider than 10% will cause the metal to stretch and tear, creating massive burrs. Setting it too tight (under 4%) will cause tool rubbing and rapid blade wear. The vertical overlap (penetration depth) should be kept shallow, typically between 0.05 mm and 0.10 mm.

Q2: How does Dingang Metal prevent edge wave and center buckle during the slitting of ultra-thin strips?

A: We resolve this by using closed-loop tension control systems integrated with individual slip-friction shafts on our rewinders. When a wide master coil is slit into multiple narrow strips, slight thickness variations (crown) across the master roll mean the thicker sections wind tighter than the thinner sections. Our slip-friction shafts allow each individual strip to slip and adjust its speed independently, ensuring uniform winding tension across all coils to eliminate edge wave or center buckle.

Q3:Can a 0.25mm aluminum strip in H14 temper be used for heat exchanger fins?

A:Generally, yes, but it is at the upper limit of typical fin thickness. Most modern high-efficiency HVAC and automotive fins use thicknesses between 0.08 mm and 0.15 mm to maximize surface area while saving weight. If using a 0.25mm aluminum strip in H14, your stamping and fin-forming tooling must be designed to handle the higher forming forces, and you must account for the lower heat-transfer-to-weight ratio in your thermal calculations.

Q4:Does Dingang Metal provide official migration test reports to meet EU food safety regulations?

A:Yes. All of our food-grade lacquered products are regularly tested by accredited third-party laboratories (like SGS). We provide comprehensive compliance certificates verifying that our materials meet US FDA 21 CFR 175.300 and EU Regulation No. 10/2011, including Overall Migration Limits (OML) and Specific Migration Limits (SML).

Common Stamping & Slitting Failures

1.Issue:Micro-cracking or tearing along the bend radius during stamping.

• Root Cause: The strip is in a work-hardened temper (e.g., H14/H18) that lacks the ductility required for the bend, or the bending axis is running parallel to the metal's rolling direction.

• Corrective Action: Switch to a softer temper (e.g., O or H24) and orient your stamping layout so that critical bends run perpendicular (at 90°) to the metal's rolling direction.

2.Issue:The aluminum strip tears or snaps during high-speed unwinding.

• Root Cause: High edge burrs or micro-nicks from the slitting process can act as stress concentration points, initiating tears under tension.

• Corrective Action: Check and adjust your slitting knife clearances to minimize burrs, and reduce the unwinding tension on your feed line to avoid over-stressing the material.

3.Issue:The stamped parts are sticking to the tooling or failing to eject.

• Root Cause: Excessive residual rolling oils can create a vacuum effect, causing thin-gauge parts to stick to the punch or die surfaces.

• Corrective Action: Use a pre-cleaned or degreased aluminum strip, and ensure your stamping setup has a suitable thin-film vanishing lubricant or an active mechanical stripper.

Conclusion

To optimize the performance of 0.15mm aluminum strips or 0.25mm aluminum materials, you must carefully balance alloy selection, temper, and processing parameters. Working with a dedicated processing partner ensures your raw material is delivered with precise dimensional tolerances and clean, burr-free edges.
