How To Choose PE, SMP, HDP And PVDF Coatings: Weather Resistance Lifespan & Selection Guide

Introduction

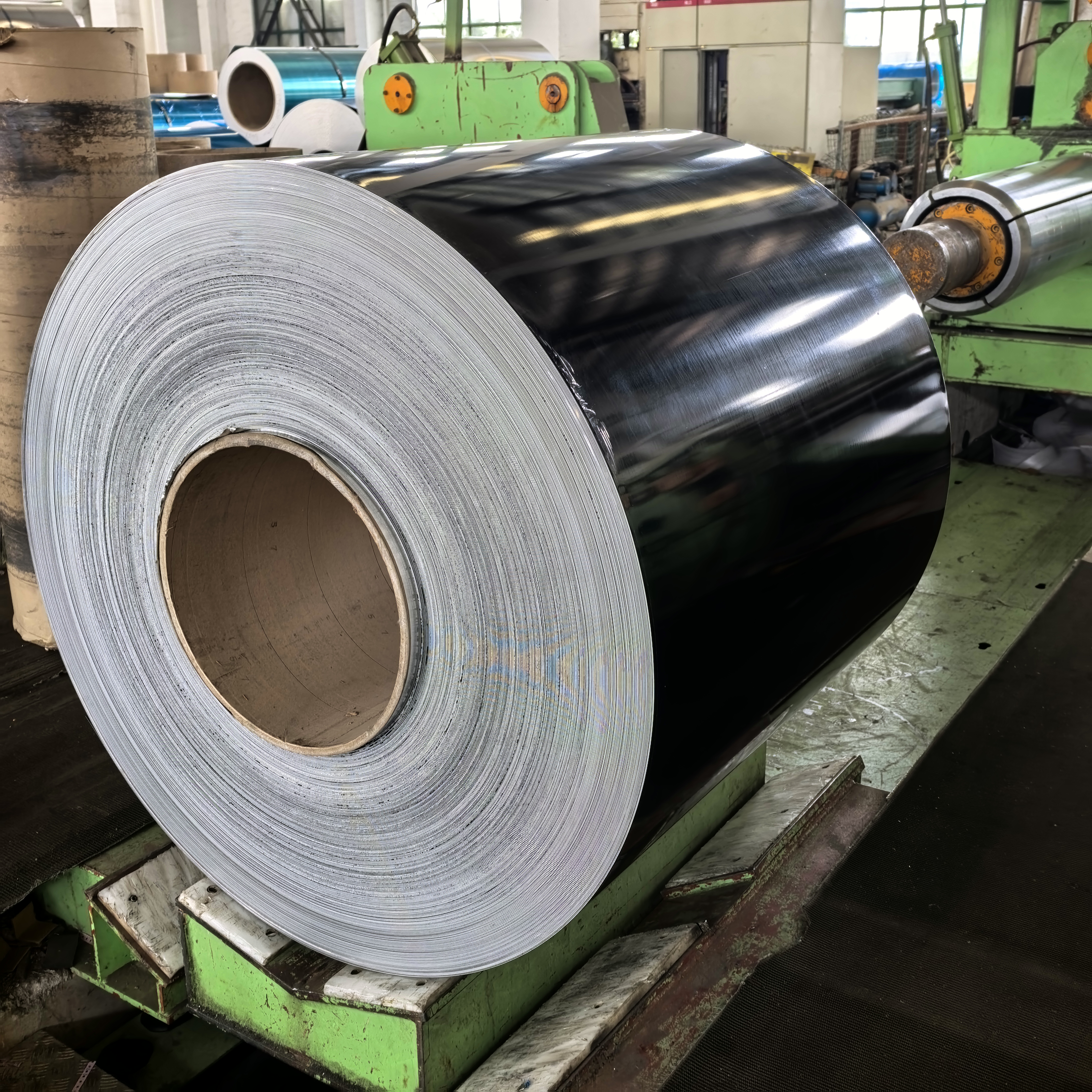

Prepainted metal coils and aluminum sheets rely on four mainstream coating systems: PE (Polyester), SMP (Silicone Modified Polyester), HDP (High Durability Polyester), and PVDF (Polyvinylidene Fluoride). Each coating differs drastically in UV resistance, anti-corrosion performance, color retention, outdoor service life and cost. Selecting the wrong coating will lead to premature fading, chalking, peeling and extra maintenance costs. This guide clarifies the weather-resistant lifespan of each coating and provides targeted selection standards for different project scenarios.

Basic Definition & Weather Resistance Lifespan of Four Coatings

PE (Standard Polyester Coating)

• Core formula: General polyester resin with basic UV stabilizers

• Standard outdoor weather resistance lifespan: 5–10 years under normal inland environments; 3–6 years in strong UV or humid areas

• Performance highlights: Lowest material cost, excellent formability, rich color options, good bending and stamping performance

• Weaknesses: Poor anti-chalking and anti-fading ability, weak salt spray resistance, cannot withstand long-term intense sunlight

SMP (Silicone Modified Polyester Coating)

• Core formula: Polyester blended with silicone resin to upgrade heat and UV resistance

• Standard outdoor weather resistance lifespan: 10–15 years under normal inland environments; 7–12 years in moderate corrosive areas

• Performance highlights: Better gloss retention and heat resistance than PE, improved anti-powdering property, medium cost positioning

• Weaknesses: Poor deep processing formability; silicone reduces coating adhesion after repeated bending; not suitable for coastal high-salt environments

HDP (High Durability Polyester Coating)

• Core formula: Cyclohexane-structured polyester resin plus high-efficiency UV absorbers and HALS light stabilizers

• Standard outdoor weather resistance lifespan: 12–15 years under normal inland environments; 9–13 years in mild coastal zones

• Performance highlights: 60%–80% of PVDF’s weather resistance at lower cost, balanced flexibility and durability, stable color retention in tropical high-UV regions

• Weaknesses: Still inferior to PVDF in chemical and salt spray resistance; higher price than SMP and PE

PVDF (Polyvinylidene Fluoride Fluorocarbon Coating)

• Core formula: Fluorine resin content ≥70%, ultra-stable carbon-fluorine molecular bonds

• Standard outdoor weather resistance lifespan: 20–25 years under normal inland environments; 15–20 years in severe coastal, chemical and industrial corrosive environments

• Performance highlights: Industry top-tier UV, acid, alkali and salt spray resistance, almost no chalking or color fading, outstanding heat resistance

• Weaknesses: Highest raw material cost, strict coating production requirements

Lifespan Comparison Table

Key Factors to Judge Coating Selection

Project Design Service Life

1. Short-term projects (5–10 years temporary buildings, sheds, interior ceilings): Choose PE

2. Medium-term projects (10–15 years warehouses, agricultural factories, ordinary commercial buildings): Choose SMP or HDP

3. Long-term permanent architecture (20+ years high-end facades, landmark buildings): Choose PVDF

Service Environment Classification

1. Inland mild environment (low humidity, no industrial pollution): PE / SMP / HDP are all optional based on budget

2. Tropical high UV inland areas: Prioritize HDP for better anti-fading performance

3. Coastal salt fog areas (within 5km of coastline): HDP for low-budget medium projects; PVDF for high-standard long-life buildings

4. Industrial chemical pollution zones (factories with acid/alkali exhaust): Only PVDF meets long-term anti-corrosion requirements

Processing & Forming Requirements

• Multiple deep bending, stamping, complex forming parts (gutters, appliance panels): PE or HDP (excludes SMP, poor formability)

• Simple single bending roof panels, wall panels: SMP, HDP, PVDF are all applicable

Budget Control

• Low budget residential temporary construction: PE

• Medium budget industrial plants, logistics parks: SMP

• Mid-high budget commercial plazas, schools: HDP

• High-end landmark facades, coastal projects: PVDF

Scenario-Based Recommended Coating Solutions

PE Recommended Application Scenarios

• Residential temporary sheds, interior partition boards, indoor ceilings

• Low-budget small rural roofs, simple advertising signboards

• Indoor appliance casings without outdoor exposure

SMP Recommended Application Scenarios

• Ordinary factory warehouses, cold storage buildings, agricultural greenhouses

• Medium-sized industrial plant roofs with simple forming

• Inland low-pollution logistics park wall panels

HDP Recommended Application Scenarios

• Commercial shopping malls, campus buildings, municipal public facilities

• Tropical high-sunlight inland construction projects

• Mild coastal low-rise buildings with medium service life requirements

PVDF Recommended Application Scenarios

• High-rise building exterior curtain walls, landmark commercial complexes

• Coastal airports, ports, marine engineering metal panels

• Chemical plants, power stations, industrial zones with corrosive gas

• High-end public buildings requiring 20+ year warranty

Common Selection Mistakes to Avoid

1. Choose PE for coastal projects: Rapid chalking and fading within 3–5 years, frequent replacement costs

2. Select SMP for deep forming components: Coating cracking and peeling after bending

3. Use HDP to replace PVDF in severe chemical factories: Poor acid resistance leads to early coating failure

4. Over-spec PVDF for short-term temporary buildings: Unnecessary high cost waste

Conclusion

The core logic of coating selection is matching design lifespan, service environment, processing demand and budget:

• For cost-sensitive short-term inland projects: PE

• For medium-life inland industrial buildings: SMP

• Balanced performance and cost for commercial & mild coastal projects: HDP

• Ultra-long service life, coastal or corrosive harsh environments: PVDF

Reasonable coating selection can double the outdoor service life of metal materials and reduce long-term maintenance and replacement expenses for construction and industrial projects.
