Water Ripple Texture Colour Coated Embossed Aluminium Sheet

Model:
Embossed
Brand:
Dingang

Availability:

Quantity:



Inquire Add to Basket

Product Description

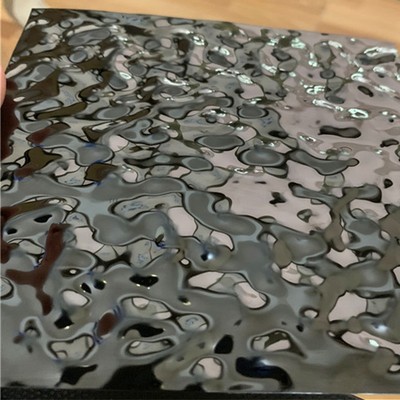

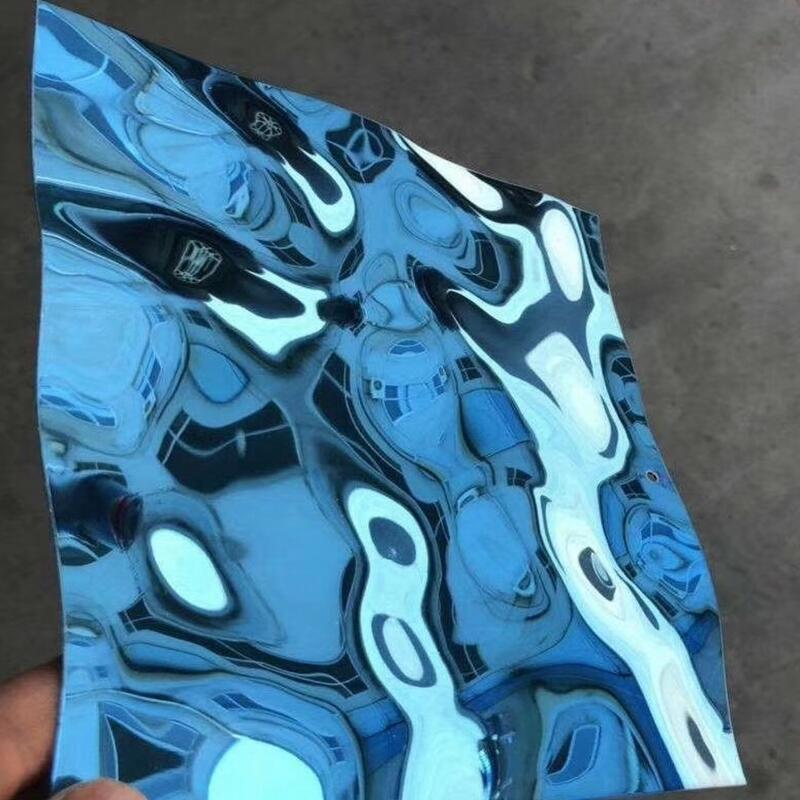

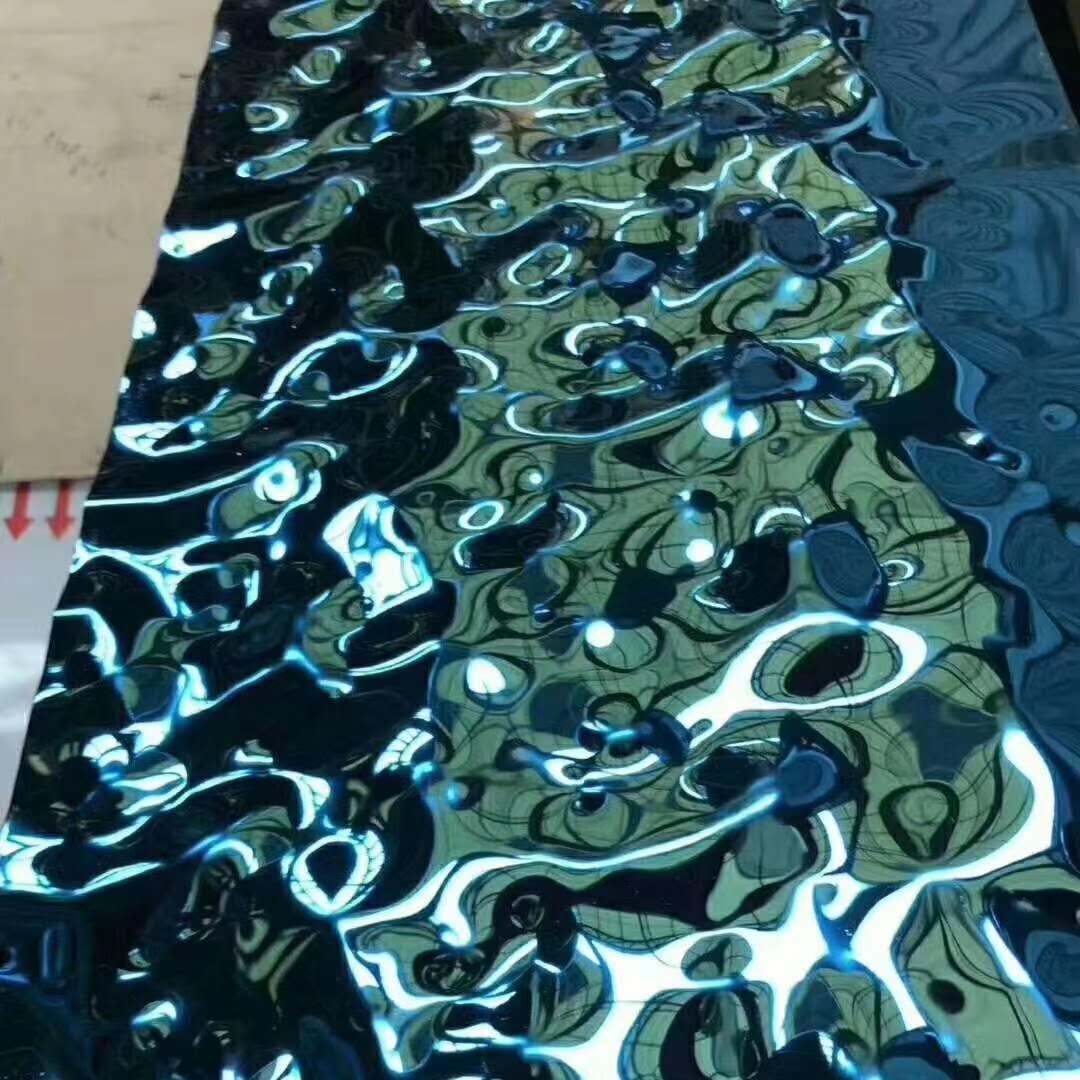

About Water Ripple Texture Colour Coated Embossed Aluminium Sheet

water ripple textured colour-coated embossed aluminium sheet is a functional decorative material produced by rolling a le pattern onto an aluminium alloy substrate using a roller die, then coating it with a colourful finish. The water ripple texture creates a flowing visual effect that changes with the angle of light, evoking a natural and dynamic aesthetic. Combining the mechanical advantages of corrugated structures with the protective properties of colour coating technology, this material is widely used in architecture, industry, and decoration.

Process principle:

The aluminium sheet is compressed between an upper roller (equipped with a textured die) and a lower roller, creating permanent textured patterns on the surface. Common texture depths range from 0.05 to 0.3 mm, with texture density and shape customisable according to specific requirements.

Base Material Selection:

Common grades include 1060 (pure aluminium), 3003 (aluminium-manganese alloy), and 5052 (aluminium-magnesium alloy), with thicknesses ranging from 0.5 to 4.0 mm. The 3003 series is the most popular due to its high cost-effectiveness.

Product Parameters

Parameter item	Common specifications
Alloy	1series（1050/1060/1100）3series (3003/3105) 5series (5052)
Temper	H12, H14, H16, H18, O
Thickness	0.2-4.0mm (common 0.5-2.0mm)
Width	600-2000mm (commom 1000/1220/1500mm)
Length	500-6000mm (commom 2000/2440/3000mm)

Key Features and Advantages

Features	Specific Performance	Application Value
Anti-slip and wear-resistant	Surface friction coefficient is 30%-50% higher than that of smooth plates	Suitable for anti-slip applications such as stair treads, car pedals, industrial platforms, etc.
High decorative appeal Strong three-dimensional texture,	can replace traditional anodising or spraying processes to create a metallic ‘orange peel’ decorative effect	Widely used in architectural facades, furniture panels, electronic product casings, and other decorative fields
Defect concealment	Can hide minor scratches, roller marks, and other defects on the substrate surface, reducing requirements for the surface precision of the original plate	Suitable for projects with high surface quality requirements but limited budgets
Fingerprint resistance	The textured surface reduces finger contact area, and combined with surface passivation treatment, effectively inhibits fingerprint residue.	Commonly used in kitchen equipment, elevator interiors, and other high-contact scenarios.
Mechanical properties	After embossing, tensile strength increases by 10%-15%，but elongation decreases by approximately 5%-8%.	Suitable for scenarios requiring moderate structural strength, such as luggage frames and ventilation ducts.
