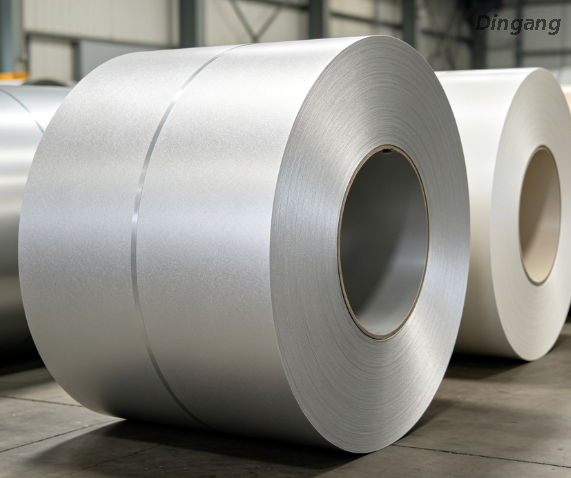

Double-Sided Embossed Double Coated Aluminum Coil

1. Core Advantages

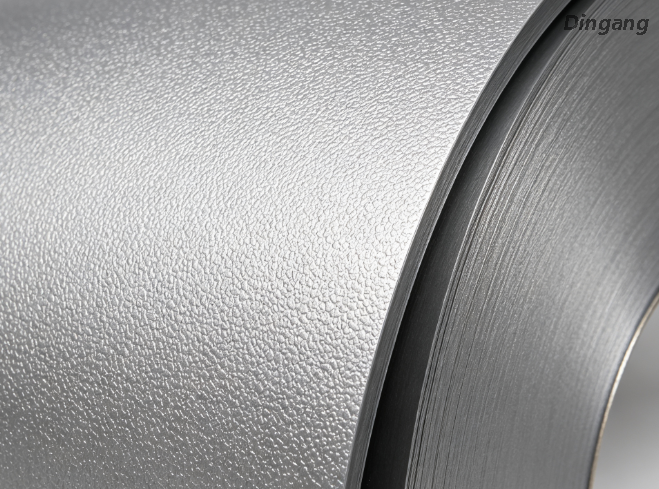

• Double-sided synchronous embossing texture

  Both sides of the aluminum coil are rolled with delicate uniform embossed grain (orange peel, leather grain, matte small bump texture optional), presenting three-dimensional tactile effect on front and back, realizing double-sided ornamental value, which single-sided embossed coil cannot achieve.

• Complete double-sided uniform coating

  Front and back surfaces are applied with consistent thickness PE/PVDF coating via double-side roller coating line, no bare aluminum base on reverse side, equal anti-corrosion, anti-fingerprint and wear resistance on two faces.

• Strong scratch-resistant textured surface

  The concave-convex texture effectively covers tiny scratches during transportation and processing, compared with smooth flat aluminum coil, it has better anti-abrasion performance for frequent turnover decorative panels.

• Excellent coating flexibility & embossing adhesion

  Optimized soft paint formula matches embossing forming process, no paint cracking, peeling or edge shedding during slitting, bending, folding and deep processing of textured surface.

• Stable flatness without deformation

  Adopts stress-leveled 3003 H24 aluminum substrate, the coil keeps smooth after double-sided embossing treatment, no warping or arching when made into large-size partition panels.

• Multiple customizable texture & coating types

  Optional emboss textures: orange grain, leather texture, stippled matte grain; coating optional indoor PE / outdoor weather-resistant PVDF, full RAL color customization available.

• Double-sided protective film coverage

  Both decorative surfaces are covered with separate anti-scratch PE protective film, avoiding fingerprint, dust and friction damage during cutting, installation and turnover use.

• Wide matching processing compatibility

  Compatible with all factory supporting deep processing equipment: slitting, bending, cutting, punching, composite board lamination, meeting diversified production demands of decorative manufacturers.

2. Production Process

Aluminum base coil uncoiling → Double-sided multi-cycle degreasing cleaning → Non-chromium environmental passivation treatment → Constant temperature hot air drying → First side primer coating & curing → Second side primer coating & curing → Double-sided synchronous roller embossing forming → Front side PE/PVDF top coat coating & high temperature baking → Reverse side same top coat coating & secondary curing → Natural cooling → Double-sided independent dust-proof protective film lamination → Precision rewinding → Texture & coating thickness full inspection → Color difference & surface defect testing → Moisture-proof export packaging

The whole production line adopts closed dust-free workshop, embossing pressure and coating thickness are controlled by real-time numerical system to ensure consistent texture and paint film quality on both sides of every coil.

3. Standard Technical Parameters

表格

4. Main Application Fields

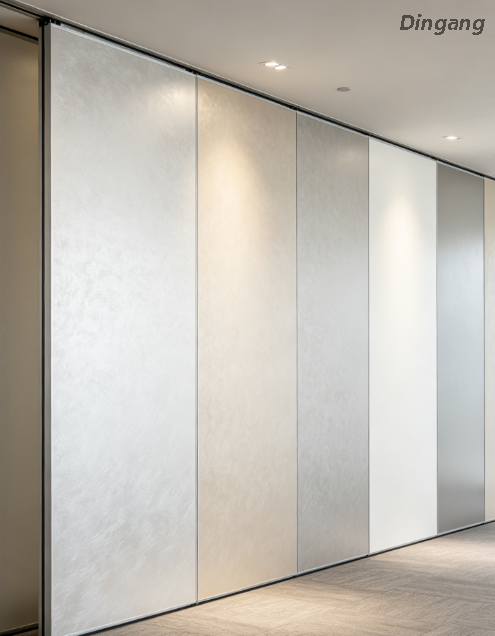

1. Double-sided interior partition system: movable office partition screens, hotel reversible partition wall, exhibition hall separating panels

2. Flip decorative wall materials: double-sided background wall panels, rotatable decorative wall boards, space split decorative plates

3. Advertising & display industry: double-sided light box aluminum panels, two-sided display billboard substrates, store window decorative sheets

4. Aluminum composite panel manufacturing: high-end double-sided decorative ACP core sheet, indoor composite decorative panel raw material

5. Commercial space decoration: shopping mall interior partition, chain store double-sided decorative cladding, exhibition booth decorative aluminum plates

5. Export Packaging Standard

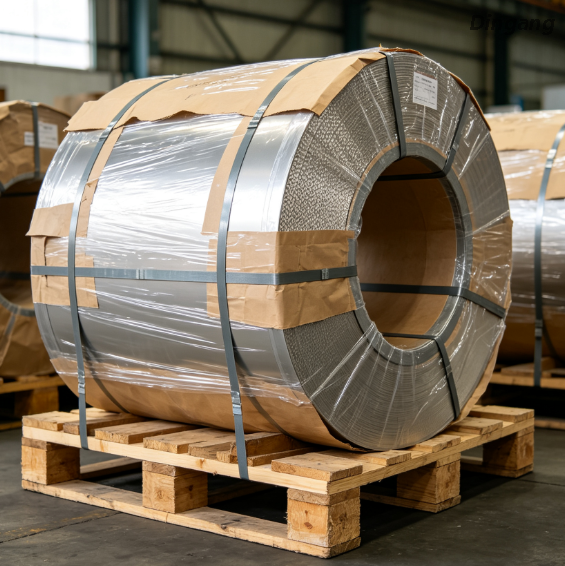

Each double-sided embossed double coated aluminum coil is wrapped with multi-layer moisture-proof PE film and thick neutral kraft paper. Front and back textured surfaces are separately covered with anti-scratch protective film to avoid texture scratch during long-distance sea transportation. The whole coil is fixed tightly on fumigated wooden pallet with high-strength steel strapping to prevent loose roll and deformation. Standard shipping marks are printed clearly, including alloy grade, thickness, width, texture type, color code, net weight, gross weight and batch number. Complete fumigation certificate, MTC and full set customs clearance documents can be supplied for European and overseas import inspection. Narrow slit small rolls are packed into independent sealed cartons for separate protection.

6. Inspection & After-sales Service

We carry out seven strict pre-shipment full inspections: double-side coating thickness test, embossing texture uniformity inspection, color difference comparison, cross-cut coating adhesion test, salt spray corrosion resistance test, flatness detection and full surface defect screening. Complete supporting documents including Mill Test Certificate, texture performance test report, RoHS environmental certificate, commercial invoice and packing list can be provided for customer project bidding and customs clearance. Our professional technical team offers free processing guidance for embossed panel bending, compounding and punching at any time. If any coating peeling, texture damage or color difference quality problems are confirmed within 7 working days after receiving goods, we will reply within 24 hours and provide targeted solutions including re-production, supplementary shipment or reasonable compensation.

FAQ

Q1: What is the difference between this double-sided embossed coil and the single-sided embossed coil (Item 8)?

A: Item 8 only has embossed texture and coating on one side, the reverse side is flat bare aluminum or thin protective paint; our No.12 product achieves embossed texture and complete thick coating on both front and back, suitable for any double-sided visible decorative projects.

Q2: Will the embossed texture crack after bending processing?

A: We adopt flexible modified paint and low-pressure embossing technology, normal bending, folding and forming will not cause cracking or peeling of the textured coating.

Q3: Can I customize special embossing grain and exclusive RAL color?

A: Yes, we support developing new embossing textures according to customer samples, and match any RAL color for double-sided coating.

Q4: Is this coil suitable for producing ACP panels?

A: Absolutely, the double-sided textured surface can improve the appearance grade of finished aluminum composite panels, widely used for high-end indoor decorative ACP.

Q5: What test reports can you provide for foreign project audit?

A: We can supply MTC, salt spray resistance report, RoHS certificate, embossing texture inspection report and all export customs clearance documents required by overseas buyers.
