Aluminum Coil 3105-O: Superior Elongation Boosts Complex Automotive Fuel Tank Stamping

Introduction

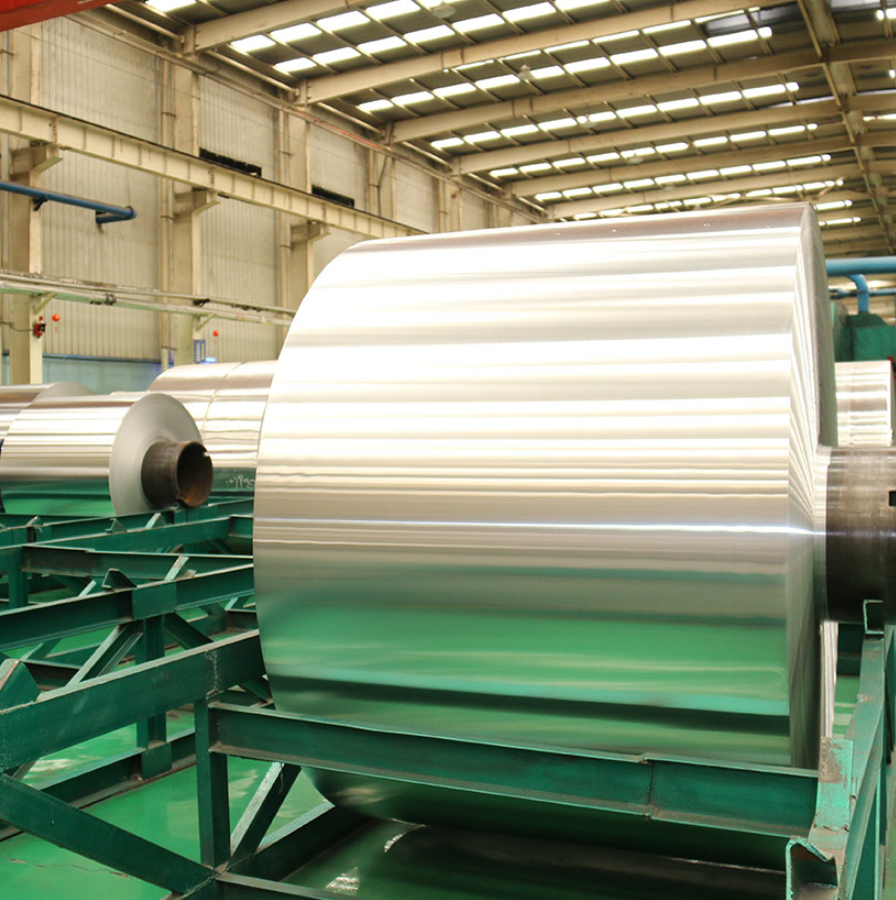

3105-O aluminum coil is a non-heat-treatable aluminum alloy, highly regarded in the automotive industry for its exceptional elongation (≥30%), corrosion resistance, and moderate strength. Its O-temper (annealed state) ensures high formability, making it excel in complex stamping processes, particularly for manufacturing automotive fuel tanks and other components requiring deep drawing and intricate shapes. Using the automotive fuel tank as a case study, this article provides a detailed examination of the properties, international applications, advantages, and future trends of 3105-O aluminum coil, offering a comprehensive resource for engineers, manufacturers, and designers.

Properties of 3105-O Aluminum Coil

3105 aluminum alloy belongs to the 3000 series, primarily composed of aluminum (approximately 98%) with manganese (0.3–0.8%) and magnesium (0.2–0.8%) as key alloying elements. Its chemical composition and O-temper treatment endow it with the following key properties:

• High Elongation: Elongation ≥30% supports deep drawing and complex stamping processes with no risk of cracking, ideal for manufacturing complex-shaped fuel tanks (AZoM).

• Corrosion Resistance: A natural oxide layer provides excellent corrosion resistance, ensuring fuel tanks remain durable when exposed to fuel and environmental factors.

• Moderate Strength: Stronger than 1000-series alloys (e.g., 1100), suitable for automotive parts requiring structural integrity.

• Weldability: Supports various welding techniques, facilitating fuel tank assembly and ensuring strong joints.

• Lightweight: Density of only 2.7 g/cm³ reduces vehicle weight, improving fuel efficiency.

• Standards Compliance: Meets ASTM B209 and EN 485 standards, potentially exempting it from additional inspections in European and American markets.

These properties make 3105-O aluminum coil an ideal material for automotive fuel tank stamping, particularly in applications requiring complex shapes and high reliability.

Automotive Fuel Tank Case Study

The automotive fuel tank is a critical vehicle component, requiring materials with high formability, corrosion resistance, and lightweight properties to ensure safety, performance, and fuel efficiency. The application of 3105-O aluminum coil in fuel tank manufacturing offers the following advantages:

• Zero-Cracking Complex Stamping: An elongation rate ≥30% allows it to withstand deep drawing and complex forming processes, producing fuel tanks with intricate geometries without cracking. For example, the curved surfaces and internal baffles of fuel tanks require high-precision stamping, which 3105-O aluminum coil can achieve.

• Corrosion Resistance: Fuel tanks are exposed to fuel and external environments (e.g., moisture, salt), and the alloy’s corrosion resistance ensures long-term reliability, reducing maintenance needs.

• Lightweight Design: Compared to traditional steel fuel tanks, 3105-O aluminum coil significantly reduces weight, helping improve fuel efficiency and lower emissions.

• Weldability: High weldability supports the sealing and structural integrity of fuel tanks, ensuring no risk of leaks.

For instance, in manufacturing fuel tanks for trucks or passenger cars, 3105-O aluminum coil is formed into complex shapes through continuous stamping processes while maintaining high surface quality and structural strength. This property has made it a favorite in the global automotive industry (Mingtai Aluminum).

International Applications

3105-O aluminum coil, due to its high formability and durability, is widely used in the global automotive industry, especially for components requiring complex stamping. Key applications and regions include:

Specific Automotive Applications:

• Fuel Tanks: Used for stamping complex-shaped fuel tanks, ensuring no cracking and high-quality surfaces.

• Body Panels: Such as hoods, doors, and fenders, requiring high formability and lightweight design.

• Structural Components: Such as brackets and reinforcements, balancing strength and formability.

These applications highlight the importance of 3105-O aluminum coil in global automotive manufacturing, particularly in scenarios requiring high precision and complex designs.

Advantages

The use of 3105-O aluminum coil in complex automotive fuel tank stamping offers the following advantages:

• Zero-Cracking Stamping: Elongation ≥30% ensures no cracking during deep drawing and complex forming, reducing manufacturing defects and costs (Kloeckner Metals).

• Corrosion Resistance: The natural oxide layer provides excellent corrosion resistance, extending the lifespan of fuel tanks in harsh environments or when exposed to fuel.

• Lightweight Design: Low density (2.7 g/cm³) reduces vehicle weight, improving fuel efficiency and electric vehicle range.

• Weldability: Supports MIG, TIG, and resistance welding, facilitating fuel tank assembly and ensuring strong joints.

• Cost-Effectiveness: Offers a balance of performance and cost compared to higher-strength alloys, suitable for large-scale production.

• Sustainability: 100% recyclable, aligning with global green manufacturing trends and reducing environmental impact.

These advantages make 3105-O aluminum coil a preferred material for automotive manufacturers, especially in applications like fuel tanks that require high formability and durability.

Technical Specifications

The following table summarizes the typical specifications for 3105-O aluminum coil used in automotive fuel tank stamping:

3105-O aluminum coil, with its superior elongation (≥30%) and zero-crack properties, is an ideal material for complex automotive fuel tank stamping. Its widespread use in North America, Europe, and Asia underscores its reliability in automotive manufacturing. With advantages like lightweight design, corrosion resistance, recyclability, and cost-effectiveness, 3105-O aluminum coil meets the modern automotive industry’s demands for performance and sustainability. As advancements in thinner materials, advanced coatings, and smart manufacturing technologies progress, 3105-O aluminum coil will continue to drive innovation in the automotive sector, providing exceptional support for lightweight, safe, and eco-friendly vehicle designs.
