The Impact of Paint Thickness (25 Microns vs. 35 Microns) on Pre-Painted Aluminum

In the pre-painted aluminum coil industry, paint thickness—measured in microns (μm) as Dry Film Thickness (DFT)—is a primary factor determining product lifespan, environmental durability, and overall project cost.

While a difference of 10 microns (0.01 mm) may seem small, it represents a 40% increase in organic coating mass. This extra coverage significantly alters performance during roll-forming, exposure to solar UV radiation, and long-term marine salt fog exposure. Choosing between a standard 25-micron system and a high-build 35-micron system requires balancing environmental demands with project budget limits.

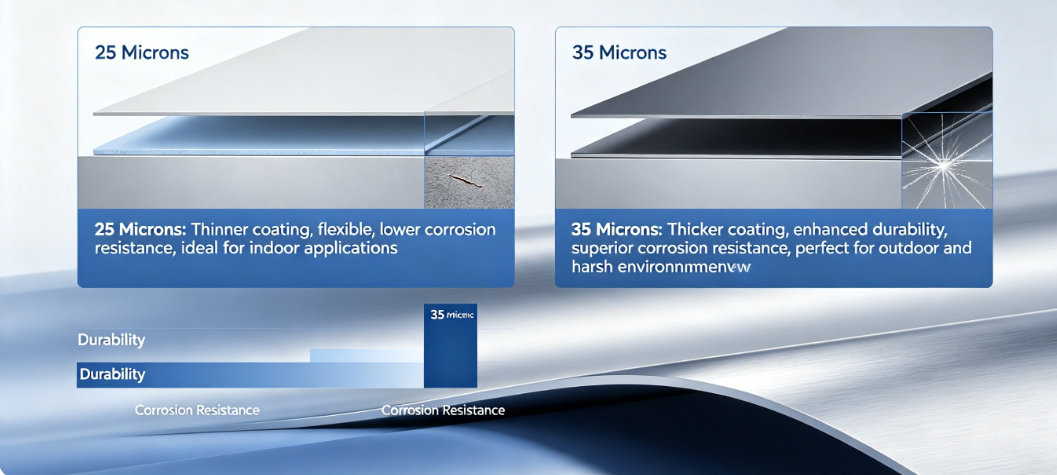

25 Microns vs. 35 Microns: Technical & Structural Comparison

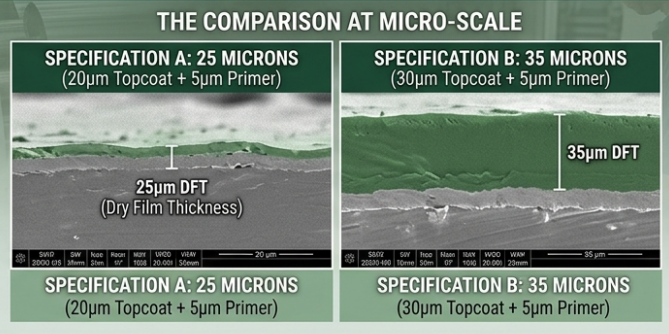

Total Thickness Structure: Primer, Topcoat, and Clearcoat

Total dry film thickness is composed of distinct functional layers:

• Pretreatment Passivation: A microscopic conversion layer that ensures chemical bonding and prevents under-film oxidation.

• Corrosion-Inhibiting Primer (5 - 8μm): Promotes topcoat adhesion while adding corrosion blockers.

• Pigmented Topcoat (15 - 20μm): Contains resins (PVDF, FEVE, or Polyester) and pigments that deliver the target color and weather protection.

• Clearcoat (5 - 10μm): An unpigmented top layer added in 3-coat systems to protect metallic pigments and boost UV resistance.

Measuring Microns (μm) in Continuous Roller Coating

Thickness is measured using non-destructive Eddy Current coating thickness gauges (ASTM D7091 / ISO 2360). Quality controls ensure the target thickness is applied uniformly across the entire strip width, avoiding thin spots that could compromise protection.

Performance Matrix: 25 μm vs. 35 μm Pre-Painted Aluminum

Choosing the Right Thickness

Matching coating thickness to installation site conditions helps avoid over-specifying material costs or under-specifying weather protection.

When 25 μm DFT is Optimal

Inland & Urban Facades: Projects located more than 1 - 5 kilometers from marine coastlines in moderate climates.

Standard Roofing & Rain Gutter Systems: Applications that require sharp roll-forming bends (0T - 1T) and high flexibility.

Budget-Sensitive Commercial Buildings: Delivers strong AAMA 2605 performance at an economical price point.

View More >>

Standard 2-Coat System/High-Build 3-Coat System

A 25 μm setup is the standard 2-coat system (1 primer coat + 1 topcoat) used for architectural facades, roofing, and wall panels. It provides a reliable balance of flexibility, weather protection, and cost efficiency for standard outdoor applications.

A 35 μm setup is typically applied as a 3-coat system (1 primer coat + 1 topcoat + 1 protective clearcoat) or a high-build 2-coat primer system. The added clearcoat seals metallic and mica pigments, providing an extra barrier against chemical pollutants, industrial smog, and ocean salt spray.

View More >>

When 35 μm DFT is Required

Severe Coastal & Beachfront Buildings: Structures located within 500meters of breaking surf where salt spray exposure is continuous.

Metallic & Pearlescent Finishes: Finishes containing aluminum flake pigments require a clearcoat to protect against oxidation and color shifts.

Aggressive Industrial Microclimates: Facilities near chemical plants, power stations, or heavy industrial zones exposed to acid rain and airborne pollutants.

View More >>

Accelerated UV Barrier & Chalking Resistance

Solar UV photons gradually break down the organic binder resin on exposed paint surfaces, leading to chalking and fading over time.

At 25 μm, a premium 70% PVDF system easily meets AAMA 2605 requirements, resisting severe color change (ΔE ≤ 5.0) for over 10 to 15 years in moderate climates.

At 35 μm (with clearcoat), UV photons must erode the unpigmented clearcoat layer before reaching the color topcoat below. This extra layer extends the paint system's aesthetic service life by 30% to 50%, making it well-suited for high-radiation regions like desert or equatorial zones.

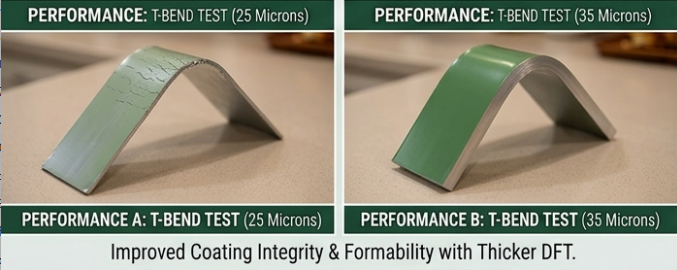

T-Bend Flexibility, Micro-Cracking, and Post-Formability

While thicker paint improves environmental durability, it slightly reduces flexibility during severe mechanical bending:

A 25 μm coating remains highly flexible, achieving a 0T - 1T T-bend rating. It can be bent sharply during roll-forming without developing micro-cracks along the bend radius.

A 35 μm coating forms a thicker, stiffer surface layer. When bent around tight radii (0T), the thicker outer layer experiences higher elongation stress, which can cause minor micro-cracking unless formed with a slightly larger bend radius (1T - 2T).

Marine Salt Spray & Barrier Creep Defense

Corrosion occurs when water, oxygen, and salt ions (Cl−) penetrate the organic paint layer.

The thicker barrier provided by a 35 μm system makes it much harder for corrosive ions to reach the metal substrate. In ASTM B117 salt spray tests, increasing thickness from 25 μm to 35 μm increases resistance from roughly 2,000 hours to over 4,000 hours, preventing edge creeping and paint blistering along cut edges.

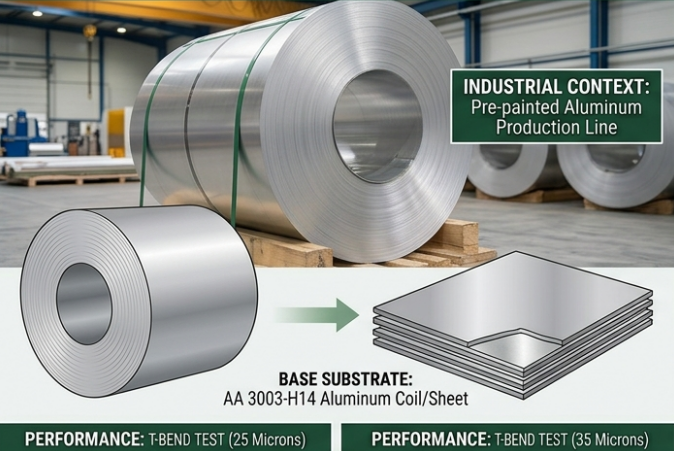

Tension Leveling and Custom Width Slitting

To meet varied manufacturing requirements, Dingang Metal Material Co., Ltd. provides tailored processing capabilities:

Precision Width Slitting: Clean-cut slitting down to narrow ribbon widths (starting at 10 mm) with tight tolerances (± 0.1 mm).

Flexible Substrate Processing: Capabilities to coat and process aluminum thicknesses from light-gauge foil up to heavy architectural plate stock.

Inline Tension Leveling: Eliminates edge waves and center buckles, delivering flat aluminum coils that feed smoothly through high-speed roll forming lines.

Export Packaging Controls and Batch Quality Assurance

Operating under certified ISO 9001 and ISO 14001 management systems, Changzhou Dingang Metal Material Co., Ltd. (China) ensures complete batch traceability. Coils prepared for ocean shipping feature dual-layer moisture wrapping, VCI corrosion paper, desiccants, steel edge protectors, and heavy-duty wooden cradles to prevent transit damage or oxidation.

FAQ

Q1:Is a 35-micron paint thickness always better than 25 microns?

A:Not necessarily. While 35 μm provides superior salt spray and UV resistance for severe marine environments, 25 μm offers better T-bend flexibility for sharp roll-forming bends and is more cost-effective for standard inland projects.

Q2:Why do metallic colors require a 3-coat, 35-micron coating system?

A: Metallic colors contain real aluminum flakes to create shine. Left exposed, these flakes can oxidize and turn gray when exposed to air and moisture. A 10 μm clearcoat seals the metallic particles inside the paint matrix, preserving their brightness and color depth.

Q3:What is the risk of using unverified suppliers for pre-painted aluminum coils?

A:Unverified suppliers may apply inconsistent paint thickness (<15 μm in spots) or skip chemical pretreatment. This can lead to early paint peeling, chalking, or severe corrosion within 2 - 3years of installation.

Q4:Can a 35-micron PVDF coating system be bent into standing seam roof panels without cracking?

A:Yes, provided the forming machinery uses appropriate bend radiuses (1T - 2T). For extremely sharp 0T folds, specifying a flexible primer formulation helps prevent micro-cracking in high-build systems.

Q5:How does Changzhou Dingang Metal Material Co., Ltd. (China) verify paint thickness during production?

A:Dingang Metal Material Co., Ltd. uses automated inline non-destructive thickness sensors combined with regular laboratory checks (microscopic cross-sectioning and magnetic gauges) on every production batch to verify both primer and topcoat thickness.

Conclusion

Choosing between 25-micron and 35-micron pre-painted aluminum comes down to evaluating installation site conditions, required service life, and fabrication demands. By matching coating thickness to environmental requirements, architects and buyers can maximize product durability while keeping material costs under control.
