What Causes Paint Cracking During Bending? Preventing Pre-Painted Aluminum Failure

In sheet metal fabrication, pre-painted aluminum coils and sheets are routinely bent, roll-formed, and stamped to produce standing seam roofing, rain gutters, cassette cladding, and architectural trims. However, fabricators often encounter a major quality issue: paint cracking pre-painted aluminum during the bending process.

When pre-painted metal undergoes sharp bending, the paint film along the outer radius experiences high tensile stress. If this elongation exceeds the coating's elasticity, microscopic cracks (micro-crazing) form along the bend line. Over time, these micro-cracks expose the underlying metal to moisture, atmospheric salts, and industrial pollutants, leading to coating peel, corrosion, and premature field failure.

Understanding why paint cracks and implementing proper tooling, alloy selection, and coating specifications allows fabricators to achieve tight bend radiuses without compromising paint adhesion or aesthetics.

The Physics of Micro-Cracking During Sheet Metal Forming

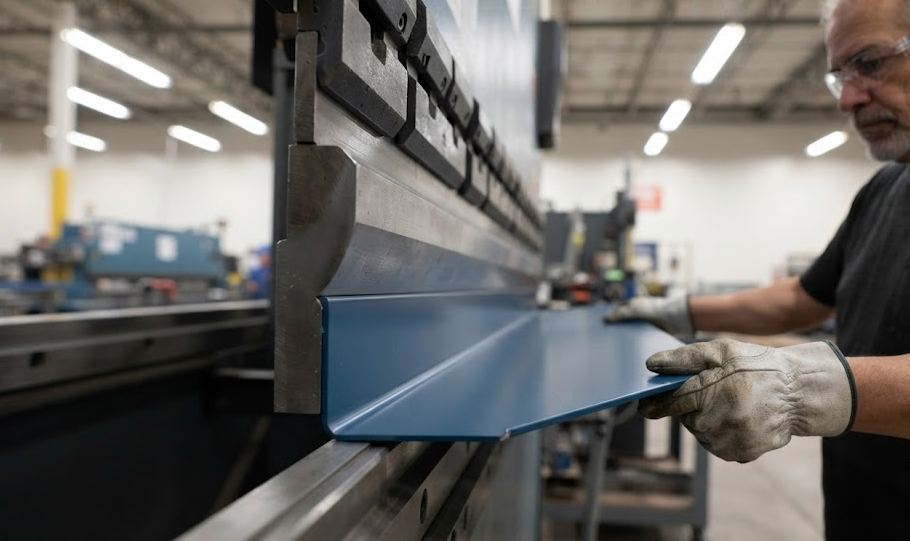

During press brake forming or continuous roll forming, the metal substrate and the organic paint layer experience distinct mechanical forces.

Outer Surface Tensile Strain & Film Elongation Limits

When an aluminum sheet of thickness t is bent around a radius r, the inner surface undergoes compression while the outer surface experiences strong tensile elongation. The outer paint film is stretched relative to its distance from the central neutral axis. If the paint resin cannot stretch as far as the underlying metal, the paint film ruptures.

Micro-Cracking Dynamics: Crazing, Delamination, and Flaking

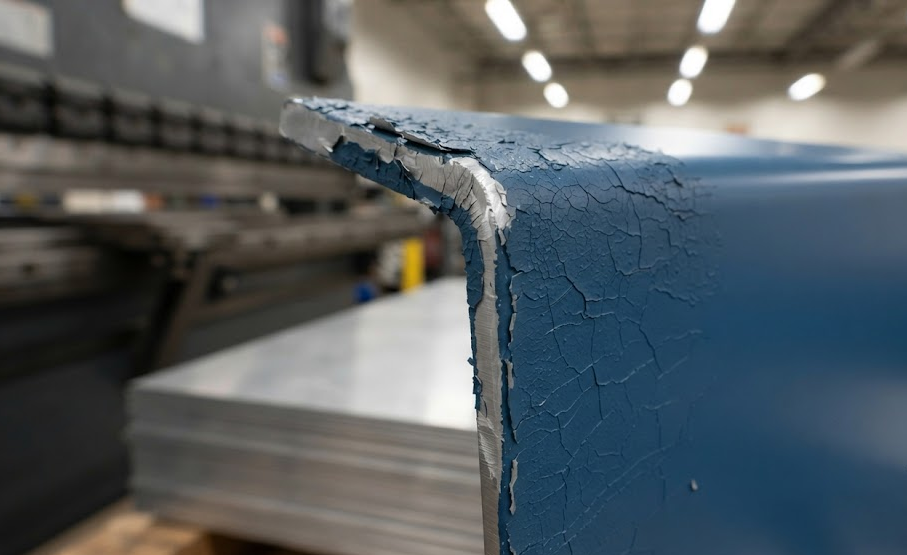

• Micro-Crazing: Microscopic hairline fissures that appear along the top coat under high strain, often looking like a loss of gloss or a chalky line along the bend line.

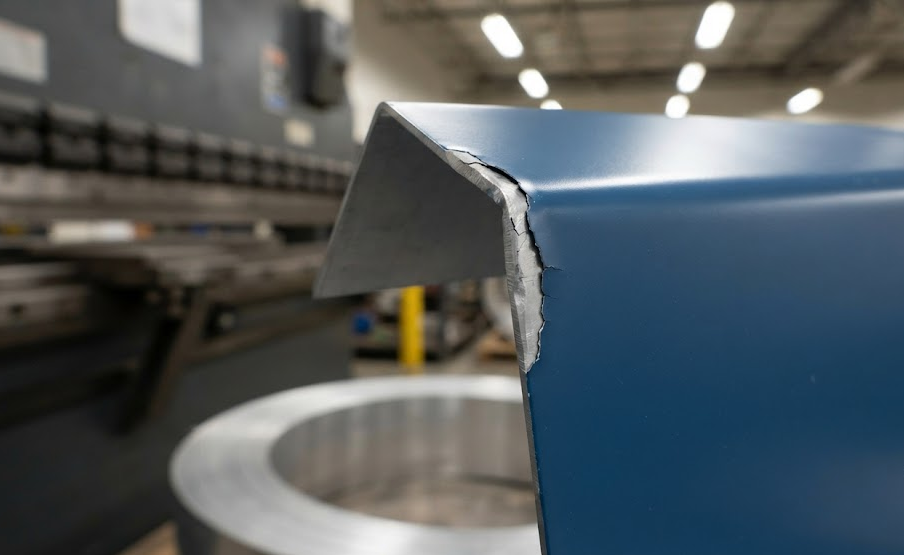

• Macro-Cracking: Deep, visible fractures that break through both topcoat and primer down to the raw pre-treated aluminum surface.

• Delamination & Flaking: Occurs when paint cracking is accompanied by poor primer adhesion, causing paint flakes to peel away from the substrate during forming.

Formability & Bending Limits Matrix: Coatings vs. Alloy Tempers

Practical Fabrication Applications: High-Strain Roll Forming

Selecting the right alloy, coating system, and forming technique prevents paint cracking across key metal-forming industries:

Standing Seam Roofing & Double-Lock Architectural Panels

Standing seam panels require 180° double-lock field seaming along their edges. Using a flexible 3003-H24 or 3004-H24 alloy coated with a 0T - 1T rated PVDF finish allows seaming tools to fold the metal edges tightly without cracking the paint or compromising weather tightness.

View More >>

Rain Gutters, Downspouts, and Complex Flashings

Continuous seamless rain gutter machines bend prepainted aluminum through a fast series of forming rollers. Specifying flexible High-Durability Polyester (HDP) or PVDF coatings on 0.6mm - 0.8mm aluminum stock prevents paint crazing along sharp gutter corners.

View More >>

Aluminum Composite Panel (ACP) Back-Routing and Folding

When fabricating cassette panels from composite sheets, the rear aluminum skin and mineral core are routed out with a 90° or 135° V-groove. Folding the remaining front aluminum skin (0.3mm - 0.5 mm) requires a flexible, well-adhered topcoat that can handle the tight corner radius without flaking.

View More >>

Incompatible Paint Resin Chemistry (Thermoplastic vs. Thermoset)

Paint flexibility depends directly on its resin binder and cross-linking density:

Over-Cured Paints: Bakes conducted at excessively high peak metal temperatures (PMT) increase cross-linking density, making the paint brittle.

Thermoset vs. Thermoplastic: Hard thermosetting coatings (such as high-hardness FEVE or standard low-grade Polyesters) have low elongation limits. In contrast, flexible 70% PVDF and modified High-Durability Polyesters (HDP) incorporate flexible resin segments engineered specifically for post-forming.

Substrate Thickness, Temper Selection, and Grain Direction

Sheet Thickness Effect: Thicker metal sheets (0.8 mm - 1.2mm) generate higher tensile strain on the outer radius than thin-gauge stock ($0.3\text{ mm} - 0.5\text{ mm}$) at the same bend angle.

Aluminum Temper Hardness: Fully hard tempers (e.g., 3003-H18 or 5052-H38) concentrate strain along narrow bend lines, increasing the risk of cracking compared to semi-hard tempers (3003-H24, 3105-H24, or 5052-H32).

Rolling Grain Direction: Bending parallel to the aluminum coil's rolling direction stresses the grain structure and increases the risk of cracking. Bending perpendicular (90°) to the rolling direction distributes tensile strain more evenly.

Incorrect Bend Radius and Too-Tight Structural Forming Tooling

Attempting a zero-radius bend (0T) on thick-gauge aluminum forces the outer paint surface to stretch past 20% - 30% elongation. Matching the bend radius (r) to the sheet thickness (t) keeps paint elongation within safe operational limits.

Understanding and Enforcing the T-Bend Test (ASTM D4145)

The ASTM D4145 T-Bend Test is the industry standard for measuring coil coating flexibility:

A sample metal strip is bent 180° back onto itself using a press brake or folding block.The bend is inspected visually and tested with high-tack pressure-sensitive tape to see if any paint lifts away.

A rating of 0T means zero paint cracking or tape pick-off when folded flat. A 1T rating means the paint resists cracking when wrapped around a single spacer matching the sheet's thickness (1t).

Primer Cross-Linking and Pretreatments for Max Adhesion

Preventing paint flaking requires strong adhesion between the metal and the paint. Coils must undergo multi-stage continuous pretreatment (such as chromate or chrome-free conversion coatings) paired with flexible polyurethane or epoxy primers (5 - 8μm) to maintain strong inter-layer bonding during sharp forming operations.

FAQ

Q1:What is the primary cause of paint cracking when bending pre-painted aluminum?

A:The main cause is bending the sheet past the paint film's maximum elongation limit. This typically occurs when using a bend radius that is too tight (0T), using an over-cured or brittle paint system, bending cold metal, or selecting a substrate temper that concentrates strain along a narrow line.

Q2:How does ambient shop temperature affect pre-painted aluminum bending performance?

A: Cold temperatures (<15°C / 59°F) cause paint resins to stiffen, making them brittle during forming. Warming the material to 20°C - 25°C restores resin flexibility, helping prevent micro-cracking during sharp bends.

Q3:What is the difference between a 0T bend and a 2T bend specification?

A:A 0T bend means the panel can be folded 180° flat onto itself without paint cracking or tape pick-off. A 2T bend requires a gap equal to two thicknesses of metal (2t) inside the bend radius to prevent paint failure.

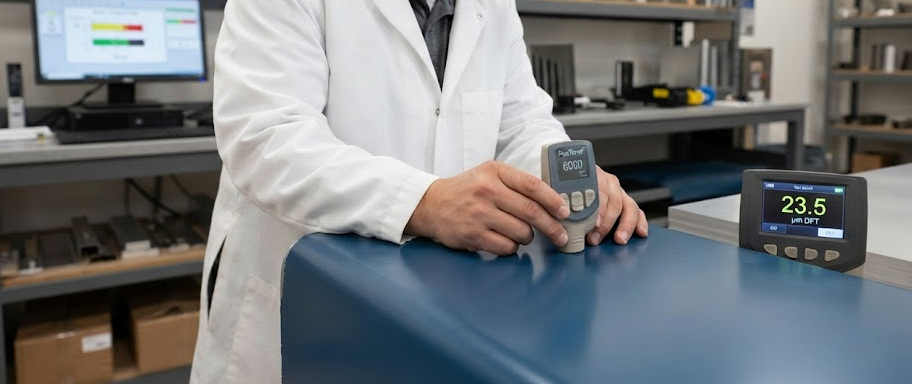

Q4:Can 3-coat, 35-micron high-build paint systems achieve a 0T bend?

A:Thicker paint films (35 μm) experience higher surface elongation during sharp bending. While standard 2-coat systems (25 μm) easily achieve 0T, high-build 3-coat systems typically require a 1T - 2T bend radius to avoid micro-cracking the thicker top layer.

Q5:What paint system is best for rain gutters and standing seam roofs that undergo tight roll forming?

A:A high-flexibility 70% PVDF or specially modified High-Durability Polyester (HDP) system over a chrome-free pretreated 3003-H24 or 3105-H24 aluminum substrate offers an ideal balance of weather resistance and forming flexibility.

Conclusion

Preventing paint cracking during aluminum bending requires matching the right resin chemistry, alloy temper, sheet gauge, and forming radius. By specifying flexible PVDF or HDP coating systems with certified 0T - 1T T-bend ratings, fabricators can produce sharp, durable architectural profiles without risking surface cracking or long-term paint peeling.
