Steel vs. Aluminum Gutter Systems: A Comprehensive 50-Year Cost and Durability Analysis

Selecting the right material for rainwater drainage systems is a critical decision for residential, commercial, and industrial building envelopes. Rain gutters protect foundations, exterior walls, and roof structures from water damage, soil erosion, and moisture intrusion.

When comparing gutter materials, project developers, contractors, and building owners frequently evaluate pre-painted aluminum gutters against galvanized or prepainted steel gutters. While steel offers high initial tensile strength, aluminum provides superior long-term corrosion resistance. Evaluating both options over a 50-year lifecycle reveals how upfront material costs compare against long-term maintenance, replacement frequency, and overall return on investment (ROI).

The 50-Year Rainwater Management Challenge

Rain gutters operate in continuous contact with moisture, organic debris, and fluctuating atmospheric conditions.

Structural Role of Eaves Drainage Systems

A gutter system must handle continuous water flow without sagging, leaking at seams, or pulling away from fascia boards. Failure leads to rot in wooden eaves, masonry staining, and costly foundation settlement.

Environmental Stressors: UV, Rain, Thermal Expansion, and Standing Water

Gutters frequently retain wet leaves, dirt, and standing water between rain events. These stagnant deposits create acidic microclimates that attack protective paint films. Combined with high solar UV exposure and seasonal freeze-thaw cycles, gutter materials face continuous environmental stress.

50-Year Cost & Durability Comparison Matrix

Core Architectural Applications for Pre-Painted Aluminum Gutters

Matching gutter material properties to specific building types ensures optimal drainage and structural longevity:

Residential Housing & On-Site Seamless Gutter Systems

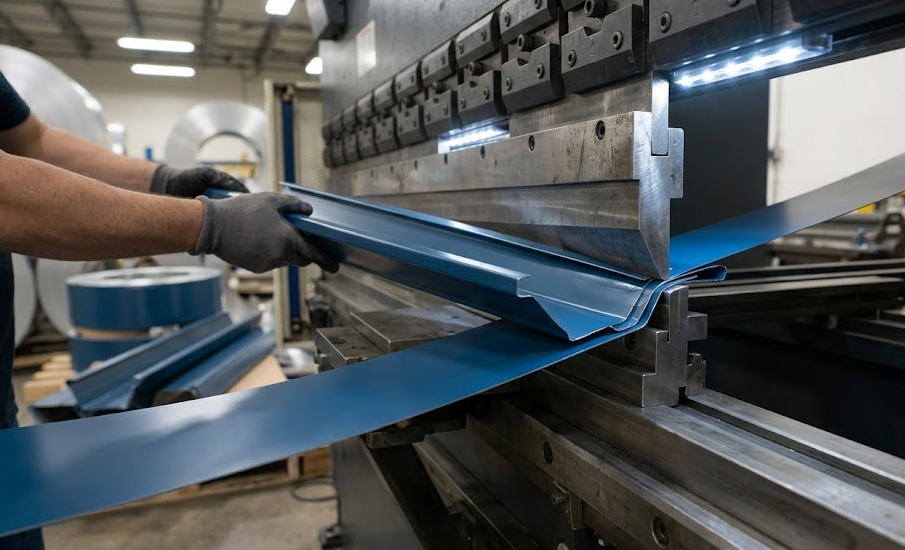

For single-family homes and residential complexes, pre-painted aluminum coils (0.6 mm} - 0.7mm) are fed directly into portable roll-forming machines on site. This produces continuous K-style or half-round seamless gutters cut to exact lengths, eliminating sectional joints—the primary cause of residential leaks and eave wood rot.

View More >>

Commercial High-Capacity Buildings & Large-Eaves Drainage

Commercial properties require larger gutter profiles (6-inch to 8-inch box gutters) to handle heavy rainfall volumes across expansive roof surface areas. Using lightweight, high-yield pre-painted 3003-H24 aluminum (0.8mm - 0.9 mm) prevents heavy overhang strain on fascia boards while resisting bowing during intense water flow.

View More >>

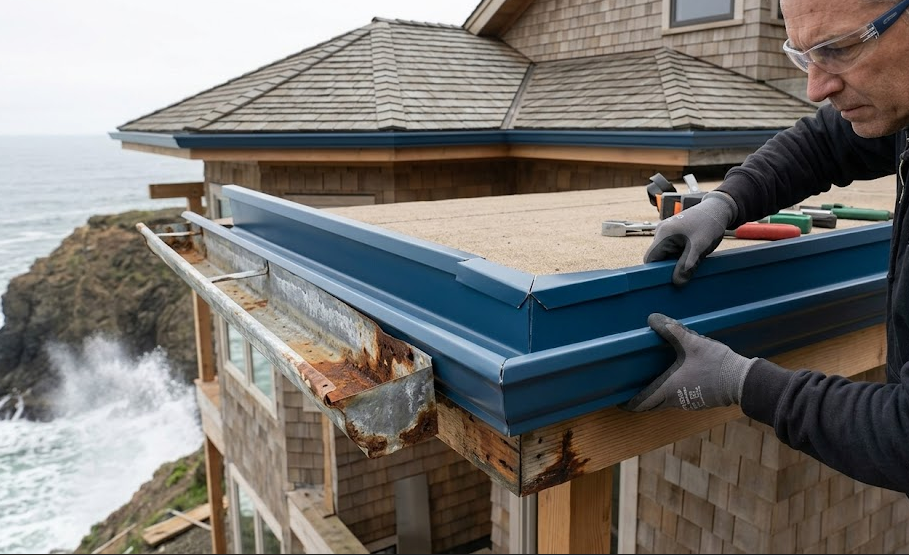

Industrial Warehouses & Aggressive Coastal Facility Roofs

Industrial plants and coastal facilities face extreme atmospheric exposure from salt spray, sulfur dioxide (SO₂), and chemical emissions. In these environments, pre-painted aluminum gutters with PVDF or HDP finishes prevent red-rust degradation along raw edges and downspout discharge zones where steel gutters fail rapidly.

View More >>

Initial Material and Installation Expenses

Steel Systems: Raw material purchase costs are moderate to low, but heavy weight increases transportation expenses and requires multi-person installation crews.

Pre-Painted Aluminum Systems: Initial coil costs are slightly higher per ton, but lightweight coils cut shipping costs, speed up handling, and allow single-operator seamless roll-forming machines directly on site.

Maintenance, Joint Sealing, and Coating Touch-Ups

Steel: Requires periodic rust inspection, scraper touch-ups, and panel repainting every 5 - 7 years in humid climates to prevent rust perforations.

Pre-Painted Aluminum: Requires basic flushing to clear leaves and debris. Factory-applied fluoropolymer or high-durability polyester topcoats resist chalking and fading without repainting.

Replacement Cycles and Cumulative 50-Year Total Cost of Ownership

Over a 50-year period:

Steel gutters typically require 2 to 3 full system replacements due to joint rust, back-side pitting, and fascia fastener rot.

Pre-painted aluminum gutters usually last the entire 50-year lifecycle with only minor sealant maintenance at end-caps and drop outlets, yielding a lower total cost of ownership.

Pre-Painted Aluminum: Self-Passivating Protection and Zero Rust

Pre-painted aluminum (typically 3000 series alloys like 3003 or 3105) naturally forms a thin, tough oxide film (Al₂O₃) whenever exposed to oxygen. Even when cut, scratched, or drilled on site, exposed aluminum edges passivate naturally instead of rusting. Combined with a factory-applied High-Durability Polyester (HDP) or PVDF coating, aluminum gutters deliver long service life without structural rust failure.

Galvanized / Prepainted Steel: Strength vs. Edge-Rust Vulnerability

Galvanized steel relies on a thin zinc coating beneath paint layers for corrosion defense. When steel gutters are cut during installation, the raw cut edges lose paint coverage. Moisture triggers galvanic action that consumes the zinc layer, eventually leading to red rust, paint blistering, and eventual metal perforation along seams and drop outlets.

FAQ

Q1:Why do pre-painted aluminum gutters last longer than prepainted galvanized steel gutters?

A:Aluminum naturally forms a self-passivating protective oxide film (Al₂O₃) when exposed to air. Unlike steel, raw cut edges and scratches on aluminum will not produce expanding red rust or undercut the surrounding paint layer over time.

Q2:How does initial material cost compare between pre-painted aluminum and steel gutters?

A: Standard steel gutters can have a slightly lower initial material purchase price. However, pre-painted aluminum offers lower shipping costs due to its lighter weight and allows continuous seamless roll forming on site, reducing total installed cost and long-term maintenance.

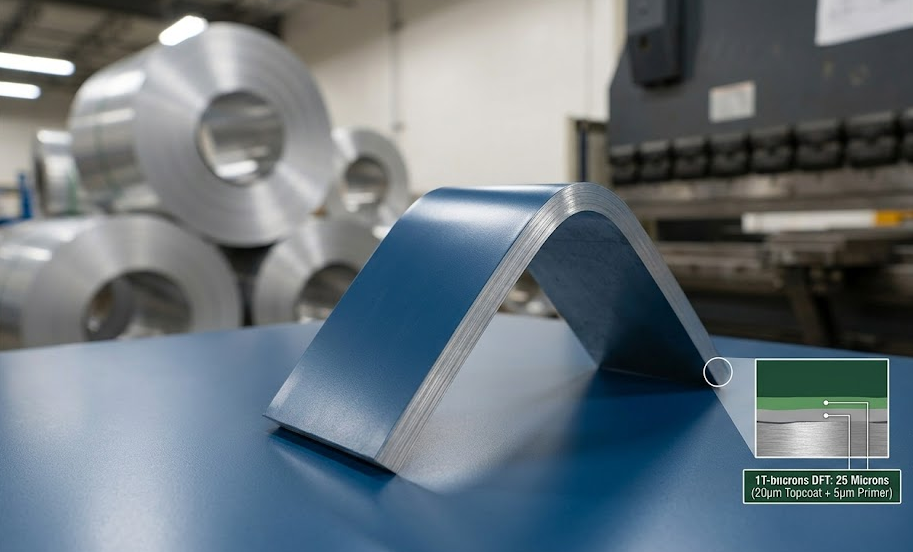

Q3:Can pre-painted aluminum gutter coils handle tight bending without the paint cracking?

A:Yes, provided the coating is formulated for flexible post-forming. High-quality gutter coils from reliable manufacturers feature 0T - 1T T-bend ratings, allowing them to navigate roll-forming profiles and tight elbow bends without paint cracking.

Q4:How does thermal expansion affect seamless aluminum gutter installations?

A:Aluminum has a higher thermal expansion coefficient than steel. Installers handle this by using heavy-duty hidden hangers, oversize mounting holes on long runs, and expansion joints every 12 - 15 meters  to allow smooth thermal movement.

Q5:What is the recommended aluminum coil alloy and temper for seamless rain gutters?

A:Alloy 3003-H24 or 3105-H24 is recommended. These tempers offer an ideal balance of structural yield strength to resist ladder pressure and heavy snow loads while retaining the flexibility needed for seamless roll-forming.

Q6:How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure paint adhesion on rain gutter coils?

A:Dingang Metal Material Co., Ltd. utilizes continuous multi-stage chemical cleaning and chrome-free pretreatments before applying corrosion-inhibiting primers and flexible topcoats. Every production lot undergoes cross-hatch, T-bend, and impact adhesion testing to ensure reliable long-term field performance.

Conclusion

Evaluating gutter systems over a 50-year lifecycle shows that initial material price is only part of the total cost equation. Pre-painted aluminum gutters eliminate red-rust failures, reduce structural roof loading, and allow continuous seamless installation, delivering low total cost of ownership and reliable performance for modern building envelopes.
