The Role of Fire-Retardant Mineral Cores in Modern Coated Aluminum Cladding Systems

In modern architecture, coated aluminum cladding—particularly Aluminum Composite Materials (ACM) and Aluminum Composite Panels (ACP)—is widely specified for high-rise building envelopes, rainscreen facades, and public infrastructure. Valued for its high strength-to-weight ratio, flatness, and design versatility, aluminum cladding has transformed urban landscapes.

However, high-profile facade fires worldwide have prompted strict revisions to international building codes. Consequently, the safety of composite cladding relies heavily on the composition of its interior core. Replacing flammable polyethylene with advanced fire-retardant mineral cores allows architects and facade engineers to achieve striking visual designs while meeting rigorous structural fire safety standards.

Modern High-Rise Cladding Safety

The Shift from Polyethylene (PE) to Fire-Retardant Mineral Cores

Early iterations of ACP utilized low-density polyethylene (LDPE) cores. While LDPE provided excellent panel flexibility and low weight, pure polyethylene is a thermoplastic derived from petroleum that melts and burns rapidly when exposed to high heat. Following major fires in high-rise buildings, municipal authorities restricted or banned pure PE cores on high-rise structures, mandating mineral-filled, non-combustible core alternatives.

Defining the Composite Material Architecture

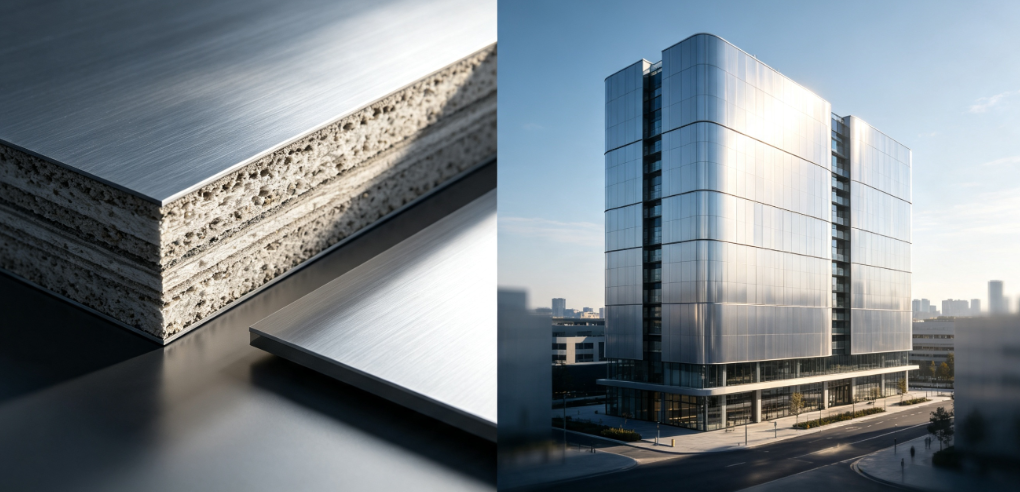

A modern fire-retardant aluminum composite panel is a multi-layer sandwich structure:

• Exterior Coated Aluminum Skins: Precision-rolled aluminum alloy sheets (typically 3003-H24 or 5052-H32) coated with high-performance fluoropolymer paints (PVDF or FEVE).

• Adhesive Film Layers: High-molecular polyolefin adhesive films that bond the aluminum skins to the mineral core under high temperature and pressure.

• Fire-Retardant Mineral Core: A dense matrix composed of non-combustible inorganic minerals mixed with a minor fraction of polymer binder to maintain panel flexibility and integrity.

Global Fire Safety Standards & Testing Matrix

To qualify for installation on modern facades, fire-retardant coated aluminum cladding panels undergo stringent full-scale and material-level testing:

Core Architectural Applications for Fire-Retardant Coated Cladding

Specifying fire-retardant mineral core cladding is essential across several demanding building sectors:

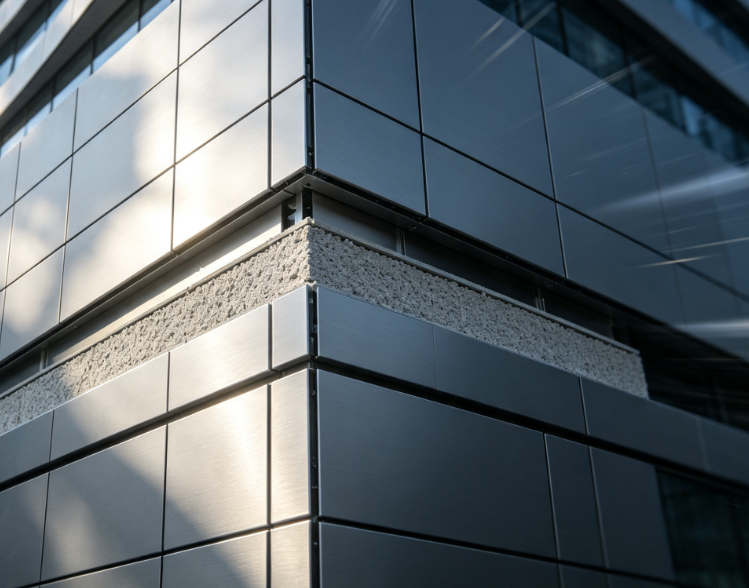

High-Rise Commercial Towers and Residential Enclosures

Building envelopes higher than 18 meters (60feet) face stack-effect airflow, which can accelerate vertical flame spread during a fire. Utilizing Class A2 fire-retardant mineral core aluminum panels ensures the exterior facade will not act as a fuel source.

View More >>

Healthcare Facilities, Educational Campuses, and Public Transportation Hubs

In high-occupancy public buildings like hospitals, airport terminals, and university campuses, rapid evacuation can be challenging. Non-combustible mineral core cladding eliminates toxic smoke generation (s1 rating) and flaming droplets (d0 rating), keeping exit corridors clear during emergencies.

View More >>

Surface Pretreatments and Polyolefin Adhesive Bonding

Attaching pre-painted aluminum to a dense mineral core requires robust adhesion to prevent panel delamination during thermal cycling or wind loads. Aluminum coils pass through continuous chrome-free pretreatment lines to form a clean passivation layer. High-molecular polyolefin adhesive films are then heated and laminated between the metal skins and mineral core under continuous pressure rollers.

View More >>

Hydrated Mineral Fillers (ATH and MDH ) Endothermic Reaction

The fire suppression capabilities of mineral cores stem primarily from inorganic hydrated compounds, such as Aluminum Trihydrate (Al(OH)₃ / ATH) or Magnesium Hydroxide (Mg(OH)₂ / MDH):

Thermal Decomposition: When temperatures exceed 180° - 200°, ATH undergoes an endothermic chemical decomposition, absorbing substantial heat energy from the surrounding environment.

Water Vapor Release: As the mineral decomposes, it releases bound water molecules as steam (≈ 34% of its weight in water vapor). This steam cools the flame front and dilutes surrounding oxygen and volatile organic gases, suppressing flame spread.

Protective Char Formation: The remaining inorganic residue forms a non-combustible ceramic or oxide barrier that isolates the inner layers from further heat penetration.

Combustible vs. Non-Combustible Core Formulations

Standard PE Core (Class D/E): 100% Polyethylene. Highly combustible; fuel for flame propagation.

FR Mineral Core (Class B / FR Grade): Contains ≈ 70% - 80% non-combustible mineral fillers (ATH/MDH) blended with 20% - 30% polyolefin binder. Self-extinguishing with low smoke release.

A2 Non-Combustible Core (Class A2 / A2 Grade): Contains ≥ 90% inorganic mineral compounds. Fully non-combustible; meets strict high-rise building code requirements globally.

PVDF vs. FEVE Fluoropolymer Finishes for Exterior Cladding

To maintain color stability and weatherability under sunlight, the aluminum skins are pre-coated with premium fluoropolymer finishes compliant with AAMA 2605:

0% PVDF (Polyvinylidene Difluoride): Offers excellent flexibility (0T - 1T bend radius) and strong UV resistance with a classic matte or satin finish (20 - 35 gloss units).

FEVE (Fluoroethylene Vinyl Ether): Delivers equivalent UV protection across a broader gloss range (5 - 85 gloss units), providing high surface hardness and vibrant options for high-gloss metallic facades.

Advanced Continuous Coil Coating & Laminating Substrate Supply

At Changzhou Dingang Metal Material Co., Ltd. (China), we supply high-grade prepainted aluminum coils (alloys 3003, 3004, and 5052) optimized for bonding with fire-retardant mineral cores. Our automated roller-coating lines apply 70% PVDF and FEVE finishes under closed-loop temperature controls, ensuring uniform dry film thickness and complete thermal curing.

Export Packaging Controls and Global Compliance

Operating under ISO 9001 and ISO 14001 management systems, Changzhou Dingang Metal Material Co., Ltd. (China) ensures full shipment traceability. Coils prepared for export feature dual-layer moisture barriers, VCI anti-corrosion protection, desiccants, steel edge guards, and heavy-duty wooden cradles to prevent salt-air oxidation or transit damage.

FAQ

Q1:What is the main difference between FR grade and A2 grade mineral cores in ACP cladding?

A:FR grade cores contain roughly 70% - 80% mineral filler and are classified as fire-retardant (Class B-s1, d0). A2 grade cores contain ≥ 90% inorganic mineral fillers, making them non-combustible (Class A2-s1, d0) and suitable for high-rise facades under international building codes.

Q2:Why is testing the complete wall assembly (like NFPA 285 or BS 8414) necessary alongside panel testing?

A: Individual panel tests (like ASTM E84) measure surface flammability under isolated conditions. Full-scale assembly tests evaluate how the complete wall system—including insulation, cavity barriers, aluminum cladding panels, and structural framing—behaves together during a real fire.

Q3:What is the risk of using unverified coated aluminum skins on fire-retardant mineral cores?

A:Unverified aluminum skins may have inconsistent coating thickness, improper tension leveling, or inferior rear-side washcoats. These defects can lead to surface oil-canning, paint peeling, or delamination between the aluminum skin and mineral core under wind load and thermal stress.

Q4:Can fire-retardant mineral core composite panels be grooved and folded for cassette installation?

A:Yes. Mineral core composite panels can be routed and folded on the back side (leaving the top aluminum skin and a thin layer of core intact) to form cassette panels without cracking or compromising the fire-retardant core layer.

Q5:How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure paint adhesion for facade composite panel applications?

A:Dingang Metal Material Co., Ltd. utilizes continuous multi-stage chemical pretreatments before applying primers and topcoats. Every coil undergoes cross-hatch adhesion, T-bend, and MEK rub solvent tests to ensure reliable bonding during panel lamination and long-term exterior service.

Conclusion

The selection of exterior cladding materials requires balancing visual design with structural safety. Incorporating fire-retardant mineral cores—supported by high-performance PVDF/FEVE coated aluminum skins—allows architects, developers, and facade engineers to create modern building envelopes that meet strict global fire safety standards.
