Understanding Salt Spray Test Hours: Choosing Aluminum Sheets for Coastal Roofing

Building structures within coastal zones—typically defined as areas within 1,000 meters to 5 kilometers of a marine coastline—exposes roofing materials to harsh environmental forces. Marine atmospheres combine high atmospheric humidity, intense solar radiation, and continuous airborne salt spray (sodium chloride). Unprotected or improperly specified metal roofing in these locations can suffer rapid surface pitting, structural weakening, and protective paint failure.

To evaluate material performance before installation, metal buyers and architects rely on standardized accelerated corrosion testing, specifically the salt spray test aluminum protocol. Understanding how test duration hours correlate with real-world marine performance helps project planners select the right combination of aluminum alloys and protective coatings for durable coastal roofing installations.

Corrosion Mechanics in Coastal Zones

Coastal regions create a harsh environment for metal building materials due to airborne salts and marine weather patterns.

Airborne Chloride Attack and Pitting Mechanics

Although aluminum naturally forms a protective oxide layer (Al₂O₃), microscopic salt spray droplets deposit chloride ions (Cl-) onto the metal surface. These chloride ions penetrate weak points in the oxide film, forming localized galvanic cells that lead to pit formation and surface deterioration.

Thermal Moisture Cycling and Under-Film Delamination

When sea breezes combine with high relative humidity, a thin liquid film forms on metal surfaces, acting as a continuous electrolyte. If moisture creeps beneath a damaged paint layer, it causes under-film corrosion (filiform corrosion), creating spider-web-like tracks that lift paint from the underlying aluminum.

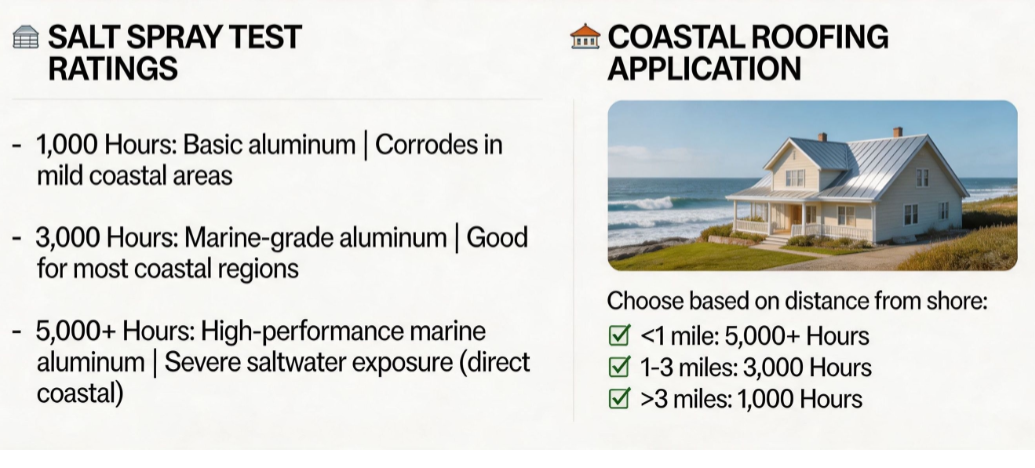

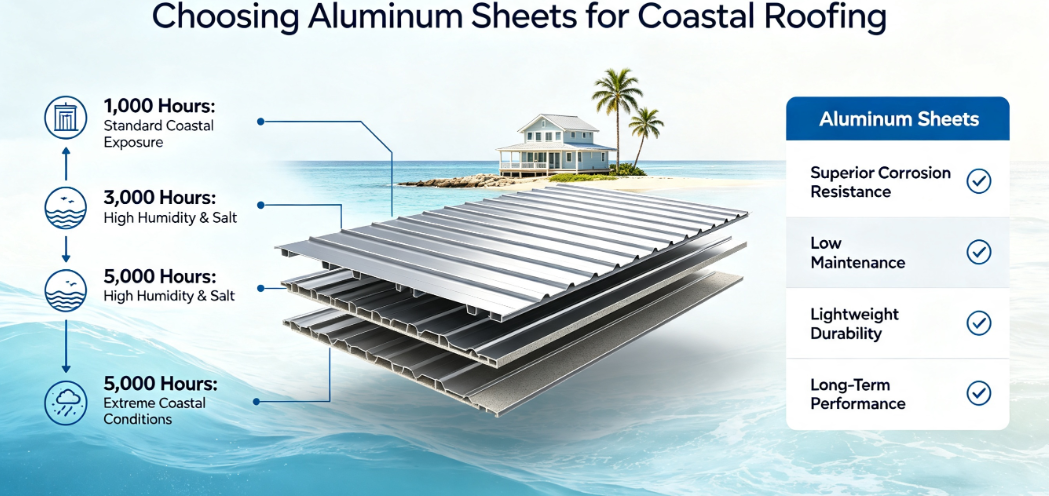

Performance Matrix: Alloy & Coating Salt Spray Benchmark Durations

Core B2B Applications for Salt-Resistant Aluminum Roofing

Specifying salt-spray-tested coated aluminum is critical across several coastal building sectors:

Coastal Residential and Resort Standing Seam Roofs

Beachfront homes and luxury resorts feature standing seam roofing profiles with concealed fasteners. Using 5052 H32 aluminum prepainted with a 70% PVDF coating prevents edge creep and unsightly red rust stains common in conventional steel roofing.

View More >>

Port Logistics Warehouses and Industrial Marine Sheds

Shipside logistics facilities, port storage sheds, and transit hubs are exposed to continuous salt fog and industrial emissions. Thick-gauge corrugated aluminum sheets (3004 or 5052 alloy) withstand these corrosive conditions while retaining structural integrity over long service lives.

View More >>

Offshore Facilities and Desalination Plant Enclosures

Desalination facilities and coastal power stations operate in extreme marine microclimates containing high concentrations of both salt spray and chemical vapors. Using high-build 3-coat fluoropolymer-coated 5052 aluminum sheets prevents panel perforation and cuts long-term maintenance costs.

View More >>

Manganese (3003/3105) for Moderate Coastal Exposures

Alloyed with manganese (Mn, 1.0% - 1.5%), the 3000 series provides moderate mechanical strength, excellent workability, and good general weather resistance. It serves as an economical substrate choice for light commercial and residential roofing installed beyond $1\text{ kilometer}$ from the coastline.

Magnesium (5052/5754) for Harsh Marine and Offshore Regions

Alloyed with magnesium (Mg, 2.2% - 3.8%), the 5000 series provides exceptional resistance to alkaline environments and marine salt spray. In severe beachfront settings where salt fog directly coats roofing surfaces, 5052 aluminum forms a stable, self-passivating oxide film that resists pitting far better than 1000 or 3000 series alloys.

Chrome-Free Pretreatment Layers

Before applying paint, the bare aluminum passes through a chemical conversion coating line. This pretreatment creates a microscopic passivation layer that boosts primer adhesion and prevents under-film moisture migration if the surface gets scratched.

70% PVDF and FEVE Topcoat Barriers

70% PVDF (Polyvinylidene Difluoride): Combines PVDF fluoropolymer resin with acrylic binder to deliver high flexibility and excellent chemical resistance, withstanding over 3,000 hours of ASTM B117 salt spray testing.

FEVE (Fluoroethylene Vinyl Ether): Delivers similar marine corrosion protection across a broader gloss range (5 - 85 gloss units), offering high surface hardness and scratch resistance for architectural designs.

Export-Grade Sea Freight Packaging Standards

Operating under ISO 9001 and ISO 14001 management systems, Changzhou Dingang Metal Material Co., Ltd. (China) ensures full shipment traceability. Coils prepared for ocean transport feature dual-layer moisture wrapping, VCI corrosion-inhibiting paper, silica desiccants, inner/outer steel edge protectors, and heavy-duty wooden cradles to prevent salt-air oxidation during ocean transit.

FAQ

Q1:How many salt spray test hours are needed for roofing installed within 500 meters of the ocean?

A:Projects located within 500 meters of breaking surf should specify at least 3,000 hours of ASTM B117 neutral salt spray performance. This rating is typically achieved using a 5052 alloy substrate paired with a multi-coat 70% PVDF or FEVE paint system.

Q2:Why does prepainted galvanized steel fail faster than prepainted aluminum in coastal zones?

A: Steel relies on a thin zinc sacrificial coating. Once ocean salt spray scratches or penetrates the paint down to the raw edge, the zinc layer rapidly dissolves, causing red rust, structural thinning, and paint flaking. In contrast, aluminum forms a self-passivating protective film that resists lateral corrosion creep.

Q3:What is the risk of using unverified suppliers for thin-gauge coated aluminum coils?

A:Unverified suppliers may use low-grade substrates or inconsistent pretreatments. This can lead to coating blistering, severe edge creeping, and premature metal perforation within 2 - 5 years of marine installation.

Q4:Can 5052 prepainted aluminum coils be roll-formed into standing seam profiles without paint cracking?

A:Yes, provided the fluoropolymer coating system is formulated for flexibility (1T - 2T bend rating). This allows the prepainted sheet to be formed into tight standing seam locks without micro-cracking the protective topcoat.

Q5:How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure coating adhesion on marine aluminum?

A:Dingang Metal Material Co., Ltd. uses multi-stage chemical cleaning and conversion pretreatment lines before painting. This creates a clean surface with high surface energy ( 38 mN/m), establishing a strong bond between the aluminum substrate and the corrosion-inhibiting primer.

Conclusion

Selecting roofing materials for coastal environments requires balancing alloy selection, pretreatment quality, and paint system chemistry. By specifying 3000 or 5000 series aluminum substrates with proven 3,000+ hour salt spray performance, project teams can protect their coastal structures against premature failure and ensure long-term architectural durability.
