Do PV And Electronic Heat Dissipation Color Coated Aluminum Narrow Strips Have Thermal And Electrical Conductivity Requirements?

1. Introduction

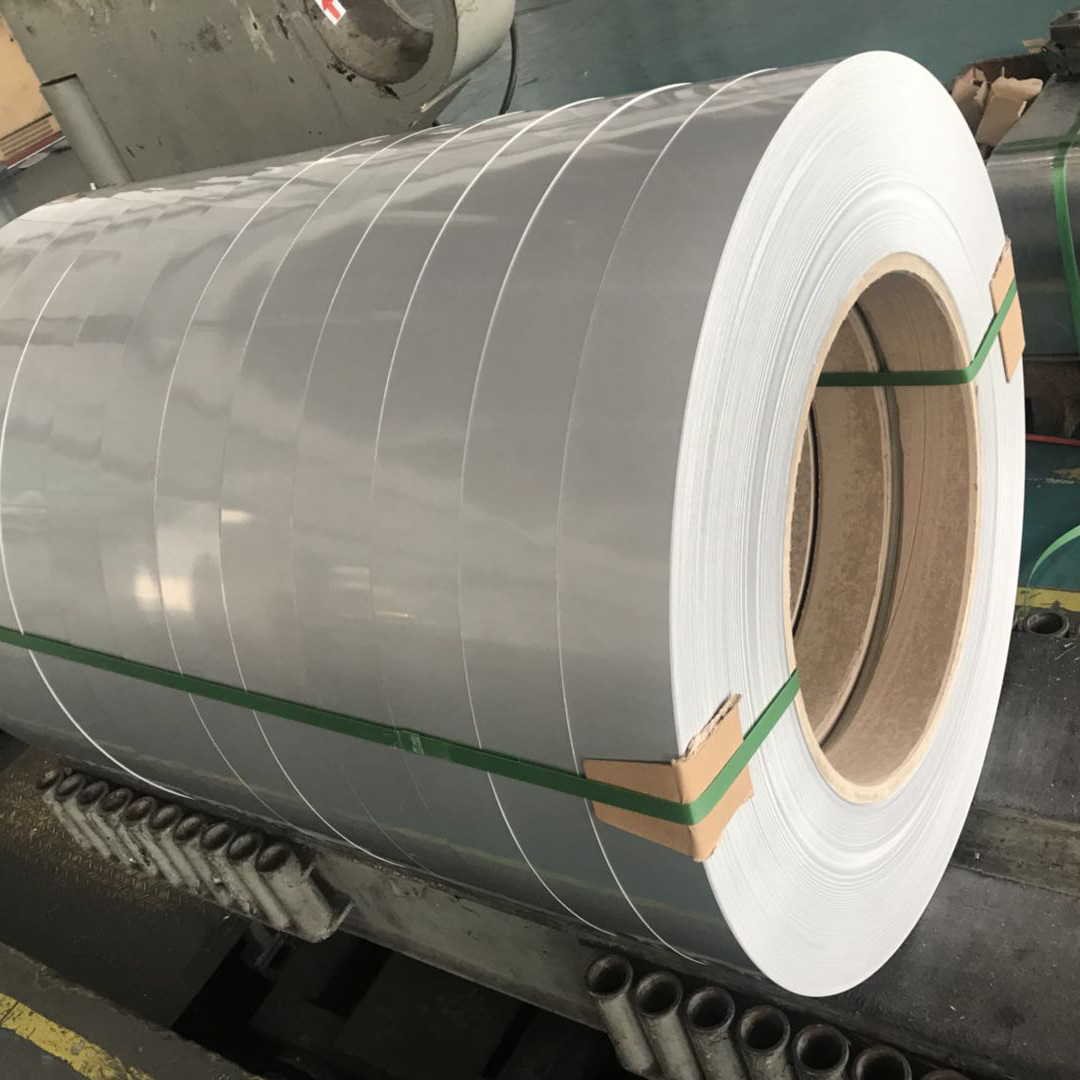

Color coated aluminum narrow strips are indispensable auxiliary materials in photovoltaic power generation and consumer electronic heat dissipation systems. They are widely used for PV module edge sealing, inverter internal heat conduction, LED radiator accessories, and electronic equipment anti-corrosion heat dissipation structural parts.

One of the most frequently searched questions by electronic engineers, PV project designers and global procurement personnel is: whether color coated aluminum narrow strips for PV and electronic heat dissipation scenarios have mandatory thermal and electrical conductivity requirements.

Many buyers confuse the insulation effect of surface paint with the inherent conductivity of aluminum substrates, leading to improper material selection and equipment heat dissipation failure. This article will clarify the conductivity standards, influencing factors and professional selection criteria for color aluminum narrow strips in PV and electronic heat dissipation scenarios.

2. Core Answer: Are Conductivity Requirements Mandatory for Heat Dissipation Color Aluminum Narrow Strips?

The definitive answer is yes, but requirements vary by functional application. Not all heat-dissipating color aluminum narrow strips need high electrical conductivity, while thermal conductivity is a basic core indicator for all heat dissipation models.

Two Classification Standards for Application Scenarios

Pure heat dissipation & decorative scenarios: For PV module outer edge seals, electronic shell decorative edgings, and non-contact heat dissipation accessories. These strips only need stable thermal conductivity to assist heat radiation, with no strict requirements for electrical conductivity. The surface color coating plays a protective and beautifying role without affecting core heat dissipation performance.

Dual heat dissipation & electrical conduction scenarios: For inverter internal heat conduction strips, high-frequency electronic shielding strips, and grounding connection auxiliary strips. These products require both high thermal conductivity for rapid heat transfer and stable electrical conductivity for equipment grounding, electromagnetic shielding and circuit conduction.

Key Difference: Substrate Conductivity vs Coating Insulation

A common industry misconception is that color coating reduces the conductivity of aluminum strips. In fact, the organic coating only forms an insulating layer on the surface and cannot change the inherent thermal and electrical conductivity of the aluminum alloy substrate.

The aluminum metal core always maintains fixed conductivity determined by alloy composition. The paint film only causes slight surface thermal resistance and surface insulation, which will not affect the overall heat transfer and internal conduction performance of the aluminum strip substrate.

3. How Aluminum Alloy Substrate Determines Conductivity Performance

The alloy grade is the decisive factor for the thermal and electrical conductivity of color coated aluminum narrow strips. Different series of aluminum alloys have huge differences in conductivity, directly adapting to different PV and electronic heat dissipation needs.

Recommended Alloys for PV & Electronic Heat Dissipation

1050 / 1060 Pure Aluminum (First Choice for Heat Dissipation & Conduction)

With aluminum purity over 99.5%, this series features ultra-high thermal conductivity (220–230 W/m·K) and electrical conductivity up to 58–60% IACS. It has stable heat transfer efficiency, excellent bending formability, and no paint peeling during secondary processing. It is the most suitable substrate for high-power electronic heat dissipation and PV inverter heat conduction narrow strips.

3003 Al-Mn Alloy (Only for Outdoor PV Decoration)

3003 alloy has better rust resistance and tensile strength, suitable for outdoor PV module edge sealing in coastal and humid environments. However, its thermal conductivity is about 15% lower than 1050 alloy, so it isnot recommended for core electronic heat conduction components.

Conductivity Parameter Comparison of Common Alloys

4. Influence of Color Coating on Heat Dissipation and Conductivity

PE, HDP and PVDF organic coatings are non-insignificant factors affecting the surface performance of color aluminum narrow strips. Reasonable coating selection can minimize thermal resistance and avoid conduction failure.

Thermal Resistance Caused by Paint Film

A standard single-sided coating thickness of 8–12μm produces slight thermal resistance, which has little impact on overall heat dissipation. However, excessive thick double-sided coatings will hinder heat exchange. For high-precision electronic heat dissipation equipment, manufacturers adopt thin-film high-emissivity black coating — the high infrared radiation performance of black paint offsets the thermal resistance of the paint film, achieving better heat dissipation than bare aluminum.

Surface Insulation Risk for Electrical Contact Parts

All organic color coatings are insulating materials. For aluminum narrow strips used for equipment grounding and electrical connection, full-surface coating will lead to circuit open and excessive contact resistance.

The mature industry solution is partial masking coating technology: reserve uncoated bare aluminum areas at the contact edges and terminals to ensure stable electrical continuity, while the rest of the surface is coated for anti-corrosion and anti-scratch protection.

Optimized Coating Solutions for Heat Dissipation Strips

- Electronic internal heat dissipation: Thin single-sided black high-emissivity coating

- Outdoor PV edge strips: HDP high weather resistance conventional coating

- Conductive & shielding strips: Partial masking uncoated processing

5. Scenario-Specific Conductivity Requirements for PV & Electronic Fields

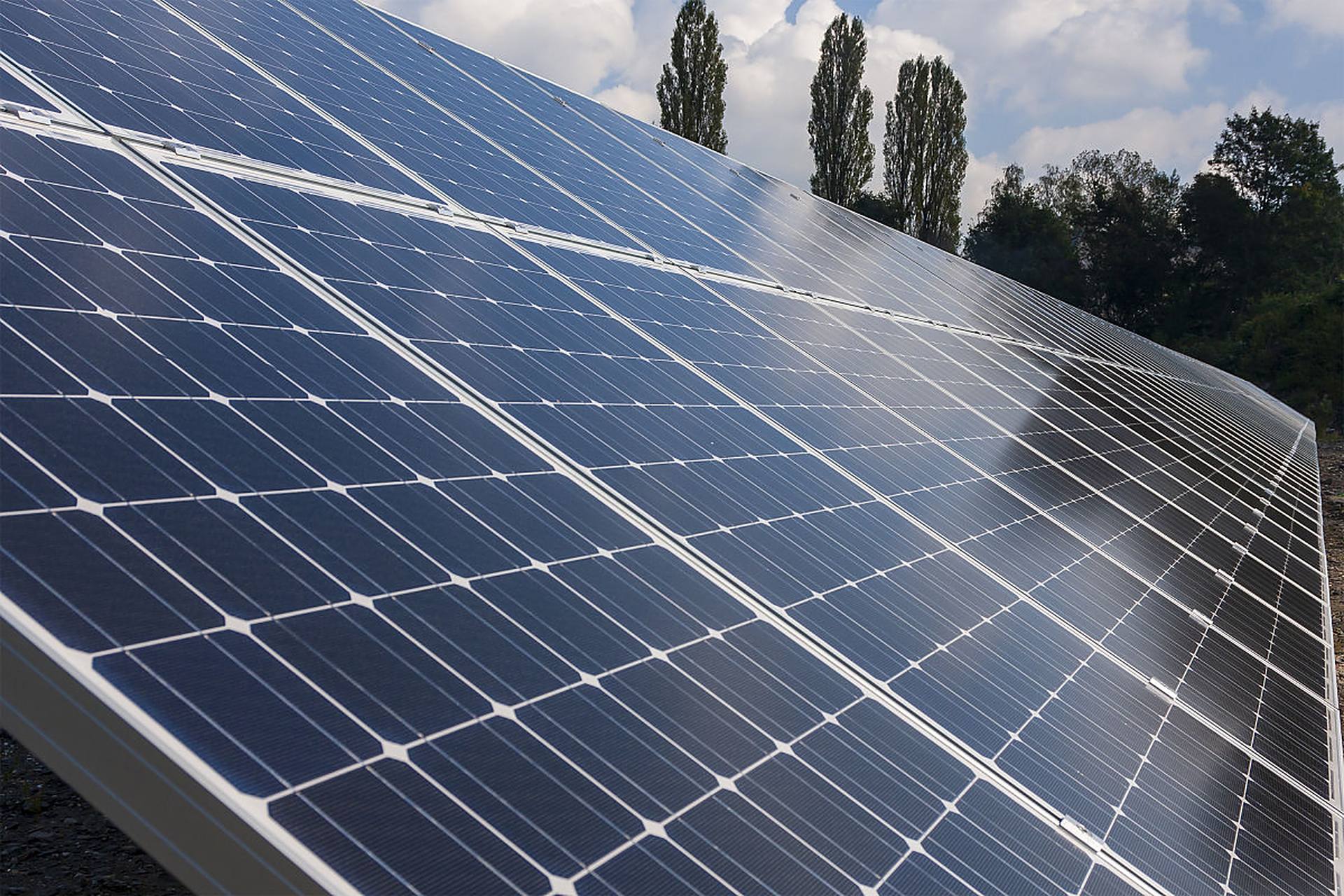

Photovoltaic Industry Application Standards

PV module decorative edge strips: Prioritize weather resistance and anti-corrosion, with low requirements for conductivity. 3003 alloy HDP color coated strips are the mainstream choice.

PV inverter internal heat conduction strips: Strict thermal conductivity standard (≥220 W/m·K) is required. Only 1000-series pure aluminum substrates are qualified, with mandatory reserved conductive contact areas for equipment grounding.

Electronic Heat Dissipation Application Standards

LED radiators, switching power supplies and charging pile heat dissipation narrow strips rely on the high thermal conductivity of pure aluminum to export operating heat rapidly. Most electronic manufacturers choose matte black thin coated strips to improve internal radiation heat dissipation efficiency.

For high-frequency electronic equipment with EMI shielding requirements, the aluminum narrow strips need both heat dissipation performance and loop conductivity, making partial uncoated processing an essential production process.

6. Frequently Asked Questions

Can 3003 color aluminum narrow strips be used for electronic heat dissipation?

It is not recommended for high-power electronic core heat dissipation parts. The low thermal conductivity of 3003 alloy will cause heat accumulation and chip overheating during long-term high-load operation. It is only suitable for outdoor PV decorative scenes without high heat conduction demands.

Does black coating improve the heat dissipation effect of aluminum strips?

Yes. Black high-emissivity coating can significantly improve infrared radiation heat dissipation. Although the paint film brings tiny thermal resistance, the overall heat dissipation effect in closed electronic equipment is far better than uncoated bare aluminum strips.

How to customize aluminum strips with both anti-corrosion coating and conductivity?

Adopt partial masking coating technology. Keep the contact terminals and edge areas uncoated to retain metal conductivity, and coat the remaining surfaces completely to achieve anti-corrosion, anti-scratch and beautiful effects.

7. Conclusion

PV and electronic heat dissipation color coated aluminum narrow strips have clear and differentiated thermal and electrical conductivity requirements. Thermal conductivity is a necessary indicator for all heat dissipation products, while electrical conductivity is only mandatory for conductive grounding and shielding scenarios.

The aluminum alloy substrate determines the core conductivity performance, and the color coating only affects surface insulation and thermal resistance without changing the substrate’s inherent performance. In actual procurement and design, engineers should select 1000-series pure aluminum for core heat conduction and conductive parts, and optimize coating processes according to usage scenarios to balance heat dissipation, conductivity and anti-corrosion performance.
