PVDF-Coated Aluminium Coil for Ventilated Facades and Rainscreen Cladding in Europe

An architectural coil is judged after it has become a building elevation, not while it is lying flat in a warehouse. Once hundreds of panels are installed side by side, small differences in colour, gloss, flatness or forming behaviour become easy to see and expensive to correct.

For European facade-panel and aluminium composite panel manufacturers, the purchasing question is therefore not simply "Do you have PVDF?" A dependable facade specification connects the substrate, temper, coating build, colour-control method, fabrication route and project exposure.

Ding‘ang supplies PVDF, HDP and PE color-coated aluminium coil and sheet for solid panels, cassettes, rainscreen cladding, soffits, column covers and ACP skins. We configure the material around the converter's process and the performance required by the finished facade system.

Where coated aluminium fits in a ventilated facade

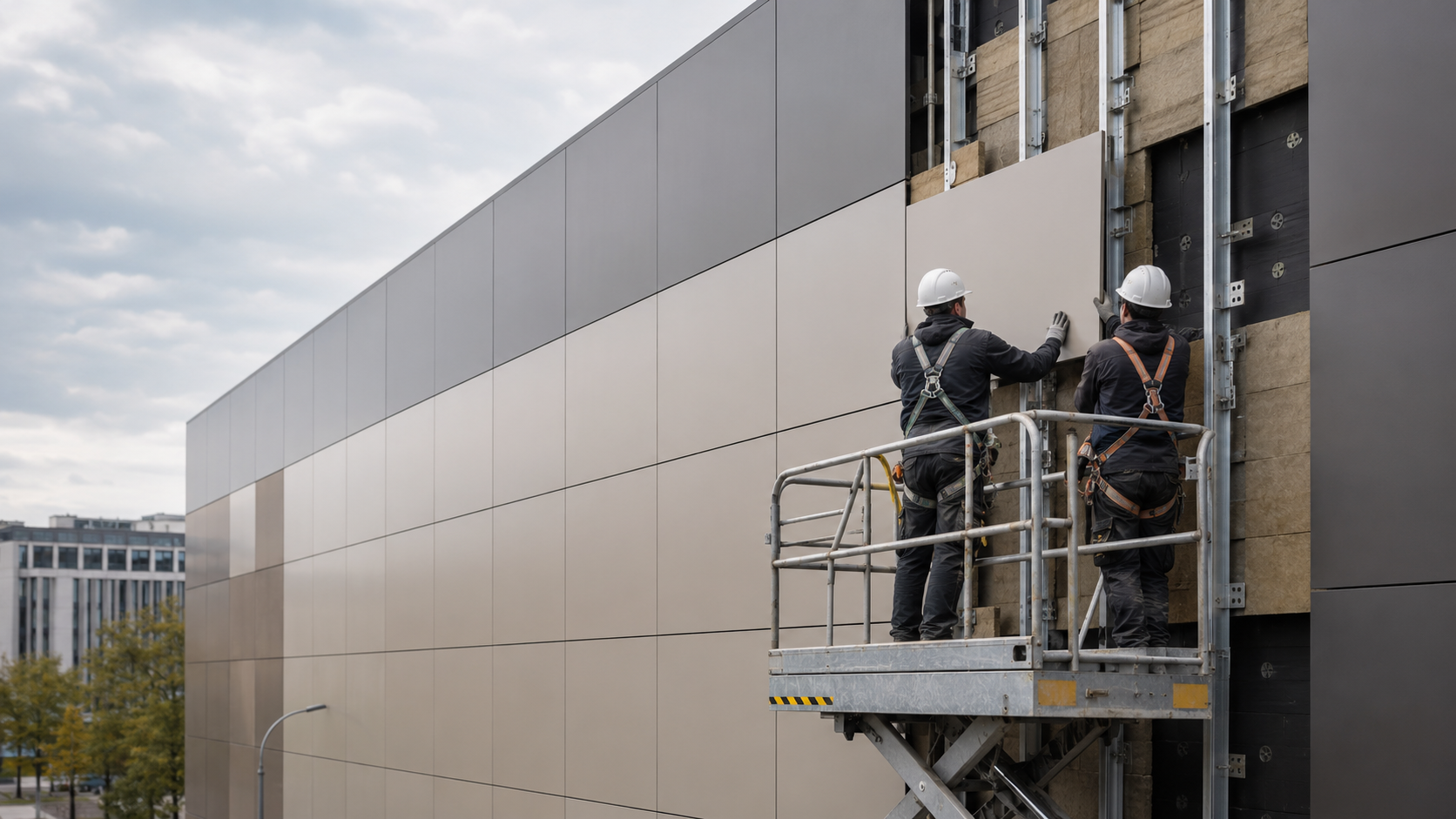

A typical ventilated rainscreen has an outer panel, subframe, ventilated cavity and insulation or backing wall. The aluminium outer layer provides the visible finish and helps shield the construction behind it from rain and solar exposure.

Color-coated aluminium may be used as:

• solid folded facade panels and cassettes;

• skins for aluminium composite panels;

• profiled or corrugated wall sheets;

• soffits, canopies and fascia elements;

• column covers and entrance features;

• perforated sun screens and decorative panels;

• colour-matched roof and rainwater components.

The European Coil Coating Association identifies facades, roofing, flashings and rainwater goods as established prepainted-metal applications. European Aluminium also notes that ventilated aluminium cladding protects insulation from rain and can shade the underlying wall layers.

Why PVDF is used for demanding exterior projects

PVDF coating systems are valued for resistance to UV-driven colour change and chalking. They are commonly specified for prominent or long-life exterior facades, particularly where the building has strong sun exposure, industrial pollution or a difficult maintenance programme.

However, a PVDF label alone is not a complete specification. Buyers should define:

• pretreatment and primer system;

• nominal topcoat and total dry-film thickness;

• two-coat or three-coat construction where applicable;

• colour and gloss tolerance;

• bend and adhesion requirements after fabrication;

• accelerated and/or natural-weathering requirements;

• reverse-side coating;

• protective film and removal window.

PE and HDP should not be dismissed. They can be practical for interior cladding, sheltered areas, shorter-life projects or applications with different cost and durability targets. The coating should follow the exposure and warranty strategy rather than a generic hierarchy.

Substrate selection: 3003, 3105 and 5xxx alloys

AA3003-H14 or a related temper is a common starting point for folded architectural panels because it offers useful formability and corrosion resistance. AA3105 can provide a different balance of strength and forming behaviour. For panels facing higher mechanical loads, selected 5xxx alloys may be considered after checking flatness, bend radii and fabrication method.

Ding’ang's architectural product range includes 3003 and 3105 substrates, with project capability covering thin ACP skins through heavier solid-panel material. Our 3003-H14 PVDF facade coil is offered in project-specific colours and dimensions. The exact thickness and width range should be confirmed against the panel drawing, forming equipment and order volume.

Flatness and visual consistency

Large panels amplify coil shape defects. Edge wave, centre buckle or residual stress can create oil-canning or distorted reflections after folding. Tension levelling can improve flatness, but the converter's cutting pattern, panel size, stiffener design and installation also affect the final appearance.

Colour needs equal attention. A useful facade supply plan includes:

• one approved colour master;

• instrument settings and agreed Delta E limits;

• gloss range and measurement angle;

• batch and coil traceability;

• rules for mixing coils on one elevation;

• retention samples from production batches;

• special viewing criteria for metallic or effect colours.

Metallic colours are direction-sensitive. Panels cut from different coil directions may appear different even when the measured colour is acceptable. The fabrication and installation drawings should preserve a consistent directional orientation.

Forming without damaging the coating

Facade panels are cut, routed, punched and folded. The coating must stay attached at bends and along worked edges. EN 13523 includes methods for coating thickness, gloss, colour difference, hardness, impact, adhesion after indentation and resistance to cracking on bending.

The most reliable approval combines laboratory tests with a production trial using the customer's actual V-groove, fold radius or panel-forming process. A sample that is only bent by hand does not represent the stress created by commercial equipment.

Fire classification and CE marking: avoid the common shortcut

Aluminium metal is non-combustible, but a facade is a complete system. Coatings, adhesives, insulation, composite-panel cores, membranes, cavity barriers and fixing details all influence reaction-to-fire and fire-spread performance.

For the same reason, a raw coated aluminium coil should not be marketed as though it automatically provides CE marking for the finished facade. The manufacturer placing the finished construction product on the EU market must identify the applicable harmonised standard or assessment route and prepare the required Declaration of Performance where relevant.

Ding‘ang can supply incoming-material records agreed with the buyer, but the panel or facade-system manufacturer remains responsible for testing and declaring its finished product.

What a European facade buyer should request

A robust purchase specification normally covers:

1. alloy, temper and mechanical-property limits;

2. metal thickness, width and dimensional tolerances;

3. coil flatness and surface acceptance criteria;

4. pretreatment, primer, topcoat and back coat;

5. colour, gloss, texture and directional requirements;

6. bend, impact, adhesion and weathering tests;

7. protective film type and removal conditions;

8. batch traceability and inspection documents;

9. export packing and coil orientation;

10. sample approval and change-control procedure.

Why manufacturers work with Ding‘ang

Ding’ang combines a broad substrate range with continuous coil coating, colour development, slitting and export packing. For European facade projects, the practical advantages are:

• one supplier for coil, strip and cut sheet formats;

• PE, HDP and PVDF options selected by application;

• matte, satin, glossy, brushed and decorative appearances;

• RAL, Pantone and physical-sample matching;

• project-specific widths to reduce scrap at the converter;

• agreed batch testing and production samples;

• packaging designed for long-distance sea transport.

We do not recommend choosing a facade material from a website table alone. Send the panel drawing, project exposure and required tests so the specification can be reviewed before quotation.

Frequently asked questions

Is 25 microns of PVDF enough for every facade?

No single thickness answers every project. The coating build, number of layers, colour, exposure and required test performance all matter. Use the project specification and coating-supplier recommendations.

Can one batch be used across several elevations?

It is often preferable to plan coil batches and installation zones together, especially for metallic or effect colours. The panel manufacturer should maintain coil direction and batch traceability.

Is aluminium composite panel the same as solid aluminium cladding?

No. ACP combines aluminium skins with a core, while solid panels use a single metal sheet. Their fabrication, fire classification, structural behaviour and applicable conformity routes differ.

Does Ding’ang provide colour samples?

Samples can be prepared as part of project development. For visible architecture, approve a production-representative coated-metal sample that records colour, gloss, texture and coating system.

Start with the panel, not the paint name

Send Ding‘ang your facade-panel drawing, intended alloy and thickness, annual quantity, colour schedule and project location. Our team can recommend a coated aluminium configuration for sampling and fabrication trials.
