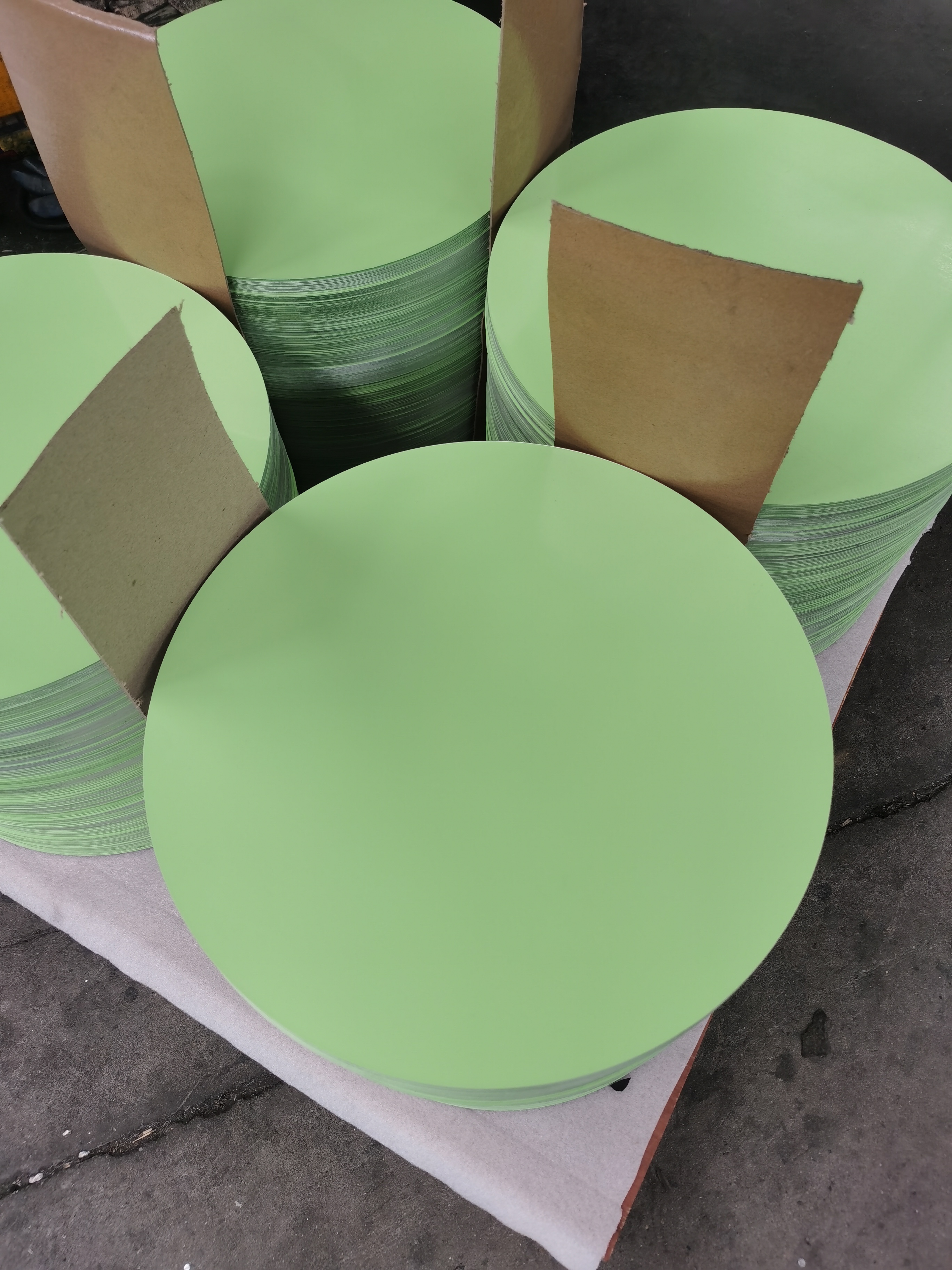

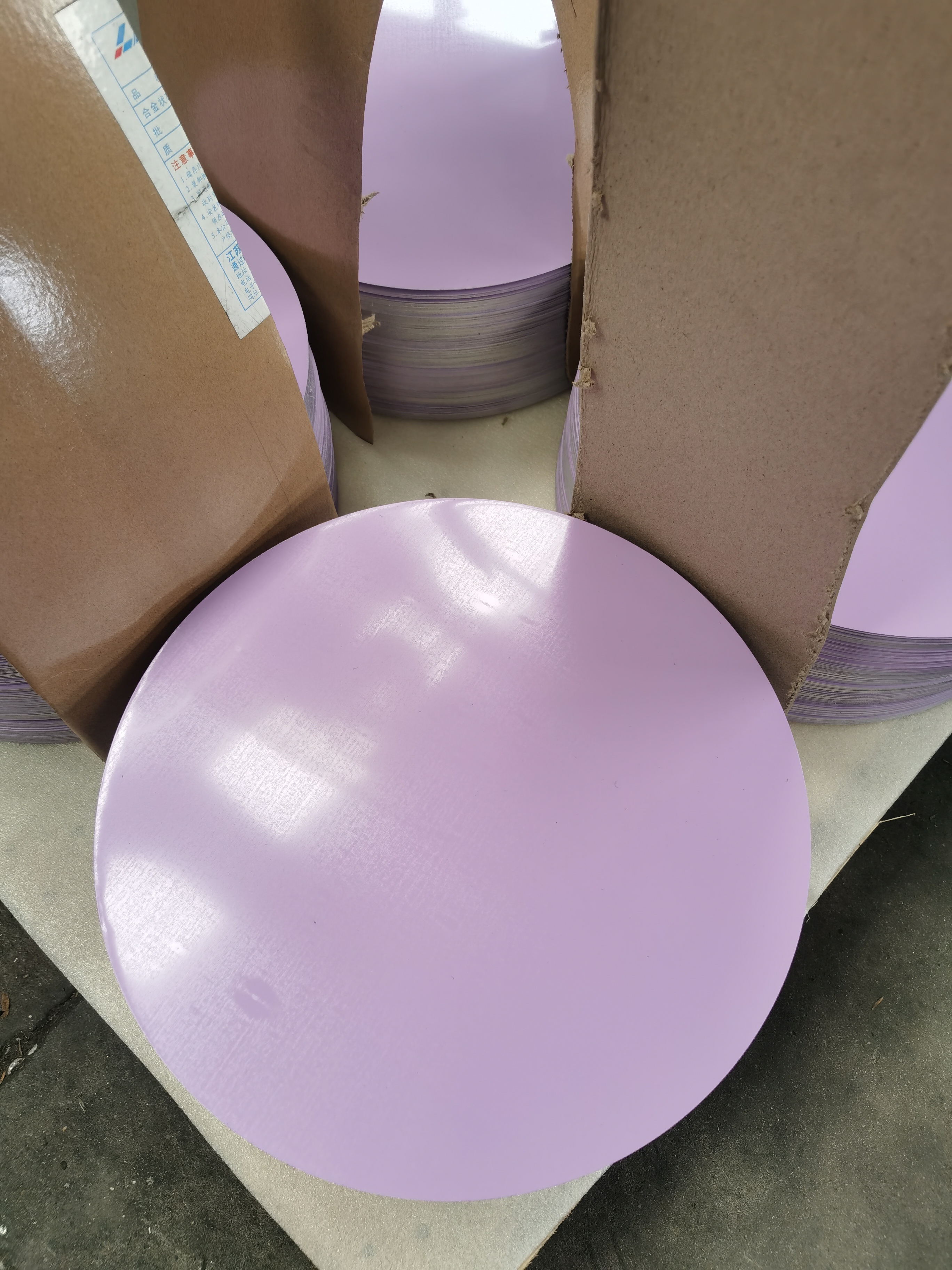

Color-coated aluminum discs are widely used in cookware, automotive parts, electrical enclosures, and architectural decorations due to their lightweight, corrosion resistance, and aesthetic appeal. Stretch forming is a key processing method to shape these discs into desired products, but many manufacturers and buyers worry about a common quality issue: paint peeling or cracking. This guide will answer whether this problem occurs, explain its causes, and provide practical solutions to help you avoid defects and ensure product quality.

Will Paint Peeling or Cracking Happen in Stretch Forming of Color-Coated Aluminum Discs?

The short answer is: Yes, it may occur, but it is completely controllable. Paint peeling (chipping) and cracking are not inevitable results of stretch forming—they are mainly caused by mismatched materials, improper process parameters, or defective pre-treatment. With the right material selection, optimized process control, and strict quality inspection, you can achieve stretch forming without any paint damage.

The key to avoiding these defects lies in understanding the core factors that affect paint adhesion and flexibility during stretching, which we will detail in the following sections.

Common Forms of Paint Damage During Stretch Forming

When paint damage occurs during stretch forming, it usually presents in three typical forms, each related to stress distribution and material performance:

1. Paint Cracking (Crazing or Hairline Cracks)

Fine, dense cracks appear in the stretched area, mostly concentrated on the punch side and mold fillet. These cracks are often hairline-thin and hard to detect with the naked eye initially, but they will expand over time or with subsequent use, eventually leading to paint peeling. This phenomenon is mainly caused by insufficient paint film flexibility or excessive stretching ratio.

2. Paint Peeling (Chipping or Flaking)

Local paint film peels off in pieces, most commonly at the edge and flange area of the aluminum disc. The peeled area exposes the base aluminum, directly damaging the product’s appearance and corrosion resistance. This issue is primarily due to poor adhesion between the paint film and the aluminum substrate, or stretching stress exceeding the interface bonding strength.

3. Microcracks

Microcracks are invisible to the naked eye and can only be observed under a microscope. Although they do not affect the appearance in the short term, they become channels for moisture and corrosive media to penetrate, leading to substrate corrosion and further paint damage. This is a potential quality hazard that should not be ignored.

Core Causes of Paint Peeling and Cracking

Paint damage during stretch forming is the result of the combined effect of the coating system, substrate quality, stretch process, and mold conditions. Below are the four most common causes:

1. Mismatched Coating System (Most Common Cause)

The performance of the coating directly determines its ability to resist stretching. Brittle coatings, such as ordinary epoxy and one-component polyester, have poor flexibility and are prone to cracking when subjected to stretching stress. In contrast, flexible coatings like PVDF fluorocarbon, flexible polyester (PE), and special stretch-grade coatings have better elongation at break and can adapt to substrate deformation during stretching.

Other coating-related issues include: excessive coating thickness (more than 35μm), which makes the paint film brittle; over-curing during the coating process, which reduces flexibility; and incompatibility between primer and topcoat, which leads to poor interlayer adhesion and layer-by-layer peeling during stretching.

2. Substrate and Pretreatment Defects

The quality of the aluminum substrate is the foundation of successful stretch forming. Aluminum materials with insufficient purity, coarse grains, or excessively high hardness (such as H18 temper) have poor ductility and are prone to fracture during stretching, which drives the paint film to crack. Common suitable substrates include 1060-O, 3003-O/H14, and 5052-O/H32, which have good ductility and adaptability to stretching.

Pretreatment is equally critical: incomplete degreasing or missing chromate/non-chromate passivation film on the aluminum surface will drastically reduce paint adhesion, accounting for more than 60% of paint peeling problems. The passivation film acts as a molecular "bridge" between the substrate and the paint, enhancing both adhesion and corrosion resistance.

3. Improper Stretch Forming Process

Process parameters are key to controlling paint damage. Excessive stretching ratio (more than 15%), too small mold fillet radius (less than 1.5t, where t is the disc thickness), and excessively high blank holder force will all cause excessive local stress, leading to paint cracking and peeling.

Additionally, a rough mold surface, sharp corners, and insufficient lubrication increase friction between the mold and the aluminum disc, causing local stress concentration and damaging the paint film. High forming speed can also lead to uneven deformation and friction overheating, exacerbating paint damage.

4. Defects in the Color Coating Process

The quality of the color coating process directly affects the performance of the paint film. Uneven film thickness during roller coating, insufficient baking, or over-baking will create large internal stress in the paint film. A paint film with internal stress is unstable and prone to cracking when subjected to external stretching force. The coil coating process—including rigorous cleaning, chemical pretreatment, precise primer/topcoat application, and thermal curing—is crucial for ensuring paint film quality and uniformity.

Practical Solutions to Avoid Paint Peeling and Cracking

To solve paint damage during stretch forming, you need to establish a comprehensive quality control system covering material selection, process optimization, mold maintenance, and incoming inspection. Below are actionable solutions:

1. Prioritize Proper Material Selection

Choose substrates and coatings that are compatible with stretch forming:

- Substrate: Select soft-temper aluminum alloys with good ductility, such as 1060-O, 3003-O/H14, and 5052-O/H32. Avoid high-hardness tempers like H18, which are prone to cracking.

- Coating: Opt for stretch-grade coatings, such as PVDF fluorocarbon (20–25μm dry film thickness) or flexible PE (18–25μm dry film thickness). PVDF coatings offer superior flexibility and weather resistance, while flexible PE coatings are cost-effective and suitable for moderate stretching. Avoid ordinary epoxy and thick-coat paints due to their poor flexibility.

- Pretreatment: Ensure the substrate undergoes thorough degreasing and chromate/non-chromate passivation, with a passivation film weight of 50–100mg/㎡ to enhance paint adhesion.

2. Optimize Stretch Forming Parameters

Adjust process parameters to reduce stress concentration and protect the paint film:

- Stretching Ratio: Control it within ≤12%. For deep stretching, adopt a two-step process to avoid excessive deformation in a single step.

- Mold Fillet Radius: Ensure the fillet radius (R) is ≥2t (t = disc thickness) for both punch and die to reduce local stress concentration.

- Blank Holder Force: Keep it moderate to low, and use a polyurethane blank holder ring to prevent paint scratching during forming.

- Lubrication: Use special aluminum stretching oil or dry film lubricant to reduce friction between the mold and the disc, avoiding friction-induced paint damage and heat buildup.

- Forming Speed: Use a hydraulic press for slow stretching, with a speed of 50–100mm/min to avoid impact and uneven deformation.

3. Improve Mold and Equipment Conditions

- Mold Polishing: Polish the mold surface to a mirror finish, eliminating sharp corners and roughness to reduce friction and stress concentration.

- Mold Gap: Set the die gap to 1.1–1.2t to ensure uniform deformation and avoid excessive pressure on the paint film.

- Equipment Maintenance: Regularly inspect and maintain the stretching equipment to ensure stable operation, avoiding uneven force application that can cause paint damage.

4. Conduct Strict Incoming Inspection

Inspect color-coated aluminum discs before stretch forming to eliminate defective materials:

- Bend Test: Perform a 180° fold test (R=0) to ensure no cracks appear on the paint film, indicating good flexibility. The T-bend test is also recommended, with a rating of 0t–1t for optimal performance (pvdf coatings typically achieve this).

- Adhesion Test: Use the cross-cut test (grid test) to ensure the paint film adhesion is ≤1 level—peeling area should be less than 5% to be qualified.

- Film Thickness Test: Verify the dry film thickness is 20–25μm, avoiding excessive thickness that reduces flexibility.

Conclusion: Can You Achieve Stretch Forming Without Paint Damage?

Yes. By selecting high-quality color-coated aluminum discs (stretch-grade PVDF/flexible PE coating + soft-temper substrate + proper passivation), optimizing stretch parameters (stretching ratio ≤12%, fillet radius ≥2t, adequate lubrication), and conducting strict incoming inspection, you can completely avoid paint peeling and cracking during stretch forming.

For ordinary color-coated aluminum discs (with brittle coatings or high-hardness substrates), only shallow stretching (≤5%) is recommended to prevent paint damage. Matching materials and processes is the key to ensuring the quality and durability of stretched color-coated aluminum disc products.
