Product Description

Aluminum Alloy 5052 Designed Camouflage Pattern Painted Aluminum Sheet Used For Truck Body Modification Plate

Product Description:

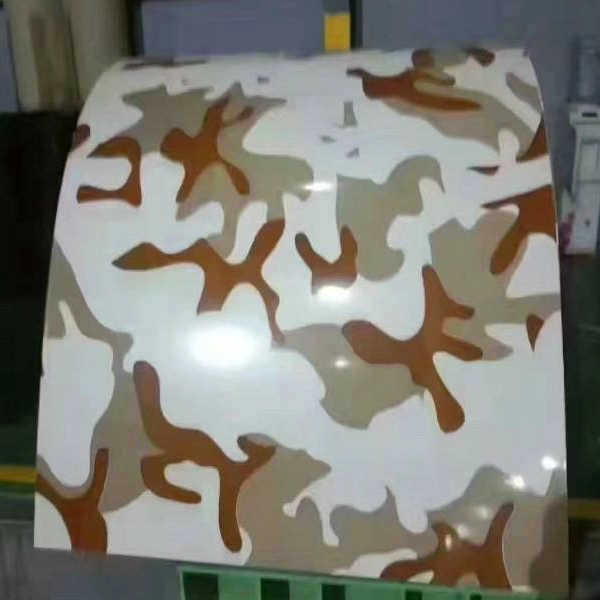

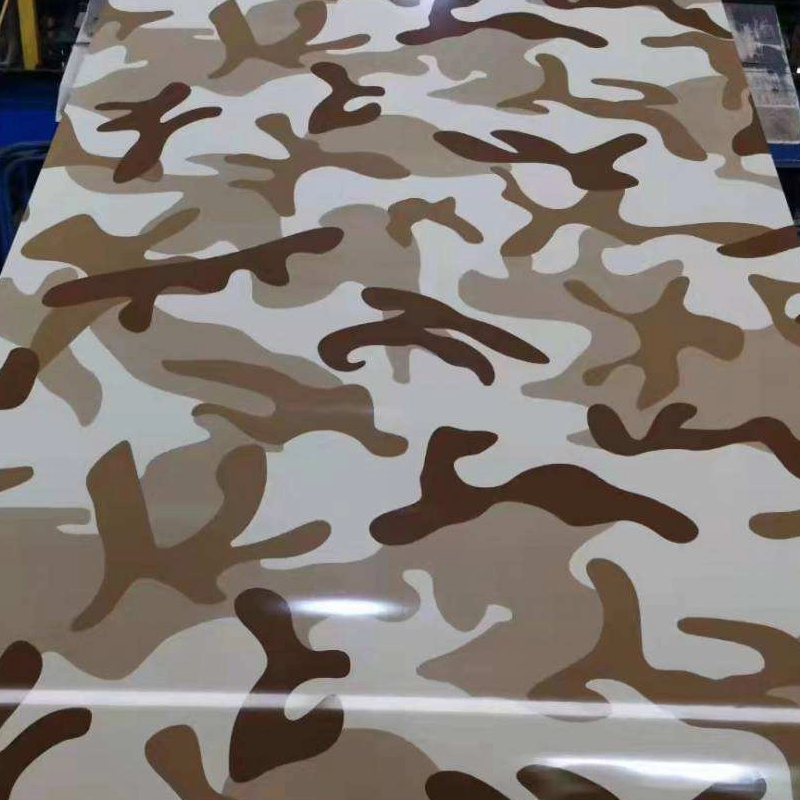

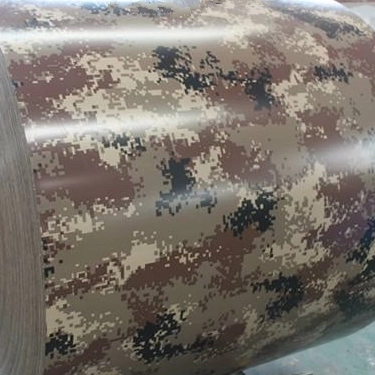

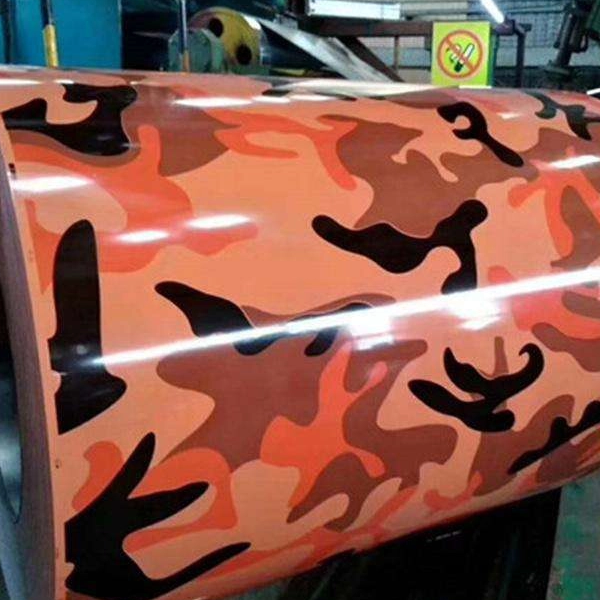

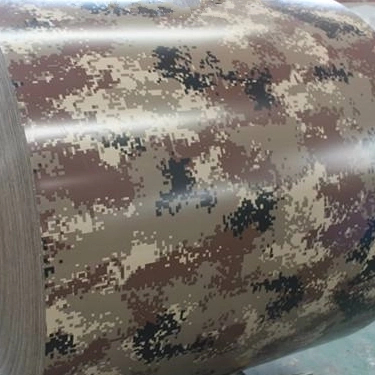

Aluminum sheet coated with a camouflage-pattern layer for decorative or functional purposes.

Designed pattern coating aluminum sheets redefine aesthetic versatility, offering custom surface finishes that mimic natural or innovative designs. Leveraging advanced printing and coating technologies, these sheets replicate textures like marble’s veining, wood’s grain, or modern camouflage patterns with striking realism. The durable coatings not only enhance visual appeal but also provide functional benefits: scratch resistance, easy maintenance, and UV stability, making them ideal for interior and exterior applications.

In architecture, they elevate building facades, wall cladding, and decorative panels, blending organic beauty with industrial durability. For furniture and cabinetry, wood-inspired patterns add warmth to kitchens and living spaces, while marble effects bring luxury to countertops and bathroom fixtures. Camouflage designs find use in outdoor equipment and automotive trims, combining style with rugged performance.

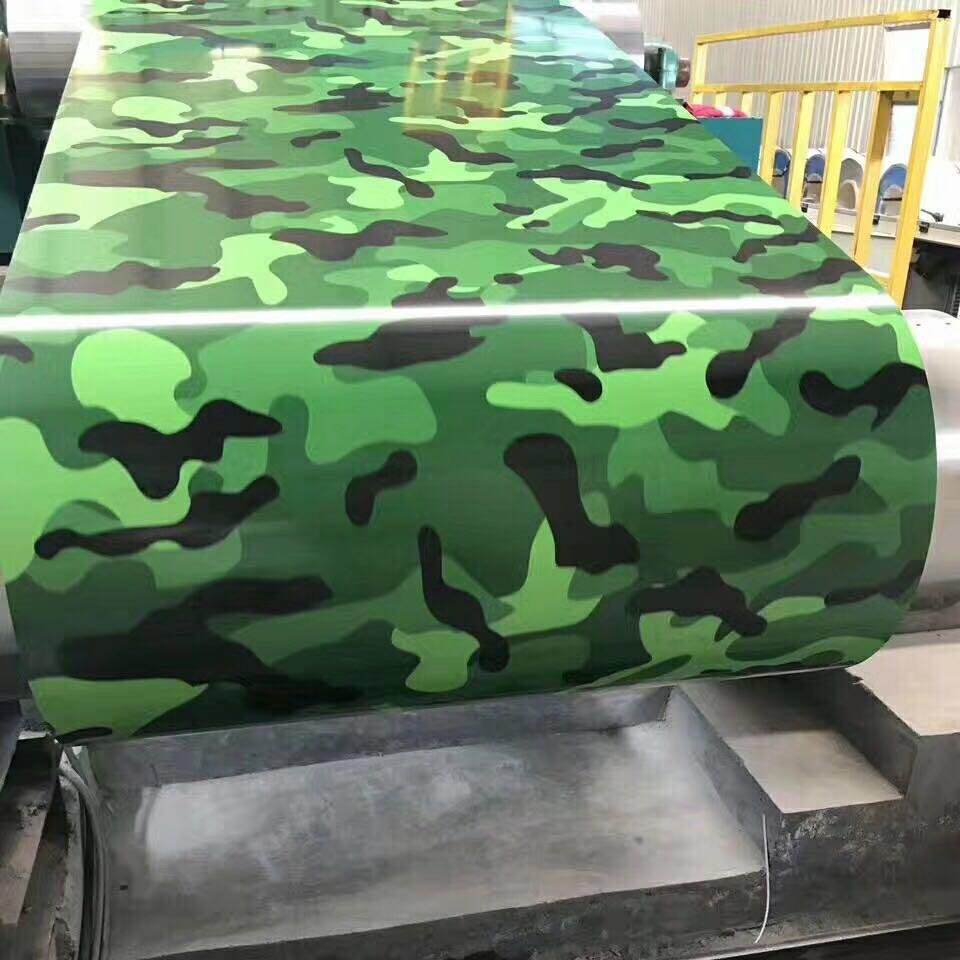

1adf0b37abe5c52de7ce75985df3bff1

Aluminum Alloy 5052

Alloy 5052 Aluminum Plate is an Al-Mg alloy (Mg content: 2.2%-2.8%) in the 5xxx series. It features medium strength, excellent corrosion resistance (comparable to pure aluminum), and superior formability, making it ideal for cold working processes like stamping and bending. Though not heat-treatable, its strength can be adjusted via cold rolling (e.g., H14, H34 tempers, hardness: 60-100 HB).

In automotive applications, it is widely used for battery pack enclosures and bottom shields in EVs due to impact resistance and corrosion protection. It also serves as door inner panels, trunk lids, and fuel tank casings for its light weight and resistance to liquid corrosion. Its reliable weldability further suits it for structural components requiring joint integrity.

Chemical Composition Of Aluminum Alloy 5052

Element	Content Range (%)
Magnesium (Mg)	2.2–2.8
Silicon (Si)	≤0.25
Iron (Fe)	≤0.40
Copper (Cu)	≤0.10
Manganese (Mn)	≤0.10
Chromium (Cr)	0.15–0.35
Zinc (Zn)	≤0.10
Aluminum (Al)	Balance (remainder)

Key notes:

· Magnesium is the primary alloying element, providing corrosion resistance and moderate strength.

· Chromium improves stress corrosion cracking resistance and stabilizes grain structure.

· Impurities (Si, Fe, Cu, etc.) are strictly limited to maintain mechanical properties and formability.

Physical properties of 5052 aluminum alloy:

Property	Value
Density	2.68 g/cm³ (0.097 lb/in⊃3;)
Melting Range	1070–1130°F (577–610°C)
Thermal Conductivity	118 W/m·K (at 20°C/68°F)
Coefficient of Thermal Expansion	13.1–14.0 × 10⁻⁶/°C (20–100°C/68–212°F)
Electrical Conductivity	35% IACS (International Annealed Copper Standard)
Modulus of Elasticity	10,000 ksi (69 GPa)
Poisson’s Ratio	0.33
Specific Heat Capacity	0.215 cal/g·°C (900 J/kg·K)
Corrosion Resistance	Excellent (high resistance to atmospheric, seawater, and chemical corrosion)

Specifications Of Designed Camouflage Pattern Painted Aluminum Sheet Sheet:

Aluminum Alloy: AA1060,1100,3003,3005,3105,5052 and etc

Temper : H16/ H24 ( Or According To Customers' Requirement )

Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc

Thickness : 0.20 mm - 3.00mm

Width : 30 - 1500 mm

Thickness Paint Layer : ( PE ) more than 18 micron

Interior Diameter : 405 mm,505 mm and etc

Color Options : Ral Color Code Or As Per Clients Requirements And Sample

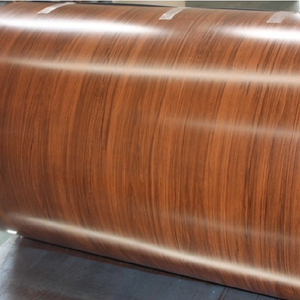

Design Patterns: Wood,Marble,Stone Wrinkle and so on

Coating Hardness : More Than 2H ( pencil hardness )

Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )

Flexibility ( T-bend ) : No More Than 2T

MEK Resistance : More Than 100

Paint Performance of Designed Camouflage Pattern Painted Aluminum Sheet:

Test Item		Paint
		PVDF		PE And Others
		With Varnish	Without Varnish
Paint Film Thickness , μ		≥ 22	≥ 30	≥ 18
Shine Tolerance		Shine ≥ 80 Unit , ± 10 Unit Allowed
		Shine ≥ 20-80 Unit , ± 7 Unit Allowed
		Shine < 20 Unit , ± 5 Unit Allowed
Pencil Hardness		≥ 1H
Abrasion Resistance, L/μm		≥ 5			--
T-bend		≤ 2T			≤ 3T
Impact Strength		50KG . CM Without Depainting And Crack
Adhesive Force ( Class )		≥ 1
Boiling Water Resistance		Unvarying
Chemical Resistance	Acid Endurance	Unvarying
	Alkali Stability	Unvarying
	Oil Resistivity	Unvarying
	Resistance To Solvent	≥ 70			≥ 50
	Scrub Resistance	≥ 10000 Times Unvarying
	Dirt Resistance	≤ 15 %			--
Salt Spray Resistance ( class )		≥ 2 class			--

Ordering Process Of Designed Camouflage Pattern Painted Aluminum Sheet:

Minimum Order Quantity(MOQ)	1~5MT each spec.
Essential info. for an inquiry	Alloy&temper, size including thickness, width, coating type
Aluminium material can be provided as coils, stripes, slats according to clients requirement

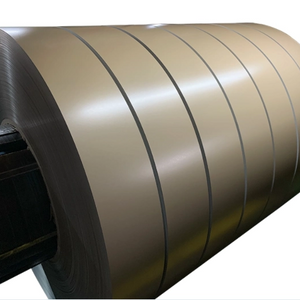

Painted aluminium coils Packing
Inner Core material	Paper Core
Inner Core Diameter	405 / 505mm
Outer packing material	Paperboard
Wooden pallet for Ocean transportation with wooden runners between each pan

The Advantages Of Designed Camouflage Pattern Painted Aluminum Sheet:

Color coated aluminium coil has better anti-corrosion properties, weather resistance, flexibility, cost-effectiveness and environmental friendliness compared to color coated steel. Aluminum can be fully recycled with high recycle value, also its friendly to the environment.Using the color coated aluminum sheet to replace the coating steel has become a new trend.

1) Light Weight: Aluminum is a lightweight material,making color coated aluminum coils suitable for applications where weight is concern.This is particularly beneficial in industries such as aerospace and transportation,where reducing overall weight is essential for fuel efficiency and performance.

2) Flexibility & Formability: Aluminum is malleable and can be easily formed into various shapes without cracking or breaking. This property makes color coated aluminum coils suitable for intricate designs and curved surfaces.

3) Ease of maintenance: The durable coatings on color coated aluminum coils require minimal maintenance over their lifespan. Regular cleaning with mild detergents can help retain their appearance.

4) Environmentally Friendly: Aluminum is a recyclable material, and using color coated aluminum coils can contribute to sustainability efforts by reducing the need for new raw materials.

5) Thermal Reflectivity: Aluminum has excellent thermal reflectivity properties.Color coated aluminum coils with reflective coatings can help in reducing heat absorption,which is beneficial for energy efficiency in buildings,especially in warmer climates.

6) Customization: Manufacturers can produce color coated aluminum coils with customized colors, thicknesses, and sizes, catering to specific project requirements.Color coated aluminum coil can be tailored to specific color requirements,enabling manufacturers and designers to match or create unique color schemes for their projects.

7) UV Resistance: High-quality coatings applied to color coated aluminum provide UV resistance, preventing colors from fading or degrading when exposed to sunlight for extended periods.

8) Cost-Effective: While initial costs might be higher compared to some other materials, the long-term benefits, including reduced maintenance and durability, can make color coated aluminum coils a cost-effective choice over the product's lifespan.

9) Wide Range of Applications: Color coated aluminum coils find applications in a variety of industries, including construction, automotive, electronics, signage, appliances, and more, due to their versatility, aesthetics, and performance characteristics.

10) Aesthetic Appeal: Color coated aluminum coils are available in a wide range of vibrant and attractive colors. This makes them an ideal choice for architectural and decorative purposes, as they can enhance the visual appeal of buildings and structures.

11) Corrosion Resistance: Aluminum has a natural resistance to corrosion, and when coated with high-quality paint systems, its corrosion resistance is further enhanced. This makes color coated aluminum coils suitable for outdoor applications where exposure to harsh weather conditions is common.

12) Durability: The combination of aluminum's inherent strength and the protective coating's durability results in a long-lasting material that can withstand various environmental stresses without deteriorating quickly.

Use applications Of Pre-painted Aluminum Coil:

1) Roofing & Ceilings: The coil is used to manufacture roofing sheets and ceiling panels,which providing protection against the elements and withstanding harsh weather conditions.

2) Signage & Advertisement: Color coated aluminum is popular for creating high quality signs,billboards,and advertising panels.The vibrant colors and long-lasting finish make it a preferred choice for outdoor advertising.

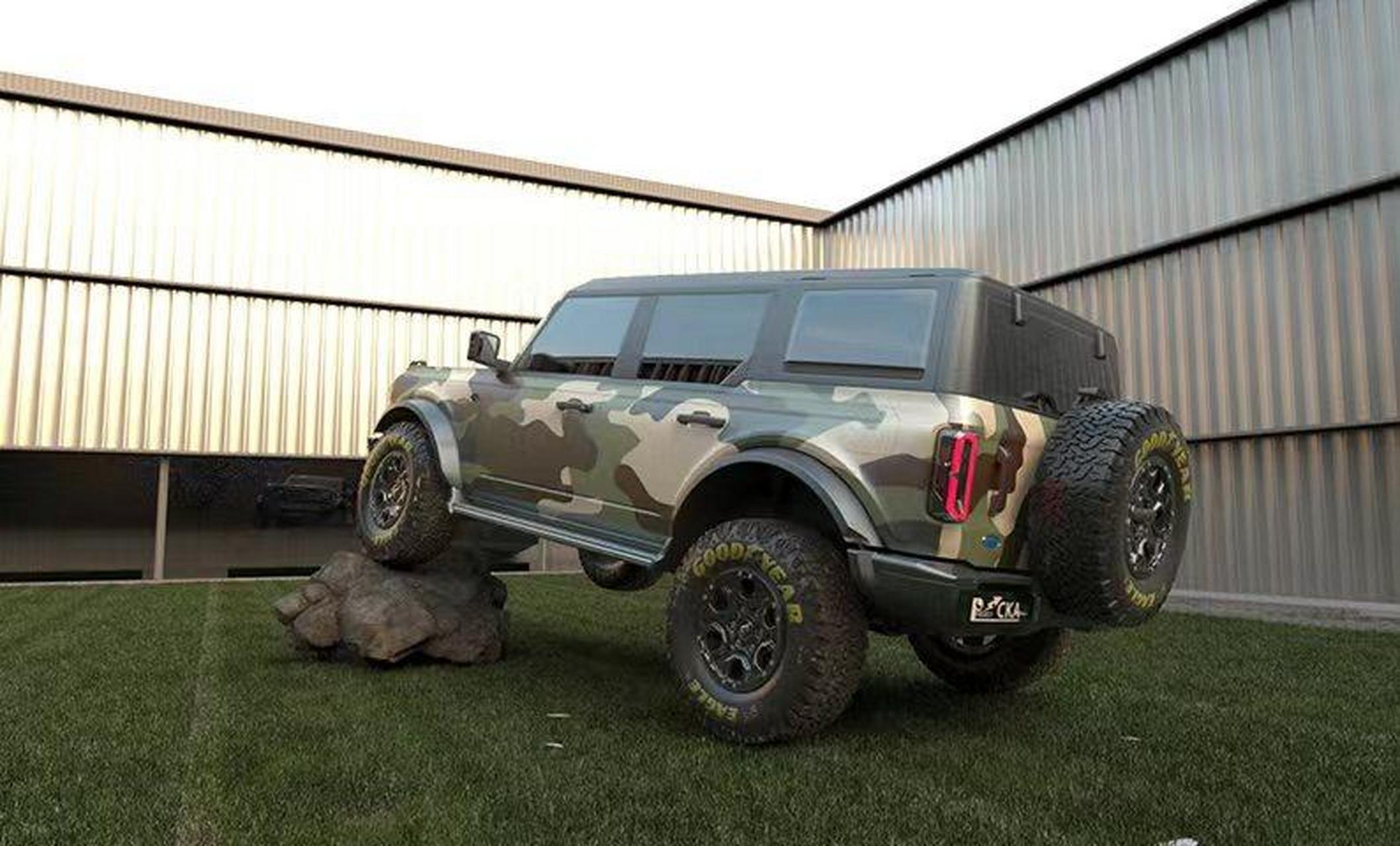

3) Transportation: Color coating aluminum coil is used in the transportation industry for manufacturing vehicle bodies,trailers,and other components.The lightweight nature of aluminum combined with its corrosion resistance makes it ideal for this purpose.

4) Home Appliances: Color coated aluminum is used in the production of household appliances like refrigerators,ovens and washing machines,adding an attractive finish and help protect against wear and tear.

5) Electronic Product: Many electronic devices and gadgets incorporate color coated aluminum for their outer casings or covers,providing an aesthetic element while also providing protection to the device.

6) Furniture & Interiors: The color coating aluminum is utilized in furniture manufacturing and interior decoration,including panels,cabinets and decorative trim.Offering a modern and sleek appearance.

7) Automotive Industry: Pre-painted aluminum coil is used in automotive components such as trim,grilles and decorative parts,which contributing to fuel effciency due to its lightweight nature,while the coating helps maintain aesthetics.

8) Food Packaging: Color coated aluminum is used for packaging applications such as aluminum cans and containers that enhancing the visual appeal of the packaging.

9) Marine Applications: In marine environments,color coated aluminum is used for boat interiors,hulls and other marine components due to its resistance to corrosion from saltwater.

10) Solar Industry: Color coated aluminum is used for solar panel frames and components due to its light weight and corrosion-resistant properties.

11) Sport Equipment: Colord aluminum is also used in the manufacturing of sports equipment like bicycles,scooters and outdoor gear since its lightweight and durable characteristics.

12) Architectural Cladding: Color coated aluminum coil is oftern used for external building facades and cladding,which providing a lightweight,durable and visually appealing solution for morden architectural designs.

Welcome To Visit Dingang's Roller Coating Pre-painted Aluminum Coil Production Lines:

For the past decade,Dingang has been growing rapidly in the industry,owning two plants of 160,000㎡ with eight large automatic roller coating lines for aluminum and six for steel products.Over 700 skillful workers.In addition,we have stretching-bending rectifier,cleaning drawbench,embossing,cross-cutting and vertical slitting machines.

With near 20 years of professional metal coating experience,we have the ability to coat PE,PVDF and epoxy coating.We are also one of the few coating applicators that can replicates natural materials such as stones,marble,wood,terracotta,concrete and even rusted copper on the surface of metal with paint.
