Common Quality Defects of Prepainted Aluminum Coils: Root Causes And Effective Preventive Solutions

Prepainted aluminum coil is a lightweight, anti-corrosion metal raw material widely adopted in architectural facades, metal roofing, rain gutter systems, automotive parts, electronic equipment casings and food packaging. With stable ductility, outstanding weather resistance and customizable decorative finishes, it has become an irreplaceable material for global construction and manufacturing industries.

Nevertheless, multiple quality defects frequently emerge during substrate rolling, continuous coil coating, slitting, transportation and storage. Typical issues include surface oxidation, flatness deformation, coating scratches, coating peeling, edge cracks and uneven color difference. These flaws will damage the decorative appearance, weaken anti-rust performance and even lead to processing failure for downstream fabricators.

Color Coated Aluminum Coil Finished Stock

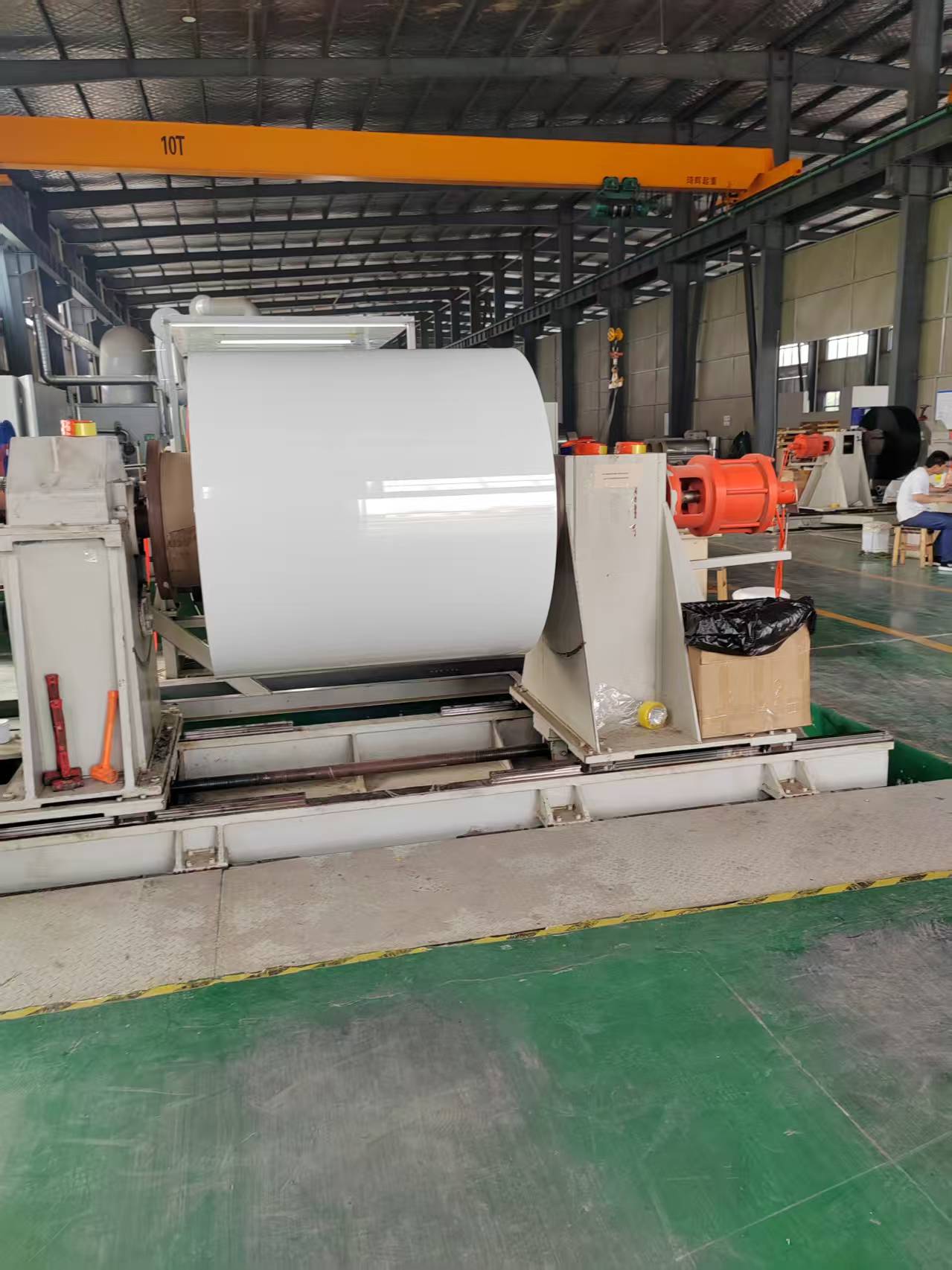

Roll Coating Production Line

This guide systematically sorts out the most frequent quality defects of prepainted aluminum coils, analyzes their core root causes, and provides targeted preventive solutions for manufacturers, procurement managers and metal processing factories.

1. Surface Oxidation & White Corrosion Spots

Defect Performance

Matte white powdery stains, cloudy discoloration or uneven oxide film distributed on coil surfaces. Oxidation destroys the uniformity of the topcoat, accelerates substrate corrosion under outdoor humid, coastal and rainy environments, and greatly shortens the service life of finished products.

Main Causes

1. The aluminum substrate is exposed to humid air for a long time before coating, without complete degreasing and passivation pretreatment;

2. Inadequate moisture-proof packaging for finished coils; sea freight temperature difference causes condensation inside packaging bags;

3. Warehouse storage environment lacks dehumidification, coils are stacked on damp pallets without isolation layers.

Effective Preventive Solutions

a. Implement full-process chemical cleaning and chromate passivation on aluminum substrates before roller coating to form a dense anti-oxidation protective film;

b. Adopt triple-layer moisture-proof packaging: inner PE moisture barrier film + VCI anti-rust paper + outer waterproof woven bag, add desiccant inside each coil package;

c. Standardize warehouse management: store coils in dry, constant-temperature workshops, avoid direct contact with damp ground, and finish delivery within 15 days after production.

2. Flatness Deformation & Wrinkling

Defect Performance

Coil surface shows wavy edges, local bulges or permanent bending deformation. Deformed aluminum coils cannot be smoothly stamped, bent or roll-formed for gutters, ceiling panels and auto parts, resulting in high scrap rates during deep processing.

Main Causes

1. Unstable tension control of rolling and coating production lines; excessive stretching or uneven winding pressure during rewinding;

2. Improper matching of alloy temper: hard-temper H18 aluminum coils lack ductility and easily deform under external pressure;

3. Overloading stacking during transportation, heavy goods squeeze the coil edges to form permanent indentations.

Effective Preventive Solutions

a. Regularly calibrate tension systems of rolling and coating equipment to maintain stable line speed and winding pressure;

b. Match proper alloy and temper according to customer processing demands: select H24 half-hard 3003/3105 aluminum coils for gutter and deep drawing production;

c. Standardize loading and stacking rules: separate each coil with wooden pallets and partition boards, prohibit heavy stacking above 3 layers.

3. Surface Scratches & Coating Abrasion

Defect Performance

Linear scratch marks of different depths on the painted surface. Shallow scratches damage the decorative gloss, while deep scratches penetrate the coating layer, exposing bare aluminum substrate and triggering rust spots in later use. Scratches occur in production, slitting, handling and ocean transportation links.

Main Causes

1. Foreign hard particles on coating rollers, guide rollers and slitting machines rub against the coil surface during production;

2. No protective film attached to finished coils; friction and collision between coils during packaging and delivery;

3. Rough manual handling without soft protective gloves and clamping fixtures.

Effective Preventive Solutions

a. Clean all production line rollers and slitting blades daily to remove metal debris and dust; wrap soft rubber sleeves on all contact guide parts;

b. Cover each coil with weather-resistant PE protective film after coating, add interleaving paper between stacked coils;

c. Train warehouse and logistics staff to use special soft fixtures for coil transfer, avoid direct hard contact with the painted surface.

4. Coating Cracks, Peeling & Poor Adhesion

Defect Performance

Fine cracks appear on the coating after bending and stamping; paint film peels off in strips with slight tape pulling. This defect is fatal for outdoor building materials, as water and salt fog will erode the substrate rapidly.

Main Causes

1. Incomplete substrate degreasing and passivation, oil stains block the bonding between primer and aluminum base;

2. Unreasonable curing temperature and line speed during coating: over-baking makes coating brittle, under-baking reduces adhesion;

3. Unsuitable coating system: low-quality PE paint with insufficient elongation cannot follow aluminum deformation during forming.

Effective Preventive Solutions

a. Strictly implement 6-stage substrate pretreatment: degreasing → washing → pickling → passivation → pure water cleaning → drying;

b. Lock standardized oven temperature and line speed parameters according to PE/HDP/PVDF coating formulas, conduct cross-cut adhesion test for every batch;

c. Recommend high-elongation HDP or PVDF coatings for outdoor forming products; test bending performance before mass shipment.

5. Other Common Defects: Uneven Color, Pinholes & Edge Burrs

Apart from the above core defects, prepainted aluminum coils may also suffer from uneven batch color, surface pinholes and slitting edge burrs. Each defect will affect downstream processing and finished product appearance.

Root Causes

1. Uneven coating thickness, unstable oven temperature and inconsistent paint viscosity lead to color difference;

2. Impurities and tiny pores on raw aluminum substrate form pinholes after painting;

3. Dull slitting blades produce sharp burrs on coil edges, causing scratches during uncoiling.

Universal Control Measures

a. Inspect raw aluminum substrates before warehousing, reject base materials with pores, slag inclusions and uneven surfaces;

b. Monitor coating film thickness online in real time, adjust roller gap to guarantee uniform color and gloss;

c. Replace slitting blades regularly, trim coil edges to remove burrs before packaging;

d. Carry out full sampling inspection for finished coils, including appearance, coating thickness, adhesion and salt spray testing; isolate defective products to avoid delivery to customers.

Conclusion

Quality defects of prepainted aluminum coils are almost avoidable via standardized raw material inspection, stable production process control, strict finished product testing and scientific packaging & logistics management.

As a professional prepainted aluminum coil manufacturer, Changzhou Dingang Metal adopts fully automatic continuous roller coating lines and complete QC testing procedures to control every production link. We provide stable, defect-free color aluminum coils for global building, automotive and packaging clients, and offer professional technical guidance to help buyers reduce processing loss and improve finished product competitiveness.

If you encounter quality problems with aluminum coils during procurement or processing, feel free to contact our technical team for professional defect diagnosis and solution support.
