Matte Coated Aluminium for External Venetian Blinds and Solar-Shading Louvres in Germany

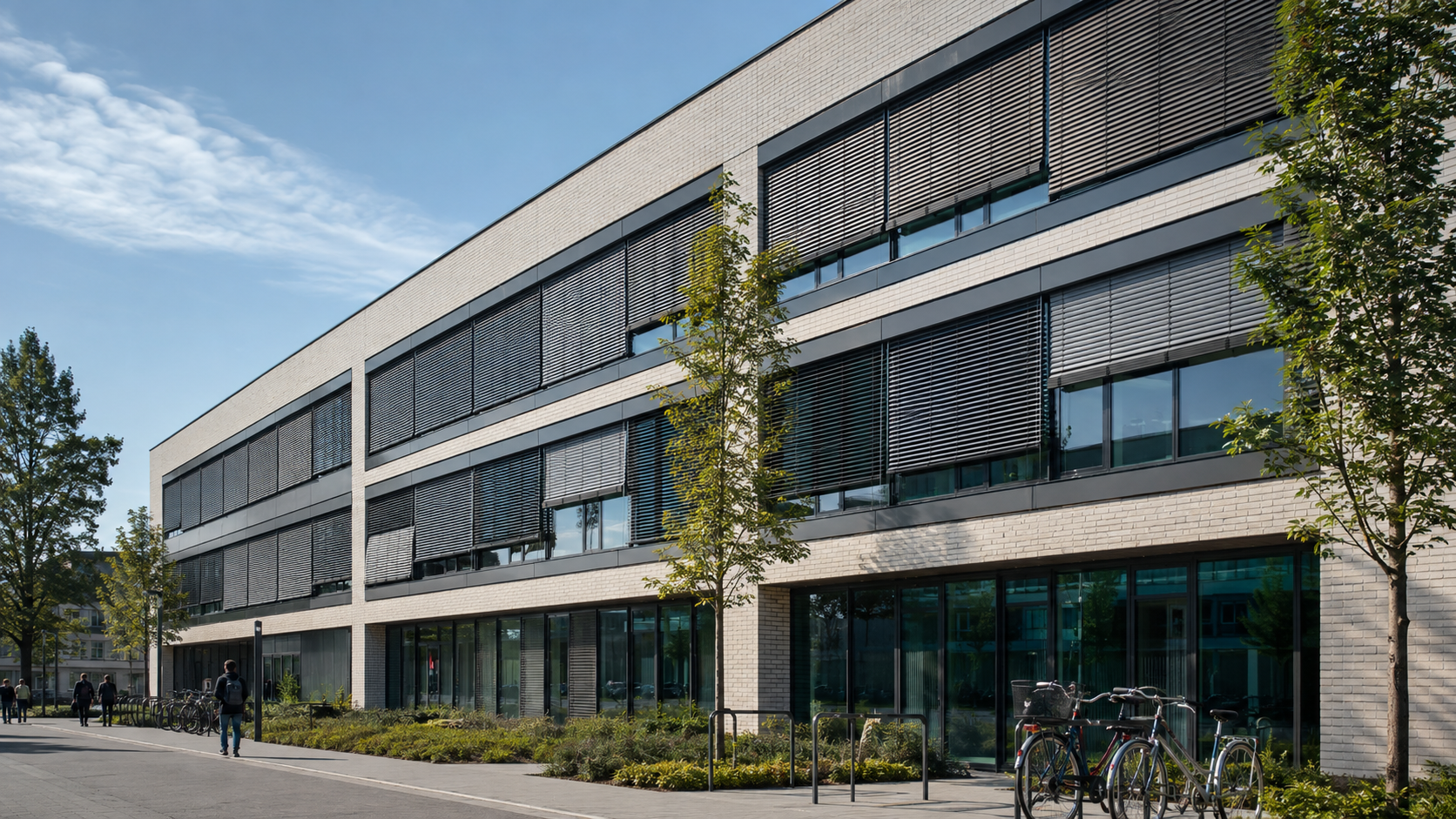

External Venetian blinds are a familiar part of modern German offices, schools, hospitals and residential buildings. Unlike an internal blind, an exterior system has to manage sunlight while facing wind, rain, temperature cycling and urban dirt. The slat is thin and visually exposed, so the incoming coated aluminium must satisfy both a forming engineer and an architect.

This is a distinct application from a foam-filled roller shutter. A Raffstore or external Venetian blind uses shaped horizontal slats that tilt to control daylight and solar gain. The material must form into a precise curved or folded geometry without twisting, cracking or showing uneven gloss along the facade.

Why matte finishes work well for external shading

A highly glossy slat can create strong reflections, emphasise small shape variations and appear different as the viewing angle changes. A matte or low-gloss finish produces a quieter architectural surface and can reduce distracting glare.

Matte is not one universal appearance. It can range from a smooth low-gloss coating to a fine-textured finish. Before ordering, the buyer should define:

• target gloss and measurement angle;

• surface texture or approved visual sample;

• permitted colour difference between batches;

• viewing distance and inspection lighting;

• whether both sides of the slat are visible;

• required match to powder-coated guides, headrails or window frames.

Ding‘ang supplies matte-surface color-coated aluminium coil in RAL, Pantone and sample-matched colours. For a shading programme, we recommend using an approved physical master because texture and gloss can make two surfaces look different even when their measured colour values are close.

Formability is more important than a flat-panel test

A flat sample can pass colour and adhesion inspection but still show stress marks after the slat is shaped. External blind profiles often include a continuous curve, stiffening folds and punched cord or ladder openings. Each operation stretches the coating differently.

The material approval should therefore include the actual customer profile. Inspect the outside of the tightest bend, the edge around punched holes and the colour appearance after forming. EN 13523-7 can be used for a comparative T-bend test, while the production trial confirms whether the laboratory result translates to the real tool.

AA3003 and AA3105 are practical starting alloys because they combine corrosion resistance with formability. The final temper should be chosen according to the slat depth, wind requirement and springback of the forming tool. Ding’ang can slit coated parent coil to the line width and configure the coil inside diameter and weight for the customer's decoiler.

Coating selection for a German climate

External shading components may experience frost, summer heat, repeated wetting and long UV exposure on the same building. South-facing elevations and dark colours can reach higher surface temperatures than the surrounding air.

A formable PE coating may suit standard projects where colour range and production efficiency are central. HDP or PVDF can be evaluated for projects with more demanding weathering or colour-retention requirements. The correct choice should consider orientation, building height, coastal or industrial exposure, colour, expected maintenance and the finished-system warranty.

The coating system must also tolerate handling. Long slats slide against guides and can be marked during assembly or transport. Scratch resistance, abrasion resistance and removable protective film may therefore matter as much as headline weathering data.

The role of external shading in European buildings

European Aluminium identifies aluminium shutters and solar-shading devices as building components that can help limit heat loss in cold periods and reduce unwanted solar gain in hot periods. The material does not create the energy performance by itself; the geometry, controls, glazing and installation all contribute. Nevertheless, durable and accurately formed aluminium slats are an important physical part of the system.

This is also why German buyers normally evaluate the strip as a component material, not as a decorative coil. They ask whether it will run consistently, match the rest of the facade and support the tested performance of the finished shading product.

What Ding‘ang can customise

For external Venetian blind and louvre programmes, Dingang can discuss:

• 3003, 3105 and other application-appropriate aluminium alloys;

• temper adjusted to the required shape and springback;

• narrow strip slit to the customer's drawing;

• matte, low-gloss, smooth or textured surfaces;

• PE, HDP or PVDF coating options;

• top-side and reverse-side colour requirements;

• RAL, Pantone or physical-sample colour development;

• protective film, coil core, coil weight and export packing;

• agreed batch tests for colour, gloss, coating thickness, adhesion and bend performance.

Not every combination is commercially or technically sensible. For example, a very hard temper, tight profile radius and rigid high-durability coating may conflict with one another. Early discussion of the forming tool helps us propose a balanced specification.

Procurement checklist for blind and louvre manufacturers

Before requesting a quotation, prepare the following information:

1. A dimensioned slat drawing and finished coverage width.

2. Current alloy, temper, metal thickness and strip width.

3. Coil ID, maximum OD, maximum weight and winding direction.

4. Forming speed and whether punching occurs before or after profiling.

5. Colour master, gloss target and surface texture.

6. Exposure location and expected warranty level of the finished system.

7. Required coating and mechanical test reports.

8. Annual quantity by colour, plus realistic call-off sizes.

This information enables a supplier to quote the material that will actually be used, instead of a low but misleading price for a generic coated coil.

Frequently asked questions

Is a matte surface harder to keep clean?

It depends on the texture and coating formulation. A fine texture may hold dirt differently from a smooth coating. For exposed urban facades, ask for staining, soiling and cleanability data relevant to the chosen system.

Can the slat colour match a powder-coated frame exactly?

Coil coating and powder coating use different processes and often different gloss or texture. A close coordinated match is possible, but it should be approved visually using production-representative samples rather than relying only on the same RAL number.

Which side of the strip should be the A-side?

That depends on the profile direction and how the strip enters the forming line. A drawing showing the visible face, paint side and winding direction prevents costly reversal errors.

Is PVDF always required for dark-coloured exterior blinds?

No single resin is automatically correct. Dark colour, facade orientation, forming severity and durability target should be reviewed together. The selected system must pass both weathering requirements and the real slat-forming trial.

Develop a trial strip with Ding’ang

Provide a slat drawing, coil dimensions and approved colour reference. Dingang can prepare a coating and substrate proposal for line evaluation, followed by a production specification based on the trial result.
