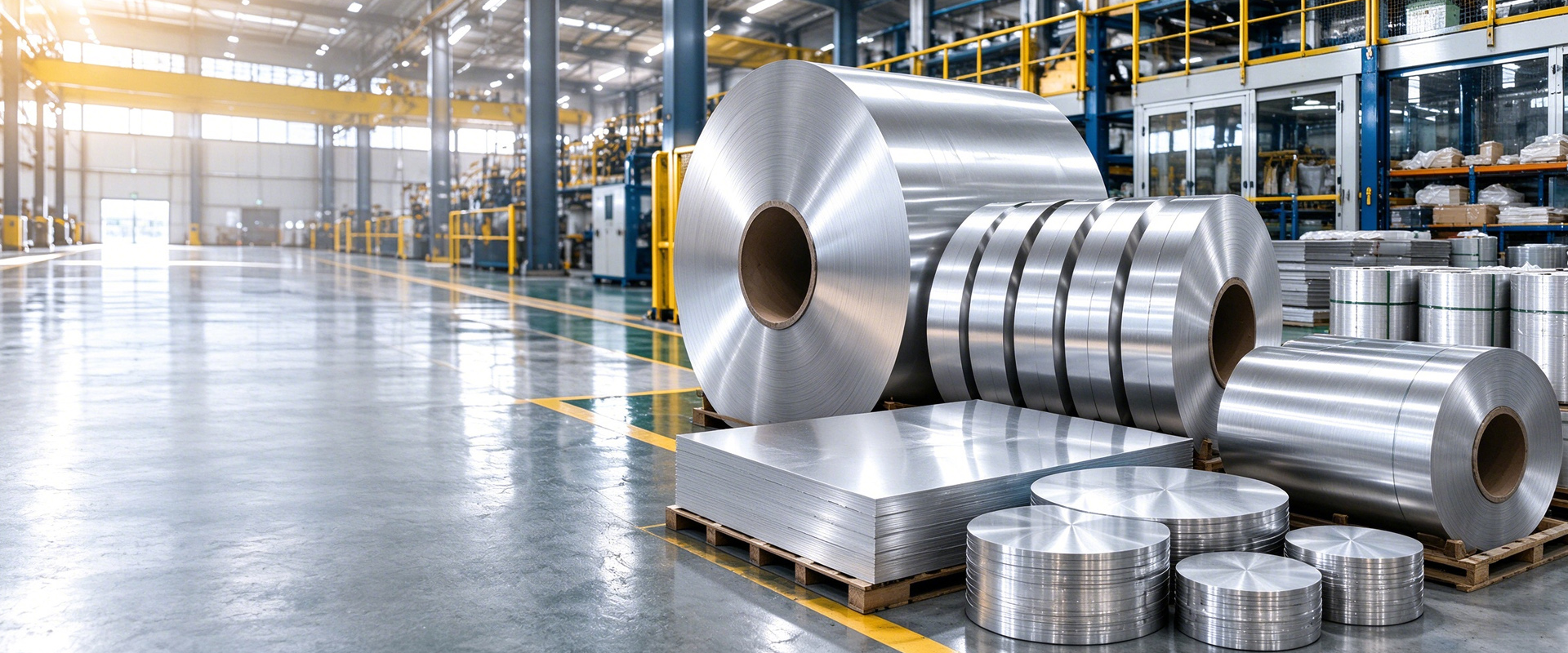

From Master Coil to a Production-Ready or Market-Ready Product
Many buyers do not need another standard master coil. They need material that arrives in the correct width, length, weight, color, surface and package for the next operation—or a finished private-label product ready for distribution.
Ding'ang combines aluminum coating with converting and OEM-program development. Services can include color matching, custom coating, slitting, narrow strip, cut-to-length sheet, embossing, protective film, circles, blanks, small-coil programs, labels and export packing.
The objective is to remove unnecessary handling between the coating line and the customer’s factory, warehouse or sales channel.
When coating and conversion are purchased separately, problems can appear between suppliers: the film may not suit the coating, the slit edge may damage a roll former, the sheet pallet may not protect a high-gloss surface, or the retail label may show a nominal length that does not match the conversion tolerance.
A coordinated program can control:

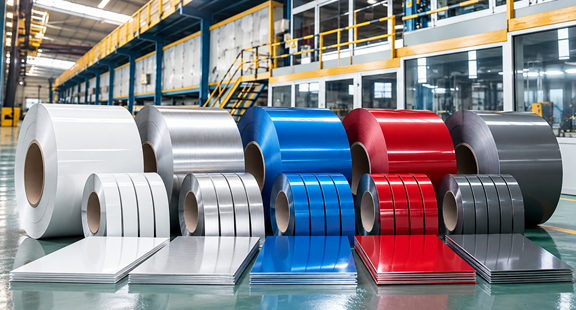

Color can be developed from a RAL reference, Pantone reference, digital target or approved physical sample. The final approval should consider substrate, gloss, texture, lighting and forming.
Available coating routes can include PE, SMP, PVDF, FEVE, epoxy and project-specific functional systems, subject to performance requirements and line capability.
The visible side and reverse side may use different colors or coating functions.

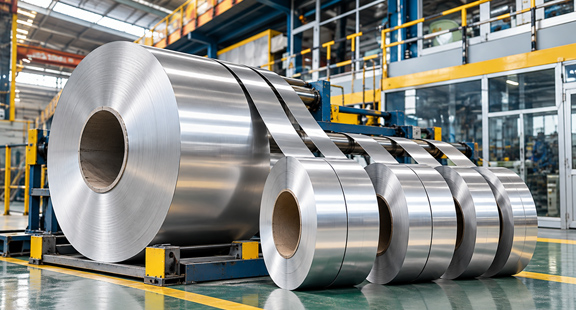

Master coils can be slit into widths for gutters, shutters, louvers, channel letters, appliance components, heat exchangers, profiles and other roll-formed products.
The conversion specification should define:
Finished width and tolerance
Number of cuts
Edge burr limit
Camber requirement
Coil ID and maximum OD
Target coil weight
Winding direction
Splice allowance
Edge and surface protection

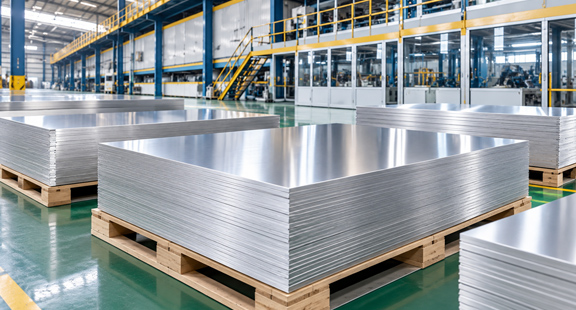

Coated or mill-finish coil can be cut into sheets for panels, vehicle bodies, cabinets, signage, appliance parts and general fabrication.
Sheet programs can specify length, squareness, flatness, surface direction, protective film, interleaving and pallet construction.
Extra-wide or long sheets require a project review covering line capability, handling, flatness, lifting and transportation.

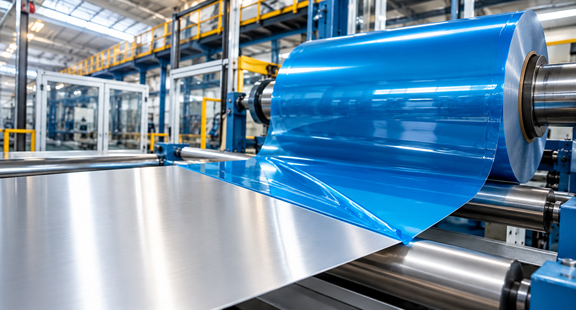

Protective film can reduce surface damage during slitting, cutting, routing, bending, lamination and assembly.
Film selection should consider:
Coating chemistry and surface texture
Gloss level
Forming temperature
Laser cutting, if applicable
Indoor or outdoor storage
Required removal period
Peel force
Risk of adhesive transfer
The customer should test the film through the complete production cycle before approval.

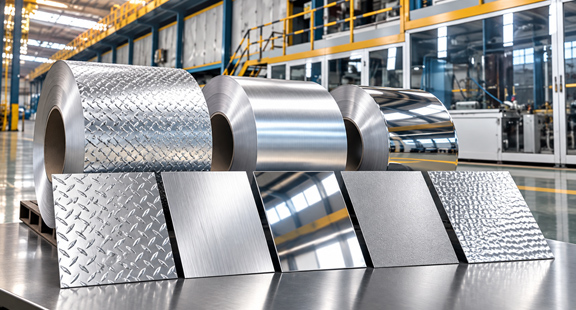

Aluminum can be supplied with stucco, orange-peel, diamond, patterned or application-specific embossed surfaces, subject to pattern and equipment capability.
Embossing may improve appearance, stiffness or handling, but it also changes thickness distribution, flatness and forming behavior. Pattern orientation and finished dimensions should be recorded.

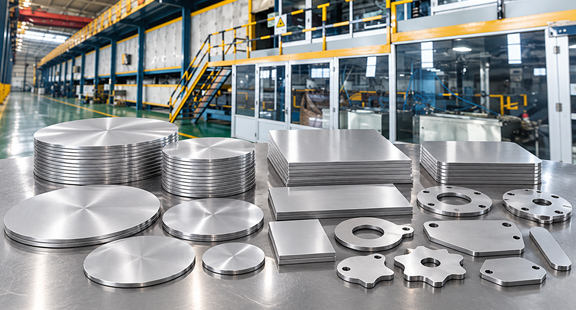

Coil or sheet can be converted into circles and custom blanks for cookware, lids, signs, appliance parts and industrial components.
The drawing should define dimensions, tolerances, holes, burr, surface direction, film and packing. Complex shapes or secondary machining require a separate capability review.

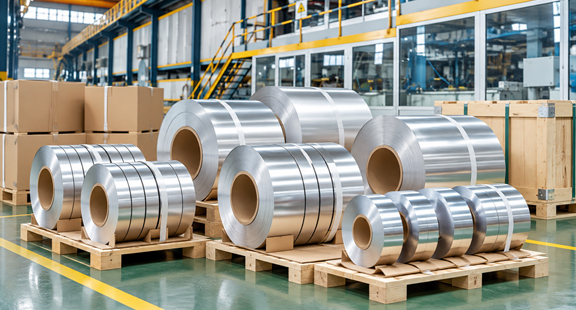

Large coils can be converted into manageable coils for building trim, flashing, signage, workshops, retail distribution and service parts.
Programs may be defined by length, weight or both. The conversion and inspection method should state how each coil is measured and what tolerance applies.
Where small-coil conversion or retail packing uses an approved partner, the final website and quotation should describe the supply chain accurately.

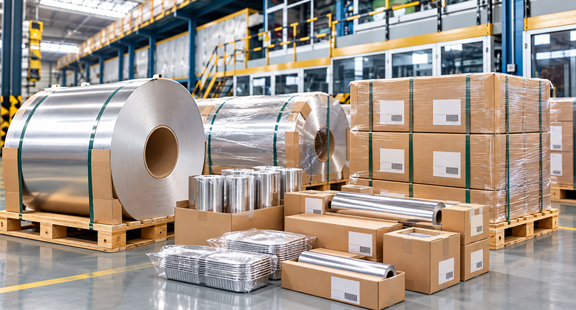

OEM programs can include customer branding, printed cartons, product labels, metric and imperial sizes, barcodes, color codes, instruction sheets and customized pallet patterns.
Trademark use, artwork approval, regulatory labeling and country-of-origin marking remain subject to the purchase agreement and target-market requirements.
The following values indicate the broad coated-aluminum platform. Each converting process has its own narrower capability window.
| Parameter | Development Range and Options |
|---|---|
| Aluminum alloys | 1000, 3000 and 5000 series, selected according to application |
| General coated thickness | Approximately 0.08–3.00 mm, subject to alloy, width and coating route |
| General coated width | Approximately 100–2,650 mm; selected extra-wide vehicle projects may be evaluated beyond this range |
| Coating systems | PE, SMP, PVDF, FEVE, epoxy and approved functional systems |
| Colors | RAL, Pantone, physical sample, wood grain, stone grain, camouflage and decorative patterns |
| Surface | Smooth, high gloss, matte, embossed, brushed, mirror or patterned |
| Coating sides | One visible topcoat plus back primer, full double-side coating, or different front/reverse systems |
| Conversion | Slitting, cut to length, film, embossing, circles, blanks and project-specific recoiling |
| Supply form | Master coil, slit coil, narrow strip, mini coil, sheet, circle or custom blank |
| Packing | Standard export pack, production-line pack, individual carton or OEM/private-label pack |
Final feasibility depends on the combined alloy, temper, thickness, width, coating, quantity and conversion route.
For roll formers, stampers and laminators, Ding'ang can develop slit width, ID, OD, weight and winding around the feed system.
Best suited to:
For panel builders and job shops, cut-to-length material can reduce local leveling, cutting and surface handling.
Best suited to:
For distributors, manageable coils can be packed and labeled by size, color and brand.
Best suited to:
For cookware and component manufacturers, circles and blanks can be supplied close to the required forming geometry.
Best suited to:
End application
Alloy and temper
Thickness and tolerance
Master or finished width
Mechanical-property requirement
Exterior, interior or both
Coating system
Color reference
Gloss and texture
Coating thickness
Reverse-side requirement
Protective film
Performance test
Slit width or sheet dimensions
Edge, burr, flatness or squareness requirement
Coil ID, OD and weight
Winding direction
Circle or blank drawing
Length or weight per mini coil
Splice allowance
Annual volume
Order quantity by size and color
Carton artwork
Label and barcode
Pallet dimensions
Destination and unloading limits
Sample and approval schedule
The more complete the RFQ, the faster Ding'ang can determine feasibility and prepare a meaningful proposal.
A project-specific inspection plan may cover:
Golden samples, signed drawings and approved packaging artwork should be controlled as part of the product specification.
The substrate, paint system and downstream format can be developed as one project rather than isolated purchases.
The supply platform supports extra-wide coated material, standard master coils, narrow strip, small coils and blanks.
Packing can be designed for sea transport, automated production, distributor handling or private-label sales.
Approved colors, drawings, labels and technical standards can be retained for scheduled or repeat orders.
Customers can combine coils, strips, sheets and blanks under a coordinated material and color program.
— Confirm the finished product, process and target market.
— Check the combined alloy, thickness, width, coating and conversion route.
— Define material, tolerances, testing, packing and commercial assumptions.
— Prepare color panels, slit samples, sheets, blanks or packaging mockups.
— Validate forming, feeding, bonding, assembly and end-use appearance.
— Approve drawings, golden samples, labels and inspection criteria.
— Manufacture and convert to the approved route.
— Verify product, pack and traceability before shipment.
MOQ depends on alloy, thickness, width, color, coating system and conversion. A standard color and common substrate normally require less development than an exclusive color or complex private-label program.
Yes. A clean physical sample is preferred when appearance must match an existing product. Color, gloss, texture and coating system should be approved together.
Custom widths can be evaluated. Provide the finished-width tolerance, burr and camber limits, coil ID, weight and winding direction.
Yes, subject to alloy, thickness, width, line capacity, flatness, sheet handling and transportation. Provide the exact size and maximum acceptable pallet weight.
Not automatically. Film adhesive must be compatible with the coating, texture, temperature and storage time. A full-process trial is recommended.
Mini-coil and OEM-packing programs can be evaluated according to dimensions, quantity, length or weight tolerance, carton design and conversion route.
Yes, but production feasibility and MOQ must be reviewed by color, substrate, coating system and finished size. Standardizing substrate and coating structure can make a multi-SKU program more efficient.
The exact route depends on the product and capacity. Some operations may use qualified converting partners. The quotation and quality plan should clearly identify the responsible supply chain.
Send us your application, material specification, finished dimensions and packaging brief. Ding'ang will review the complete route from substrate and coating to conversion and delivery.
