Prepainted Aluminum for Trailers, RVs, Ambulances & Vehicle Bodies

Pre-painted aluminum coating production line

Material Designed Around the Complete Vehicle Body

A vehicle-body panel is a system. The aluminum skin, adhesive, insulation or core, frame, sealant and protective film must work together through fabrication and service.

Ding'ang helps vehicle manufacturers address:

Wide sidewall flatness and visual consistency
Weight reduction without sacrificing practical durability
Coating flexibility during bending, profiling and corner forming
Reliable bonding to foam, plywood, honeycomb or composite cores
Resistance to UV, humidity, road salt and repeated cleaning
Color coordination between body panels, roof, doors and trim
Surface protection during cutting, lamination and assembly
Repeatable specifications for multi-model production
Coil size, sheet length and packing matched to the production line

Configure Your Vehicle Material Program

Recommended Transportation Materials

Request a Vehicle Material Proposal

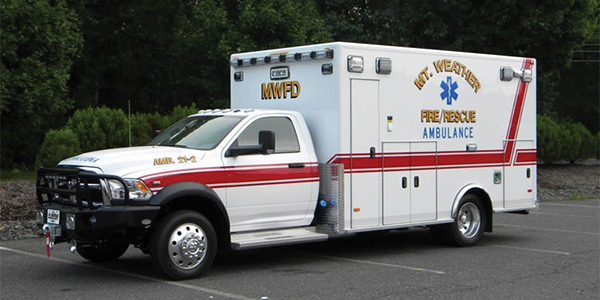

Coated aluminum for specialty vehicle and ambulance bodies

Specialty Vehicle & Ambulance Body Aluminum

Prepainted aluminum skin for ambulance body panels, emergency-vehicle compartments, mobile clinics, command vehicles and service bodies.

Ambulance and medical-vehicle surfaces are expected to remain clean in appearance and withstand frequent washing. High-gloss or controlled-gloss white is common, while colored accents may be produced from an approved RAL, Pantone or physical sample.

Important specification points include sidewall width, bonding surface, coating flexibility, surface-cleaning requirement and protective-film behavior.

View Ambulance Body Aluminum Request Specialty Vehicle Ambulance Body Quote

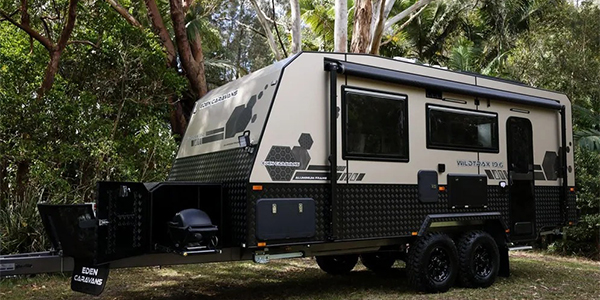

RV & Caravan Aluminum

Prepainted aluminum coil and sheet for RV and caravan sidewalls, roofs, front and rear panels, interior panels and decorative components.

Supply options include smooth high-gloss surfaces, matte finishes, stucco or other embossed textures, and custom colors. Material may be supplied as extra-wide coil, cut-to-length sheet or strip according to the body-panel process.

View RV & Caravan Aluminum Request RV Caravan Quote

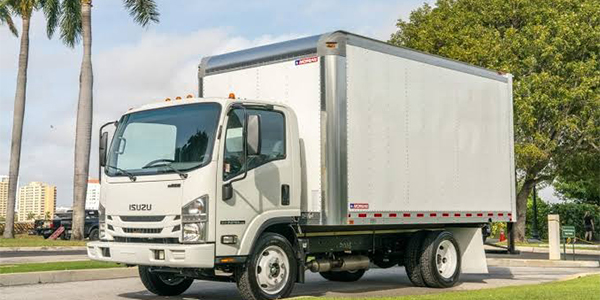

Trailer & Truck Body Aluminum

Coated or mill-finish aluminum for box trailers, enclosed cargo trailers, horse trailers, mobile workshops, truck bodies and service vehicles.

The material can be selected for bonded sidewalls, mechanically fastened skins, roofs, interior liners and formed trim. Higher-strength 5000-series alloys may be evaluated where improved strength or corrosion resistance is required.

View Trailer Body Aluminum Request Trailer Truck Body Quote

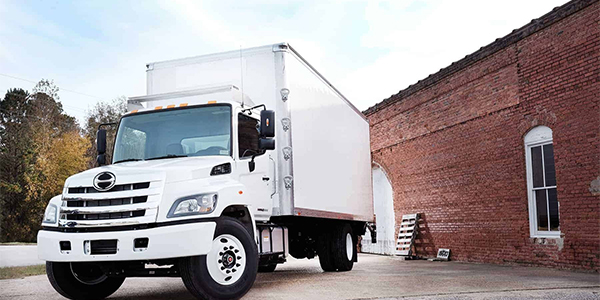

Coated aluminum for refrigerated truck and cold-chain bodies

Refrigerated Truck & Cold-Chain Aluminum

Prepainted aluminum for insulated truck bodies, refrigerated trailers, cold-chain vans and temperature-controlled compartments.

Interior and exterior skins face different conditions. Exterior surfaces require weather resistance, while interior surfaces may require cleanability, controlled gloss and resistance to moisture or approved cleaning agents. The two sides should therefore be specified separately.

View Refrigerated Truck Aluminum Request Refrigerated Truck Cold-Chain Quote

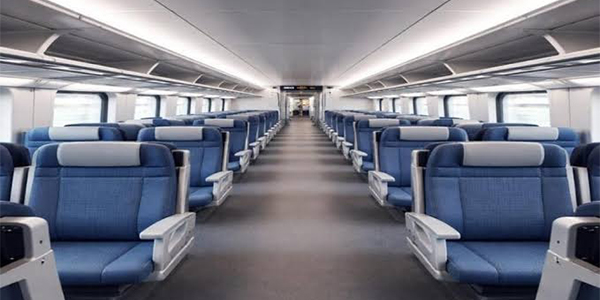

Decorative aluminum for bus and rail interiors

Bus & Rail Interior Aluminum

Coated, embossed, brushed or decorative aluminum for ceilings, wall panels, luggage areas, partitions, doors and equipment housings.

Where flame, smoke or toxicity performance is required, compliance must be established for the finished material or complete assembly under the applicable transport standard. A general coating name alone does not establish compliance.

View Bus & Rail Interior Aluminum Request Bus Rail Interior Quote

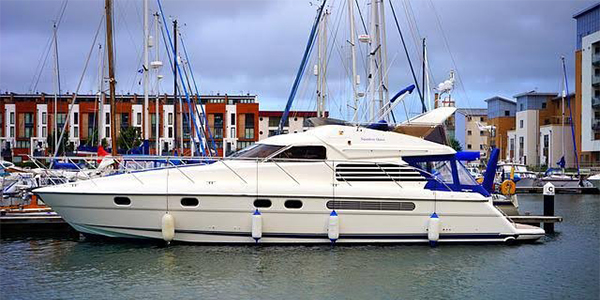

PVDF coated aluminum for marine and coastal vehicles

Marine & Coastal Aluminum

Coated aluminum for boat cabins, marine interior panels, service vessels, coastal vehicles and components operating in salt-laden environments.

Alloy, pretreatment, coating system and cut-edge protection should be selected together. Marine suitability should be confirmed through an application-specific specification and relevant corrosion testing.

View Marine & Coastal Aluminum Request Marine Coastal Quote

Request a Vehicle Material Proposal

Typical Material Configurations

Review Your Vehicle Material Specification

The following ranges are starting points. Final specifications depend on body construction, panel size, forming process, operating environment and applicable vehicle standard.

Parameter	Typical Options
Aluminum alloys	AA5052, AA5754 and AA5083; selected 3000-series alloys for less demanding skins and interior components
Tempers	H24, H26, H32, H34, H46, H48 and project-specific tempers
Thickness	Approximately 0.50–3.50 mm; many vehicle-body skins use approximately 0.50–1.50 mm
Width	Standard and extra-wide formats; selected vehicle programs can be evaluated from approximately 1,600 to 2,650 mm
Coating systems	PE for general body and interior use; PVDF or FEVE for demanding exterior exposure
Typical paint thickness	PE generally not less than 18 μm; other systems according to approved specification
Surface	Smooth, high gloss, matte, stucco embossed, patterned or brushed
Colors	High-gloss white, transport white, metallic colors, RAL, Pantone or customer sample
Reverse side	Service coat, bonding primer, full coating or project-specific treatment
Protection	Optional laser-compatible or standard protective film, subject to validation
Coil ID	Typical 508 mm or 610 mm for large vehicle coils; other IDs by agreement
Supply form	Master coil, extra-wide coil, slit coil, cut-to-length sheet or fabricated blank

Information Required Before Quotation

Vehicle type and body-panel location
Exterior or interior use
Bonded, riveted, screwed or formed construction
Panel length, width and thickness
Alloy or strength requirement
Color, gloss and surface texture
Exposure to UV, salt, chemicals or frequent washing
Adhesive, core and lamination temperature
Protective-film requirement
Maximum coil or sheet weight
Annual volume and delivery schedule

Review Your Vehicle Material Specification

Application Guidance

Discuss Your Vehicle Material Application

Ambulances and Emergency Vehicles

Ambulance bodies often combine large bonded panels with doors, compartments and formed edge components. The visible surfaces should be controlled for flatness and color, while the reverse side must be compatible with the selected adhesive system.

Recommended validation includes:

Adhesive compatibility and peel performance
Panel flatness after lamination
Resistance to approved cleaning chemicals
Coating adhesion after bending
Protective-film removal after assembly
Color matching for repair or repeat production

Any antibacterial or hygienic claim should identify the tested coating, organism, method and result.

Discuss Ambulances Emergency Vehicles

RVs and Caravans

RV production may use smooth bonded sidewalls, embossed coil siding, roof coil and decorative interior panels. Each construction requires a different balance of thickness, stiffness and formability.

Extra-wide smooth material reduces visible seams, but it also increases the importance of:

Cross-width flatness
Coil handling
Lamination tension
Adhesive distribution
Protective film
Controlled batch color

For profiled siding, the profile geometry and minimum bend radius should be supplied for forming evaluation.

Discuss RVs Caravans

Trailers and Commercial Bodies

Trailer skins are exposed to vibration, impact, fastener stress and road contamination. Mechanically fastened panels need suitable strength around holes and fasteners, while bonded panels require a controlled reverse surface.

Before production, confirm whether the metal will be:

Bonded to plywood, foam, honeycomb or composite board
Fastened directly to a frame
Bent around corners
Roll formed into roof or side profiles
Printed, decaled or wrapped after assembly

Discuss Trailers Commercial Bodies

Refrigerated Vehicles

Cold-chain bodies experience temperature cycling, condensation and frequent cleaning. Aluminum skins should be evaluated together with insulation, adhesive, sealant and joint design.

Interior material should be specified for the actual cleaning process. If food-zone use is intended, the buyer should identify the applicable hygiene and food-contact requirements rather than relying on a generic “food grade” description.

Discuss Refrigerated Vehicles

Bus, Rail and Marine Applications

Interior transport and marine projects may require additional controls for fire behavior, corrosion, slip, cleanability or low-temperature forming.

These requirements should be stated as measurable standards. Ding'ang can then evaluate an appropriate substrate and coating route and provide supporting test documents where available.

Discuss Bus Rail Marine Applications

Discuss Your Vehicle Material Application

Performance and Quality Requirements

Depending on the vehicle and process, the purchase specification should define:

Define Your Quality Requirements

Alloy, temper and mechanical properties
Thickness and width tolerance
Flatness and edge wave
Coating thickness and cross-width uniformity
Color difference and gloss tolerance
T-bend or minimum bend radius
Cross-hatch adhesion
Reverse impact
Pencil hardness
Salt-spray and humidity resistance
Accelerated-weathering requirement
Cleaning-chemical resistance
Reverse-side bonding condition
Surface energy where relevant
Protective-film adhesion and removal window
Coil ID, OD, weight and splice requirements
Sheet length, squareness and pallet protection

Application trials are recommended before mass production whenever a new adhesive, coating, profile or panel structure is introduced.

Define Your Quality Requirements

Why Ding'ang for Transportation Aluminum?

01

Extra-Wide Prepainted Aluminum

Wide coating capability supports large vehicle panels with fewer joints and a cleaner finished appearance.

02

5000-Series Material Options

AA5052, AA5754 and AA5083 options can be evaluated for vehicle and marine applications requiring useful strength and corrosion resistance.

03

Front-and-Back Surface Engineering

The visible surface and bonding surface can be specified independently according to appearance and lamination needs.

04

Coating and Converting Support

Custom coating can be combined with slitting, protective film, embossing and cut-to-length processing.

05

Repeat Program Management

Approved color standards, specifications and coil identification can support repeat vehicle models and scheduled purchasing.

Discuss Your Vehicle Material Program

Vehicle Material Development Process

Start Your Project Review

01

Review the Vehicle Structure

— Confirm panel location, dimensions, assembly method and service environment.
02

Select the Substrate

— Define alloy, temper, thickness, width and mechanical requirements.
03

Configure the Surface

— Select coating, color, gloss, texture, reverse treatment and film.
04

Produce Trial Material

— Prepare samples or trial quantities for forming, bonding and appearance evaluation.
05

Approve the Production Standard

— Record the approved sample, test criteria and packing specification.
06

Manufacture & Convert

— Coat, slit, emboss, laminate film and cut to the agreed format.
07

Inspect & Deliver

— Verify dimensions, surface, color, coil data and export packing.

Start Your Project Review

Frequently Asked Questions

Ask a Technical Question

Which aluminum alloy is commonly used for vehicle bodies?

AA5052 and AA5754 are common starting points for vehicle skins and panels. AA5083 may be considered for selected higher-strength or marine-related applications. Final selection depends on the panel structure, forming process and strength requirement.

Can Ding'ang supply aluminum wide enough for a complete RV sidewall?

Extra-wide coil and sheet can be evaluated up to the capability of the selected alloy, thickness, coating system and coil weight. Please provide the finished panel width and production-line limits.

Is PE coating suitable for vehicle exteriors?

PE is widely used for general vehicle-body and interior applications. PVDF or FEVE may be preferred when stronger long-term weathering performance is required. The correct system depends on climate, exposure and target service life.

Can the reverse side be prepared for adhesive bonding?

Yes. Back primer, service coating or another agreed reverse treatment can be evaluated. Bonding must be validated with the customer’s actual adhesive, core, temperature and production process.

Can you match our existing fleet color?

Color can be developed from a RAL reference, Pantone reference or approved physical sample. A production color standard should be retained for repeat orders.

Can material be supplied as cut-to-length extra-wide sheets?

Yes, subject to sheet dimensions, thickness, flatness requirement, cutting capability, handling and packing. Long or very wide sheets require a project-specific logistics review.

Do you supply flame-retardant material for bus or rail interiors?

Application-specific coating systems can be evaluated, but compliance must be confirmed against the required test standard and the final material or assembly. Please provide the exact fire, smoke and toxicity requirement.

Develop Your Vehicle Aluminum Specification

Send us your panel drawing, body construction, target color and fabrication process. Ding'ang will propose an aluminum, coating and supply format for technical evaluation.

Request a Vehicle Material Proposal Upload a Panel Drawing Ask for an Extra-Wide Sample
