3003 Vs 5052 Color Coated Aluminum Coil: How To Choose for Your Exterior Project

Choosing the right color coated aluminum coil can help control material costs and improve the performance of your exterior project. Dingang supplies color coated aluminum solutions for building panels, roofing accessories, outdoor enclosures, and other fabricated products.

When comparing 3003 and 5052 aluminum coil, the key is to match the alloy to your working environment and fabrication process. 3003 is often a practical choice for general exterior applications, while 5052 is worth considering when higher strength or more demanding corrosion resistance is required.

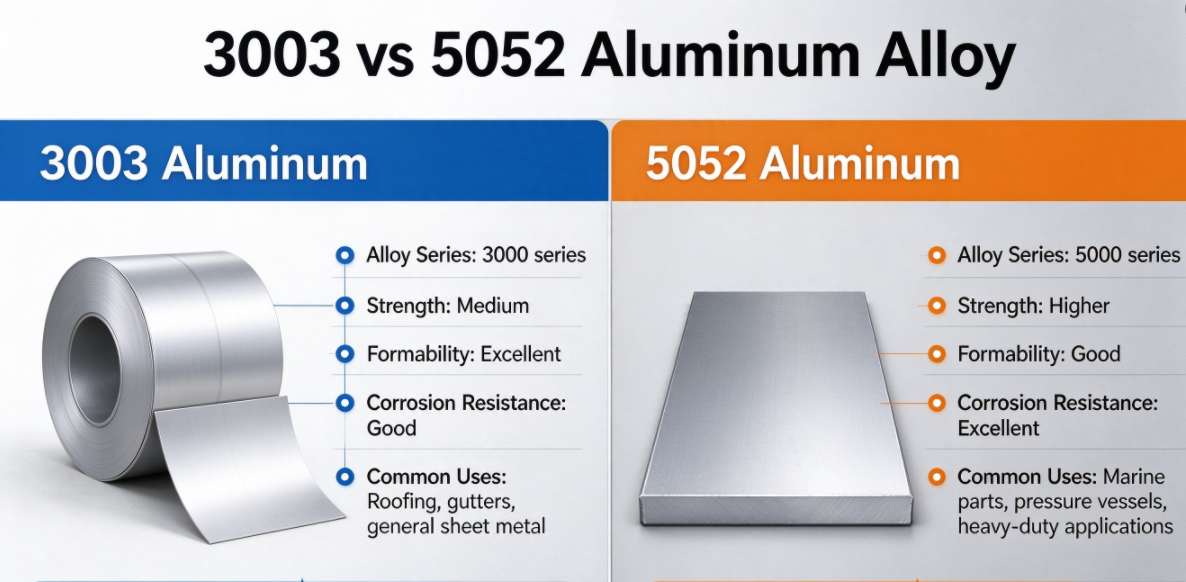

3003 vs 5052: What Is the Difference?

Both alloys are non-heat-treatable aluminum alloys, but their compositions give them different performance characteristics. 3003 belongs to the aluminum-manganese series, while 5052 belongs to the aluminum-magnesium series.

These are general alloy characteristics, not guaranteed values for every coil. Mechanical properties depend on the temper and product specification.

When Should You Choose 3003 Color Coated Aluminum Coil?

3003 is a practical option when your project requires good formability, general corrosion resistance, and cost control. It is commonly considered for building products that need to be bent, rolled, or shaped into profiles.

Typical Applications

• Corrugated roofing and exterior building components.

• Rain gutters, flashing, and drainage accessories.

• Decorative panels and formed aluminum profiles.

• General-purpose outdoor components in moderate environments.

Why It Can Be Cost-Effective

For projects that do not require the additional strength of 5052, choosing 3003 may help avoid unnecessary material costs. Its forming characteristics can also be useful for products with multiple bends or shaped profiles.

However, a lower alloy cost does not automatically mean a lower total project cost. Coating performance, fabrication waste, thickness, and expected maintenance should also be considered.

When Should You Choose 5052 Color Coated Aluminum Coil?

5052 is known for its higher strength and good corrosion resistance, including in many marine-related applications. It can be a suitable option for exterior projects exposed to more demanding conditions or requiring greater mechanical performance.

Typical Applications

• Exterior panels and equipment enclosures.

• Outdoor components requiring higher strength.

• Selected coastal and marine-related applications.

• Fabricated parts where strength and corrosion resistance are important.

What Should You Consider Before Upgrading?

5052 may provide useful performance advantages, but it can also require different forming settings and bend-radius considerations. Before switching from 3003, confirm that the selected temper works with your equipment and product design.

For coastal projects, alloy selection alone is not enough. The pretreatment, coating system, coating thickness, edge protection, fasteners, and maintenance plan all contribute to long-term performance.

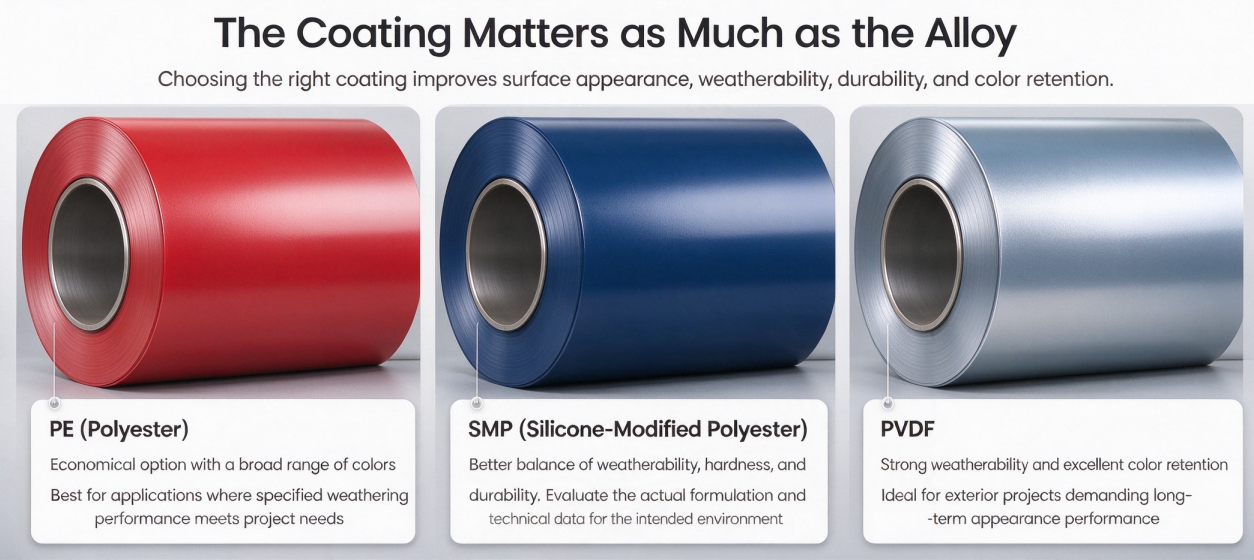

The Coating Matters as Much as the Alloy

For color coated aluminum coil, the substrate and coating perform different functions. The alloy affects strength and forming behavior, while the coating system influences surface appearance, weatherability, and color retention.

The best coating depends on the project's exposure conditions, service expectations, and budget. Confirm coating performance requirements with the supplier rather than relying on the coating name alone.

How to Choose for Your Exterior Project

1. Evaluate the Installation Environment

Consider whether the product will be installed inland, near the coast, or in an industrial area. Salt deposits, moisture, pollutants, and cleaning practices can affect long-term performance.

2. Check the Forming Process

For corrugation, tight bending, or complex profiles, confirm the alloy temper, thickness, and minimum bend radius. Trial forming can help identify potential coating cracks or fabrication problems before mass production.

3. Match the Coating to the Service Conditions

Choose the coating based on UV exposure, weathering requirements, color retention, and the intended service environment. A suitable coating system is particularly important for exterior applications.

4. Compare the Complete Project Cost

Review the substrate price, coating specification, processing requirements, packaging, transportation, and expected maintenance. The right choice is the material that meets your performance requirements at a reasonable total cost.

Dingang Color Coated Aluminum Coil for Exterior Applications

Dingang works with customers to review alloy, temper, thickness, width, color, coating, and end-use requirements before confirming a suitable specification.

• Application-based selection: Support for comparing 3003 and 5052 according to project requirements.

• Coating options: Available systems and colors depend on the required specification.

• Specification communication: Technical requirements can be reviewed before production.

• After-sales support: We take customer concerns seriously and actively work toward practical solutions when problems arise.

We understand that material quality, consistent appearance, and reliable communication all matter to exterior projects. Our aim is to help customers select suitable products and resolve concerns responsibly throughout the cooperation process.

Frequently Asked Questions

Is 5052 always better than 3003 for outdoor use?

No. Both alloys can be used in suitable exterior applications. 5052 generally offers higher strength and is often preferred for more demanding environments, while 3003 can be sufficient and more economical for many general-purpose applications.

Can 3003 color coated aluminum coil be used near the coast?

It may be suitable for some coastal applications, but the complete system must be evaluated carefully. Exposure severity, coating performance, edge protection, and maintenance requirements should all be considered.

Does 5052 need a different coating from 3003?

Not necessarily. Both alloys can be used with suitable coating systems, but the final choice depends on the product specification, pretreatment, fabrication process, and intended service environment.

What information should I provide for a quotation?

Provide the alloy and temper, thickness, width, coating type, color, application, and estimated order quantity. Drawings or technical specifications are also helpful when available.

Request a Quote for Color Coated Aluminum Coil

Choosing between 3003 and 5052 starts with understanding your project's actual requirements. Whether your priority is formability and cost control or higher strength and more demanding corrosion resistance, Dingang can help review the relevant specifications.

Contact Dingang with your application details and required specifications to discuss a suitable color coated aluminum coil solution.
