5182 H111 1mm Deep Drawing Anti Rust Aluminum Sheet

You are here: Home » Brushed Surface » Mill Finish Aluminum Coil & Sheet » 5000 Series Aluminum » 5182 H111 1mm Deep Drawing Anti Rust Aluminum Sheet

Share to:

5182 H111 1mm Deep Drawing Anti Rust Aluminum Sheet

Material Standard: EN AW-5182 / AlMg4.5Mn0.4 (Compliant with ASTM B209 / EN 485)

Thickness Range: 0.5mm – 100mm (Customizable)

Width Range: 1000mm – 2500mm

Surface Treatment: Mill Finish, Oiled, Anti-fingerprint, or PE Coated

Processing Services: Precision Slitting, Cut-to-length, Stamping

Application: Automotive Panels, Can Lids, Complex Deep-Drawn Enclosures

Business Type: Manufacturer / Direct Export

Sales Model: Wholesale & Bulk Supply

Min. Order Quantity (MOQ): 10 - 15 Tons (Negotiable for trial orders)

Packaging: Standard Export Wooden Pallets with Waterproof Paper & Steel Straps

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview & Key Features

The 5182 H111 1mm Deep Drawing Anti Rust Aluminum Sheet is an advanced aluminum-magnesium alloy specifically engineered for high-deformation stamping, complex deep drawing, and harsh working environments. Containing high magnesium content combined with precise manganese addition, 5182 aluminum delivers exceptional tensile strength, work-hardening capacity, and superior atmospheric corrosion resistance.

Key Technical Attributes

Superior Deep Drawing Capability: Perfect for intricate automotive inner panels, structural brackets, and complex enclosures without cracking or orange-peel effect.

Outstanding Corrosion Resistance: Excellent resistance to marine atmospheres, industrial emissions, and chemical exposure.

Clean Surface & Precision Tolerances: Manufactured under strict gauge control systems to ensure consistent thickness tolerance and smooth surface finish for downstream coating or anodizing.

Superior Weldability: Fully compatible with MIG, TIG, and spot welding procedures, maintaining strong joint integrity.

Technical Specifications

Parameter	Specification / Value
Alloy Grade	5182 (AlMg4.5Mn0.4 / EN AW-5182)
Temper	H111
Thickness	1.0 mm (±0.02 mm)
Tensile Strength (Rm)	275 – 350 MPa
Yield Strength (Rp0.2)	≥125 MPa
Elongation (A50mm)	≥20%
Compliance Standards	ASTM B209, EN 485, GB/T 3880, ISO 9001

Applications & Industrial Uses

Automotive Industry: Deep-drawn car door inner panels, hood structures, trunk lids, and chassis reinforcements.

Packaging & Enclosures: High-strength food/beverage can lids, pull rings, and pressure-resistant containers.

Precision Sheet Metal: Control cabinets, electronic device housings, and custom stamped brackets.

Packaging, Shipping & Logistics

To ensure your order arrives in flawless condition without oxidation or scratch damage during sea freight, we apply strict export packaging standards:

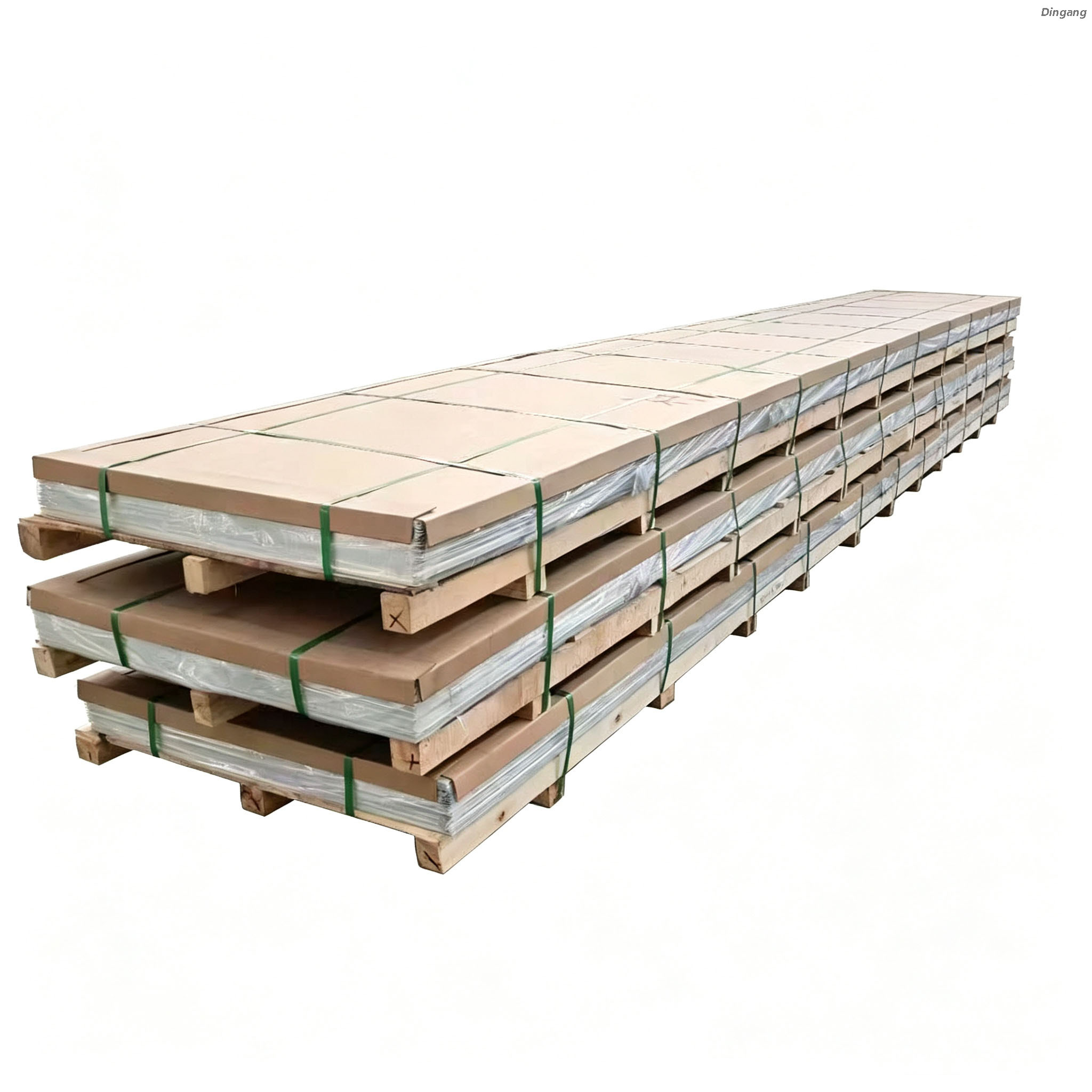

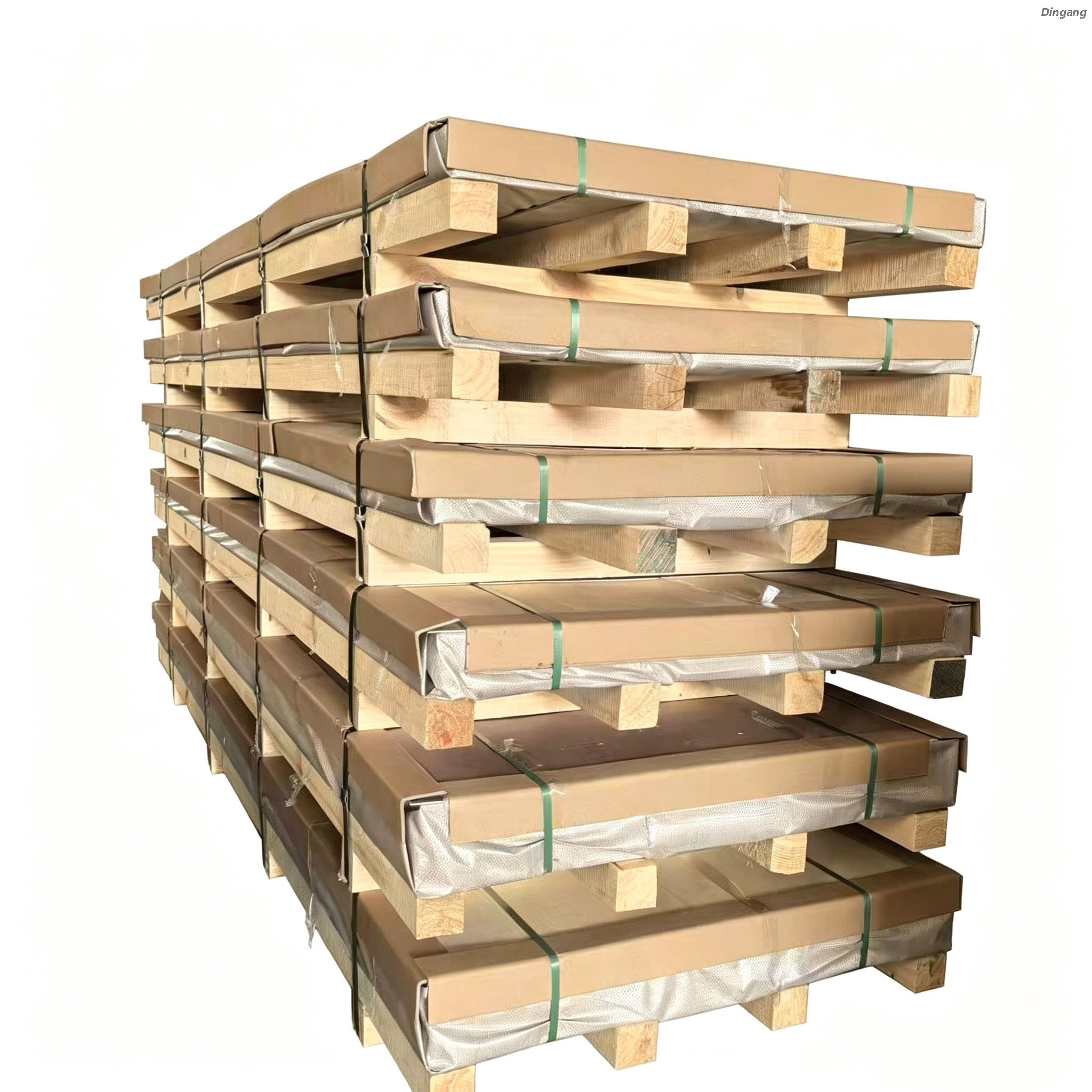

Packaging Standard: Fully wrapped with waterproof protective film, heavy-duty craft paper, corner protectors, and bound on sturdy seaworthy wooden pallets (fumigation-free).

Shipping Options: Full Container Load (FCL), Less than Container Load (LCL), or bulk vessel arrangements.

Port of Loading: Main Chinese sea ports (Shanghai / Ningbo / Qingdao).

Delivery Lead Time: 15 – 25 days upon deposit confirmation.

Payment Terms, Quality Guarantee & Factory Strength

Accepted Payment Terms

We offer flexible payment options to support our international buyers:

T/T (Telegraphic Transfer): 30% advance deposit upon contract signing, 70% balance paid against Bill of Lading (B/L) copy.

L/C (Letter of Credit): 100% Irrevocable L/C at sight.

D/P & Credit Terms: Available for long-term strategic partners.

Quality Assurance & After-Sales Service

100% Traceability: Every batch comes with an official Mill Test Certificate (MTC) conforming to EN 10204 3.1.

Pre-Shipment Inspection: Third-party inspections (SGS, BV, TUV) are fully supported prior to loading.

After-Sales Commitment: In the rare event of quality or dimensional discrepancies, our dedicated service team provides rapid claims response within 48 hours with full replacement or refund guarantees.
