Louver Shutter Special Thin Aluminum Strip

Core Advantages

1. Specially optimized thin gauge for louver production

   Matched thickness range 0.4mm–0.9mm, consistent flatness, suitable for automatic rolling and bending equipment to form louver slats efficiently.

2. Flexible weather-resistant PE coating

   Good ductility under repeated cyclic bending; no paint cracking at bending positions during long-time switch movement of shutters.

3. Outstanding outdoor anti-UV performance

   Anti-fade PE coating inhibits chalking and discoloration, maintains stable color for outdoor shading facilities.

4. Lightweight 3003 aluminum alloy substrate

   Low density reduces the overall load of sun shading system; good rust resistance for outdoor humid environments.

5. Rich customizable width specifications

   Common widths 65mm /75mm /88mm /95mm /102mm, customizable according to customer louver mold sizes.

6. Smooth surface with multiple finish options

   Matte, semi-gloss optional; multiple classic RAL colors including white, grey, champagne, dark brown for architectural decoration.

7. Complete anti-scratch protective film

   The surface is covered by transparent PE film to prevent coating abrasion during slitting, transportation and forming processing.

8. Stable dimensional tolerance

   Precision slitting control, small width deviation, suitable for mass automatic production of louver factories.

Production Process

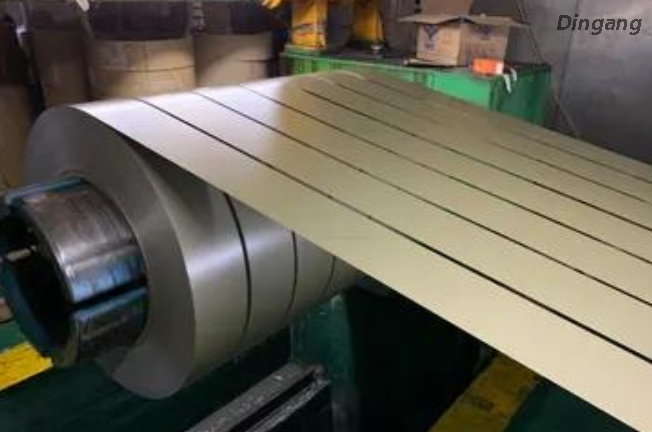

Aluminum base coil uncoiling → Continuous degreasing cleaning → Chromium-free passivation treatment → Hot air drying → PE primer coating & curing → PE topcoat coating & baking → Cooling → Protective film lamination → Precision slitting to target width → Flatness correction → Bending performance sampling test → Visual inspection → Roll packaging

Standard Technical Parameters

Main Application Fields

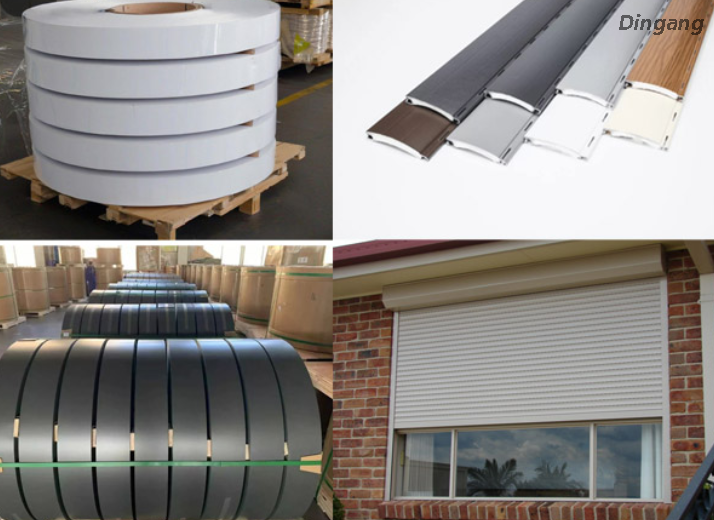

1. Sunroom shading louvers and ventilation shutters

2. Residential outdoor window shutters & balcony sun blinds

3. Commercial building exterior ventilation louver system

4. Indoor partition decorative shutters

5. Factory workshop ventilation shutter blades

Export Packaging Standard

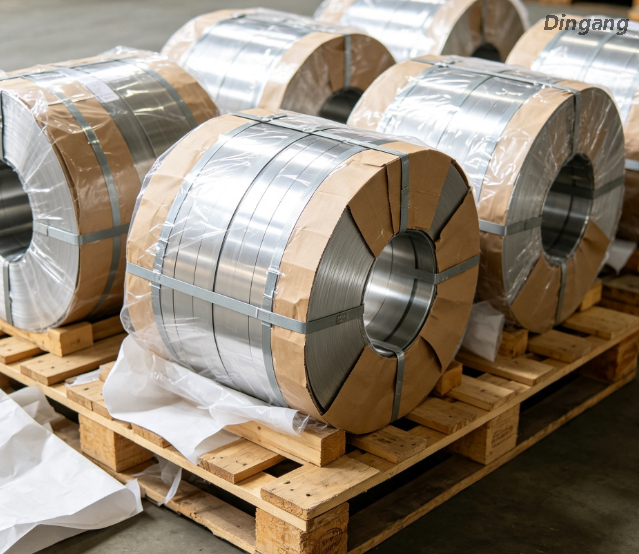

Each roll of louver aluminum strip is wrapped with dust-proof PE film and neutral kraft paper. The decorative surface remains protected by anti-scratch film. Rolls are fixed on IPPC fumigated wooden pallets with plastic strapping to prevent loose winding and deformation during ocean transportation. Clear shipping marks show alloy grade, thickness, width, color, net weight, gross weight and batch number. We can provide fumigation certificate, Mill Test Certificate and full customs documents for overseas buyers.

Inspection & After-sales Service

Seven pre-shipment inspection processes: coating thickness test, color difference check, cross-cut adhesion test, repeated bending simulation test, salt spray test, flatness detection and full surface defect screening. We provide complete technical documents. Our technical team supports free forming guidance for louver production. If coating peeling, uneven size or surface defects are confirmed within 7 working days after goods arrival, we will respond quickly and provide reasonable solutions.

FAQ

Q1: Why choose this strip instead of ordinary aluminum strip?

A: Ordinary aluminum strips are mostly thick and rigid. This product adopts thin gauge flexible coating formula, designed for repeated bending of shutter blades, perfectly matching automatic louver production equipment.

Q2: Can it be used for outdoor sunroom louvers?

A: Yes. UV-resistant PE coating effectively prevents fading, applicable for long-term outdoor shading equipment.

Q3: Can custom width and special colors be supported?

A: We accept customized slitting width, and support all conventional RAL color customization according to customer samples.

Q4: Will the paint crack after frequent opening and closing of shutters?

A: Flexible modified PE coating can withstand cyclic bending test, suitable for long-term frequent switch of louver shutters.
