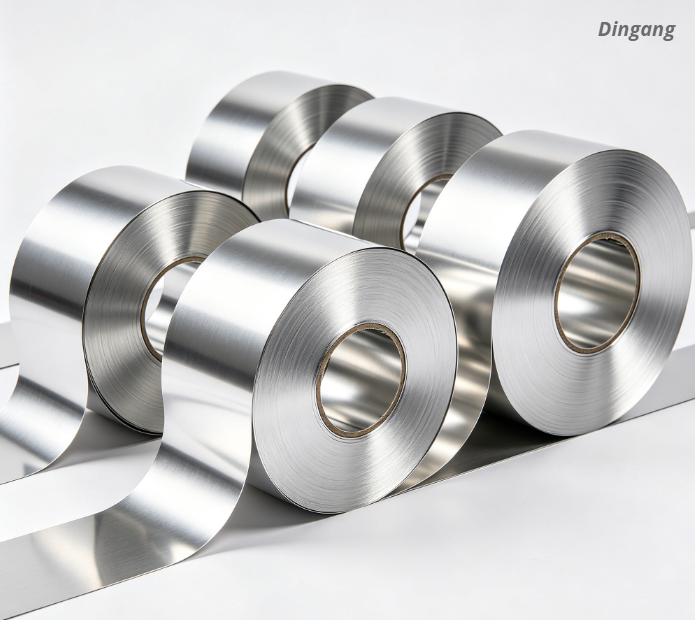

Mill Finish Aluminum Strip Coil 1060 3003 Slitted Narrow Aluminum Strip Roll for Transformer Pipe Wrapping Stamping Parts

1. Core Advantages

1. Precision slitting technology：Imported hard alloy circular knife slitting, minimum width 15mm, width tolerance ±0.05mm, smooth burr-free edge, no scratch between strip layers after rewinding.

2. Complete alloy & temper system：1050/1060 pure aluminum with high plasticity; 3003 manganese aluminum with superior anti-rust performance; O soft temper for deep drawing; H hard temper for stamping & structural parts.

3. Stable mechanical performance：Full annealing treatment, uniform internal stress, no cracking during bending and stamping, suitable for automatic high-speed stamping production lines.

4. Custom mini coil design：Inner core 300mm paper core / 505mm steel core standard; small mini coil 50-500kg customizable, match different size production equipment, save storage space.

5. Superior surface quality：Original mill bright finish, no scratch, oil stain or oxide spots, uniform metallic luster, natural anti-oxidation without extra coating.

6. Wide application adaptability：From ultra-narrow electronic accessories strip to wide pipeline wrapping strip, cover electrical, hardware, construction, decoration multiple industries.

2. Production Process

Wide aluminum coil raw material incoming inspection → uncoiling → online surface defect detection → precision slitting machine cutting → constant tension rewinding → edge burr inspection → anti-rust film wrapping → pallet stacking & packaging. Full online thickness and width monitoring system ensures stable dimension for every strip coil.

3. Standard Technical Parameters

• Base alloy: 1050, 1060, 3003 aluminum

• Thickness range: 0.1mm – 4.0mm

• Slitting width: 15mm – 1500mm customized

• Temper state: O soft, H12, H14, H16, H18 hard temper

• Edge treatment: Smooth burr-free slitting edge

• Inner core: 300mm paper core / 505mm steel core

• Coil weight: 50kg – 2000kg adjustable

• Mechanical property: Tensile strength 70MPa – 200MPa based on alloy & temper

4. Main Application Fields

1. Electrical industry: Transformer winding aluminum strip, inductor raw material, motor winding, distribution box components

2. Pipeline engineering: Metal pipe anti-corrosion wrapping strip, water pipe protective layer, oil & gas pipeline insulation outer cover

3. Hardware processing: Stamped small aluminum accessories, fastener raw material, furniture hardware, lighting housing parts

4. Decoration industry: Metal profile raw material, furniture edge strip substrate, ceiling decorative strip, wall trim

5. Other industries: Automotive lightweight parts, new energy battery connectors, welding electrode raw material

5. Export Packaging Standard

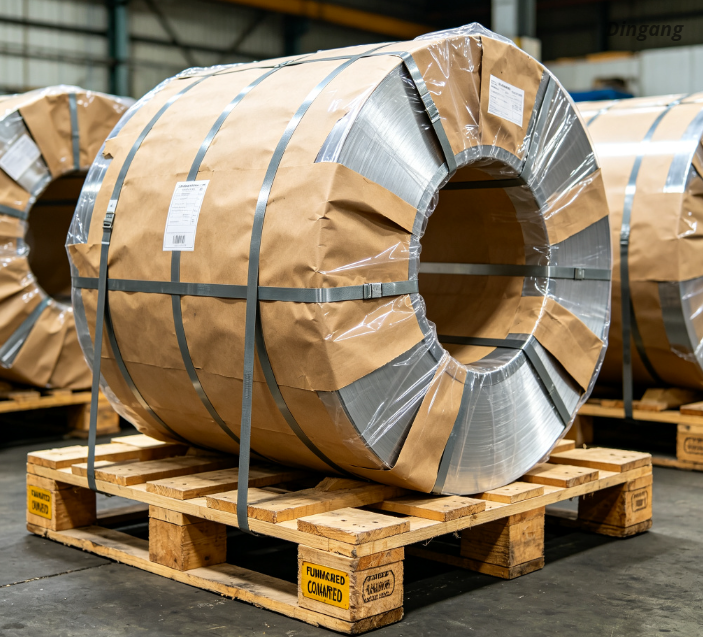

Single aluminum strip coil wrapped with multi-layer anti-rust oil paper + transparent plastic film; separate paper partition pad between stacked coils to avoid surface scratch; two ends installed hard plastic protective cover. All coils fixed on fumigated wooden pallet with high strength steel strapping, whole pallet wrapped waterproof plastic film all around. Clear shipping label marked alloy, thickness, width, net weight and production batch number. Fumigation certificate provided for customs clearance.

6. Inspection & After-sales Service

Triple strict inspection before delivery: slitting width & thickness tolerance test, edge burr inspection, surface defect screening, winding tightness check. Full set of shipping documents provided: MTC mill test certificate, MSDS, RoHS report, commercial invoice & packing list. If any quality problem found within 7 working days after receiving goods, send photos & video evidence, our technical team will respond within 24 hours and provide re-production, supplementary shipment or reasonable compensation solutions.

FAQ

Q1: What temper aluminum strip is best for transformer winding?

A: O soft temper 1060 aluminum strip is standard choice for transformer winding, good ductility and conductivity, easy for automatic winding machine.

Q2: Can you slit ultra narrow aluminum strip below 20mm?

A: Yes, minimum slitting width 15mm with burr-free smooth edge, precision tolerance ±0.05mm, suitable for small electronic accessories.

Q3: Is 3003 aluminum strip better for outdoor pipe wrapping?

A: Yes, 3003 alloy contains manganese element, has stronger anti-corrosion ability than 1060 pure aluminum, more suitable for outdoor humid and coastal environment.

Q4: What's your MOQ for aluminum strip coil?

A: Stock standard size MOQ 1 ton; customized alloy/size MOQ 3 tons. Small trial order acceptable for stock products.

Q5: Can aluminum strip be stamped into small hardware parts?

A: Yes, O/H14 temper aluminum strip supports deep stamping, bending and punching processing, no cracking after forming.
