AA1050 H14 0.8MM Color Coated Aluminium Coil for Pipe Insulation Cladding

Product Introduction

AA1050 H14 color coated aluminium coil is a pure aluminum prepainted coil specially engineered for pipe insulation cladding (pipe jacketing). AA1050 is commercially pure aluminum with ≥99.5% aluminum content. H14 half-hard temper balances rigidity and excellent roll-forming & bending performance. The 0.8mm thickness is the most popular gauge for thermal insulation outer protection of pipelines.

The coil is pre-coated with PE or optional PVDF paint on the surface. It serves as the outer protective jacket over thermal insulation layers, blocking moisture, rain, dust and UV exposure. It prevents insulation material damage, maintains stable thermal performance, and delivers neat, uniform finished appearance for industrial piping systems. It can be easily roll-formed, curved and fabricated on site for pipe cladding, tank insulation and duct jacketing projects.

Technical Parameters

Key Advantages

Excellent corrosion resistance

• Pure aluminum substrate will not rust. Color coating isolates moisture and chemical vapors, suitable for outdoor and humid industrial environments.

Perfect formability

• H14 temper supports bending, roll forming and cutting without coating cracking, ideal for pipe cladding fabrication.

Lightweight

• Much lighter than steel cladding, reduces transportation cost and on-site installation labor load.

Stable thermal protection

• The outer jacket protects foam/mineral wool insulation from water penetration to avoid thermal efficiency loss.

Consistent color & low maintenance

• Factory pre-painted surface, uniform color, no on-site painting required, long service life and minimal maintenance.

Recyclable

• 100% recyclable aluminum material, eco-friendly for industrial projects.

Application Range

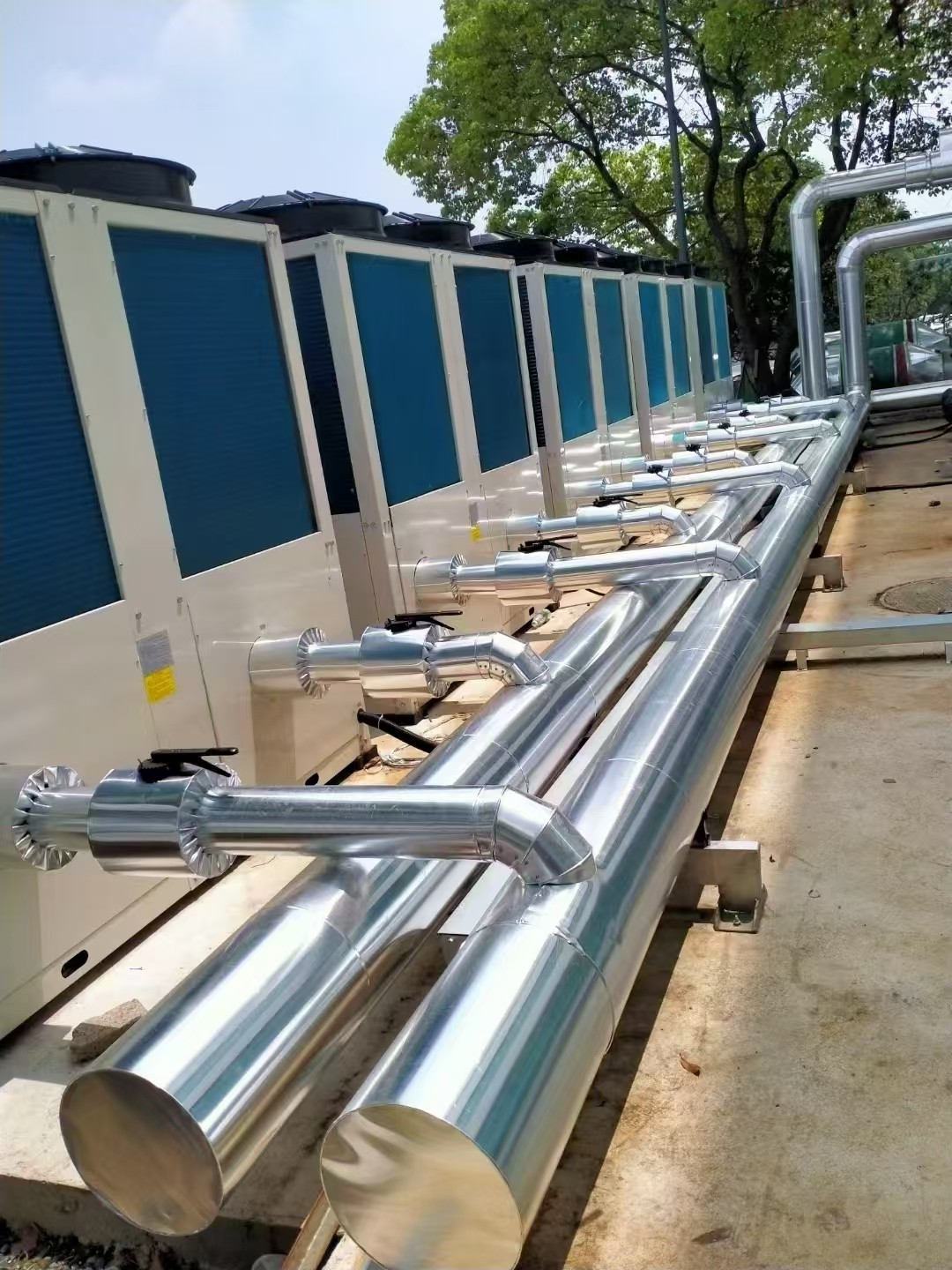

This 0.8mm AA1050 H14 color coated aluminum coil is mainly used as pipe insulation cladding / jacketing:

• Steam pipe, hot water pipe, chilled water pipe insulation outer cover

• Industrial pipeline, HVAC duct insulation protection

• Storage tank insulation cladding

• Oil & gas plant, power plant, chemical factory piping insulation

• Outdoor pipeline thermal insulation jacket, building mechanical pipe system

Why Choose Us

1. Factory direct supply of prepainted aluminum coil, stable raw material quality and competitive pricing.

2. Strict inspection for substrate, coating adhesion, thickness and color difference before shipment. We guarantee no paint peeling after bending for pipe cladding fabrication.

3. Flexible customization: adjustable width, RAL color selection, PE/PVDF coating options and protective film.

4. Rich export experience for pipe jacketing projects, support technical data sheet and mill test certificate.

5. Stable production schedule and reliable packing to avoid surface scratch during sea transportation.
