Architectural 3D Textured Anodized Aluminum Plate for Interior & Facade

Material Grade: 3003 / 5052 Architectural Aluminum Alloy

Surface Patterns: 3D Erotex , Lychee , Glossy/Matt Dot

Color Options: Warm Copper, Bronze, Red, Silver, Custom Anodized Shades

Anodized Layer: 10µm – 25µm Architectural Class I/II

Thickness Range: 1.0mm – 3.0mm (Custom Cut-to-Size)

Sales Models: Factory Direct Wholesale & OEM / ODM Custom Embossing

Min Order (MOQ): 2 Metric Tons

Lead Time: 20 Business Days

Packaging: Seaworthy Wooden Pallets with Laser Protective PE Film

Certifications: ISO 9001,SGS,ROHS，REACH

Availability:

Quantity:



Inquire Add to Basket

Product Description

Our Architectural 3D Textured Anodized Aluminum Plates offer a revolutionary surface finish for modern building facades, rainscreen cladding, and luxury interior spaces. Featuring unique 3D stamped patterns—including Erotex, Lychee grain, and Glossy/Matt Dot textures—combined with a rich anodized finish, these premium panels deliver unmatched tactile depth, visual sophistication, and long-lasting weather durability.

Parameter	Specification / Feature
Product Name	Architectural 3D Textured Anodized Aluminum Plate
Available 3D Patterns	Erotex (Micro-texture), Lychee (Pebbled/Embossed), Dot (Glossy/Matt Wave Dot)
Alloy Grade	3003 (Al-Mn Alloy) / 5052 (Al-Mg Marine Grade)
Temper	H14, H24, H32
Standard Thickness	1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm
Standard Dimensions	1220x2440mm, 1250x2500mm, 1500x3000mm (Custom Sizes Available)
Color Palette	Warm Copper, Classic Bronze, Anodized Red, Metallic Silver, Custom Shades
Anodizing Thickness	Architectural Class I (≥ 25 µm) / Class II (10 µm - 15 µm)
Quality Standards	Compliant with Qualanod, AAMA 611, ASTM B209, ISO 9001

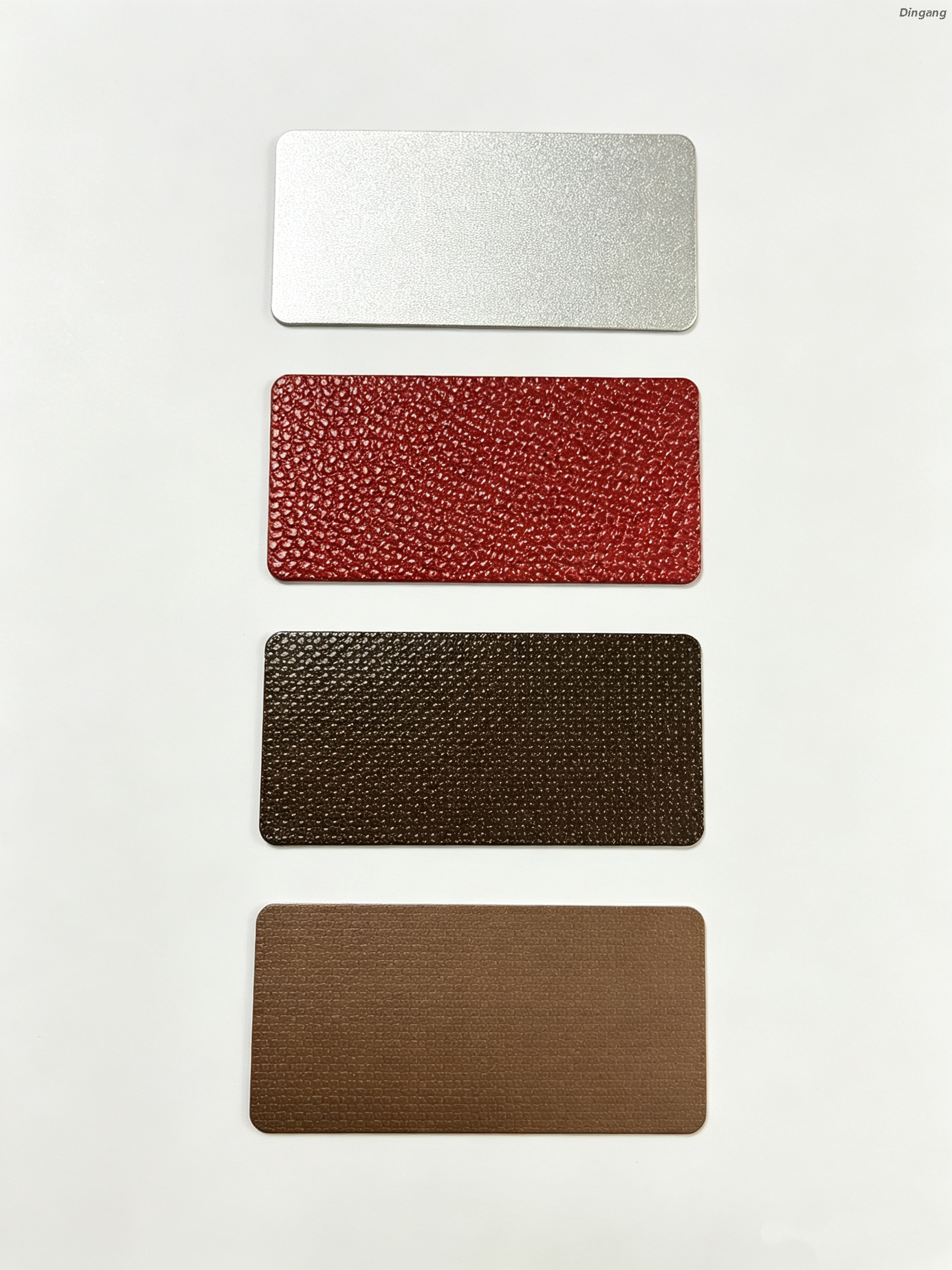

Distinctive 3D Surface Finishes

3D Lychee Pattern:

Features a rich pebbled, organic texture that creates a dynamic light-and-shadow effect across building facades while concealing minor surface handling marks.

3D Dot Pattern (Glossy / Matt):

Combines geometric precision with light diffusion, available in both satin and high-gloss metallic finishes for a high-tech architectural feel.

Erotex Surface:

A subtle, fine-grained micro-texture designed for contemporary interior wall cladding, elevator interiors, and refined acoustic panels.

Key Performance Advantages

3D Architectural Aesthetics:

Stamped three-dimensional patterns add structural rigidity and high-end visual interest that standard flat panels cannot achieve.

Superior Weather & UV Resistance:

The electrochemical anodized oxide film integrates directly into the aluminum substrate, preventing chipping, flaking, and chalking under severe UV exposure.

Batch-to-Batch Color Consistency:

Advanced color control technology ensures uniform bronze, copper, and custom color matching across large architectural panel lots.

Low Maintenance & Scratch Resistance:

The hardened 3D surface resists finger marks, environmental pollutants, and handling scratches, significantly reducing cleaning costs over the building lifecycle.
