Distinguishing Between Spray - Coated Surfaces and Pre - Coated Surfaces

In the fields of metal processing and decoration, accurately distinguishing between spray - coated surfaces and pre - coated surfaces is of great significance for material selection, quality control, and application scenario matching. Although both are surface coating technologies, they differ significantly in formation principles, performance characteristics, and appearance features. The following will elaborate on their differences from multiple perspectives.

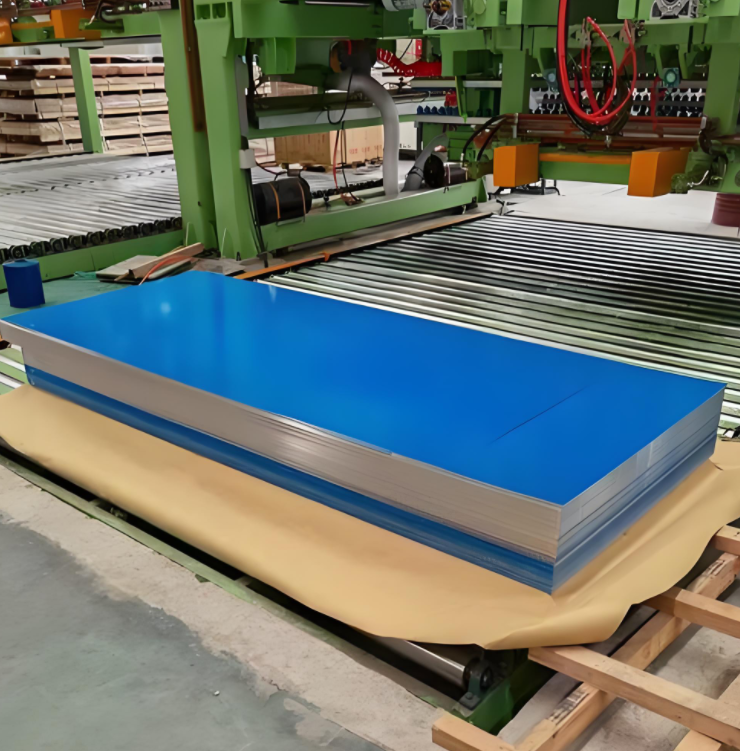

彩铝板1


1. Definition and Formation Process

Spray - coated surfaces refer to the coating formed by spraying liquid coating onto the metal surface through spray guns or other spraying equipment. The coating is atomized into fine droplets by the spray gun and then adheres to the metal surface, and finally forms a solid coating after drying or curing. This process is usually carried out after the metal has been processed into a specific shape, that is, coating is applied on the finished or semi - finished products.

Pre - coated surfaces, on the other hand, are coatings formed by applying the coating to the metal sheet or coil before the metal is processed into the final product. The coating is uniformly applied to the flat metal substrate through roller coating, curtain coating, or other methods, and then cured by heating or ultraviolet radiation and other means. After that, the pre - coated metal sheet or coil is processed into various shapes as needed.


2. Appearance Characteristics

2.1 Spray - Coated Surfaces

The appearance of spray - coated surfaces is relatively rough. Due to the atomization and spraying process, the coating surface may have subtle spray marks, such as small ripples or unevenness that can be observed under certain light conditions. In some cases, tiny particles or bubbles may be present in the coating, especially if the spraying process parameters are not properly controlled.
The edge treatment of spray - coated surfaces is often not very precise. Due to the fluidity of the liquid coating during spraying, there may be phenomena such as paint overflow or blurring at the edges, and the transition between the coating and the uncoated area is not sharp.
The gloss of spray - coated surfaces can be adjusted according to the formula of the coating, but in general, the gloss uniformity is slightly poor compared with pre - coated surfaces, and there may be local differences in gloss due to the uneven distribution of the coating during spraying.

2.2 Pre - Coated Surfaces

Pre - coated surfaces have a very smooth and uniform appearance. Because the coating is applied on a flat metal substrate by roller coating and other methods, the coating thickness is uniform, and there are no obvious spray marks or particles on the surface. The surface is as smooth as a mirror under normal vision, which is one of the significant characteristics of pre - coated surfaces.
The edges of pre - coated surfaces are very clear. Since the coating is applied before the metal is processed into the final shape, the coating on the edge of the metal sheet or coil is cut neatly during the processing, and there is no paint overflow or blurring, and the boundary between the coating and the substrate is clear and distinct.

The gloss of pre - coated surfaces is highly uniform. The stable coating application process and strict curing conditions ensure that the gloss of the entire surface is consistent, without obvious local fluctuations.


3. Differences in Touch

Spray - coated surfaces, when touched, usually give a slightly rough feeling. This is because there may be tiny protrusions or unevenness on the surface caused by factors such as the spraying process. In some cases, if the coating is not fully leveled during curing, there may be subtle indentations or unevenness.

Pre - coated surfaces feel very smooth and flat to the touch. The uniform coating thickness and smooth surface make the touch very consistent, without obvious bumps or unevenness. It feels like touching a highly polished material.


4. Performance Differences

4.1 Coating Thickness

The coating thickness of spray - coated surfaces is generally thinner, and the thickness uniformity is relatively poor. Due to the influence of factors such as the distance of the spray gun, the spraying speed, and the viscosity of the coating, the thickness of different parts of the same surface may vary.
The coating thickness of pre - coated surfaces is relatively thick and has high uniformity. The roller coating process can accurately control the amount of coating applied, so the thickness of the coating on the entire surface is very consistent, which is beneficial to ensure the stability of the coating's performance.

4.2 Adhesion and Durability

The adhesion of spray - coated surfaces to the substrate is affected by many factors, such as the surface treatment of the substrate before spraying, the curing conditions of the coating, etc. In general, its adhesion is slightly lower than that of pre - coated surfaces, and it is prone to peeling or chipping in harsh environments.
Pre - coated surfaces have excellent adhesion to the substrate. The coating is applied on the clean and flat metal substrate, and through strict curing, a strong chemical bond is formed between the coating and the substrate, so it has high durability and can withstand various external impacts and environmental 侵蚀.

4.3 Corrosion Resistance

The corrosion resistance of spray - coated surfaces is acceptable for general indoor environments, but in outdoor or humid and corrosive environments, its performance is relatively insufficient due to the influence of coating thickness and uniformity.

Pre - coated surfaces, due to their uniform and thick coating, have better corrosion resistance. They can effectively isolate the metal substrate from the external environment and resist the erosion of moisture, oxygen, and corrosive media, so they are more suitable for use in harsh environments.


5. Application Scenarios

Spray - coated surfaces are often used in products with complex shapes or small - batch production, such as some metal parts, handicrafts, and equipment casings. Because the spraying process is flexible and can adapt to the coating of various complex shapes.
Pre - coated surfaces are widely used in large - area flat metal products, such as metal plates for building facades, ceiling panels, household appliance panels, etc. Their excellent appearance and performance make them an ideal choice for these fields.

In conclusion, by comprehensively observing the appearance characteristics, feeling the touch, and understanding the performance differences, we can accurately distinguish between spray - coated surfaces and pre - coated surfaces, so as to select the appropriate coating method according to the actual needs.
