How Do Weather-Resistant Pre-Painted Aluminum Sheets Protect Harsh-Environment Edge Computers?

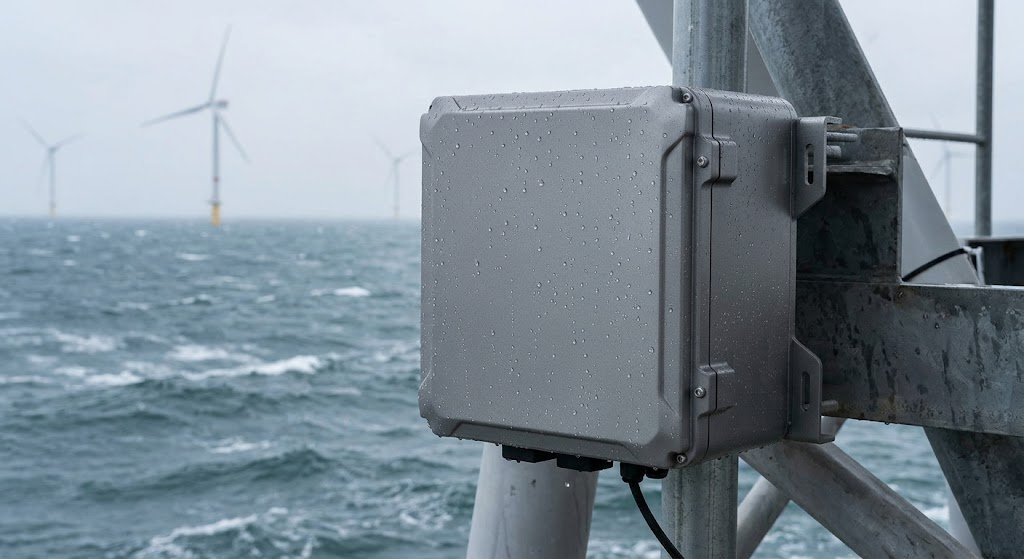

As artificial intelligence processing, 5G private networks, and Internet of Things (IoT) architectures decentralize, high-performance edge computing nodes are increasingly deployed outside climate-controlled data centers. Operating in harsh environments—such as marine ports, offshore oil rigs, desert solar farms, and roadside smart transportation cabinets—outdoor edge computing enclosures face severe environmental threats.

Thermal throttling, solar radiation gain, galvanic corrosion, and airborne chemical ingress pose continuous risks to sensitive microprocessors and power supplies. Weather-resistant pre-painted aluminum sheets (3000 and 5000 series alloys with high-durability PVDF, FEVE, or super-durable polyester coatings) provide an essential structural and protective solution. They deliver long-term corrosion resistance, superior thermal dissipation, solar heat rejection, and robust IP-rated environmental isolation.

Harsh Deployment Hazards

Edge compute nodes operating at the industrial edge operate without external HVAC systems, exposing sealed IP66/IP67 enclosures to dynamic climate stressors:

Solar Heat Load & Thermal Throttling: Unshaded enclosures under direct sunlight take on extreme solar irradiance (1000 W/m²). Uncoated or dark housings absorb this energy, causing internal ambient temperatures to spike and triggering severe CPU/GPU clock throttling.

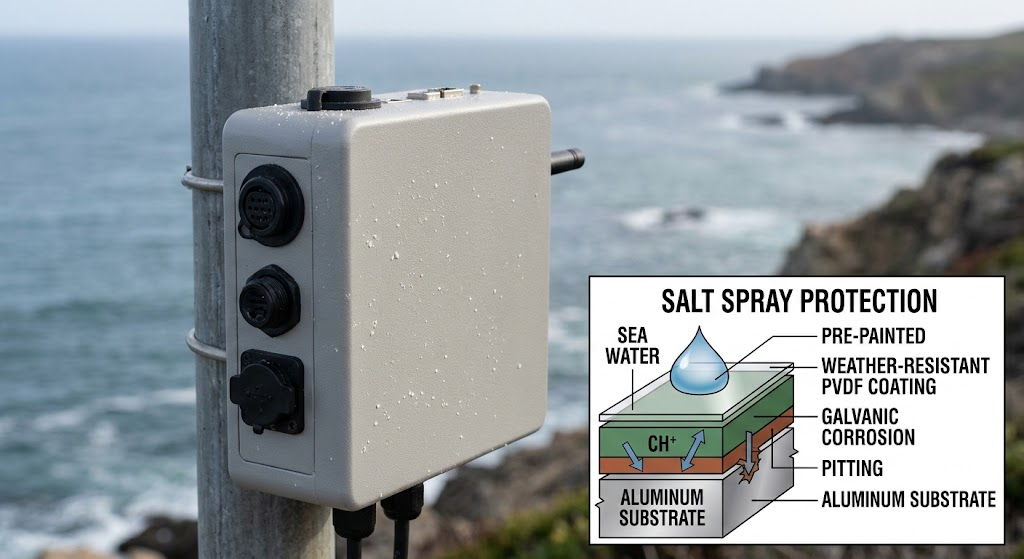

Atmospheric Corrosion & Enclosure Degradation: Coastal salt spray, chemical plant fumes, and high humidity breach standard powder coatings, causing oxidation, panel warping, and eventual seal failure.

Comparison: Standard Powder-Coated Steel vs. Weather-Resistant Pre-Painted Aluminum Sheet

Edge Computer Enclosure Materials

The matrix below compares traditional structural sheet materials against weather-resistant pre-painted aluminum sheets for edge computer enclosures:

Key Professional Advantages in Harsh-Environment Edge Computing

Long-Term Fluoropolymer Passivation & Edge-Creep Corrosion Suppression

Extreme Chemical Bond Stability (C-F Bond Energy >485 kJ/mol): The high bond energy of PVDF/FEVE fluoropolymers resists degradation from intense UV radiation (ASTM G154), acid rain, and industrial chemical fumes (SO₂NOₓ), preventing chalking, gloss retention drop, or surface embrittlement over 20+years.

Elimination of Cut-Edge Creep Rust: Unlike galvanized steel—where punched openings and shear edges expose raw iron to rapid red rust propagation—the 5052H32 aluminum core forms an instantaneous, self-passivating oxide layer (Al₂O₃). When combined with flexible coil-coated primers, edge-creep corrosion and film lifting (ASTM D1654) are entirely suppressed under 3000+ hours of accelerated salt fog exposure (ASTM B117).

View More >>

Spectral NIR Solar Heat Reflection & Radiative Thermal Balance

Near-Infrared (NIR) Solar Rejection (700 nm - 2500 nm): Formulated with Complex Inorganic Color Pigments (CICP), pre-painted topcoats achieve a solar reflectance index (SRI > 78) and low solar absorptance (aₛ < 0.25). Under direct summer solar loads (1000 W/m²), this reduces outer skin thermal gain by 10°C - 15°C compared to post-painted industrial cabinets.

Dual Thermal Removal Path (Conduction + Radiation): Heat generated by high-TDP AI accelerators (e.g., 75W - 300 W GPU/NPU modules) conducts rapidly through the aluminum substrate (130 - 200W/m·K) to external heat-dissipation fins. Simultaneously, the high-emissivity coating (ε > 0.90) emits heat energy across the infrared spectrum (8μm - 14 μm), preventing thermal throttling without relying on maintenance-prone mechanical fans.

View More >>

High Specific Strength, Structural Lightweighting & Integrated EMI Attenuation

Mass Optimization for Pole & Mast Deployments: With a low density of 2.70 g/cm³ (65% lighter than carbon steel), pre-painted aluminum panels reduce static loading on 5G smart poles, traffic gantries, and remote telecom towers, lowering mechanical vibration resonance during high-wind storms.

Electromagnetic Compatibility (EMC) & Faraday Cage Protection: The continuous conductive aluminum core provides >85 dB attenuation across 10 MHz - 10 GHz, shielding internal edge compute boards from external radio frequency interference (RFI), high-voltage switching surges, and radar pulses while maintaining long-term physical enclosure integrity.

View More >>

High-Performance Fluoropolymer (PVDF / FEVE) Resin Matrix

Pre-painted aluminum coil coatings designed for outdoor edge computer enclosures utilize advanced fluoropolymer chemistry:

Polyvinylidene Fluoride (PVDF) / Fluoroethylene Vinyl Ether (FEVE): Resin matrices with strong carbon-fluorine (C-F) chemical bonds exhibit extreme resistance to ultraviolet (UV) degradation, maintaining gloss and color stability over 15 - 20years of continuous outdoor exposure.

Complex Inorganic Color Pigments (CICP): Integrated NIR-reflective pigments bounce solar heat spectrum wavelengths (700 nm - 2500 nm) away from the housing, maintaining low solar absorptance (aₛ < 0.25).

Passive Thermal Emissivity & Heat Radiative Cooling

High Thermal Emissivity (ε > 0.9): Specialized pre-painted topcoats feature high surface emissivity, enabling the metallic enclosure to actively radiate internally generated processor heat out into the cooler ambient environment via radiative cooling.

Substrate Passivation & Chemical Pre-Treatment

Multi-Stage Degreasing & Acid Etching: Premium 3003-H14 or 5052-H32 aluminum alloy coils pass through continuous alkaline spray baths to strip residual rolling oils, followed by acid etching to remove non-uniform native oxides and activate the surface chemistry.

Chromate-Free Zirconium/Titanium Conversion Layer: A dense, nano-scale chemical conversion coating (15 nm - 30 nm) is continuously deposited. This passivates the aluminum substrate against sub-film micro-corrosion and establishes covalent bonding sites for the primary coating layer.

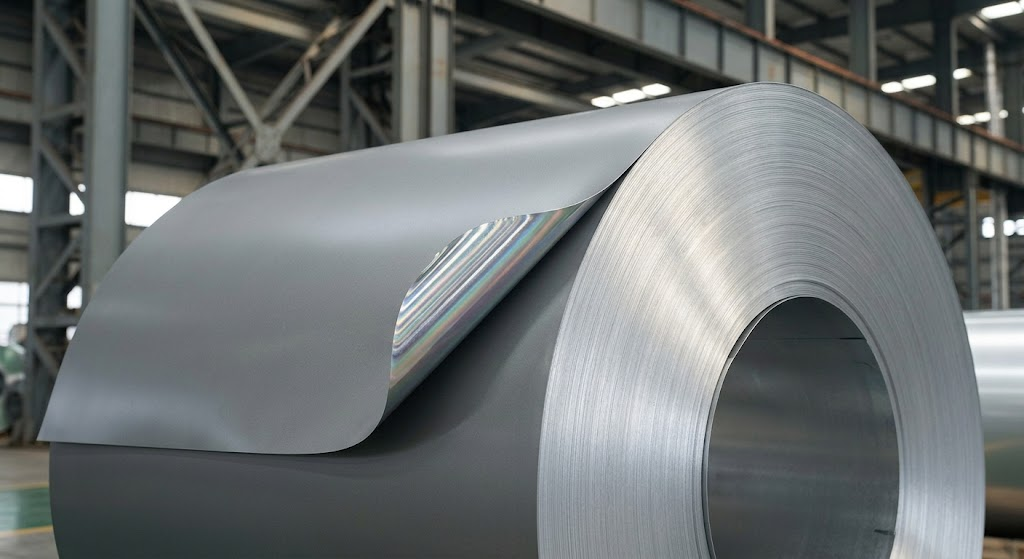

Continuous Roll-to-Roll Coil Coating & Peak Metal Curing

Automated Precision Reverse Roll-Coating: Coils pass through multi-head coaters applying an epoxy or polyurethane anti-corrosive primer (5μm - 8μm), followed by a high-durability PVDF or FEVE topcoat (20μm - 25μm) with strict dry film thickness tolerances (± 1μm).

Catenary Curing Oven Peak Metal Temperature (PMT) Control: High-velocity hot air ovens bake the moving strip at 240°C - 260°C PMT, achieving complete cross-linking of the fluoropolymer resin matrix to ensure superior flexibility (0T - 1T bend radius) without micro-fissuring.

Precision Slitting, Automated Quality Audit & Protective Packaging

Burr-Free Precision Slitting & Shear Control: Carbide rotary shears slit coated coils to exact chassis panel widths, maintaining edge burrs under ≤ 3μm to prevent stress concentration and coating delamination during automated CNC stamping.

Inline Optical Defect Inspection & Class 10,000 Packaging: High-speed laser scanners detect pinholes, color shifts (Δ E < 0.5), and film inclusions. Slit sheets are laminated with low-tack UV-resistant PE film and sealed with vapor corrosion inhibitors (VCI) for ocean transport.

FAQ

Q1:Why is pre-painted aluminum superior to post-painted (powder-coated) steel for outdoor edge computing enclosures?

A:Pre-painted aluminum features a continuously cured, highly uniform coil-coated layer that eliminates micro-pinholes common in post-sprayed powder coatings. Furthermore, aluminum's innate corrosion resistance prevents edge-creep rust if the coating is scratched during field installation.

Q2:How does a pre-painted aluminum housing help cool passive edge servers?

A:Pre-painted aluminum combines high bulk thermal conductivity (130 - 200 W/m·K) to draw heat away from internal heatsinks with a high-emissivity surface coating (ε > 0.90$) that radiates thermal energy directly into the external atmosphere.

Q3:Can pre-painted aluminum sheets be bent and stamped without cracking the paint?

A:Yes. Quality coil-coated pre-painted aluminum sheets use flexible PVDF or super-durable polyester resins engineered to endure tight bends (0T - 2T bend radius) without cracking, crazing, or losing interfacial adhesion.

Q4:What alloy is best for edge computer enclosures in coastal or marine environments?

A:5052-H32 aluminum is the industry standard for marine environments. Its high magnesium content provides exceptional resistance to salt fog, seawater pitting, and industrial chemical exposure.

Q5:Does the paint coating interfere with the enclosure's EMI shielding capability?

A:No. While the outer paint coating is non-conductive, the structural aluminum core beneath acts as a continuous Faraday cage. Electrical grounding points are easily established by masking or localized scraping at chassis mounting interfaces, grounding studs, and door gasket contact tracks.

Conclusion

Weather-resistant pre-painted aluminum sheets provide an effective structural and environmental shield for harsh-environment edge computer enclosures, ensuring long-term weatherability, solar heat rejection, and high thermal conductivity.

To optimize material selection for outdoor edge compute housing manufacturing:

Specify PVDF or FEVE Fluoropolymer Coil Coatings: Mandate 70% PVDF topcoats (25μm - 35μm) incorporating solar-reflective pigments (aₛ < 0.25$, ε > 0.90) for enclosures exposed to direct sunlight.

Select 5052-H32 for Marine/Industrial Deployments: Use 5052-H32 aluminum alloy for high magnesium-content corrosion resistance in marine, coastal, or high-humidity locations.

Audit T-Bend Adhesion & Salt Spray Certification: Ensure pre-painted coil suppliers provide certified ASTM B117 salt spray reports (>3000 hours) and verify coating adhesion (0T - 1T bend) to prevent flaking during automated CNC punching and bending.
