Can UV-Cured Coated Aluminum Plates Prevent Scratching on Outdoor Industrial Touchscreens?

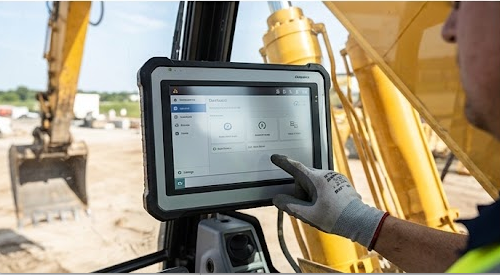

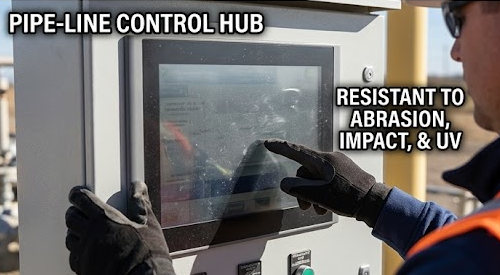

As industrial automation, interactive kiosks, and field-deployed human-machine interfaces (HMIs) expand into harsh outdoor environments, maintaining visual clarity and structural integrity is critical. Outdoor industrial touchscreens—deployed on construction equipment, smart charging stations, marine navigation systems, and oilfield control terminals—face continuous abrasive threats from airborne grit, metallic debris, high-frequency physical interactions, and harsh weather exposure.

UV-cured coated aluminum plates (3000 and 5000 series alloys with photo-initiated ultraviolet hardcoats) offer a high-performance solution for touchscreen front bezels, framing housings, and structural backplates. By combining ultra-high surface hardness (3H - 6H pencil hardness) with the lightweight strength and thermal conductivity of aluminum, these specialized plates effectively prevent surface scratching, resist chemical degradation, and protect sensitive display stacks.

Environmental & Operational Threat Vectors

Outdoor industrial HMIs operate in unmonitored or severe industrial settings where physical contact is frequent and harsh:

Particulate Abrasion & Windblown Dust: High-velocity airborne silica sand, metallic filings, and environmental grit scratch untreated metals and standard wet-spray paints, dulling the perimeter frame and compromising sealing gaskets.

Frequent Tactile Contact & Tool Impact: Operators wearing heavy work gloves embedded with abrasive particles, or using stylus tools and keys, repeatedly score the bezel surface, leading to aesthetic degradation and corrosion pathways.

Comparison: Standard Powder-Coated Bezel vs. UV-Cured Coated Aluminum Plate

Touchscreen Enclosure & Frame Materials

The matrix below compares conventional touchscreen frame materials against UV-cured coated aluminum plates:

Key Professional Advantages for Outdoor Industrial Touchscreens

Exceptional Scratch & Micro-Abrasion Resistance

High Polymer Density (3H - 6H Hardness): The densely cross-linked acrylate network creates a hard, resilient barrier that prevents micro-scratches from dust, metal shavings, and stylus tools. This preserves a clean aesthetic and prevents grime buildup in surface scratches over years of outdoor operation.

View More >>

Superior Chemical Isolation & Easy-Clean Properties

Solvent and Chemical Immunity: The cured hardcoat resists degradation from industrial solvents, fuel splatters, hydraulic fluid, and harsh cleaning agents (such as isopropyl alcohol, MEK, and bleach solution) used to sanitize public or industrial touchscreens.

Hydrophobic / Oleophobic Options: Formulations with fluorinated or silicone additives exhibit low surface energy, creating a stain-resistant surface that repels fingerprints, oils, and water, simplifying outdoor maintenance.

View More >>

Heat Dissipation & Dimensional Stability

Direct Thermal Dissipation: Touchscreen display panels and backlights generate significant thermal energy. The conductive aluminum core (130 - 200 W/m·{K) conducts heat away from sensitive display components to the outer frame, preventing touch controller drift and thermal discoloration.

Low Thermal Expansion: Unlike plastic bezels that expand, contract, and warp under outdoor temperature swings—causing gasket gaps and water ingress—aluminum maintains structural integrity across wide operating ranges (-40°C to +85°C).

View More >>

UV Photopolymerization Mechanism

Unlike thermally cured coatings that rely on slow solvent evaporation, UV-cured coatings undergo near-instantaneous cross-linking via ultraviolet irradiation:

Acrylic Functional Monomers & Oligomers: The liquid formulation contains multi-functional acrylates or aliphatic urethane acrylates mixed with photoinitiators.

Instant Free-Radical Polymerization: Upon exposure to high-intensity UV light (200 nm - 400 nm wavelength), photoinitiators cleave into reactive free radicals. These instantly bond monomer chains into a dense, three-dimensional polymer network in fractions of a second, yielding exceptional hardness and chemical resistance.

Micro-Structure & Optical Integration

Thin-Film Uniformity (10μm - 20μm): Because the coating cures instantly without sagging, edge-bead formation, or thermal shrinkage, panel edges remain crisp, ensuring seamless fitments against glass touch panels and IP67/IP68 sealing gaskets.

Anti-Glare & Matte Texture Controls: Nano-scale silica particles can be integrated into the UV matrix to diffuse harsh outdoor sunlight, reducing specular reflections without sacrificing surface hardness.

Substrate Passivation & Surface Chemistry

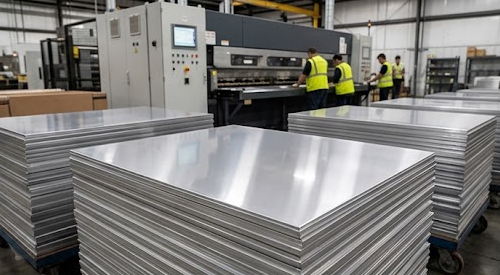

Alkaline Cleaning & Micro-Etching: 3003-H14 or 5052-H32 aluminum sheets pass through automated spray washers to eliminate organic contaminants, followed by mild etching to optimize mechanical keying.

Zirconium Conversion Coating: A non-chromate chemical conversion layer establishes a uniform passivated film (15 nm - 30 nm), shielding the metal core against interfacial corrosion while providing reactive sites for the UV topcoat.

High-Speed Precision Application & UV Curing

Precision Roll Coating / Curtain Coating: The liquid photopolymer is applied at controlled liquid thickness under cleanroom conditions (Class 1,000 / ISO 6) to eliminate airborne particle inclusions.

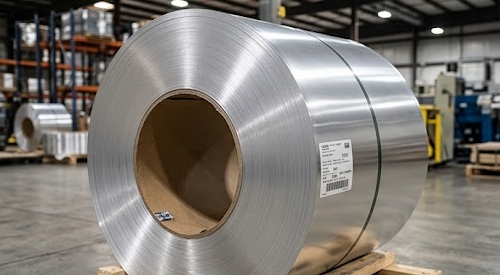

In-Line UV LED/Mercury Lamp Array: The coated strip moves beneath high-intensity UV lamps. The photo-curing reaction occurs in milliseconds at low process temperatures, preserving the temper and dimensional flatness of the underlying aluminum plate.

CNC Machining & Quality Assurance

Precision Stamping & Bezel Milling: Cured UV-coated plates are sheared, stamped, or CNC-milled to exact touchscreen bezel dimensions. The cross-linked coating maintains high film adhesion (5B rating via ASTM D3359 cross-hatch testing) without chipping at cut edges.

Quality Audits: Batches undergo rigorous pencil hardness testing (ASTM D3363), Taber abrasion evaluations (ASTM D4060), and cross-hatch tape adhesion testing to guarantee field reliability.

FAQ

Q1:Can UV-cured coated aluminum completely prevent scratches on outdoor touchscreen bezels?

A:While no material is completely scratch-proof against hardened steel tools or diamond-tipped objects, UV-cured coatings with 3H - 6H pencil hardness effectively resist common operational scratch hazards such as windblown dust, keys, fingernails, gloved hand contact, and industrial wipers.

Q2:Does the UV coating degrade or yellow under prolonged outdoor sunlight?

A:High-quality UV-cured acrylic and urethane hardcoats are formulated with hindered amine light stabilizers (HALS) and UV absorbers. They maintain optical clarity, gloss retention, and color stability without yellowing or chalking during extended outdoor exposure.

Q3:Can UV-coated aluminum sheets be stamped or bent after coating?

A:Yes, depending on the formulation. Formable UV coatings are engineered with balanced elasticity, allowing 1T - 2T precision bending and stamping without micro-cracking or flaking along the bend radii.

Q4:How does UV-cured aluminum compare to anodized aluminum for touchscreen frames?

A:UV-cured coated aluminum provides higher pencil hardness options (3H - 6H vs. 2H - 3H for standard anodizing), superior chemical/solvent resistance, and more flexible color and anti-glare texture options at lower production costs.

Q5:Is UV-cured coated aluminum suitable for food processing or pharmaceutical touchscreens?

A:Yes. The non-porous, highly cross-linked surface does not absorb moisture, resists aggressive cleaning and sanitizing chemicals, and prevents bacterial harboring, making it suitable for sanitary HMI enclosures.

Conclusion

To maximize protection and longevity when designing outdoor touchscreen housings with UV-cured coated aluminum:

Specify Hardness Level Based on Threat Profile: Select a 3H - 4H coating for standard outdoor HMI applications requiring a balance of formability and scratch resistance; choose a 5H - 6H hardcoat for high-abrasion environments (e.g., mining or construction control panels).

Match Alloy to Environmental Exposure: Use 3003-H14 for cost-effective standard housings or 5052-H32 for marine, coastal, or chemical plant installations requiring high magnesium-content corrosion protection.

Ensure Cleanroom Coating Quality: Verify that the coating supplier applies the UV hardcoat in a certified cleanroom environment to prevent micro-particle inclusions that could compromise gasket sealing or visual appearance.
